在MVC程序中,使用泛型囤积模式和工作单元实现增删查改

热度:125   发布时间:2016-05-02 03:20:21.0
在MVC程序中,使用泛型仓储模式和工作单元实现增删查改



在这片文章中,我将自己动手为所有的实体:写一个泛型仓储类,还有一个工作单元。

工作单元的职责就是:为每一个实体,创建仓储实例。仓储(仓库)的职责:增删查改的功能实现。

我们将会在控制器中,创建工作单元类(UnitOfWork)的实例,然后根据实体,创建仓储实例,再就是使用仓储里面的方法,做操作了。

下面的图中,解释了,仓储和EF 数据上文的关系,在这个图里面,MVC控制器和仓储之间的交互,是通过工作单元来进行的,而不是直接和EF接触。



那么你可能就要问了,为什么要使用工作单元???

工作单元,就像其名称一样,做某些事情。在这篇文章中,工作单元主要是,创建实例:它实例化数据上下文,然后使用同样的数据上下文对象,实例化每一个仓储对象,用来做数据库操作。所以:工作单元是一种模式,它确保我们所有的仓储类,使用同样数据库上下文。



实现一个泛型仓储类和一个工作单元

请注意:在这篇文章中,你的用户界面,使用具体的类,而不是接口,原因,我后面的一篇文章中,会说!

好了,现在开始实施:

在这篇文章中,我将会搭建4个项目。

MVC.Core---->>>类库项目【这里面:主要是实体的声明】

MVC.Data---->>>类库项目【这里面主要是数据库的操作,添加引用类库项目(MVC.Core)】

MVC.Repository--->>>类库项目【这里主要是定义泛型仓储类,添加引用MVC.Core和MVC.Data两个项目】

MVC.Web----->>>MVC WEB程序【Web程序UI,添加引用MVC.Core和MVC.Data还有MVC.Repository三个项目】

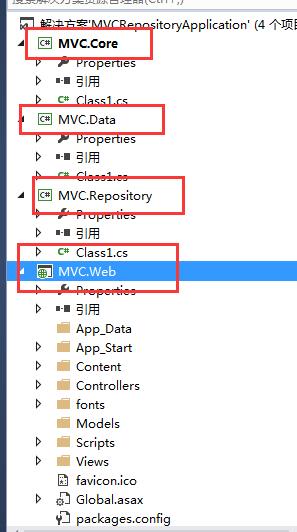

框架的界面:





首先来写实体层:在MVC.Core项目下,添加一个BaseEntity实体,添加如下代码:

using System;using System.Collections.Generic;using System.Linq;using System.Text;using System.Threading.Tasks;namespace MVC.Core{    public class BaseEntity    {        /// <summary>        /// 编号        /// </summary>        public Int64 ID { get; set; }        /// <summary>        /// 添加时间        /// </summary>        public DateTime AddedTime { get; set; }        /// <summary>        /// 修改时间        /// </summary>        public DateTime ModifiedTime { get; set; }        /// <summary>        /// IP地址        /// </summary>        public string IP { get; set; }    }}

然后,在MVC.Core项目下,新建一个文件夹【Data】,在【Data】文件夹里面添加Book实体,Book继承BaseEntity实体。

下面是Book实体里面的代码:

using System;using System.Collections.Generic;using System.Linq;using System.Text;using System.Threading.Tasks;namespace MVC.Core.Data{   public class Book:BaseEntity    {       /// <summary>       /// 书名       /// </summary>       public string Title { get; set; }       /// <summary>       /// 作者       /// </summary>       public string Author { get; set; }       /// <summary>       /// ISBN编号       /// </summary>       public string ISBN { get; set; }       /// <summary>       /// 发布时间       /// </summary>       public DateTime PublishedTime { get; set; }    }}

然后,我们看到MVC.Data这个类库项目,这个项目中,我们将会包含数据上下文类,Book实体的映射。

ADO.NET Entity Framework 要求我们创建的数据上下文类必须继承DbContext类。我们在上下文类中,将会重写OnModelCreating方法,这个方法是用来使用Code-First方式,配置实体类的。

使用EF,需要安装EF,这里就不介绍了,要了解的话,可以去看我前面的文章中的介绍。

我创建一个EFDbContextClass类,下面是数据上下文类中的代码:

using MVC.Core;using System;using System.Collections.Generic;using System.Data.Entity;using System.Data.Entity.ModelConfiguration;using System.Linq;using System.Reflection;using System.Text;using System.Threading.Tasks;namespace MVC.Data{    public class EFDBContextClass:DbContext    {        public EFDBContextClass() : base("name=ConnectionStrings")         {         }        public new IDbSet<TEntity> Set<TEntity>() where TEntity:BaseEntity        {            return base.Set<TEntity>();        }        protected override void OnModelCreating(DbModelBuilder modelBuilder)        {
var typesToRegister = Assembly.GetExecutingAssembly().GetTypes() .Where(type => !String.IsNullOrEmpty(type.Namespace)) .Where(type => type.BaseType != null && type.BaseType.IsGenericType && type.BaseType.GetGenericTypeDefinition() == typeof(EntityTypeConfiguration<>)); foreach (var type in typesToRegister) { dynamic configurationInstance = Activator.CreateInstance(type); modelBuilder.Configurations.Add(configurationInstance); } base.OnModelCreating(modelBuilder); } }}



在上面的代码中,使用反射来映射每个实体。然后数据上下文的构造函数中,我传递了连接字符串名字ConnectionStrings,在配置文件中

<connectionStrings>    <add name="ConnectionStrings" connectionString="server=.;database=MyRepositoryDB;uid=sa;pwd=Password_1" providerName="System.Data.SqlClient"/>  </connectionStrings>



好了,数据上下文也写好了,现在开始实体映射吧,在MVC.Data项目中,添加一个文件夹--【Mapping】,然后在Mapping文件夹下面,添加一个类--【BookMap】,下面是BookMap的代码:

using MVC.Core.Data;using System;using System.Collections.Generic;using System.Data.Entity.ModelConfiguration;using System.Linq;using System.Text;using System.Threading.Tasks;using System.ComponentModel.DataAnnotations.Schema;namespace MVC.Data.Mapping{   public class BookMap:EntityTypeConfiguration<Book>    {       public BookMap()       {           //配置主键           HasKey(s => s.ID);           //配置列           Property(s => s.ID).HasDatabaseGeneratedOption(DatabaseGeneratedOption.Identity);           Property(p => p.Title).IsRequired();           Property(p => p.ISBN).IsRequired();           Property(p => p.Author).IsRequired();           Property(p => p.AddedTime).IsRequired();           Property(p => p.ModifiedTime).IsRequired();           Property(p => p.PublishedTime).IsRequired();           Property(p => p.IP);           //配置表名称           ToTable("Books");                  }    }}

好了,现在开始写我们的泛型仓储类,在我们的MVC.Repository项目中,添加一个类Repository。这里没有添加接口仓储,是为了更好的理解。泛型仓储类拥有增删查改的方法,

这个仓储类,拥有一个带数据上下文类的参数的构造函数,所以当我们创建创建仓储实例的时候,只需要传递一个数据上下文对象过来就行,这就一样,每个实体的仓储都有一样的数据上下文对象了。下面的代码是,泛型仓储模式代码了:

using MVC.Core;using MVC.Data;using System;using System.Collections.Generic;using System.Data.Entity;using System.Data.Entity.Validation;using System.Linq;using System.Text;using System.Threading.Tasks;namespace MVC.Repository{    public class Repository<T> where T:BaseEntity    {        private EFDBContextClass context;        private IDbSet<T> entities;              string errorMessage = string.Empty;        public Repository(EFDBContextClass context)        {            this.context = context;        }               public T GetById(object id)        {            return this.Entities.Find(id);        }        public void Insert(T entity)        {            try            {                if (entity == null)                {                    throw new ArgumentNullException("entity");                }                this.Entities.Add(entity);                this.context.SaveChanges();            }            catch (DbEntityValidationException ex)            {                //错误处理机制                foreach (var validationErros in ex.EntityValidationErrors)                {                    foreach (var errorInfo in validationErros.ValidationErrors)                    {                        errorMessage += string.Format("属性:{0} 错误消息:{1}", errorInfo.PropertyName, errorInfo.ErrorMessage)
+ Environment.NewLine; } } throw new Exception(errorMessage, ex); } } public void Update(T entity) { try { if (entity == null) { throw new ArgumentNullException("entity"); } this.context.SaveChanges(); } catch (DbEntityValidationException ex) { foreach (var errorItems in ex.EntityValidationErrors) { foreach (var errorinfo in errorItems.ValidationErrors) { errorMessage += string.Format("属性名:{0},错误消息:{1}", errorinfo.PropertyName, errorinfo.ErrorMessage)
+ Environment.NewLine; } } throw new Exception(errorMessage, ex); } } public void Delete(T entity) { try { if (entity == null) { throw new ArgumentNullException("entity"); } this.Entities.Remove(entity); this.context.SaveChanges(); } catch (DbEntityValidationException ex) { foreach (var errorItems in ex.EntityValidationErrors) { foreach (var errorinfo in errorItems.ValidationErrors) { errorMessage += string.Format("属性名:{0},错误消息:{1}", errorinfo.PropertyName, errorinfo.ErrorMessage)
+ Environment.NewLine; } } throw new Exception(errorMessage, ex); } } private IDbSet<T> Entities { get { if (entities == null) { entities = context.Set<T>(); } return entities; } } public virtual IQueryable<T> Table { get { return this.Entities; } } }}

在MVC.Repository项目中添加一个类:UnitOfWork

现在来为工作单元创建一个类,UnitOfWork,这个类继承IDisposible接口,所以它的每个实例将会在控制器中销毁,这个工作单元,初始化程序的数据上下文类【EFDBContextClass】.这个工作单元类的核心就是Repository方法,这个方法,为每一个继承自BaseEntity的实体,返回一个仓储【repository】对象,下面是工作单元类的代码:

using MVC.Core;using MVC.Data;using System;using System.Collections.Generic;using System.Linq;using System.Text;using System.Threading.Tasks;namespace MVC.Repository{   public class UnitOfWork:IDisposable    {       private readonly EFDBContextClass context;       private bool disposed;       private Dictionary<string, object> repositories;       public UnitOfWork(EFDBContextClass context)       {           this.context = context;       }       public UnitOfWork()       {           context = new EFDBContextClass();       }       public void Dispose()       {           Dispose(true);           GC.SuppressFinalize(this);       }       public void Save()       {           context.SaveChanges();       }       public virtual void Dispose(bool disposing)       {           if (!disposed)           {               if (disposing)               {                   context.Dispose();               }           }           disposed = true;       }       public Repository<T> Repository<T>() where T : BaseEntity       {           if (repositories == null)           {               repositories = new Dictionary<string, object>();           }           var type = typeof(T).Name;           if (!repositories.ContainsKey(type))           {               var repositoryType = typeof(Repository<>);               var repositoryInstance = Activator.CreateInstance(repositoryType.MakeGenericType(typeof(T)), context);               repositories.Add(type, repositoryInstance);           }           return (Repository<T>)repositories[type];       }    }}

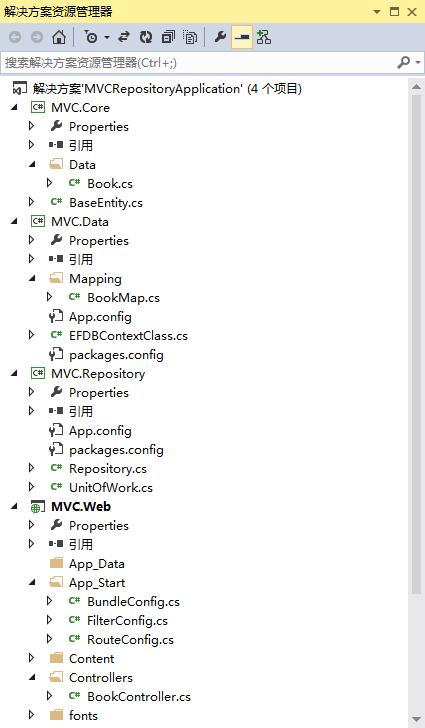

 到此,现在底层的代码,基本都写好了。

现在开始MVC.Web项目里面的代码:

首先,我们在控制器文件夹下面,新建一个控制器类,BookController。然后,我们创建工作单元的实例。

下面是BookController控制器的代码:

using MVC.Core.Data;using MVC.Data;using MVC.Repository;using System;using System.Collections.Generic;using System.Linq;using System.Web;using System.Web.Mvc;namespace MVC.Web.Controllers{    public class BookController : Controller    {        private UnitOfWork unitOfWork = new UnitOfWork();        private Repository<Book> bookRepository;        public BookController()        {            //通过工作单元来初始化仓储            bookRepository = unitOfWork.Repository<Book>();        }        // GET: Book        public ActionResult Index()        {          List<Book> listBooks=  bookRepository.Table.ToList();          return View(listBooks);        }        public ActionResult CreateEditBook(int? id)        {            Book bookModel = new Book();            if (id.HasValue)            {                bookModel = bookRepository.GetById(id.Value);            }            return View(bookModel);        }        [HttpPost]        public ActionResult CreateEditBook(Book model)        {            if (model.ID == 0)            {                model.ModifiedTime = DateTime.Now;                model.AddedTime = DateTime.Now;                model.IP = Request.UserHostAddress;                bookRepository.Insert(model);            }            else            {                var editModel = bookRepository.GetById(model.ID);                editModel.Title = model.Title;                editModel.Author = model.Author;                editModel.ISBN = model.ISBN;                editModel.PublishedTime = model.PublishedTime;                editModel.ModifiedTime = System.DateTime.Now;                editModel.IP = Request.UserHostAddress;                bookRepository.Update(editModel);                        }            if (model.ID > 0)            {                return RedirectToAction("Index");            }            return View(model);        }        public ActionResult DeleteBook(int id)        {          Book model=  bookRepository.GetById(id);          return View(model);                 }        [HttpPost,ActionName("DeleteBook")]        public ActionResult ConfirmDeleteBook(int id)        {          Book model=  bookRepository.GetById(id);          bookRepository.Delete(model);          return RedirectToAction("Index");        }        public ActionResult DetailBook(int id)        {          Book model=  bookRepository.GetById(id);          return View(model);        }        protected override void Dispose(bool disposing)        {            unitOfWork.Dispose();            base.Dispose(disposing);        }    }}

现在已经完成了控制器的方法,开始添加视图了:

CreateEdit:

@model MVC.Core.Data.Book@{    ViewBag.Title = "Create Edit Book";}<div class="book-example panel panel-primary">    <div class="panel-heading panel-head">Add / Edit Book</div>    <div class="panel-body">        @using (Html.BeginForm())        {            <div class="form-horizontal">                <div class="form-group">                    @Html.LabelFor(model => model.Title,                    new { @class = "col-lg-1 control-label" })                    <div class="col-lg-9">                        @Html.TextBoxFor(model => model.Title,                        new { @class = "form-control" })                    </div>                </div>                <div class="form-group">                    @Html.LabelFor(model => model.ISBN,                    new { @class = "col-lg-1 control-label" })                    <div class="col-lg-9">                        @Html.TextBoxFor(model => model.ISBN,                        new { @class = "form-control" })                    </div>                </div>                <div class="form-group">                    @Html.LabelFor(model => model.Author,                    new { @class = "col-lg-1 control-label" })                    <div class="col-lg-9">                        @Html.TextBoxFor(model => model.Author,                        new { @class = "form-control" })                    </div>                </div>                <div class="form-group">                    @Html.LabelFor(model => model.PublishedTime,                    new { @class = "col-lg-1 control-label" })                    <div class="col-lg-9">                        @Html.TextBoxFor(model => model.PublishedTime,                        new { @class = "form-control datepicker" })                    </div>                </div>                <div class="form-group">                    <div class="col-lg-8"></div>                    <div class="col-lg-3">                        @Html.ActionLink("Back to List", "Index",                        null, new { @class = "btn btn-default" })                        <button class="btn btn-success"                                id="btnSubmit" type="submit">                            Submit                        </button>                    </div>                </div>            </div>        }    </div></div>@section scripts{    <script src="~/Scripts/bootstrap-datepicker.js" type="text/javascript"></script>    <script src="~/Scripts/book-create-edit.js" type="text/javascript"></script>}

DeleteBook:

@model MVC.Core.Data.Book@{    ViewBag.Title = "Delete Book";}<div class="book-example panel panel-primary">    <div class="panel-heading panel-head">Delete Book</div>    <div class="panel-body">        <h3>Are you sure you want to delete this?</h3>        <h1>@ViewBag.ErrorMessage</h1>        <div class="form-horizontal">            <div class="form-group">                @Html.LabelFor(model => model.Title,                new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.Title,                    new { @class = "form-control" })                </div>            </div>            <div class="form-group">                @Html.LabelFor(model => model.Author,                new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.Author,                    new { @class = "form-control" })                </div>            </div>            <div class="form-group">                @Html.LabelFor(model => model.ISBN,                new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.ISBN,                    new { @class = "form-control" })                </div>            </div>            <div class="form-group">                @Html.LabelFor(model => model.PublishedTime,                new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.PublishedTime,                    new { @class = "form-control" })                </div>            </div>            <div class="form-group">                @Html.LabelFor(model => model.AddedTime,                new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.AddedTime,                    new { @class = "form-control" })                </div>            </div>            <div class="form-group">                @Html.LabelFor(model => model.ModifiedTime,                new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.ModifiedTime,                    new { @class = "form-control" })                </div>            </div>            <div class="form-group">                @Html.LabelFor(model => model.IP,                new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.IP,                    new { @class = "form-control" })                </div>            </div>            @using (Html.BeginForm())            {                <div class="form-group">                    <div class="col-lg-1"></div>                    <div class="col-lg-9">                        <input type="submit" value="Delete"                               class="btn btn-danger" />                        @Html.ActionLink("Back to List", "Index",                        null, new { @class = "btn btn-success" })                    </div>                </div>            }        </div>    </div></div>

DetailBook:

@model MVC.Core.Data.Book@{    ViewBag.Title = "Detail Book";}<div class="book-example panel panel-primary">    <div class="panel-heading panel-head">Book Detail</div>    <div class="panel-body">        <div class="form-horizontal">            <div class="form-group">                @Html.LabelFor(model => model.Title, new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.Title, new { @class = "form-control" })                </div>            </div>            <div class="form-group">                @Html.LabelFor(model => model.Author, new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.Author, new { @class = "form-control" })                </div>            </div>            <div class="form-group">                @Html.LabelFor(model => model.ISBN, new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.ISBN, new { @class = "form-control" })                </div>            </div>            <div class="form-group">                @Html.LabelFor(model => model.PublishedTime, new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.PublishedTime, new { @class = "form-control" })                </div>            </div>            <div class="form-group">                @Html.LabelFor(model => model.AddedTime, new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.AddedTime, new { @class = "form-control" })                </div>            </div>            <div class="form-group">                @Html.LabelFor(model => model.ModifiedTime, new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.ModifiedTime, new { @class = "form-control" })                </div>            </div>            <div class="form-group">                @Html.LabelFor(model => model.IP, new { @class = "col-lg-1 control-label" })                <div class="col-lg-9">                    @Html.DisplayFor(model => model.IP, new { @class = "form-control" })                </div>            </div>            @using (Html.BeginForm())            {                <div class="form-group">                    <div class="col-lg-1"></div>                    <div class="col-lg-9">                        @Html.ActionLink("Edit", "CreateEditBook",                        new { id = Model.ID }, new { @class = "btn btn-primary" })                        @Html.ActionLink("Back to List", "Index",                        null, new { @class = "btn btn-success" })                    </div>                </div>            }        </div>    </div></div>

Index:

@model IEnumerable<MVC.Core.Data.Book><div class="book-example panel panel-primary">    <div class="panel-heading panel-head">Books Listing</div>    <div class="panel-body">        <a id="createEditBookModal"           href="@Url.Action("CreateEditBook")" class="btn btn-success">            <span class="glyphicon glyphicon-plus"></span>Book        </a>        <table class="table" style="margin: 4px">            <tr>                <th>                    @Html.DisplayNameFor(model => model.Title)                </th>                <th>                    @Html.DisplayNameFor(model => model.Author)                </th>                <th>                    @Html.DisplayNameFor(model => model.ISBN)                </th>                <th>                    Action                </th>                <th></th>            </tr>            @foreach (var item in Model)            {                <tr>                    <td>                        @Html.DisplayFor(modelItem => item.Title)                    </td>                    <td>                        @Html.DisplayFor(modelItem => item.Author)                    </td>                    <td>                        @Html.DisplayFor(modelItem => item.ISBN)                    </td>                    <td>                        @Html.ActionLink("Edit", "CreateEditBook",                        new { id = item.ID }, new { @class = "btn btn-success" }) |                        @Html.ActionLink("Details", "DetailBook",                        new { id = item.ID }, new { @class = "btn btn-primary" }) |                        @Html.ActionLink("Delete", "DeleteBook",                        new { id = item.ID }, new { @class = "btn btn-danger" })                    </td>                </tr>            }        </table>    </div></div>

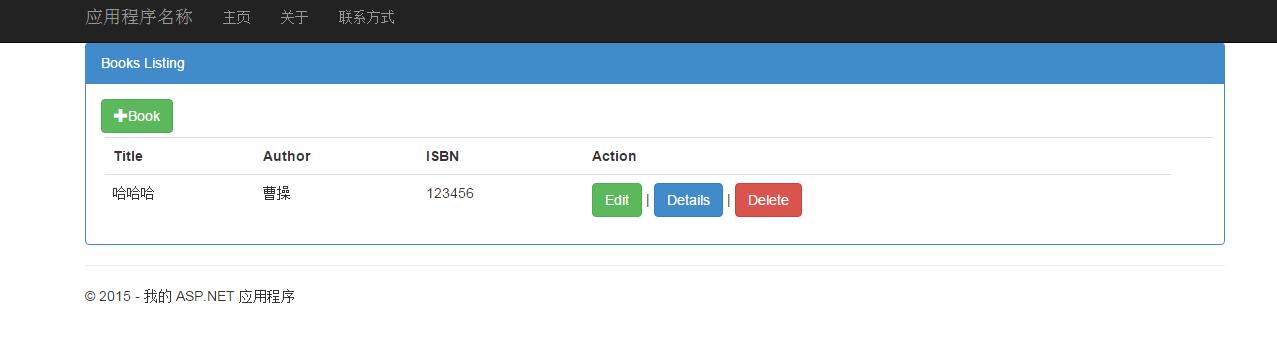

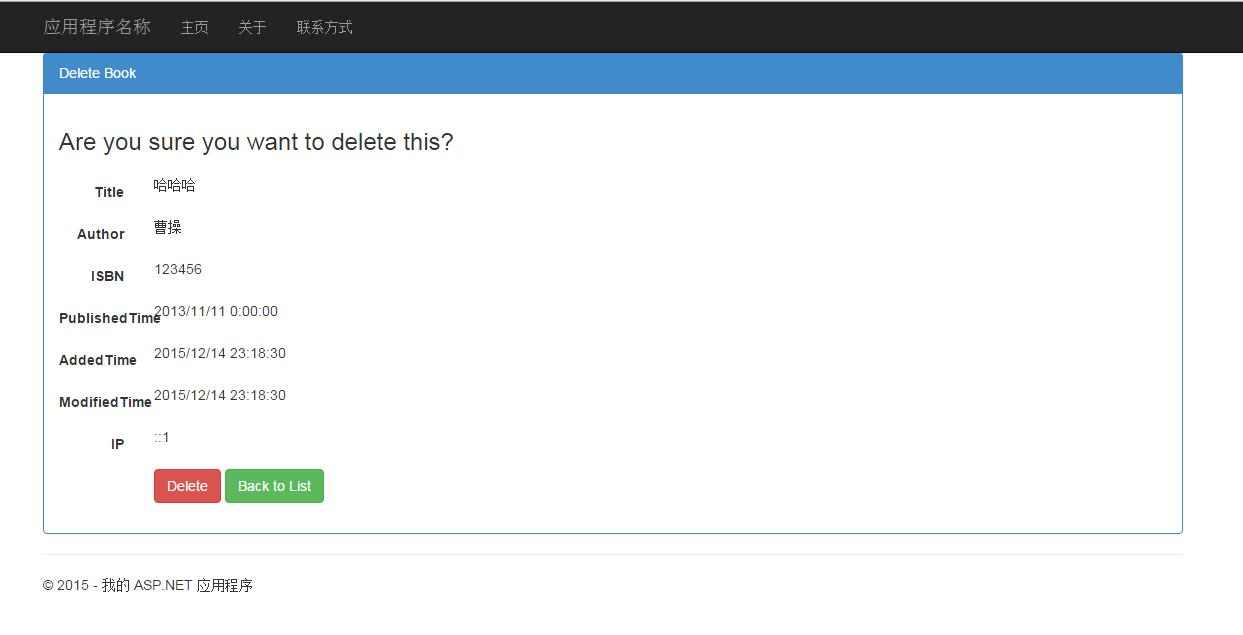

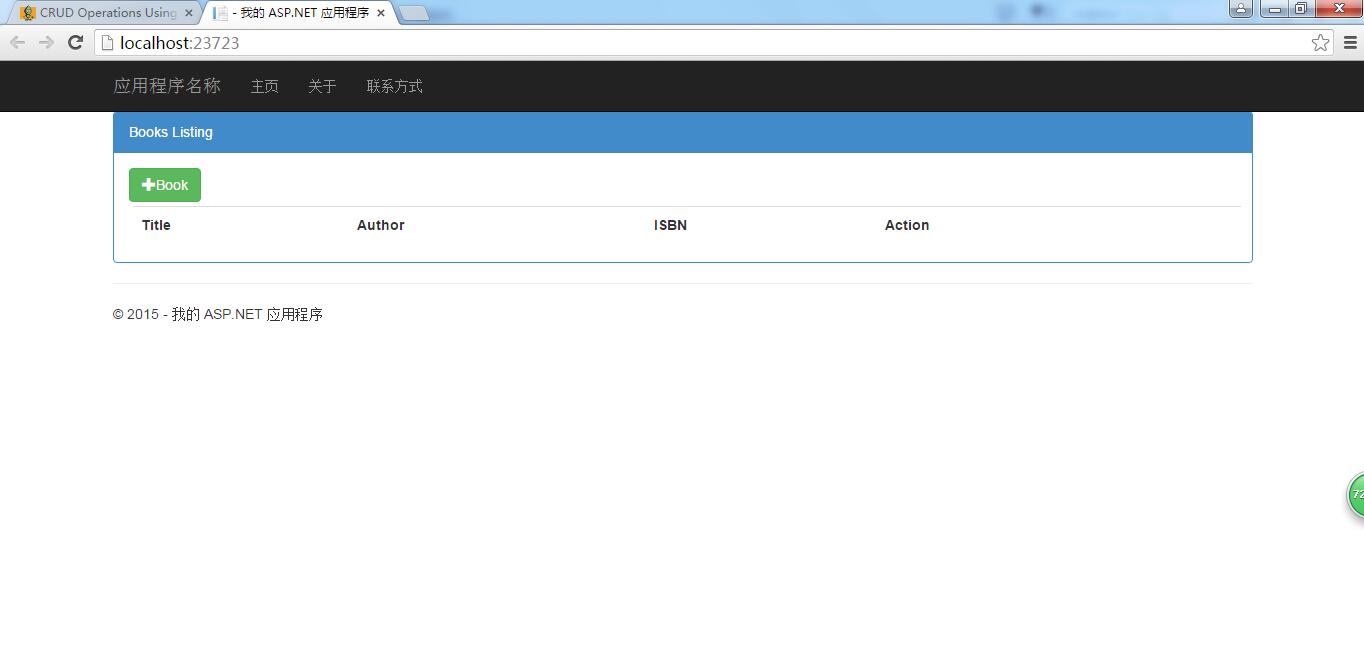

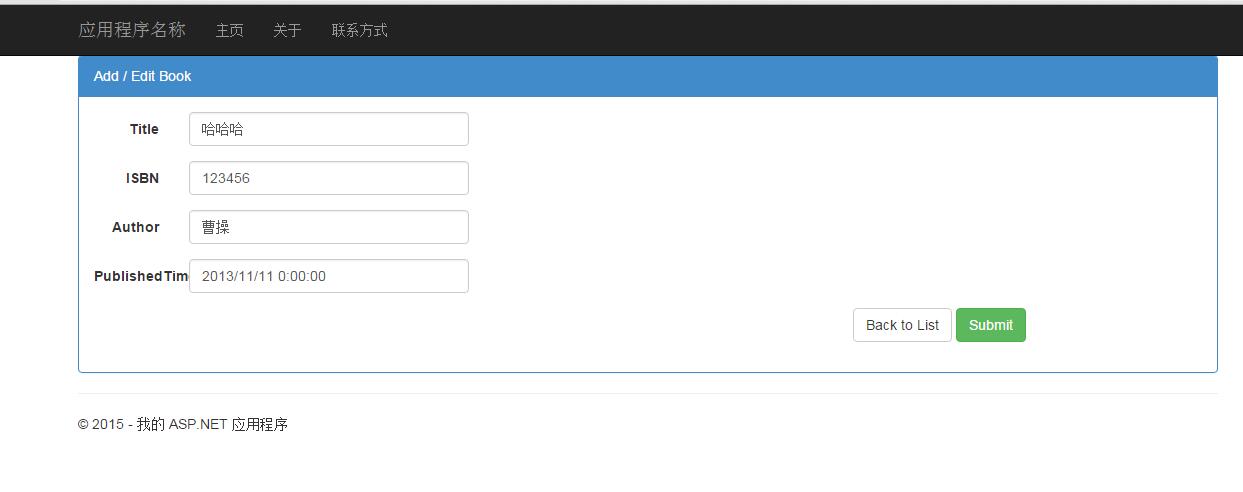

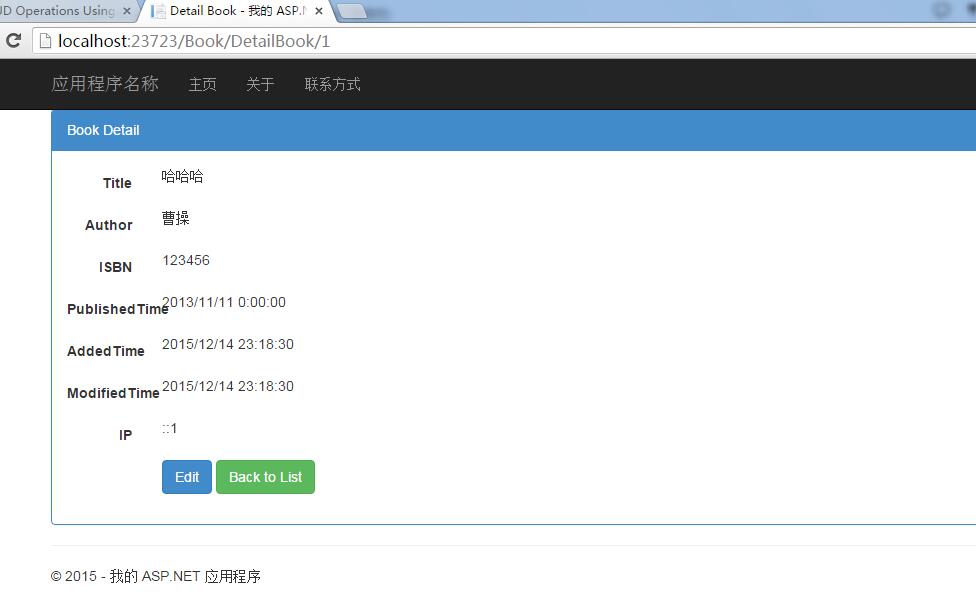

效果图:





4楼—阿辉
autoFac是在VO--PO之间相互转换,,你这个仓储模式是在实体使用ef的CRUD的时候使用,,我感觉差别挺大的。【新手】
3楼—阿辉
这个和AutoFac有什么区别,,
Re: 放飞梦想的翅膀
@—阿辉,autofac是依赖倒置技术用到的容器。都差不多可以起到解耦合的作用,在我看来。
2楼井传红
用EF就能实现 到现在为止也不明白这样做的好处是什么。一直没明白大家热衷于用仓储的意义是什么?能不能告诉我什么情况下会考虑用仓储
Re: 放飞梦想的翅膀
@井传红,在我看来,用仓储是为了可扩展,
Re: Ryan.Ruan
@井传红,仓储为了降低业务逻辑层和数据访问层耦合度的
1楼nele
问下你这个UnitOfWork跟工厂有什么区别 感觉没有发挥UnitOfWork的作用,还是我不理解UnitOfWork,求指教。
Re: fengzijun
@nele,引用问下你这个UnitOfWork跟工厂有什么区别 感觉没有发挥UnitOfWork的作用,还是我不理解UnitOfWork,求指教。,,确实没有起到 UnitOfWork 的作用
