将近大半年都没有更新博客了，趁这段时间不忙，后续会继续分享一些技术和实际应用。对于Sharepoint的定制开发有很多种方式，对于一般的应用系统，可以使用Sharepoint本身自带的功能，如列表作为数据源和web服务等，再通过Sharepoint Designer工具可以快速的定制开发，从效率和可维护性角度来说，这种方式是最高的，且可移植性好。去年本人去上海参加了微软技术大会，根据微软的介绍，Sharepoint 2013的前端功能支持越来越强大，后端的开发会慢慢弱化，能让更多的前端开发工程师参与到Sharepoint的生态链中。对于这方面本人有一些实践，如本人去年利用Sharepoint Designer的定制开发过公司的移动OA系统（根据访问日志统计，运行了一年多，日活跃度还是不错的，自认为这个系统还是比较成功的），Sharepoint Designer主要是用于前端（基于HTML5）的开发，后端通过VS自定义开发移动OA的Web服务发布到Sharepoint中进行交互。
本文介绍一种本人上半年为公司定制开发的sharepoint专家库系统实例，本来还想开发移动APP端。但由于各种原因，这个系统的没怎么用起来，毕竟企业内部信息不是完全开放的，对于高级人才的信息需要严格保密，一旦使用人数少又不是必备的，这样系统发挥的价值就不大了，但设计和开发的方式相信对各位同学会有启发，是一个很好的学习实例，仅供学习参考。通过这种方式开发专家系统投入的时间也不多，大概用了2到3周的时间，成本是很低的。

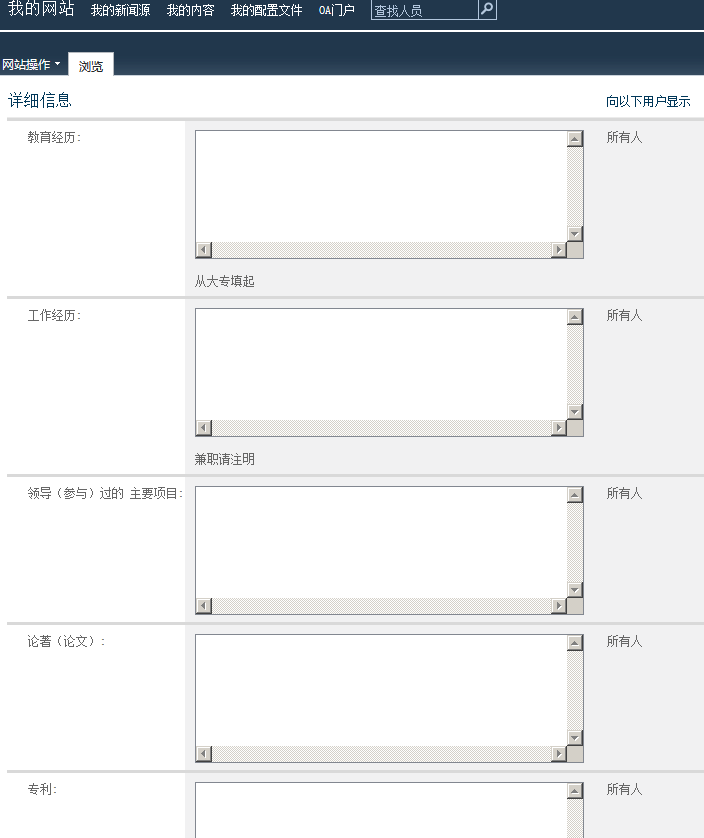

首先进行需求分析，既然我们专家库系统是基于Sharepoint平台的，能不能利用sharepoint自带的一些功能呢？答案是肯定的，因为专家本身也是sharepoint的用户，熟悉sharepoint的架构都知道，sharepoint每个用户都会有自己的个人配置信息，且专家的信息与sharepoint的个人用户信息很多都是一致的，只要扩展一下sharepoint的个人用户信息即可，且sharepoint支持对用户信息进行扩展，所以第一步在sharepoint的后台管理中心中扩展sharepoint用户的配置信息（如增加教育经历、工作经历、论文、专利等），这个只需要在sharepoint后台配置用户信息一下即可，扩展后可以维护专家个人信息，如下图：

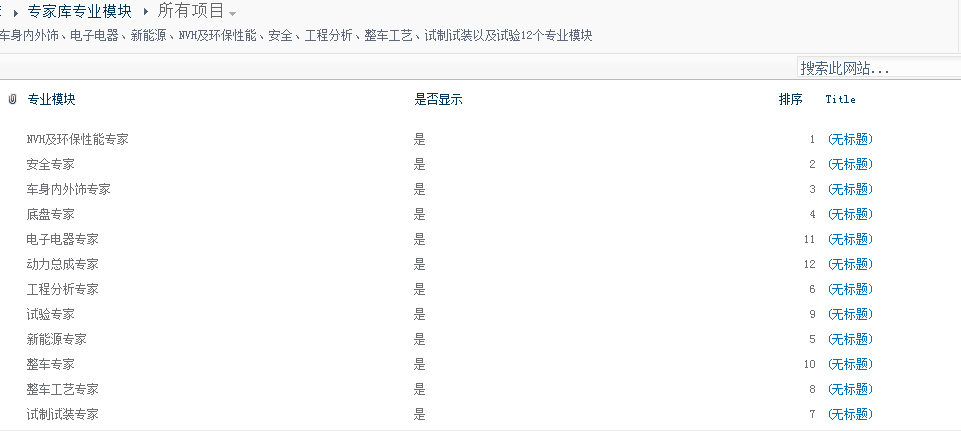

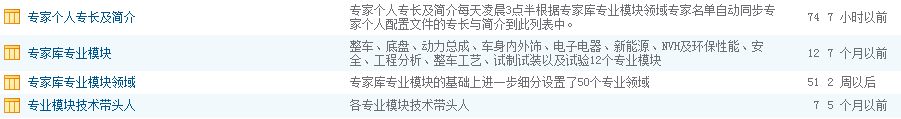

其次，建立专家库管理数据源，自定义一些列表（如专家个人专长及简介、专家库专业模块、专家库专业模块领域、专业模块技术带头人等），让人力资源管理人员可以自行管理专家库系统（相当于专家库的管理后台，数据可以动态管理），如下图：

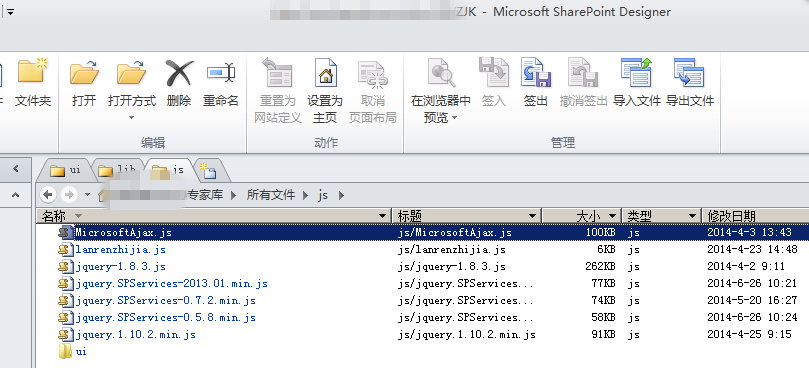

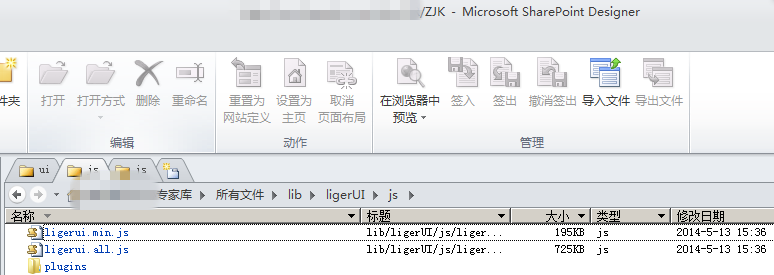

最后进行前端系统的开发（主要面向最终用户），通过Sharepoint Designer工具进行定制开发，界面的UI主要使用Jquery LigerUI（LigerUI是基于jQuery开发的一系列控件组，包括表单、布局、表格等等常用UI控件 使用LigerUI可以快速创建风格统一的界面效果 LigerUI视图简洁明了，操作较为简便，采用json格式传递数据。）。无论是Sharepoint的个人用户信息还是列表数据，都是可以通过Sharepoint的web服务进行调用交互，sharepoint从2007开始，已有很多自带的sharepoint web服务，考虑到sharepoint的升级和维护，本文使用了，老外封装好了Sharepoint web服务的基于Jquery的SPServices库，支持sharepoint 2007、sharepoint 2010、sharepoint 2013，如下图：
专家库系统部分界面，如下图：

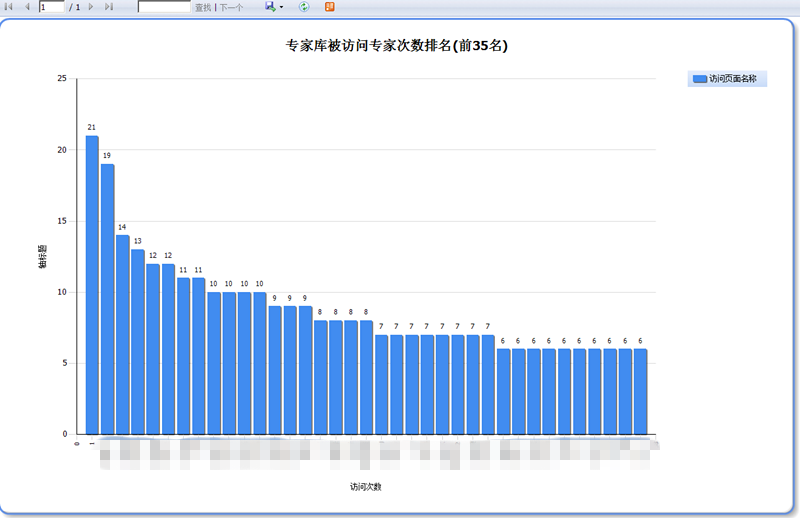

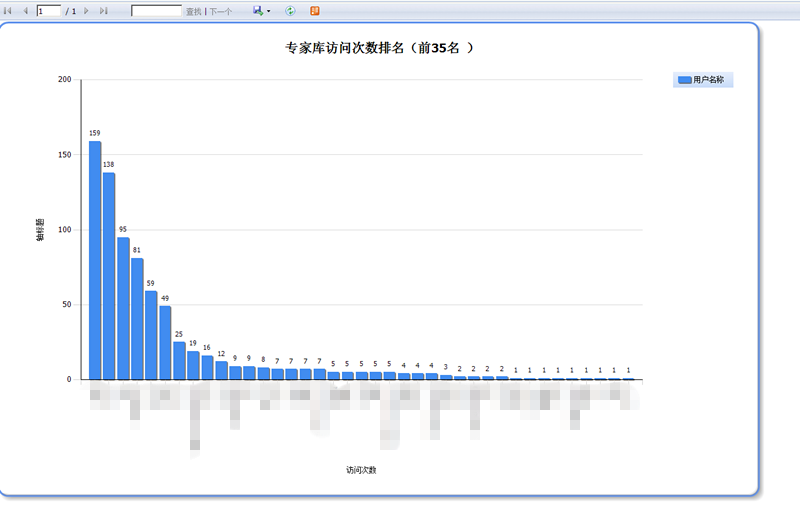

使用SQL Server Report Builder进行报表开发并发布到Sharepoint后，监控系统使用情况，如下：
自定义专家库首页完整参考C#代码如下：
<%@ Page Language="C#" masterpagefile="../_catalogs/masterpage/minimal.master" title="无标题 1" inherits="Microsoft.SharePoint.WebPartPages.WebPartPage, Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" meta:progid="SharePoint.WebPartPage.Document" %><asp:Content ID="PageHead" ContentPlaceHolderID="PlaceHolderPageTitleInTitleArea" runat="server"><link href="../lib/ligerUI/skins/Aqua/css/ligerui-all.css" rel="stylesheet" type="text/css" /> <link href="../lib/ligerUI/skins/Gray2014/css/all.css" rel="stylesheet" type="text/css" /> <link rel="stylesheet" type="text/css" id="mylink" /> <script type="text/javascript" src="../js/jquery.1.10.2.min.js"></script><script type="text/javascript" src="../js/jquery.SPServices-2013.01.min.js"></script><script src="../lib/ligerUI/js/ligerui.all.js" type="text/javascript"></script> <script src="../lib/ligerUI/js/plugins/ligerTab.js" type="text/javascript"></script><script src="../lib/json2.js" type="text/javascript"></script><script type="text/javascript" src="http://pv.sohu.com/cityjson?ie=utf-8" ></script> <script type="text/javascript"> function getcurrentusername() { $.ajax({ type: "POST", url: "http://ZJK/_layouts/SPOAFlowServices/SPOAFlowServices.asmx/GetCurrentUserName", cache: false, data: "{}", contentType: "application/json; charset=utf-8", dataType: "json", success: function (response) { $('#currentusername').empty(); users = jQuery.parseJSON(response.d); CreateNewItem(users); }, failure: function (msg) { } }); } Date.prototype.Format = function (fmt) { //author: meizz var o = { "M+": this.getMonth() + 1, //月份 "d+": this.getDate(), //日 "h+": this.getHours(), //小时 "m+": this.getMinutes(), //分 "s+": this.getSeconds(), //秒 "q+": Math.floor((this.getMonth() + 3) / 3), //季度 "S": this.getMilliseconds() //毫秒 }; if (/(y+)/.test(fmt)) fmt = fmt.replace(RegExp.$1, (this.getFullYear() + "").substr(4 - RegExp.$1.length)); for (var k in o) if (new RegExp("(" + k + ")").test(fmt)) fmt = fmt.replace(RegExp.$1, (RegExp.$1.length == 1) ? (o[k]) : (("00" + o[k]).substr(("" + o[k]).length))); return fmt; } function CreateNewItem(user) { try { var vpage = window.location.href; var cip; var city; try { cip= returnCitySN['cip']; } catch(e){cip= '';} try { city= returnCitySN['cname']; } catch(e){city='内网';} var useragent = navigator.userAgent; var Sys = {}; var ua = navigator.userAgent.toLowerCase(); var brw; (brw = ua.match(/msie ([\d.]+)/)) ? Sys.ie = brw[1] : (brw = ua.match(/firefox\/([\d.]+)/)) ? Sys.firefox = brw[1] : (brw = ua.match(/chrome\/([\d.]+)/)) ? Sys.chrome = brw[1] : (brw = ua.match(/opera.([\d.]+)/)) ? Sys.opera = brw[1] : (brw = ua.match(/version\/([\d.]+).*safari/)) ? Sys.safari = brw[1] : 0; var time2 = new Date().Format("yyyy-MM-dd hh:mm:ss"); var title = "专家库主页"; var batch = "<Batch OnError=\"Continue\"> \ <Method ID=\"1\" Cmd=\"New\"> \ <Field Name=\"Title\">" + user + "</Field> \ <Field Name=\"UserName\">" + user + "</Field> \ <Field Name=\"VisitPage\">" + vpage + "</Field> \ <Field Name=\"VisitTime\">" + time2 + "</Field> \ <Field Name=\"VisitIPAddress\">" + cip + "</Field> \ <Field Name=\"VisitIPCity\">" + city + "</Field> \ <Field Name=\"UserAgent\">" + useragent + "</Field> \ <Field Name=\"Browser\">" + brw + "</Field> \ <Field Name=\"VisitPageName\">"+title+"</Field> \ </Method> \ </Batch>"; var soapEnv = "<?xml version=\"1.0\" encoding=\"utf-8\"?> \ <soap:Envelope xmlns:xsi=\"http://www.w3.org/2001/XMLSchema-instance\" \ xmlns:xsd=\"http://www.w3.org/2001/XMLSchema\" \ xmlns:soap=\"http://schemas.xmlsoap.org/soap/envelope/\"> \ <soap:Body> \ <UpdateListItems xmlns=\"http://schemas.microsoft.com/sharepoint/soap/\"> \ <listName>用户访问日志</listName> \ <updates> \ " + batch + "</updates> \ </UpdateListItems> \ </soap:Body> \ </soap:Envelope>"; $.ajax({ url: "http://ZJK/_vti_bin/lists.asmx", beforeSend: function(xhr) { xhr.setRequestHeader("SOAPAction", "http://schemas.microsoft.com/sharepoint/soap/UpdateListItems"); }, type: "POST", dataType: "xml", data: soapEnv, complete: processResult, contentType: "text/xml; charset=utf-8" }); } catch(e){} } function processResult(xData, status) {}$(document).ready(function () {getcurrentusername(); });indexdata = []; var cj; var myQuery = "<Query><OrderBy><FieldRef Name='ISort' /></OrderBy><Where><Eq><FieldRef Name='IsDisplay' /><Value Type='Boolean'>1</Value></Eq></Where></Query>"; var arraymdl = new Array(); var mn = new Object(); mn.Rows = []; $().SPServices({ operation: "GetListItems", async: false, listName: "专家库专业模块", CAMLViewFields: "<ViewFields><FieldRef Name='SpecialtyModule' /><FieldRef Name='ID' /></ViewFields>", CAMLQuery: myQuery, webURL: "http://ZJK", completefunc: function (xData, Status) { var i=-1; $(xData.responseXML).SPFilterNode("z:row").each(function() { i++; indexdata[i] = new Object(); indexdata[i].text= $(this).attr("ows_SpecialtyModule"); indexdata[i].isparent=1; indexdata[i].isexpand = false; indexdata[i].children = []; arraymdl[i]=$(this).attr("ows_ID"); mn.Rows[i] = new Object(); mn.Rows[i].CstRowID = i; mn.Rows[i].SpmID =$(this).attr("ows_ID"); }); } });GetExpertMainCategoryLead();GetExpertChildCategory();function GetExpertMainCategoryLead(){ var mquery=""; var myQuery ="<Query><OrderBy><FieldRef Name='ISort' /></OrderBy><Where><And><In><FieldRef Name='SpecialtyModule' LookupId='True' /><Values>"; for(md in arraymdl) { mquery= mquery+"<Value Type='Lookup'>"+arraymdl[md]+"</Value>"; } myQuery=myQuery+mquery+"</Values></In><Eq><FieldRef Name='IsDisplay' /><Value Type='Boolean'>1</Value></Eq></And></Where></Query>"; var myQueryOptions="<QueryOptions><ExpandUserField>True</ExpandUserField></QueryOptions>"; $().SPServices({ operation: "GetListItems", async: false, listName: "专业模块技术带头人", CAMLViewFields: "<ViewFields><FieldRef Name='SpecialtyModule' /> <FieldRef Name='ModuleLead' /></ViewFields>", CAMLQuery: myQuery, CAMLQueryOptions: myQueryOptions, webURL: "http://ZJK", completefunc: function (xData, Status) { var j = -1; cj = -1; $(xData.responseXML).SPFilterNode("z:row").each(function() { var arr = $(this).attr("ows_ModuleLead").split("#"); if(arr.length > 2) { j++; cj++; var acn =arr[2].replace(',',''); acn = "AboutExpertW.aspx?accountname="+acn; var ld = arr[1].replace(',',''); ld= ld+"(技术带头人)"; for(dd in mn.Rows) { if(mn.Rows[dd].SpmID ==$(this).attr("ows_SpecialtyModule").split(";#")[0]) { indexdata[mn.Rows[dd].CstRowID].children[j] = new Object(); indexdata[mn.Rows[dd].CstRowID].children[j].text = ld; indexdata[mn.Rows[dd].CstRowID].children[j].url = acn; indexdata[mn.Rows[dd].CstRowID].children[j].isparent=3; j=-1; break; } } } }); } });}function GetExpertChildCategory(){ var mquery=""; var myQuery ="<Query><OrderBy><FieldRef Name='ISort' /></OrderBy><Where><And><In><FieldRef Name='SpecialtyModule' LookupId='True' /><Values>"; for(md in arraymdl) { mquery= mquery+"<Value Type='Lookup'>"+arraymdl[md]+"</Value>"; } myQuery=myQuery+mquery+"</Values></In><Eq><FieldRef Name='IsDisplay' /><Value Type='Boolean'>1</Value></Eq></And></Where></Query>"; var myQueryOptions="<QueryOptions><ExpandUserField>True</ExpandUserField></QueryOptions>"; $().SPServices({ operation: "GetListItems", async: false, listName: "专家库专业模块领域", CAMLViewFields: "<ViewFields> <FieldRef Name='SpecialtyModule' /><FieldRef Name='SpecialtyModuleArea' /><FieldRef Name='AreaExpert' /></ViewFields>", CAMLQuery: myQuery, CAMLQueryOptions: myQueryOptions, webURL: "http://ZJK", completefunc: function (xData, Status) { var j ; $(xData.responseXML).SPFilterNode("z:row").each(function() { var r=-1; for(dd in mn.Rows) { if(mn.Rows[dd].SpmID ==$(this).attr("ows_SpecialtyModule").split(";#")[0]) { j = indexdata[mn.Rows[dd].CstRowID].children.length; indexdata[mn.Rows[dd].CstRowID].children[j] = new Object(); indexdata[mn.Rows[dd].CstRowID].children[j].text = $(this).attr("ows_SpecialtyModuleArea"); indexdata[mn.Rows[dd].CstRowID].children[j].isparent=2; indexdata[mn.Rows[dd].CstRowID].children[j].isexpand = false; indexdata[mn.Rows[dd].CstRowID].children[j].children = []; r = mn.Rows[dd].CstRowID; break; } } var k =-1; var arr = $(this).attr("ows_AreaExpert").split(";"); for(var key in arr){ if(arr[key].indexOf(',')>0) { var arrc = arr[key].split("#"); if(arrc.length > 2) { k++; var acn =arrc[2].replace(',',''); acn = "AboutExpertW.aspx?accountname="+acn; k = indexdata[r].children[j].children.length; indexdata[r].children[j].children[k] = new Object(); indexdata[r].children[j].children[k].url = acn; indexdata[r].children[j].children[k].text= arrc[1].replace(',',''); indexdata[r].children[j].children[k].isparent=4; } } } }); } });} var tab = null; var accordion = null; var tree = null; var tabItems = []; $(function () { //布局 $("#layout1").ligerLayout({ leftWidth: 190, height: '100%',heightDiff:-34,space:4, onHeightChanged: f_heightChanged }); var height = $(".l-layout-center").height(); //Tab $("#framecenter").ligerTab({ height: height, showSwitchInTab : true, showSwitch: true, onAfterAddTabItem: function (tabdata) { tabItems.push(tabdata); saveTabStatus(); }, onAfterRemoveTabItem: function (tabid) { for (var i = 0; i < tabItems.length; i++) { var o = tabItems[i]; if (o.tabid == tabid) { tabItems.splice(i, 1); saveTabStatus(); break; } } }, onReload: function (tabdata) { var tabid = tabdata.tabid; addFrameSkinLink(tabid); } }); //面板 $("#accordion1").ligerAccordion({ height: height - 32, speed: null }); $(".l-link").hover(function () { $(this).addClass("l-link-over"); }, function () { $(this).removeClass("l-link-over"); }); //树 $("#tree1").ligerTree({ data : indexdata, checkbox: false, slide: false, nodeWidth: 120, attribute: ['nodename', 'url'], onSelect: function (node) { if(node.data.isparent ==1) { $('#home').attr("src","ListExpert.aspx?specialtymodule="+node.data.text); } if(node.data.isparent ==2) { $('#home').attr("src","ListExpert.aspx?specialtymodulearea="+node.data.text); } if (!node.data.url) return; var tabid = $(node.target).attr("tabid"); if (!tabid) { tabid = new Date().getTime(); $(node.target).attr("tabid", tabid) } f_addTab(tabid, node.data.text, node.data.url); } }); tab = liger.get("framecenter"); accordion = liger.get("accordion1"); tree = liger.get("tree1"); $("#pageloading").hide(); css_init(); pages_init(); } ); function f_heightChanged(options) { if (tab) tab.addHeight(options.diff); if (accordion && options.middleHeight - 32 > 0) accordion.setHeight(options.middleHeight - 32); } function f_addTab(tabid, text, url) { tab.addTabItem({ tabid: tabid, text: text, url: url, callback: function () { addFrameSkinLink(tabid); } }); } function addFrameSkinLink(tabid) { var prevHref = getLinkPrevHref(tabid) || ""; var skin = getQueryString("skin"); if (!skin) return; skin = skin.toLowerCase(); attachLinkToFrame(tabid, prevHref + skin_links[skin]); } var skin_links = { "aqua": "../lib/ligerUI/skins/Aqua/css/ligerui-all.css", "gray": "../lib/ligerUI/skins/Gray/css/all.css", "silvery": "../lib/ligerUI/skins/Silvery/css/style.css", "gray2014": "../lib/ligerUI/skins/gray2014/css/all.css" }; function pages_init() { var tabJson = $.cookie('liger-home-tab'); if (tabJson) { var tabitems = JSON2.parse(tabJson); for (var i = 0; tabitems && tabitems[i];i++) { f_addTab(tabitems[i].tabid, tabitems[i].text, tabitems[i].url); } } } function saveTabStatus() { $.cookie('liger-home-tab', JSON2.stringify(tabItems)); } function css_init() { var css = $("#mylink").get(0), skin = getQueryString("skin"); $("#skinSelect").val(skin); $("#skinSelect").change(function () { if (this.value) { location.href = "index.htm?skin=" + this.value; } else { location.href = "index.htm"; } }); if (!css || !skin) return; skin = skin.toLowerCase(); $('body').addClass("body-" + skin); $(css).attr("href", skin_links[skin]); } function getQueryString(name) { var now_url = document.location.search.slice(1), q_array = now_url.split('&'); for (var i = 0; i < q_array.length; i++) { var v_array = q_array[i].split('='); if (v_array[0] == name) { return v_array[1]; } } return false; } function attachLinkToFrame(iframeId, filename) { if(!window.frames[iframeId]) return; var head = window.frames[iframeId].document.getElementsByTagName('head').item(0); var fileref = window.frames[iframeId].document.createElement("link"); if (!fileref) return; fileref.setAttribute("rel", "stylesheet"); fileref.setAttribute("type", "text/css"); fileref.setAttribute("href", filename); head.appendChild(fileref); } function getLinkPrevHref(iframeId) { if (!window.frames[iframeId]) return; var head = window.frames[iframeId].document.getElementsByTagName('head').item(0); var links = $("link:first", head); for (var i = 0; links[i]; i++) { var href = $(links[i]).attr("href"); if (href && href.toLowerCase().indexOf("ligerui") > 0) { return href.substring(0, href.toLowerCase().indexOf("lib") ); } } } </script> <style type="text/css"> body,html{height:100%;} body{ padding:0px; margin:0; overflow:hidden; text-align: left;} .l-link{ display:block; height:26px; line-height:26px; padding-left:10px; text-decoration:underline; color:#333;} .l-link2{text-decoration:underline; color:white; margin-left:2px;margin-right:2px;} .l-layout-top{background:#102A49; color:White;} .l-layout-bottom{ background:#E5EDEF; text-align:center;} #pageloading{position:absolute; left:0px; top:0px; background:white url('loading.gif') no-repeat center; width:100%; height:100%;z-index:99999;} .l-link{ display:block; line-height:22px; height:22px; padding-left:16px;border:1px solid white; margin:4px;} .l-link-over{ background:#FFEEAC; border:1px solid #DB9F00;} .l-winbar{ background:#2B5A76; height:30px; position:absolute; left:0px; bottom:0px; width:100%; z-index:99999;} .space{ color:#E7E7E7;} /* 顶部 */ .l-topmenu{ margin:0; padding:0; height:31px; line-height:31px; background:url('lib/images/top.jpg') repeat-x bottom; position:relative; border-top:1px solid #1D438B; } .l-topmenu-logo{ color:#E7E7E7; padding-left:35px; line-height:26px;background:url('lib/images/topicon.gif') no-repeat 10px 5px;} .l-topmenu-welcome{ position:absolute; height:24px; line-height:24px; right:30px; top:2px;color:#070A0C;} .l-topmenu-welcome a{ color:#E7E7E7; text-decoration:underline} .body-gray2014 #framecenter{ margin-top:3px; } .viewsourcelink { background:#B3D9F7; display:block; position:absolute; right:10px; top:3px; padding:6px 4px; color:#333; text-decoration:underline; } .viewsourcelink-over { background:#81C0F2; } .l-topmenu-welcome label {color:white; } #skinSelect { margin-right: 6px; } </style></asp:Content><asp:Content ContentPlaceHolderId="PlaceHolderMain" runat="server"> <div id="layout1" style="width:99.2%; margin:0 auto; margin-top:0px; "> <div position="left" title="专家数据库" id="accordion1" > <div title="专业领域" class="l-scroll" > <ul id="tree1" style="margin-top:3px;" /> </div> </div> <div position="center" id="framecenter"> <div tabid="home" title="专家列表" style="height:300px" > <iframe frameborder="0" name="home" id="home" src="ListExpert.aspx"></iframe> </div> </div> </div> <div style="height:32px; line-height:32px; text-align:center;"> XX公司 版权所有 2014-2015 技术支持：软件人生（http://www.cnblogs.com/nbpowerboy） </div> <div style="display:none"></div></asp:Content>同时欢迎关注本人的微信号QYXXHQY，不定期更新企业信息化前沿相关技术和应用，欢迎扫描关注，二维码如下：
本博客为软件人生原创，欢迎转载，转载请标明出处：http://www.cnblogs.com/nbpowerboy/p/4166836.html 。演绎或用于商业目的，但是必须保留本文的署名软件人生（包含链接）。如您有任何疑问或者授权方面的协商，请给我留言。 |
