? ? ? ?我们已有CI job把单元测试结果发布到Sonar中，但Sonar的界面，你懂的。我们希望只关注我们部门相关项目的CodeCoverage数据，以及具体不达标项目的模块。
? ? ? ?查阅了Sonar的API文档，http://nemo.sonarqube.org/api_documentation。api/resources 可以利用。
例子：
请求：http://sonar.vip.qa.ebay.com/api/resources?resource=Scala&depth=0&metrics=coverage,test_success_density,it_coverage,total-quality&format=json&callback=jQuery19108647494609467685_1419918769346&_=1419918769347
回复：jQuery19108647494609467685_1419918769346([{"id":312828,"key":"Scala","name":"Scala","scope":"PRJ","qualifier":"SVW","date":"2014-12-29T20:31:18-0700","creationDate":"2014-07-25T12:06:48-0700","lname":"Scala","lang":"none","msr":[{"key":"coverage","val":76.0,"frmt_val":"76.0%"},{"key":"total-quality","val":86.6,"frmt_val":"86.6%"}]}]);
?
? ? 通过这个请求，我们就得到相应的覆盖率等数据。
?

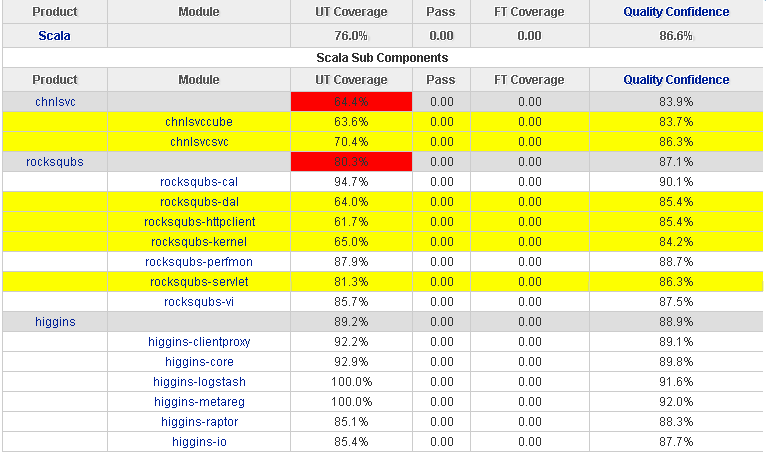

? ? ?我们只需要用javascript利用jQuery的Ajax调用，分析返回的数据，然后用表格的形式展示出来。
? ? ?
?
? ? ? ? 具体的代码很简单：
?
<!DOCTYPE html><html><head> <script src="../javascripts/jquery.js" type="text/javascript"></script> <link href="http://ir.qa.ebaystatic.com/z/mk/q0km4qa2bizklor5ltdsqgthq.css?dataUri=true" type="text/css" rel="stylesheet"></head><body bgcolor="transparent"></head><body><style> .table th {text-align:center}</style><div class="span14"> <div id="divother"></div></div><script> $(document).ready(function(){ //alert("hi"); populateQualityConfidenceTable(); }); function sortByProperty(property) { //'use strict'; return function (a, b) { var sortStatus = 0; if (a[property] < b[property]) { sortStatus = -1; } else if (a[property] > b[property]) { sortStatus = 1; } return sortStatus; }; } function printTableHeader(val){ var tableheader = ""; if(val.msr[0]!=undefined && val.msr[1]!=undefined){ if((val.lname.replace(/ /g,"") == "Scala") ) { tableheader = '<tr class="table" style="text-align:center"><th colspan="1"><font color="blue"><a id="test" href="#" onclick="openPage(\'http://sonar.vip.qa.ebay.com/dashboard/index/' + val.key + '\');return false;">' + val.lname.replace(/ /g,"") + '</a></font></th><th></th><th colspan="1">' + val.msr[0].frmt_val + '</th><th colspan="1">0.00</th><th colspan="1">0.00</th><th colspan="1">' + val.msr[1].frmt_val + '</th></tr>'; tableheader = tableheader + '<tr><td colspan="7" align="center"><b>' + val.lname.replace(/ /g,"") + ' Sub Components</b></td></tr>'; tableheader = tableheader + '<tr><th>Product</th><th colspan="1">Module</th><th>UT Coverage</th><th>Pass</th><th>FT Coverage</th><th><a id="qc" href="#" onclick="openPage(\'http://docs.codehaus.org/display/SONAR/Total+Quality+Plugin\');return false;">Quality Confidence</a></th></tr>'; }else{ if(val.msr[1].frmt_val.replace(/%/,"")>=85){ tableheader = tableheader + '<tr bgcolor="#dedede"><td><a id="test" href="#" onclick="openPage(\'http://sonar.vip.qa.ebay.com/dashboard/index/' + val.key + '\');return false;">' + val.lname.replace(/ /g,"") + '</a></td><td></td><td>' + val.msr[1].frmt_val + '</td><td>0.00</td><td>0.00</td><td >' + val.msr[0].frmt_val + '</td></tr>'; }else{ tableheader = tableheader + '<tr bgcolor="#dedede"><td><a id="test" href="#" onclick="openPage(\'http://sonar.vip.qa.ebay.com/dashboard/index/' + val.key + '\');return false;">' + val.lname.replace(/ /g,"") + '</a></td><td></td><td bgcolor="red">' + val.msr[1].frmt_val + '</td><td>0.00</td><td>0.00</td><td >' + val.msr[0].frmt_val + '</td></tr>'; } } } return tableheader; } function populateQualityConfidenceTable(){ sonar_baseurl_head = "http://sonar.vip.qa.ebay.com/api/resources?resource="; var sonar_baseurl_tail_withzerodepth = "&depth=0&metrics=coverage,test_success_density,it_coverage,total-quality&format=json"; var sonar_baseurl_tail_withonedepth = "&depth=1&metrics=scoverage,test_success_density,it_coverage,total-quality&format=json"; var metric_scala_coverage = sonar_baseurl_head + "Scala" + sonar_baseurl_tail_withzerodepth; var metric_sub_polyglot_coverage = sonar_baseurl_head + "Scala" + sonar_baseurl_tail_withonedepth; var requestUrl = ""; var modules = 0; //alert(metric_scala_coverage); var table = '<table style="width:100%">'; $.ajax({ url : metric_scala_coverage + "&callback=?", async : false, dataType: 'json', success: function(polyjson) { $.ajax({ url : metric_sub_polyglot_coverage + "&callback=?", async : false, dataType: 'json', success: function(subpolyjson) { polyData = polyjson.concat(subpolyjson.sort(sortByProperty('lname'))); var dataArray = [polyData]; table = table + '<tr><th colspan="1">Product</th><th colspan="1">Module</th><th colspan="1">UT Coverage</th><th colspan="1">Pass</th><th colspan="1">FT Coverage</th><th colspan="1"><a id="qc" href="#" onclick="openPage(\'http://docs.codehaus.org/display/SONAR/Total+Quality+Plugin\');return false;">Quality Confidence</a></th></tr>'; for (var j = 0; j < dataArray.length; j++) { $.each(dataArray[j], function(i, val) { if(val.lname.replace(/ /g,"") == "Scala"){ table = table + printTableHeader(val); } else{ if(val.lname.replace(/ /g,"") == "higgins"){ requestUrl = sonar_baseurl_head + "com.ebay.higgins" + sonar_baseurl_tail_withonedepth; }else if(val.lname.replace(/ /g,"") == "squbs"){ requestUrl = sonar_baseurl_head + "com.ebay.squbs" + sonar_baseurl_tail_withonedepth; }else if(val.lname.replace(/ /g,"") == "rocksqubs"){ requestUrl = sonar_baseurl_head + "com.ebay.rocksqubs" + sonar_baseurl_tail_withonedepth; }else{ requestUrl = sonar_baseurl_head + "com.ebay.squbs.chnlsvc" + sonar_baseurl_tail_withonedepth; } $.ajax({ url : requestUrl + "&callback=?", async : false, dataType: 'json', success: function(json) { scalaData = json//.sort(sortByProperty('lname')); var dataArray = [scalaData]; var subtable = "" for (var k = 0; k < dataArray.length; k++) { $.each(dataArray[k], function(l, val2) { if(parseFloat(val2.msr[1].frmt_val.replace(/%/,""))>=85){ subtable = subtable + '<tr id="'+val2.lname.replace(/ /g,"")+'"><td></td><td><a id="test" href="#" onclick="openPage(\'http://sonar.vip.qa.ebay.com/dashboard/index/' + val2.key + '\');return false;">' + val2.lname.replace(/ /g,"") + '</a></td><td>' + val2.msr[1].frmt_val + '</td><td>0.00</td><td>0.00</td><td >' + val2.msr[0].frmt_val + '</td></tr>'; }else{ subtable = subtable + '<tr bgcolor="yellow" id="'+val2.lname.replace(/ /g,"")+'"><td></td><td><a id="test" href="#" onclick="openPage(\'http://sonar.vip.qa.ebay.com/dashboard/index/' + val2.key + '\');return false;">' + val2.lname.replace(/ /g,"") + '</a></td><td >' + val2.msr[1].frmt_val + '</td><td>0.00</td><td>0.00</td><td >' + val2.msr[0].frmt_val + '</td></tr>'; } }); } var tableheader = printTableHeader(val); table = table + tableheader + subtable; modules = modules + 1; //alert(modules); if(modules==4){ //alert("final"); table = table + '</table>'; var qc = $('<div class="coverageTable"><div id="coverageTable" style="border-color: #4271A5" align="center">' +'<div align="center" id="tabletarget" style="width:99%;overflow: auto;">' + table + '</div></div></div>'); $('#divother').append(qc); } } }); } }); } } }); } }); } </script></body></html>? ? 这里需要注意的是，Table的拼凑部分必须放在最里层的ajax回调函数中，否则不能保证先后顺序，会导致表格出现一些错乱。
?
? ? ?由于我们的项目是Scala项目， 所以使用了Scoverage来做unit test，所以请求中，用scoverage替换了coverage
