RxJava3源码实现-1-create()+subscribe()

目录

1、代码调用流程图

1.1、create()

1.2、subscribe()

2、代码

2.1、结构目录

2.2、代码一

2.3、代码二

3、输出

3.1、原生输出

3.2、手写输出

---

github代码地址

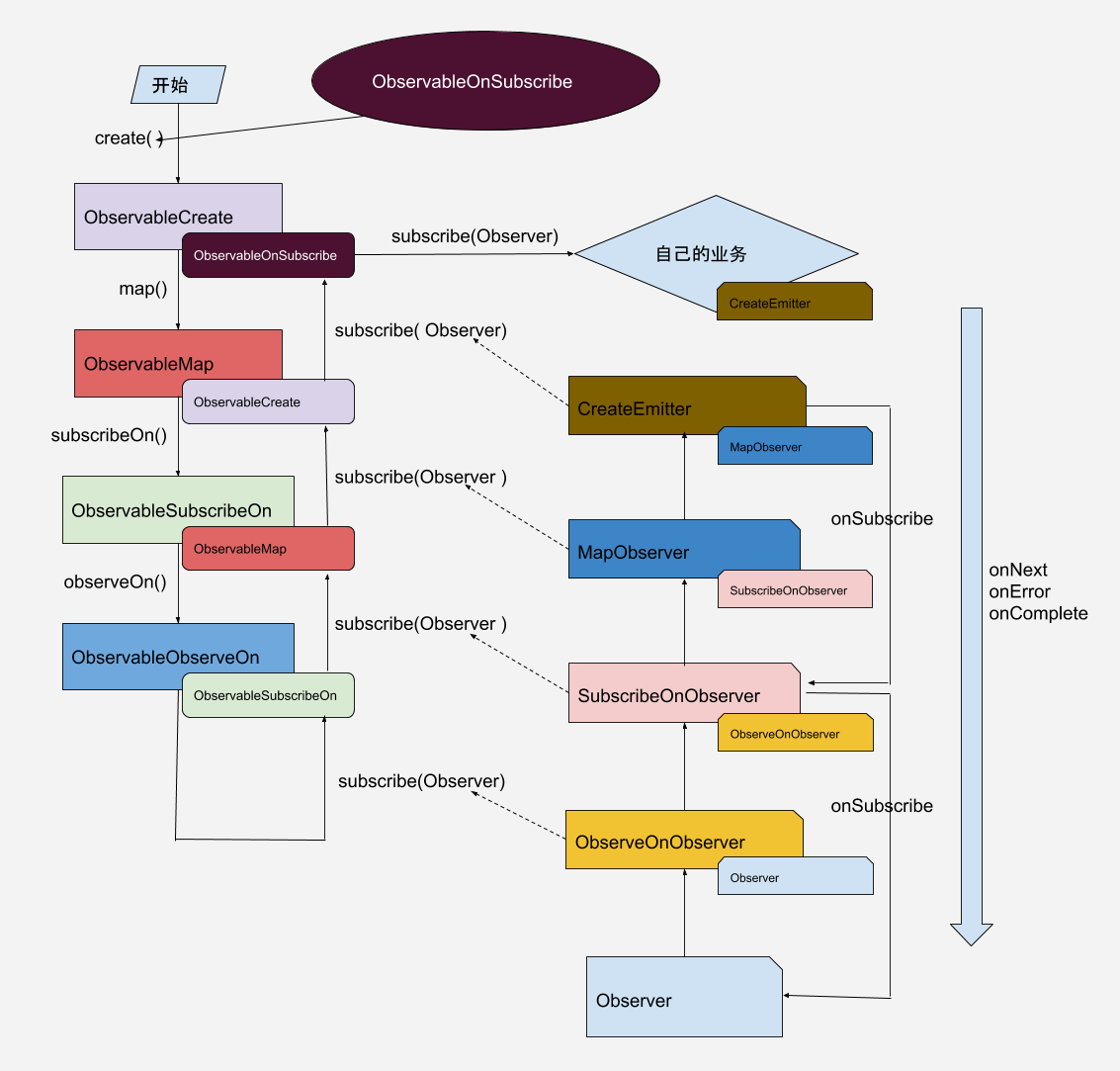

1、代码调用流程图

从下图中我们可看到：

1、调用create()方法会new 一个ObservableOnSubscribe对象，并将这个对象传到了ObservableCreate类中；

2、调用subscribe()订阅时，我们会创建一个Observer对象，并且穿给CreateEmitter类中；

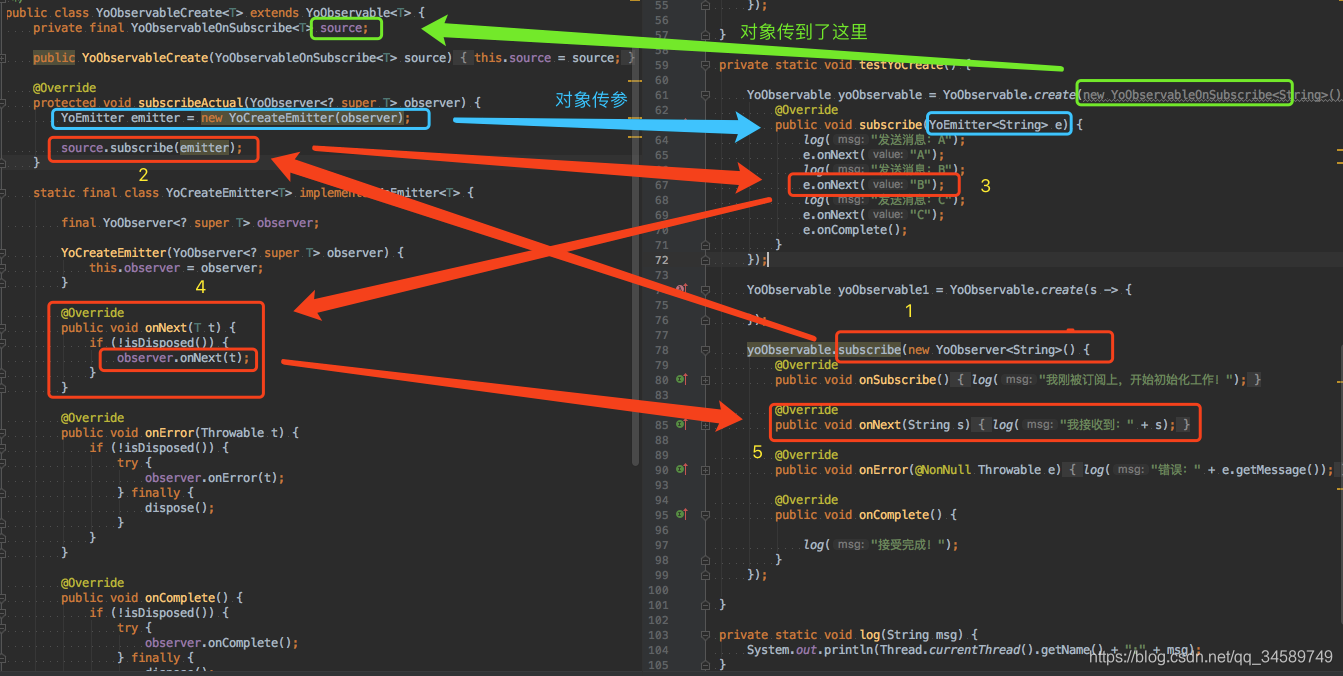

3、然后，调用subscribe()会最后调用:

ObservableCreate_subscribeActual()

----->ObservableOnSubscribe_subscribe()

----->Emitter_onNext()

----->Observer_onNext()

4、这样我们Create()方法中的onNext()中的值，就传到了Observer中onNext()方法中。

1.1、create()

1.2、subscribe()

2、代码

2.1、结构目录

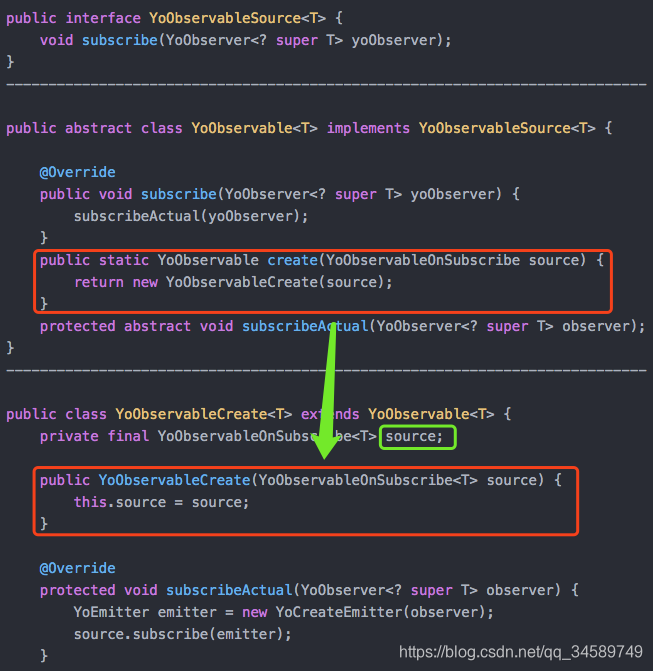

2.2、代码一

YoObservableSource--->YoObservable--->YoObservableCreate

它们三者是继承关系。

public interface YoObservableSource<T> {void subscribe(YoObserver<? super T> yoObserver);
}
----------------------------------------------------------------------------public abstract class YoObservable<T> implements YoObservableSource<T> {@Overridepublic void subscribe(YoObserver<? super T> yoObserver) {subscribeActual(yoObserver);}public static YoObservable create(YoObservableOnSubscribe source) {return new YoObservableCreate(source);}protected abstract void subscribeActual(YoObserver<? super T> observer);
}
----------------------------------------------------------------------------public class YoObservableCreate<T> extends YoObservable<T> {private final YoObservableOnSubscribe<T> source;public YoObservableCreate(YoObservableOnSubscribe<T> source) {this.source = source;}@Overrideprotected void subscribeActual(YoObserver<? super T> observer) {YoEmitter emitter = new YoCreateEmitter(observer);source.subscribe(emitter);}static final class YoCreateEmitter<T> implements YoEmitter<T> {final YoObserver<? super T> observer;YoCreateEmitter(YoObserver<? super T> observer) {this.observer = observer;}@Overridepublic void onNext(T t) {if (!isDisposed()) {observer.onNext(t);}}@Overridepublic void onError(Throwable t) {if (!isDisposed()) {try {observer.onError(t);} finally {dispose();}}}@Overridepublic void onComplete() {if (!isDisposed()) {try {observer.onComplete();} finally {dispose();}}}void dispose() {// 取消订阅}@Overridepublic boolean isDisposed() {return false;}}
}

2.3、代码二

YoEmitter        YoObservableOnSubscribe             YoObserver

public interface YoEmitter<T> {void onNext(T value);void onError(Throwable error);void onComplete();boolean isDisposed();
}
-------------------------------------------------------------------------public interface YoObservableOnSubscribe<T> {void subscribe(YoEmitter<T> emitter);
}
-------------------------------------------------------------------------public interface YoObserver<T> {void onSubscribe();void onNext(T t);void onError(Throwable e);void onComplete();
}

3、输出

3.1、原生输出

 Observable<String> observable = Observable.create(new ObservableOnSubscribe<String>() {@Overridepublic void subscribe(@NonNull ObservableEmitter<String> e) throws Throwable {log("开始发送消息！");e.onNext("A");e.onNext("B");e.onNext("C");e.onComplete();}}).doOnNext(s -> log("发送消息：" + s));observable.subscribe(new Observer<String>() {@Overridepublic void onSubscribe(@NonNull Disposable d) {log("我刚被订阅上，开始初始化工作！");}@Overridepublic void onNext(@NonNull String s) {log("我接收到：" + s);}@Overridepublic void onError(@NonNull Throwable e) {log("错误：" + e.getMessage());}@Overridepublic void onComplete() {log("接受完成！");}});//输出结果
main:我刚被订阅上，开始初始化工作！
main:开始发送消息！
main:发送消息：A
main:我接收到：A
main:发送消息：B
main:我接收到：B
main:发送消息：C
main:我接收到：C
main:接受完成！

3.2、手写输出

  YoObservable yoObservable = YoObservable.create(new YoObservableOnSubscribe<String>() {@Overridepublic void subscribe(YoEmitter<String> e) {log("发送消息：A");e.onNext("A");log("发送消息：B");e.onNext("B");log("发送消息：C");e.onNext("C");e.onComplete();}});yoObservable.subscribe(new YoObserver<String>() {@Overridepublic void onSubscribe() {log("我刚被订阅上，开始初始化工作！");}@Overridepublic void onNext(String s) {log("我接收到：" + s);}@Overridepublic void onError(@NonNull Throwable e) {log("错误：" + e.getMessage());}@Overridepublic void onComplete() {log("接受完成！");}});
//输出
main:发送消息：A
main:我接收到：A
main:发送消息：B
main:我接收到：B
main:发送消息：C
main:我接收到：C
main:接受完成！
