昨天神奇的使用DSP来刚9针的调试线，死活都提示这个玩意：This error is generated by TI’s USCIF driver or utilities

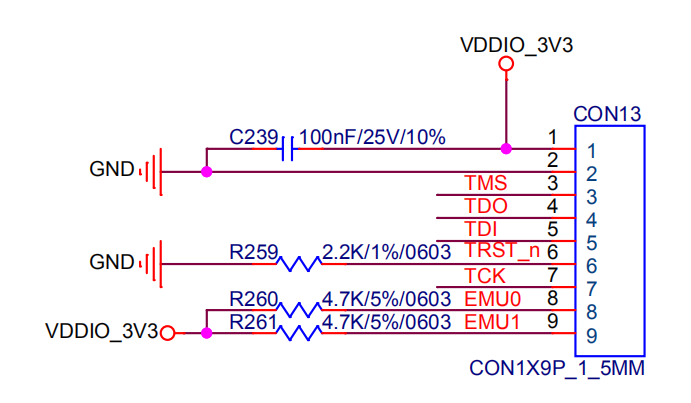

于是乎，吭哧吭哧的按照PCB线路图接起来，怎么都不对呢？what’s wrong？大大的黑人问号。

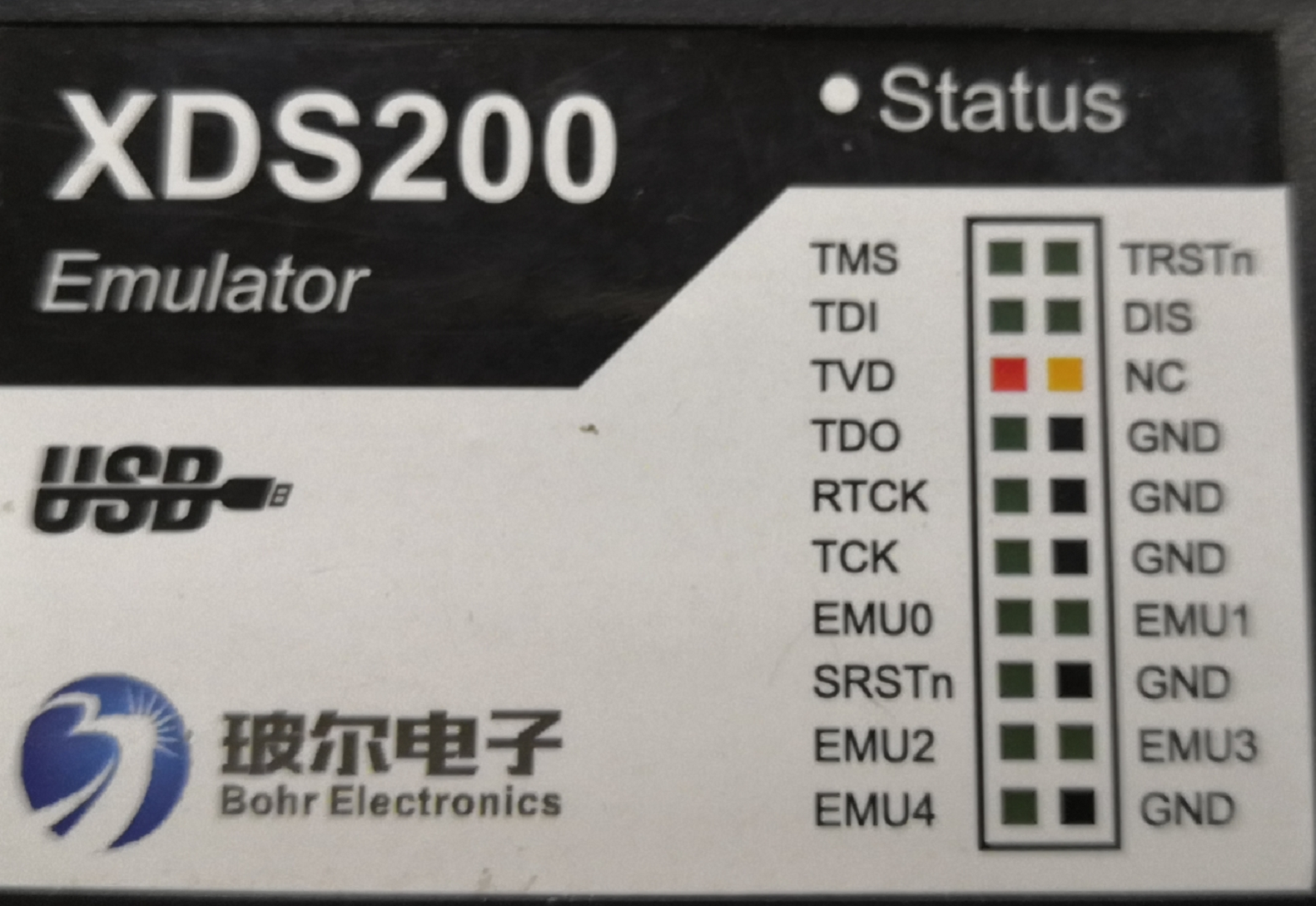

再看看xds2000：
经过不断的努力：
RTCK + TCK 连接在一起
DIS + GND 连接在一起
这样就OK了，希望能解惑一些类似的情况。
详细解决方案
This error is generated by TI‘s USCIF driver or utilities
热度：34 发布时间：2024-03-06 22:02:37.0
