GB28181：基于JAVA的Catalog目录获取[part3]

GB28181：基于JAVA的Catalog目录获取[part3]

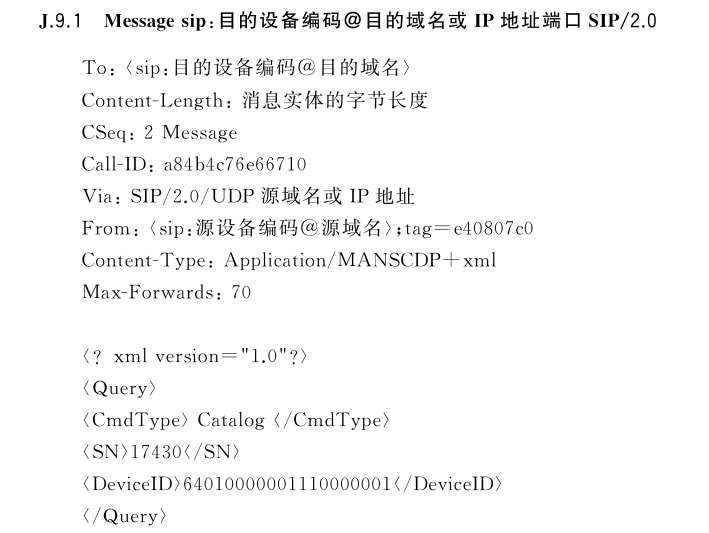

1、国标文件里面catalog的描述

2、java组装SIP信令

/*** This method uses the SIP stack to send a message. 第一个参数：用户名 第二个参数：IP地址 第三个参数：设备ID*/public synchronized void sendCatalog(String toIp,Integer toPort, String deviceId)throws ParseException, InvalidArgumentException, SipException {log.info("发送 sendCatalog ");String catalog = String.format(CATALOG_FORMAT, SN.incrementAndGet(), deviceId);Request request = createRequest(deviceId, toIp+":"+toPort, Request.MESSAGE, null, "QQ136320186CatalogTag", "QQ136320186CatalogBranch", Request.MESSAGE,20L,null);ContentTypeHeader contentTypeHeader = headerFactory.createContentTypeHeader("Application", "MANSCDP+xml");request.setContent(catalog, contentTypeHeader);sipProvider.sendRequest(request);log.info("发送 sendCatalog 结束.....");}private Request createRequest(String deviceId, String toIpAddPort, String method, String callId,String tag, String branch, String CSeqMethod, Long CSeq, String toTag)throws ParseException, InvalidArgumentException {SipURI from = addressFactory.createSipURI(deviceId, ip + ":" + port);Address fromNameAddress = addressFactory.createAddress(from);FromHeader fromHeader = headerFactory.createFromHeader(fromNameAddress, tag);SipURI toAddress = addressFactory.createSipURI(deviceId, toIpAddPort);Address toNameAddress = addressFactory.createAddress(toAddress);ToHeader toHeader = headerFactory.createToHeader(toNameAddress, toTag);SipURI requestURI = addressFactory.createSipURI(deviceId, toIpAddPort);ArrayList<ViaHeader> viaHeaders = new ArrayList<ViaHeader>();ViaHeader viaHeader = headerFactory.createViaHeader(ip, port, "udp", branch);viaHeaders.add(viaHeader);CallIdHeader callIdHeader = StringUtils.isEmpty(callId) ? sipProvider.getNewCallId(): headerFactory.createCallIdHeader(callId);CSeqHeader cSeqHeader = headerFactory.createCSeqHeader(CSeq == null ? 1L : CSeq, CSeqMethod);MaxForwardsHeader maxForwards = headerFactory.createMaxForwardsHeader(70);return messageFactory.createRequest(requestURI, method, callIdHeader, cSeqHeader,fromHeader, toHeader, viaHeaders, maxForwards);}

###3、发送的抓包信令

MESSAGE sip:34020000001110000001@192.168.1.200:5060 SIP/2.0
Call-ID: fce0e85df3e239bd013fcdd7c0e9336a@192.168.1.18
CSeq: 20 MESSAGE
From: <sip:34020000001110000001@192.168.1.18:5060>;tag=QQ136320186CatalogTag
To: <sip:34020000001110000001@192.168.1.200:5060>
Via: SIP/2.0/UDP 172.18.100.18:5060;branch=QQ136320186CatalogBranch
Max-Forwards: 70
Content-Type: Application/MANSCDP+xml
Content-Length: 123<?xml version="1.0"?>
<Query>
<CmdType>Catalog</CmdType>
<SN>20001</SN>
<DeviceID>34020000001110000001</DeviceID>
</Query>

###4、设备返回的代码处理

    @Overridepublic void processRequest(RequestEvent requestEvent, AddressFactory addressFactory, MessageFactory messageFactory, HeaderFactory headerFactory, SipProvider sipProvider) {Request request = requestEvent.getRequest();if (null == request) {log.error("processRequest RequestEvent is null");return;}switch (request.getMethod().toUpperCase()) {case Request.MESSAGE:log.debug("收到MESSAGE的请求");doRequestMessage(requestEvent, addressFactory,messageFactory, headerFactory, sipProvider);break;default:log.info("不处理的requestMethod：" + cSeqHeader.getMethod().toUpperCase());}} catch (Exception ex) {ex.printStackTrace();}}

    private void doRequestMessage(RequestEvent requestEvent, AddressFactory addressFactory, MessageFactory messageFactory, HeaderFactory headerFactory, SipProvider sipProvider) {try {Request request = requestEvent.getRequest();String encode = request.toString();if (org.apache.commons.lang3.StringUtils.contains(encode, MST_TYPE_KEEPALIVE)) {log.debug("收到下级域发来的心跳请求,{}", request.getRequestURI());doSuccess(requestEvent, addressFactory, messageFactory, headerFactory, sipProvider);} else if (org.apache.commons.lang3.StringUtils.contains(encode, MST_TYPE_CATALOG)) {ViaHeader viaHeader = (ViaHeader) request.getHeader(ViaHeader.NAME);log.info("收到目录检索返回，IP={},Port={}", viaHeader.getReceived(), viaHeader.getRPort());doSuccess(requestEvent, addressFactory, messageFactory, headerFactory, sipProvider);doRequestCatalog(requestEvent.getRequest(),encode);}}catch (Exception e) {log.error("doRequestMessage Error:{}",e.getMessage());e.printStackTrace();}}

3、源码

源码：给个star吧https://gitee.com/yuntian_admin/srymy
