轻松学习多线程-09-Worker Thread 模式

目录

Worker Thread 模式

Worker Thread 模式就是没有工作就一直等待，工作来了就进行处理。

实际案例

类信息概览：

定义

• ClientThread.java

package com.github.houbb.thread.learn.easy.learn.workerThread;import com.github.houbb.thread.learn.easy.learn.ThreadUtil;
import com.github.houbb.thread.learn.easy.learn.id.IdGen;
import com.github.houbb.thread.learn.easy.learn.id.IncreaseIdGen;/*** 2018/2/3** @author houbinbin* @version 1.0* @since 1.7*/
public class ClientThread extends Thread {
    private final Channel channel;public ClientThread(String name, Channel channel) {super(name);this.channel = channel;}@Overridepublic void run() {IdGen idGen = new IncreaseIdGen();while(true) {Request request = new Request(getName(), idGen.genId());try {channel.putRequest(request);ThreadUtil.sleepRandom();} catch (InterruptedException e) {e.printStackTrace();}}}}

• Channel.java

package com.github.houbb.thread.learn.easy.learn.workerThread;/*** 2018/2/3** @author houbinbin* @version 1.0* @since 1.7*/
public class Channel {
    /*** 最大存储数量*/private static final int MAX_SIZE = 100;/*** 存储 request 的位置*/private int tail = 0;/*** 取出 request 的位置*/private int head = 0;/*** request 的数量*/private int count = 0;private Request[] requestQueue = new Request[MAX_SIZE];/*** 线程池*/private WorkerThread[] threadsPool;public Channel(int threads) {threadsPool = new WorkerThread[threads];for(int i = 0; i < threads; i++) {threadsPool[i] = new WorkerThread("Worker-"+i, this);}/*** 默认开启*/workerThreadStart();}private void workerThreadStart() {for(WorkerThread workerThread : threadsPool) {workerThread.start();}}public synchronized void putRequest(Request request) throws InterruptedException {while (count >= requestQueue.length) {wait();}requestQueue[tail] = request;count++;tail = (tail+1) % requestQueue.length;  //移动位置System.out.println("put...");notifyAll();}public synchronized Request takeRequest() throws InterruptedException {while (count <= 0) {wait();}Request request = requestQueue[head];head = (head+1) % requestQueue.length;  //移动位置count--;notifyAll();System.out.println("take...");return request;}}

• WorkerThread.java

package com.github.houbb.thread.learn.easy.learn.workerThread;/*** 2018/2/3** @author houbinbin* @version 1.0* @since 1.7*/
public class WorkerThread extends Thread {
    private final Channel channel;public WorkerThread(String name, Channel channel) {super(name);this.channel = channel;}@Overridepublic void run() {while(true) {Request request = null;try {request = channel.takeRequest();} catch (InterruptedException e) {e.printStackTrace();}request.doSomething();}}}

• Request.java

package com.github.houbb.thread.learn.easy.learn.workerThread;/*** 2018/2/3** @author houbinbin* @version 1.0* @since 1.7*/
public class Request {
    private String name;private String number;public Request(String name, String number) {this.name = name;this.number = number;}public void doSomething() {System.out.println(Thread.currentThread().getName() + " execute " + this);}@Overridepublic String toString() {return "Request{" +"name='" + name + '\'' +", number='" + number + '\'' +'}';}}

测试

• Main.java

package com.github.houbb.thread.learn.easy.learn.workerThread;/*** 2018/2/3** @author houbinbin* @version 1.0* @since 1.7*/
public class Main {
    public static void main(String[] args) {Channel channel = new Channel(5);new ClientThread("one", channel).start();new ClientThread("two", channel).start();new ClientThread("three", channel).start();}}

• 测试结果

put...
take...
put...
Worker-3 execute Request{name='two', number='0'}
put...
take...
Worker-3 execute Request{name='three', number='0'}
take...
Worker-0 execute Request{name='one', number='0'}
put...
take...
Worker-3 execute Request{name='three', number='1'}
put...
take...
Worker-1 execute Request{name='one', number='1'}
put...
take...
Worker-1 execute Request{name='two', number='1'}
put...
take...
Worker-2 execute Request{name='three', number='2'}

实现方式

UML & Code

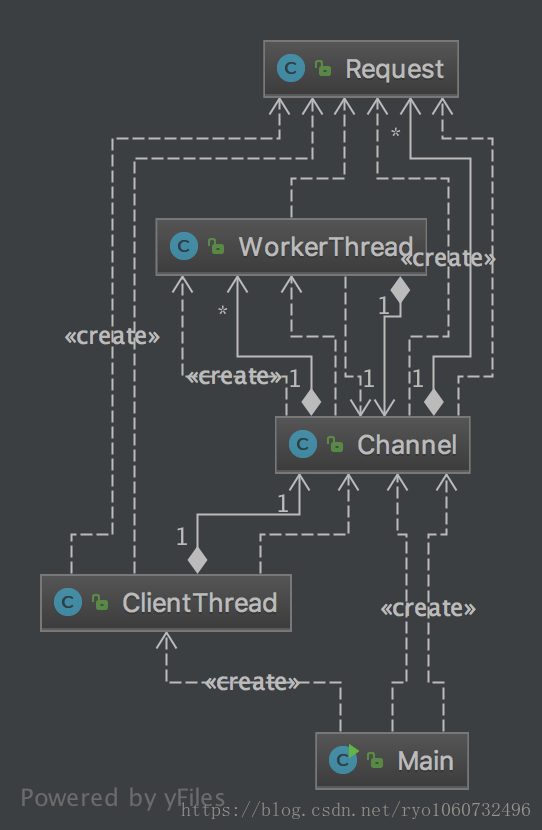

UML

Code

代码地址

Worker Thread
