轻松学习多线程-11-Two Phase Termination 模式

目录

Two Phase Termination 模式

Two Phase Termination 模式表示先执行完终止处理，再终止线程的模式。

模式特点

• 安全的终止线程

• 必定会进行线程终止

• 发出请求后尽快响应终止处理

实际案例

类信息概览：

定义

• CounterUpThread.java

package com.github.houbb.thread.learn.easy.learn.twoPhaseTerminal;/*** 2018/2/3** @author houbinbin* @version 1.0* @since 1.7*/
public class CounterUpThread extends Thread {
    private long counter = 0;private volatile boolean isShutdownRequest = false;/*** 终止请求* @see Thread#interrupt() 打断当前的 sleep() and wait(); 提高响应速度*/public void shutdownRequest() {isShutdownRequest = true;interrupt();}/*** 状态* @return*/public boolean getIsShutdownRequest() {return isShutdownRequest;}@Overridepublic void run() {try {while(!getIsShutdownRequest()) {doWork();}} catch (InterruptedException e) {//ignore} finally {doShutDown();}}private void doWork() throws InterruptedException {counter++;System.out.println("doWork counter = " + counter);Thread.sleep(1000);}private void doShutDown() {isShutdownRequest = false;System.out.println("doShutDown counter = " + counter);}
}

测试

• Main.java

package com.github.houbb.thread.learn.easy.learn.twoPhaseTerminal;import com.github.houbb.thread.learn.easy.learn.ThreadUtil;/*** 2018/2/3** @author houbinbin* @version 1.0* @since 1.7*/
public class Main {
    public static void main(String[] args) throws InterruptedException {System.out.println("Main BEGIN...");CounterUpThread counterUpThread = new CounterUpThread();System.out.println("counterUpThread START...");counterUpThread.start();ThreadUtil.sleep(1000);System.out.println("counterUpThread shutdown...");counterUpThread.shutdownRequest();System.out.println("Main JOIN...");counterUpThread.join(); //等待线程终止System.out.println("Main END...");}
}

• 测试结果

Main BEGIN...
counterUpThread START...
doWork counter = 1
counterUpThread shutdown...
doWork counter = 2
Main JOIN...
doShutDown counter = 2
Main END...Process finished with exit code 0

实现方式

UML & Code

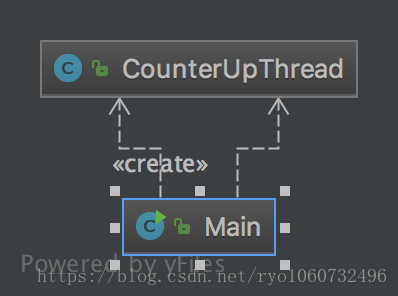

UML

Code

代码地址

Two Phase Termination
