【机器人学:运动规划】OMPL开源运动规划库的安装和demo

热度:16   发布时间:2024-01-06 02:08:04.0

转载:http://blog.csdn.net/gpeng832/article/details/73736225

开源运动规划库(OMPL)是美国莱斯大学的kavrakilab开发的,包含了当下主流的运动规划器。对于机器人方向的同学来说,无论是做移动机器人还是机械臂,这是必须要学习的工具。

在ubuntu14.04环境下,安装OMPL是比较简单的。

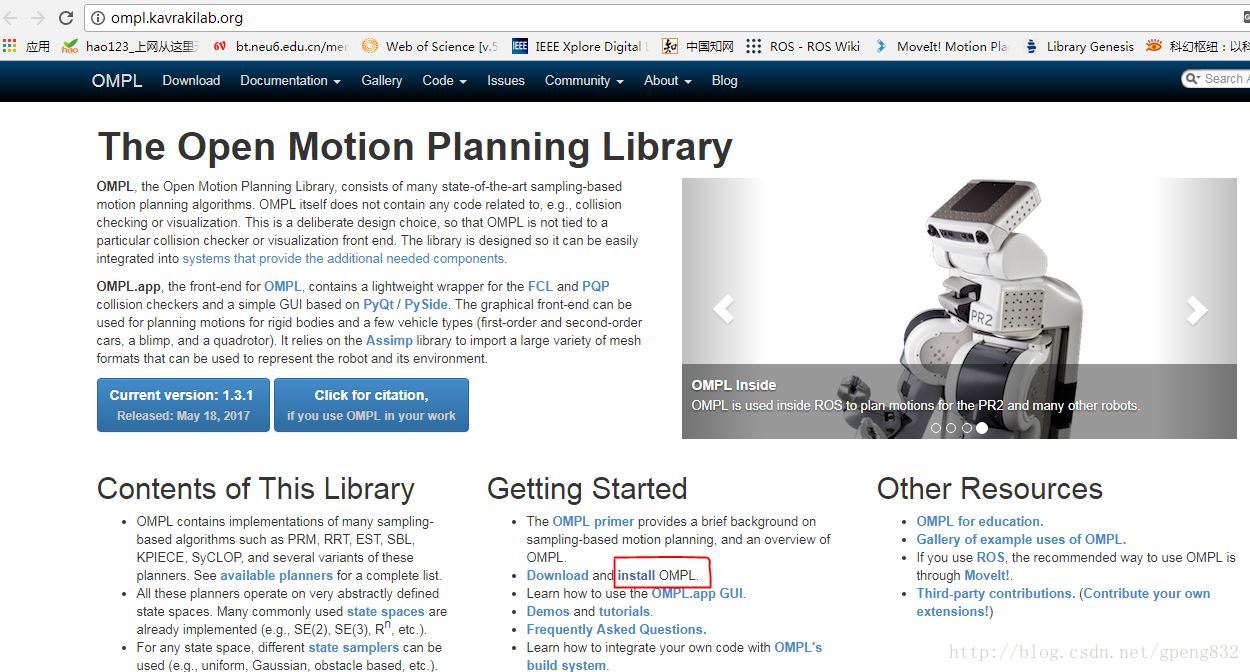

  1. 首先进入OMPL的官网http://ompl.kavrakilab.org/
    这里写图片描述

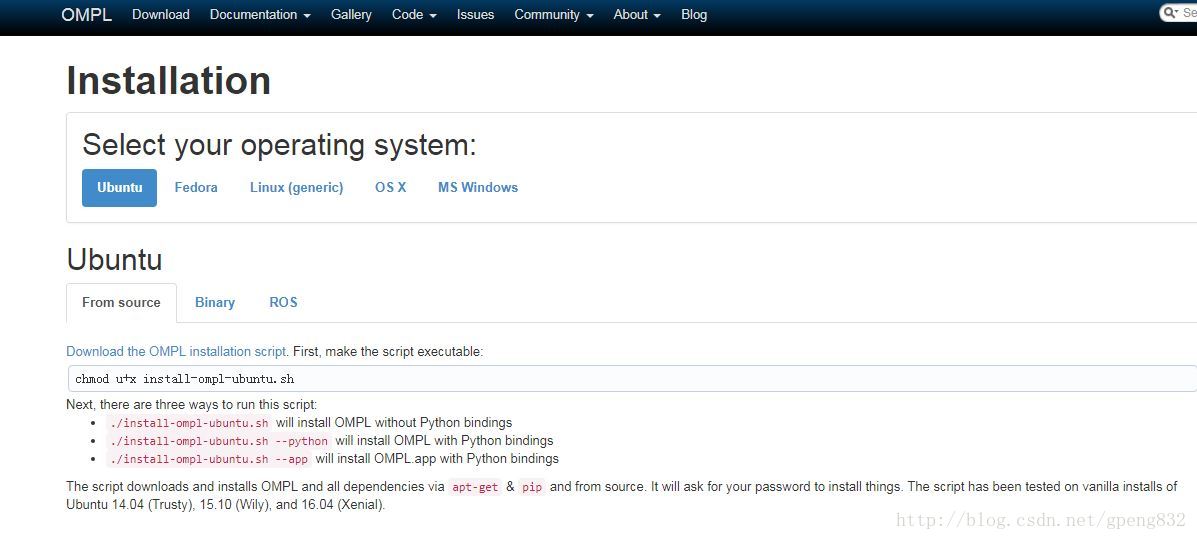

  2. 点击Getting Started下的install OMPL,进入下边的页面
    这里写图片描述
    点击“Download the OMPL installation script”,会下载一个名为“install-ompl-ubuntu.sh”的文件。
  3. 在install-ompl-ubuntu.sh的目录下,执行命令
    chmod u+x install-ompl-ubuntu.sh
    ./install-ompl-ubuntu.sh
    需要注意的是安装OMPL之前需要提前安装g++5.0和CMake 3.4以上,这样在编译的时候就不会报错了。
  4. 安装后在安装目录下会出现一个ompl-1.3.1-Source的文件夹。
    这里写图片描述

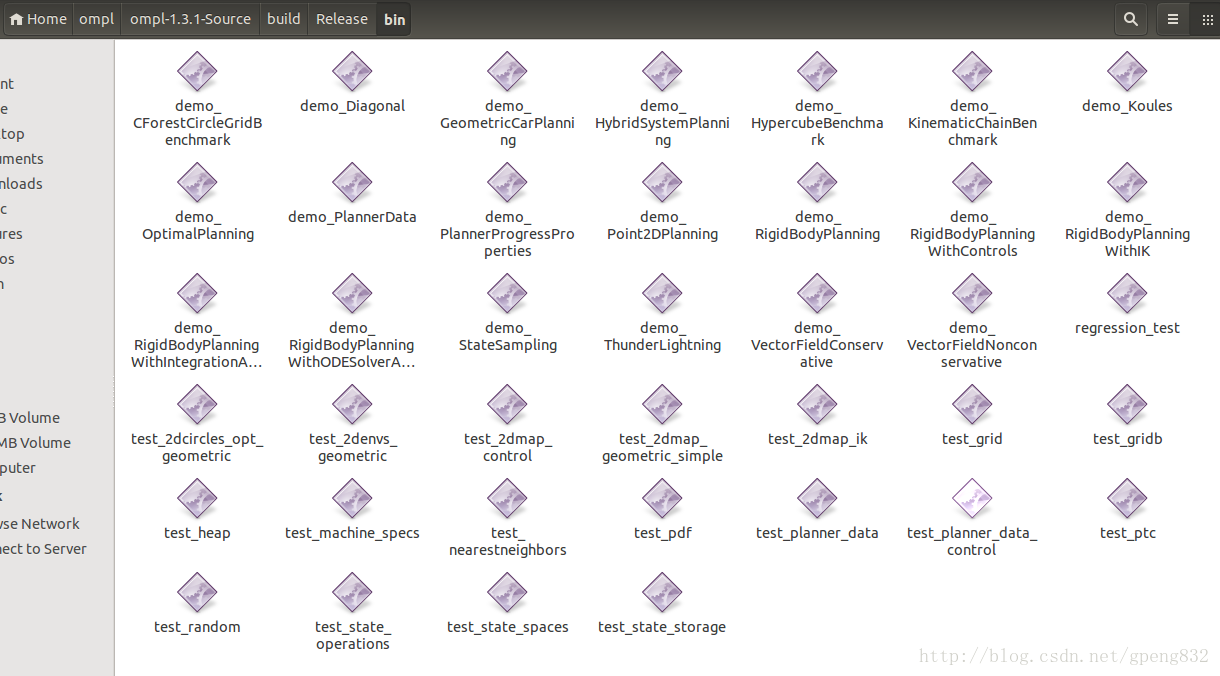

  5. 在/ompl-1.3.1-Source/build/Release/bin下有很多生成的demo可执行文件
    这里写图片描述
  6. 在终端中执行
./demo_Point2DPlanning

  • 1

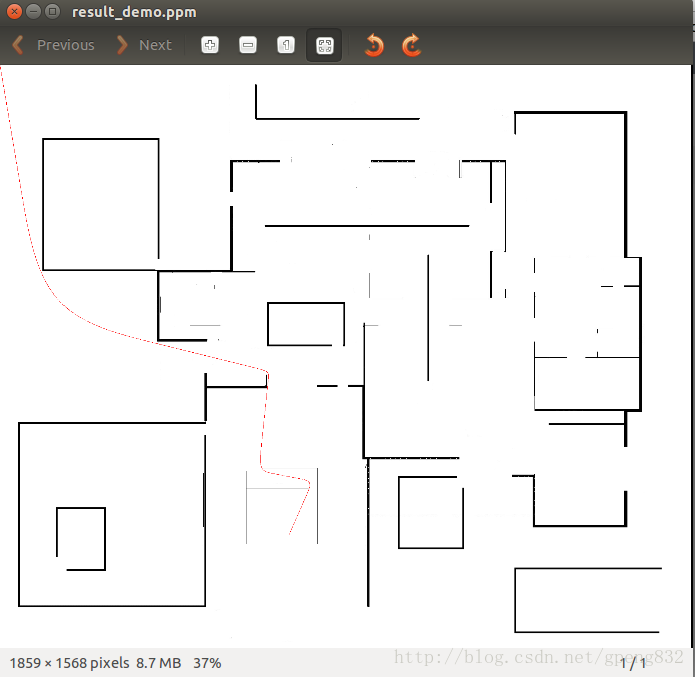

这是一个质点在二维平面空间中的规划算例,结果为:

gpeng@Robotic-IdeaPad-Y470:~/ompl/ompl-1.3.1-Source/build/Release/bin$ ./demo_Point2DPlanning
OMPL version: 1.3.1
Info:    No planner specified. Using default.
Info:    LBKPIECE1: Attempting to use default projection.
Debug:   LBKPIECE1: Planner range detected to be 486.395107
Info:    LBKPIECE1: Starting planning with 1 states already in datastructure
Info:    LBKPIECE1: Created 1043 (615 start + 428 goal) states in 277 cells (184 start (127 on boundary) + 93 goal (65 on boundary)) Info: Solution found in 0.055480 seconds Info: LBKPIECE1: Starting planning with 1 states already in datastructure Info: LBKPIECE1: Created 520 (401 start + 119 goal) states in 153 cells (130 start (92 on boundary) + 23 goal (20 on boundary)) Info: Solution found in 0.033183 seconds Info: LBKPIECE1: Starting planning with 1 states already in datastructure Info: LBKPIECE1: Created 594 (461 start + 133 goal) states in 160 cells (127 start (86 on boundary) + 33 goal (27 on boundary)) Info: Solution found in 0.039627 seconds Info: LBKPIECE1: Starting planning with 1 states already in datastructure Info: LBKPIECE1: Created 609 (470 start + 139 goal) states in 215 cells (170 start (110 on boundary) + 45 goal (40 on boundary)) Info: Solution found in 0.023786 seconds Info: LBKPIECE1: Starting planning with 1 states already in datastructure Info: LBKPIECE1: Created 608 (509 start + 99 goal) states in 232 cells (210 start (163 on boundary) + 22 goal (19 on boundary)) Info: Solution found in 0.024900 seconds Info: LBKPIECE1: Starting planning with 1 states already in datastructure Info: LBKPIECE1: Created 269 (163 start + 106 goal) states in 121 cells (86 start (81 on boundary) + 35 goal (31 on boundary)) Info: Solution found in 0.008904 seconds Info: LBKPIECE1: Starting planning with 1 states already in datastructure Info: LBKPIECE1: Created 333 (199 start + 134 goal) states in 202 cells (108 start (98 on boundary) + 94 goal (86 on boundary)) Info: Solution found in 0.006044 seconds Info: LBKPIECE1: Starting planning with 1 states already in datastructure Info: LBKPIECE1: Created 250 (137 start + 113 goal) states in 135 cells (85 start (78 on boundary) + 50 goal (43 on boundary)) Info: Solution found in 0.011098 seconds Info: LBKPIECE1: Starting planning with 1 states already in datastructure Info: LBKPIECE1: Created 521 (345 start + 176 goal) states in 202 cells (187 start (160 on boundary) + 15 goal (13 on boundary)) Info: Solution found in 0.027484 seconds Info: LBKPIECE1: Starting planning with 1 states already in datastructure Info: LBKPIECE1: Created 376 (281 start + 95 goal) states in 143 cells (108 start (92 on boundary) + 35 goal (31 on boundary)) Info: Solution found in 0.021535 seconds Info: Found 10 solutions Info: SimpleSetup: Path simplification took 0.001149 seconds and changed from 21 to 49 states

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38

这里写图片描述
