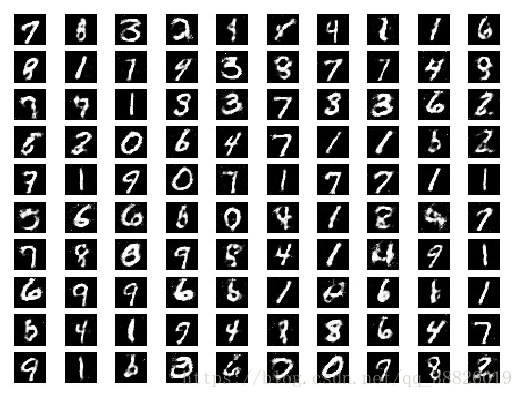

以下为MNIST测试，主要为了构建模型，只跑了，少量epoch,效果如下:

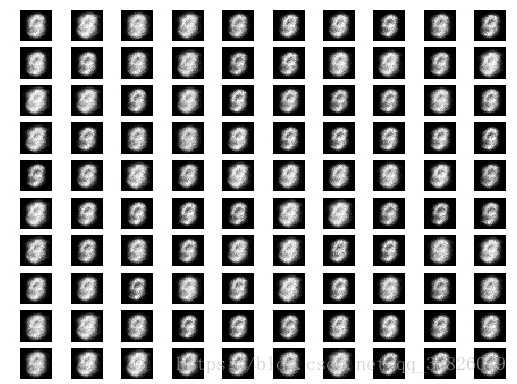

WGAN 2个epoch
wgan-gp 6个epoch

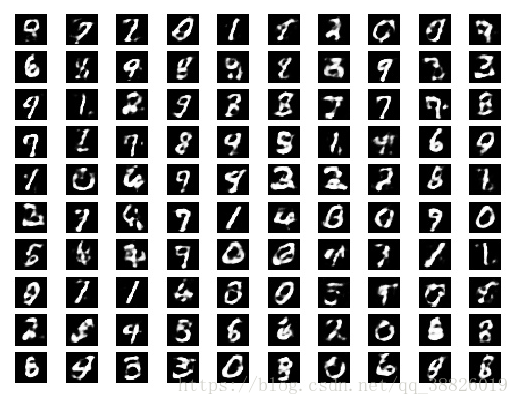

gan 10个epoch
有时间可以多跑几轮，这里就不展示了。
代码如下
from datetime import datetime
import os
import matplotlib.pyplot as plt
import numpy as np
import tensorflow as tf
from six.moves import xrange
from tensorflow.examples.tutorials.mnist import input_data
mnist = input_data.read_data_sets("MNIST_data",one_hot=True)
data= mnist.train.images#(55000,784)
def Save_genImages(gen, epoch): r,c = 10,10 fig,axs = plt.subplots(r,c) cnt = 0 print(gen.shape)for i in range(r): for j in range(c): axs[i,j].imshow(gen[cnt][:,:],cmap='Greys_r') axs[i,j].axis('off') cnt += 1if not os.path.exists('gen_mnist'): os.makedirs('gen_mnist') fig.savefig('gen_mnist/%d.jpg' % epoch) plt.close()
def Save_lossValue(epoch,iters,d_loss,g_loss): with open('loss2.txt','a') as f: f.write("第%d个epoch,第%d个batch , d_loss: %.8f, g_loss: %.8f"%(epoch, iters, d_loss, g_loss)+'\n')
def plot_loss(loss): fig,ax = plt.subplots(figsize=(20,7)) losses = np.array(loss) plt.plot(losses.T[0], label="Discriminator Loss") plt.plot(losses.T[1], label="Generator Loss") plt.title("Training Losses") plt.legend() plt.savefig('loss2.jpg') plt.show()
#定义Relu激活函数
def Relu(name, tensor): return tf.nn.relu(tensor,name) #定义LeakyRelu激活函数
def LeakyRelu(x, alpha=0.2): return tf.maximum(x, alpha * x) #定义全连接层
def Fully_connected(name, value, output_shape): with tf.variable_scope(name, reuse=None) as scope: shape = value.get_shape().as_list() w = tf.get_variable('w', [shape[1], output_shape], dtype=tf.float32, initializer=tf.random_normal_initializer(stddev=0.01)) b = tf.get_variable('b', [output_shape], dtype=tf.float32, initializer=tf.constant_initializer(0.0)) return tf.matmul(value, w) + b #定义一维卷积
def Conv1d(name, tensor, ksize, out_dim, stride, padding, stddev=0.01): with tf.variable_scope(name): w = tf.get_variable('w',[ksize,tensor.get_shape()[-1],out_dim],dtype=tf.float32, initializer=tf.random_normal_initializer(stddev=stddev)) var = tf.nn.conv1d(tensor,w,stride,padding=padding) b = tf.get_variable('b',[out_dim],'float32',initializer=tf.constant_initializer(0.01)) return tf.nn.bias_add(var,b) #定义二维卷积
def Conv2d(name, tensor, filter_size1 ,filter_size2, out_dim, stride1, stride2, padding, stddev=0.01): with tf.variable_scope(name): w = tf.get_variable('w',[filter_size1, filter_size2, tensor.get_shape()[-1], out_dim], dtype=tf.float32, initializer=tf.random_normal_initializer(stddev=stddev)) var = tf.nn.conv2d(tensor, w, [1, stride1, stride2, 1], padding=padding) b = tf.get_variable('b',[out_dim], 'float32', initializer=tf.constant_initializer(0.01)) return tf.nn.bias_add(var,b) #定义二维反卷积
def Deconv2d(name, tensor, filter_size1, filter_size2, outshape, stride1, stride2, padding, stddev=0.01): with tf.variable_scope(name): w = tf.get_variable('w', [filter_size1, filter_size2, outshape[-1], tensor.get_shape()[-1]], dtype=tf.float32, initializer=tf.random_normal_initializer(stddev=stddev)) var = tf.nn.conv2d_transpose(tensor, w, outshape, strides=[1,stride1, stride2, 1], padding=padding) b = tf.get_variable('b', [outshape[-1]],'float32', initializer=tf.constant_initializer(0.01)) return tf.nn.bias_add(var,b)
def Get_inputs(real_size,noise_size): real_img = tf.placeholder(tf.float32, [None, real_size], name='real_img') noise_img = tf.placeholder(tf.float32, [None, noise_size], name='noise_img') return real_img, noise_img
def Discriminator(img, reuse=False, name='discriminator'): with tf.variable_scope(name, reuse=reuse):output = Fully_connected('df1',img,2048)output = LeakyRelu(output)output = Fully_connected('df2',output,1024)output = LeakyRelu(output)output = Fully_connected('df3',output,512)output = LeakyRelu(output)output = Fully_connected('df4',output,256)output = LeakyRelu(output)output = Fully_connected('df5',output,1)return output
def Generator(noise_img, reuse=False, name='generator'):with tf.variable_scope(name,reuse=reuse):output = Fully_connected('gf1',noise_img,2048)output = tf.layers.batch_normalization(output,momentum=0.8,training=True)output = tf.nn.relu(output)output = Fully_connected('gf2',output,1024)output = tf.layers.batch_normalization(output,momentum=0.8,training=True)output = tf.nn.relu(output)output = Fully_connected('gf3',output,512)output = tf.layers.batch_normalization(output,momentum=0.8,training=True)output = tf.nn.relu(output)output = Fully_connected('gf4',output,256)output = tf.layers.batch_normalization(output,momentum=0.8,training=True)output = tf.nn.relu(output)output = Fully_connected('gf5',output,784)output = tf.nn.tanh(output)return output
mode = 'wgan' # gan, wgan, wgan-gp
noise = 'normal' # normal0_1, normal, uniform
batch_size = 100
epochs = 10
n_sample = 100
lamda = 10
img_size = 784
noise_size = 100 tf.reset_default_graph() real_img, noise_img = Get_inputs(img_size,noise_size)#feed于此
real_data = real_img
fake_data = Generator(noise_img) disc_real = Discriminator(real_data,reuse=False)
disc_fake = Discriminator(fake_data,reuse=True) #生成器和判别器中的tensor
train_vars = tf.trainable_variables()
g_vars = [var for var in train_vars if var.name.startswith("generator")]
d_vars = [var for var in train_vars if var.name.startswith("discriminator")] #普通的GAN
if mode == 'gan':gen_cost = tf.reduce_mean(tf.nn.sigmoid_cross_entropy_with_logits(logits=disc_fake,labels=tf.ones_like(disc_fake))) #生成器lossdisc_cost = tf.reduce_mean(tf.nn.sigmoid_cross_entropy_with_logits(logits=disc_fake,labels=tf.zeros_like(disc_fake)))disc_cost += tf.reduce_mean(tf.nn.sigmoid_cross_entropy_with_logits(logits=disc_real,labels=tf.ones_like(disc_real)))disc_cost /= 2. #判别器loss#优化器gen_train_op = tf.train.AdamOptimizer(learning_rate=2e-4, beta1=0.5).minimize(gen_cost,var_list=g_vars)disc_train_op = tf.train.AdamOptimizer(learning_rate=2e-4,beta1=0.5).minimize(disc_cost,var_list=d_vars)clip_disc_weights = None#wgan
elif mode == 'wgan':gen_cost = -tf.reduce_mean(disc_fake) #生成器lossdisc_cost = tf.reduce_mean(disc_fake) - tf.reduce_mean(disc_real) #判别器loss#优化器gen_train_op = tf.train.RMSPropOptimizer(learning_rate=5e-5).minimize(gen_cost,var_list=g_vars)disc_train_op = tf.train.RMSPropOptimizer(learning_rate=5e-5).minimize(disc_cost,var_list=d_vars)clip_ops = []#将判别器权重截断到[-0.01,0.01]for var in train_vars:if var.name.startswith("discriminator"):clip_bounds = [-0.01, 0.01]clip_ops.append(tf.assign(var,tf.clip_by_value(var,clip_bounds[0],clip_bounds[1])))clip_disc_weights = tf.group(*clip_ops)elif mode == 'wgan-gp':gen_cost = -tf.reduce_mean(disc_fake) #生成器loss disc_cost = tf.reduce_mean(disc_fake) - tf.reduce_mean(disc_real) #判别器loss #梯度惩罚alpha = tf.random_uniform(shape=[batch_size,1],minval=0.,maxval=1.) interpolates = alpha*fake_data + (1-alpha)*real_data gradients = tf.gradients(Discriminator(interpolates,reuse=True),[interpolates])[0] slopes = tf.sqrt(tf.reduce_sum(tf.square(gradients),reduction_indices=[1])) gradient_penalty = tf.reduce_mean((slopes-1.)**2) disc_cost += lamda * gradient_penalty clip_disc_weights = None#优化器 gen_train_op = tf.train.AdamOptimizer(learning_rate=1e-4,beta1=0.5,beta2=0.9).minimize(gen_cost,var_list=g_vars) disc_train_op = tf.train.AdamOptimizer(learning_rate=1e-4,beta1=0.5,beta2=0.9).minimize(disc_cost,var_list=d_vars) saver = tf.train.Saver()
def Train(): losses = [] with tf.Session() as sess: sess.run(tf.global_variables_initializer()) for e in range(epochs): for i in xrange(len(data)//batch_size): batch_images = data[i*batch_size:(i+1)*batch_size] batch_images = batch_images.reshape(batch_size,784) #batch = mnist.train.next_batch(batch_size)#batch_images = batch[0].reshape((batch_size,784))if noise != 'normal0_1' :batch_images = batch_images*2 -1 if noise == 'uniform':batch_noise = np.random.uniform(-1, 1, size=(batch_size, noise_size))elif noise == 'normal':batch_noise = np.random.normal(-1, 1, size=(batch_size, noise_size))elif noise == 'normal0_1':batch_noise = np.random.normal(0, 1, size=(batch_size, noise_size))if mode == 'gan': #普通的gan，判别器，生成器各训练一次disc_iters = 1else: #wgan和wgan-gp，判别器训练多次，生成器训练一次disc_iters = 6 for x in range(0, disc_iters): _,d_loss = sess.run([disc_train_op,disc_cost],feed_dict={real_data:batch_images,noise_img:batch_noise}) if clip_disc_weights is not None:_ = sess.run(clip_disc_weights) _,g_loss = sess.run([gen_train_op,gen_cost],feed_dict={noise_img:batch_noise}) Save_lossValue(e,i,d_loss,g_loss) print("第%d个epoch,第%d个batch , d_loss: %.8f, g_loss: %.8f"%(e, i, d_loss, g_loss)) losses.append((d_loss,g_loss)) if noise == 'uniform':sample_noise = np.random.uniform(-1, 1, size=(batch_size, noise_size))elif noise == 'normal':sample_noise = np.random.normal(-1, 1, size=(batch_size, noise_size))elif noise == 'normal0_1':sample_noise = np.random.normal(0, 1, size=(batch_size, noise_size))gen_samples = sess.run(Generator(noise_img,reuse=True),feed_dict={noise_img:sample_noise}) print(gen_samples.shape) saver.save(sess,'checkpoints/test2.ckpt') if e % 1 == 0: gen = gen_samples.reshape(100,28,28)if noise != 'normal0_1':gen = (gen+1)/2Save_genImages(gen, e) plot_loss(losses) def Test(): saver = tf.train.Saver(var_list=g_vars) with tf.Session() as sess: saver.restore(sess,tf.train.latest_checkpoint("checkpoints"))
# saver.restore(sess,'checkppoints/test2.ckpt') if noise == 'uniform':sample_noise = np.random.uniform(-1, 1, size=(batch_size, noise_size))elif noise == 'normal':sample_noise = np.random.normal(-1, 1, size=(batch_size, noise_size))elif noise == 'normal0_1':sample_noise = np.random.normal(0, 1, size=(batch_size, noise_size))gen_samples = sess.run(Generator(noise_img,reuse=True),feed_dict={noise_img:sample_noise}) if noise != 'normal0_1':gen_images = (gen_samples+1)/2 if __name__ == '__main__': Train() #Test() from datetime import datetime
import os
import matplotlib.pyplot as plt
import numpy as np
import tensorflow as tf
from six.moves import xrange
data = np.load('final37.npy')
data = data[:,:,0:60]
#显示原始数据图像
def Show_images(data,show_nums,save=False): index = 0 for n in range(show_nums): show_images = data[index:index+100] show_images = show_images.reshape(100,3,60,1) r,c = 10,10 fig,axs = plt.subplots(r,c) cnt = 0 for i in range(r): for j in range(c): xy = show_images[cnt] for k in range(len(xy)): x = xy[k][0:30] y = xy[k][30:60] if k == 0 : axs[i,j].plot(x,y,color='blue',linewidth=2) if k == 1: axs[i,j].plot(x,y,color='red',linewidth=2) if k == 2: axs[i,j].plot(x,y,color='green',linewidth=2) axs[i,j].axis('off') cnt += 1 index += 100 if save: if not os.path.exists('This_epoch'): os.makedirs('This_epoch') fig.savefig('This_epoch/%d.jpg' % n) plt.close() else: plt.show() def Save_genImages(gen, epoch): r,c = 10,10 fig,axs = plt.subplots(r,c) cnt = 0 for i in range(r): for j in range(c): xy = gen[cnt] for k in range(len(xy)): x = xy[k][0:30] y = xy[k][30:60] if k == 0: axs[i,j].plot(x,y,color='blue') if k == 1: axs[i,j].plot(x,y,color='red') if k == 2: axs[i,j].plot(x,y,color='green') axs[i,j].axis('off') cnt += 1 if not os.path.exists('gen_img1'): os.makedirs('gen_img1') fig.savefig('gen_img1/%d.jpg' % epoch) plt.close()
def Save_lossValue(epoch,iters,d_loss,g_loss): with open('losst.txt','a') as f: f.write("第%d个epoch,第%d个batch , d_loss: %.8f, g_loss: %.8f"%(epoch, iters, d_loss, g_loss)+'\n')
def plot_loss(loss): fig,ax = plt.subplots(figsize=(20,7)) losses = np.array(loss) plt.plot(losses.T[0], label="Discriminator Loss") plt.plot(losses.T[1], label="Generator Loss") plt.title("Training Losses") plt.legend() plt.savefig('loss.jpg') plt.show()
#定义Relu激活函数
def Relu(name, tensor): return tf.nn.relu(tensor,name) #定义LeakyRelu激活函数
def LeakyRelu(name, x, leak=0.2): return tf.maximum(x,leak*x,name=name) #定义全连接层
def Fully_connected(name, value, output_shape): with tf.variable_scope(name,reuse=None) as scope: shape = value.get_shape().as_list() w = tf.get_variable('w',[shape[1],output_shape],dtype=tf.float32, initializer=tf.random_normal_initializer(stddev=0.01)) b = tf.get_variable('b',[output_shape],dtype=tf.float32,initializer=tf.constant_initializer(0.0)) return tf.matmul(value,w) + b #定义一维卷积
def Conv1d(name, tensor, ksize, out_dim, stride, padding, stddev=0.01): with tf.variable_scope(name): w = tf.get_variable('w',[ksize,tensor.get_shape()[-1],out_dim],dtype=tf.float32, initializer=tf.random_normal_initializer(stddev=stddev)) var = tf.nn.conv1d(tensor,w,stride,padding=padding) b = tf.get_variable('b',[out_dim],'float32',initializer=tf.constant_initializer(0.01)) return tf.nn.bias_add(var,b) #定义二维卷积
def Conv2d(name, tensor, filter_size1 ,filter_size2, out_dim, stride1, stride2, padding, stddev=0.01): with tf.variable_scope(name): w = tf.get_variable('w',[filter_size1, filter_size2, tensor.get_shape()[-1], out_dim], dtype=tf.float32, initializer=tf.random_normal_initializer(stddev=stddev)) var = tf.nn.conv2d(tensor, w, [1, stride1, stride2, 1], padding=padding) b = tf.get_variable('b',[out_dim], 'float32', initializer=tf.constant_initializer(0.01)) return tf.nn.bias_add(var,b) #定义二维反卷积
def Deconv2d(name, tensor, filter_size1, filter_size2, outshape, stride1, stride2, padding, stddev=0.01): with tf.variable_scope(name): w = tf.get_variable('w', [filter_size1, filter_size2, outshape[-1], tensor.get_shape()[-1]], dtype=tf.float32, initializer=tf.random_normal_initializer(stddev=stddev)) var = tf.nn.conv2d_transpose(tensor, w, outshape, strides=[1,stride1, stride2, 1], padding=padding) b = tf.get_variable('b', [outshape[-1]],'float32', initializer=tf.constant_initializer(0.01)) return tf.nn.bias_add(var,b)
def Get_inputs(real_size,noise_size): real_img = tf.placeholder(tf.float32, [None, real_size], name='real_img') noise_img = tf.placeholder(tf.float32, [None, noise_size], name='noise_img') return real_img, noise_img def Generator(noise_img, reuse=False, alpha=0.01): with tf.variable_scope('generator',reuse=reuse):
# print(noise_img.shape) output = tf.layers.dense(noise_img,128)
# print(output.shape) output = tf.maximum(alpha * output,output) output = tf.layers.batch_normalization(output,momentum=0.8,training=True) output = tf.layers.dropout(output, rate=0.25) output = tf.layers.dense(output,512) output = tf.maximum(alpha * output,output) output = tf.layers.batch_normalization(output,momentum=0.8,training=True) output = tf.layers.dropout(output,rate=0.25) output = tf.layers.dense(output,180) output = tf.tanh(output) return output
def Discriminator(img,reuse=False,alpha=0.01): with tf.variable_scope("discriminator", reuse=reuse): print(img.shape) output = tf.layers.dense(img,512) output = tf.maximum(alpha * output, output) output = tf.layers.dense(output,128) output = tf.maximum(alpha * output, output) output = tf.layers.dense(output,1) return output
mode = 'gan' #gan, wgan, wgan-gp
batch_size = 100
epochs = 1
n_sample = 100
learning_rate = 0.0002
lamda = 10
img_size = 180
noise_size = 100 tf.reset_default_graph() real_img, noise_img = Get_inputs(img_size,noise_size)#feed于此
real_data = real_img
fake_data = Generator(noise_img) disc_real = Discriminator(real_data,reuse=False)
disc_fake = Discriminator(fake_data,reuse=True) #生成器和判别器中的tensor
train_vars = tf.trainable_variables()
g_vars = [var for var in train_vars if var.name.startswith("generator")]
d_vars = [var for var in train_vars if var.name.startswith("discriminator")] #普通的GAN
if mode == 'gan':gen_cost = tf.reduce_mean(tf.nn.sigmoid_cross_entropy_with_logits(logits=disc_fake,labels=tf.ones_like(disc_fake))) #生成器lossdisc_cost = tf.reduce_mean(tf.nn.sigmoid_cross_entropy_with_logits(logits=disc_fake,labels=tf.zeros_like(disc_fake)))disc_cost += tf.reduce_mean(tf.nn.sigmoid_cross_entropy_with_logits(logits=disc_real,labels=tf.ones_like(disc_real)))disc_cost /= 2. #判别器loss#优化器gen_train_op = tf.train.AdamOptimizer(learning_rate=2e-4, beta1=0.5).minimize(gen_cost,var_list=g_vars)disc_train_op = tf.train.AdamOptimizer(learning_rate=2e-4,beta1=0.5).minimize(disc_cost,var_list=d_vars)clip_disc_weights = None#wgan
elif mode == 'wgan':gen_cost = -tf.reduce_mean(disc_fake) #生成器lossdisc_cost = tf.reduce_mean(disc_fake) - tf.reduce_mean(disc_real) #判别器loss#优化器gen_train_op = tf.train.RMSPropOptimizer(learning_rate=5e-5).minimize(gen_cost,var_list=g_vars)disc_train_op = tf.train.RMSPropOptimizer(learning_rate=5e-5).minimize(disc_cost,var_list=d_vars)clip_ops = []#将判别器权重截断到[-0.01,0.01]for var in train_vars:if var.name.startswith("discriminator"):clip_bounds = [-0.01, 0.01]clip_ops.append(tf.assign(var,tf.clip_by_value(var,clip_bounds[0],clip_bounds[1])))clip_disc_weights = tf.group(*clip_ops)elif mode == 'wgan-gp':gen_cost = -tf.reduce_mean(disc_fake) #生成器loss disc_cost = tf.reduce_mean(disc_fake) - tf.reduce_mean(disc_real) #判别器loss #梯度惩罚alpha = tf.random_uniform(shape=[batch_size,1],minval=0.,maxval=1.) interpolates = alpha*fake_data + (1-alpha)*real_data gradients = tf.gradients(Discriminator(interpolates,reuse=True),[interpolates])[0] slopes = tf.sqrt(tf.reduce_sum(tf.square(gradients),reduction_indices=[1])) gradient_penalty = tf.reduce_mean((slopes-1.)**2) disc_cost += lamda * gradient_penalty clip_disc_weights = None#优化器 gen_train_op = tf.train.AdamOptimizer(learning_rate=1e-4,beta1=0.5,beta2=0.9).minimize(gen_cost,var_list=g_vars) disc_train_op = tf.train.AdamOptimizer(learning_rate=1e-4,beta1=0.5,beta2=0.9).minimize(disc_cost,var_list=d_vars) saver = tf.train.Saver()
def Train(): losses = [] with tf.Session() as sess: sess.run(tf.global_variables_initializer()) for e in range(epochs): for i in xrange(len(data)//batch_size): batch_images = data[i*batch_size:(i+1)*batch_size] batch_images = batch_images.reshape(batch_size,180) batch_images = batch_images*2 -1 batch_noise = np.random.uniform(-1,1,size=(batch_size,noise_size))if mode == 'gan': #普通的gan，判别器，生成器各训练一次disc_iters = 2else: #wgan和wgan-gp，判别器训练多次，生成器训练一次disc_iters = 2 for x in range(0,disc_iters): _,d_loss = sess.run([disc_train_op,disc_cost],feed_dict={real_data:batch_images,noise_img:batch_noise}) if clip_disc_weights is not None:_ = sess.run(clip_disc_weights) _,g_loss = sess.run([gen_train_op,gen_cost],feed_dict={noise_img:batch_noise}) Save_lossValue(e,i,d_loss,g_loss) print("第%d个epoch,第%d个batch , d_loss: %.8f, g_loss: %.8f"%(e, i, d_loss, g_loss)) losses.append((d_loss,g_loss)) sample_noise = np.random.uniform(-1,1,size=(100,100)) gen_samples = sess.run(Generator(noise_img,reuse=True),feed_dict={noise_img:sample_noise}) print(gen_samples.shape) saver.save(sess,'checkpoints/test.ckpt') if e % 1 == 0: gen = gen_samples.reshape(100,3,60,1) Save_genImages(gen, e) plot_loss(losses) def Test(): saver = tf.train.Saver(var_list=g_vars) with tf.Session() as sess: saver.restore(sess,tf.train.latest_checkpoint("checkpoints"))
# saver.restore(sess,'checkppoints/b.ckpt') sample_noise = np.random.uniform(-1, 1, size=(10000,noise_size)) gen_samples = sess.run(Generator(noise_img,reuse=True),feed_dict={noise_img:sample_noise}) gen_images = (gen_samples+1)/2 show_num = len(gen_images)//100 Show_images(gen_images,show_num,save=True) if __name__ == '__main__': Train() #Test() from datetime import datetime
import os
import matplotlib.pyplot as plt
import numpy as np
import tensorflow as tf
from six.moves import xrange
data = np.load('data/final37.npy')
data = data[:,:,0:60]
#显示原始数据图像
def Show_images(data,show_nums,save=False): index = 0 for n in range(show_nums): show_images = data[index:index+100] show_images = show_images.reshape(100,3,60,1) r,c = 10,10 fig,axs = plt.subplots(r,c) cnt = 0 for i in range(r): for j in range(c): xy = show_images[cnt] for k in range(len(xy)): x = xy[k][0:30] y = xy[k][30:60] if k == 0 : axs[i,j].plot(x,y,color='blue',linewidth=2) if k == 1: axs[i,j].plot(x,y,color='red',linewidth=2) if k == 2: axs[i,j].plot(x,y,color='green',linewidth=2) axs[i,j].axis('off') cnt += 1 index += 100 if save: if not os.path.exists('This_epoch2'): os.makedirs('This_epoch2') fig.savefig('This_epoch2/%d.jpg' % n) plt.close() else: plt.show() def Save_genImages(gen, epoch): r,c = 10,10 fig,axs = plt.subplots(r,c) cnt = 0 for i in range(r): for j in range(c): xy = gen[cnt] for k in range(len(xy)): x = xy[k][0:30] y = xy[k][30:60] if k == 0: axs[i,j].plot(x,y,color='blue') if k == 1: axs[i,j].plot(x,y,color='red') if k == 2: axs[i,j].plot(x,y,color='green') axs[i,j].axis('off') cnt += 1 if not os.path.exists('gen_img2'): os.makedirs('gen_img2') fig.savefig('gen_img2/%d.jpg' % epoch) plt.close()
def Save_lossValue(epoch,iters,d_loss,g_loss): with open('loss2.txt','a') as f: f.write("第%d个epoch,第%d个batch , d_loss: %.8f, g_loss: %.8f"%(epoch, iters, d_loss, g_loss)+'\n')
def plot_loss(loss): fig,ax = plt.subplots(figsize=(20,7)) losses = np.array(loss) plt.plot(losses.T[0], label="Discriminator Loss") plt.plot(losses.T[1], label="Generator Loss") plt.title("Training Losses") plt.legend() plt.savefig('loss2.jpg') plt.show()
#定义Relu激活函数
def Relu(name, tensor): return tf.nn.relu(tensor,name) #定义LeakyRelu激活函数
def LeakyRelu(x, alpha=0.2): return tf.maximum(x, alpha * x) #定义全连接层
def Fully_connected(name, value, output_shape): with tf.variable_scope(name, reuse=None) as scope: shape = value.get_shape().as_list() w = tf.get_variable('w', [shape[1], output_shape], dtype=tf.float32, initializer=tf.random_normal_initializer(stddev=0.01)) b = tf.get_variable('b', [output_shape], dtype=tf.float32, initializer=tf.constant_initializer(0.0)) return tf.matmul(value, w) + b #定义一维卷积
def Conv1d(name, tensor, ksize, out_dim, stride, padding, stddev=0.01): with tf.variable_scope(name): w = tf.get_variable('w',[ksize,tensor.get_shape()[-1],out_dim],dtype=tf.float32, initializer=tf.random_normal_initializer(stddev=stddev)) var = tf.nn.conv1d(tensor,w,stride,padding=padding) b = tf.get_variable('b',[out_dim],'float32',initializer=tf.constant_initializer(0.01)) return tf.nn.bias_add(var,b) #定义二维卷积
def Conv2d(name, tensor, filter_size1 ,filter_size2, out_dim, stride1, stride2, padding, stddev=0.01): with tf.variable_scope(name): w = tf.get_variable('w',[filter_size1, filter_size2, tensor.get_shape()[-1], out_dim], dtype=tf.float32, initializer=tf.random_normal_initializer(stddev=stddev)) var = tf.nn.conv2d(tensor, w, [1, stride1, stride2, 1], padding=padding) b = tf.get_variable('b',[out_dim], 'float32', initializer=tf.constant_initializer(0.01)) return tf.nn.bias_add(var,b) #定义二维反卷积
def Deconv2d(name, tensor, filter_size1, filter_size2, outshape, stride1, stride2, padding, stddev=0.01): with tf.variable_scope(name): w = tf.get_variable('w', [filter_size1, filter_size2, outshape[-1], tensor.get_shape()[-1]], dtype=tf.float32, initializer=tf.random_normal_initializer(stddev=stddev)) var = tf.nn.conv2d_transpose(tensor, w, outshape, strides=[1,stride1, stride2, 1], padding=padding) b = tf.get_variable('b', [outshape[-1]],'float32', initializer=tf.constant_initializer(0.01)) return tf.nn.bias_add(var,b)
def Get_inputs(real_size,noise_size): real_img = tf.placeholder(tf.float32, [None, real_size], name='real_img') noise_img = tf.placeholder(tf.float32, [None, noise_size], name='noise_img') return real_img, noise_img def Get_noise(noise,batch_size):if noise == 'uniform':batch_noise = np.random.uniform(-1, 1, size=(batch_size, noise_size))elif noise == 'normal':batch_noise = np.random.normal(-1, 1, size=(batch_size, noise_size))elif noise == 'normal0_1':batch_noise = np.random.normal(0, 1, size=(batch_size, noise_size))return batch_noisedef Discriminator(img, reuse=False, name='discriminator'): with tf.variable_scope(name, reuse=reuse):output = Fully_connected('df1',img,2048)output = LeakyRelu(output)output = Fully_connected('df2',output,1024)output = LeakyRelu(output)output = Fully_connected('df3',output,512)output = LeakyRelu(output)output = Fully_connected('df4',output,256)output = LeakyRelu(output)output = Fully_connected('df5',output,1)return output
def Generator(noise_img, reuse=False, name='generator'):with tf.variable_scope(name,reuse=reuse):output = Fully_connected('gf1',noise_img,2048)output = tf.layers.batch_normalization(output,momentum=0.8,training=True)output = tf.nn.relu(output)output = Fully_connected('gf2',output,1024)output = tf.layers.batch_normalization(output,momentum=0.8,training=True)output = tf.nn.relu(output)output = Fully_connected('gf3',output,512)output = tf.layers.batch_normalization(output,momentum=0.8,training=True)output = tf.nn.relu(output)output = Fully_connected('gf4',output,256)output = tf.layers.batch_normalization(output,momentum=0.8,training=True)output = tf.nn.relu(output)output = Fully_connected('gf5',output,180)output = tf.nn.tanh(output)return output
mode = 'wgan-gp' # gan, wgan, wgan-gp
noise = 'uniform' # normal0_1, normal, uniform
batch_size = 100
epochs = 100
n_sample = 100
lamda = 10
img_size = 180
noise_size = 100 tf.reset_default_graph() real_img, noise_img = Get_inputs(img_size,noise_size)#feed于此
real_data = real_img
fake_data = Generator(noise_img) disc_real = Discriminator(real_data,reuse=False)
disc_fake = Discriminator(fake_data,reuse=True) #生成器和判别器中的tensor
train_vars = tf.trainable_variables()
g_vars = [var for var in train_vars if var.name.startswith("generator")]
d_vars = [var for var in train_vars if var.name.startswith("discriminator")] #普通的GAN
if mode == 'gan':gen_cost = tf.reduce_mean(tf.nn.sigmoid_cross_entropy_with_logits(logits=disc_fake,labels=tf.ones_like(disc_fake))) #生成器lossdisc_cost = tf.reduce_mean(tf.nn.sigmoid_cross_entropy_with_logits(logits=disc_fake,labels=tf.zeros_like(disc_fake)))disc_cost += tf.reduce_mean(tf.nn.sigmoid_cross_entropy_with_logits(logits=disc_real,labels=tf.ones_like(disc_real)))disc_cost /= 2. #判别器loss#优化器gen_train_op = tf.train.AdamOptimizer(learning_rate=2e-4, beta1=0.5).minimize(gen_cost,var_list=g_vars)disc_train_op = tf.train.AdamOptimizer(learning_rate=2e-4,beta1=0.5).minimize(disc_cost,var_list=d_vars)clip_disc_weights = None#wgan
elif mode == 'wgan':gen_cost = -tf.reduce_mean(disc_fake) #生成器lossdisc_cost = tf.reduce_mean(disc_fake) - tf.reduce_mean(disc_real) #判别器loss#优化器gen_train_op = tf.train.RMSPropOptimizer(learning_rate=5e-5).minimize(gen_cost,var_list=g_vars)disc_train_op = tf.train.RMSPropOptimizer(learning_rate=5e-5).minimize(disc_cost,var_list=d_vars)clip_ops = []#将判别器权重截断到[-0.01,0.01]for var in train_vars:if var.name.startswith("discriminator"):clip_bounds = [-0.01, 0.01]clip_ops.append(tf.assign(var,tf.clip_by_value(var,clip_bounds[0],clip_bounds[1])))clip_disc_weights = tf.group(*clip_ops)elif mode == 'wgan-gp':gen_cost = -tf.reduce_mean(disc_fake) #生成器loss disc_cost = tf.reduce_mean(disc_fake) - tf.reduce_mean(disc_real) #判别器loss #梯度惩罚alpha = tf.random_uniform(shape=[batch_size,1],minval=0.,maxval=1.) interpolates = alpha*fake_data + (1-alpha)*real_data gradients = tf.gradients(Discriminator(interpolates,reuse=True),[interpolates])[0] slopes = tf.sqrt(tf.reduce_sum(tf.square(gradients),reduction_indices=[1])) gradient_penalty = tf.reduce_mean((slopes-1.)**2) disc_cost += lamda * gradient_penalty clip_disc_weights = None#优化器 gen_train_op = tf.train.AdamOptimizer(learning_rate=1e-4,beta1=0.5,beta2=0.9).minimize(gen_cost,var_list=g_vars) disc_train_op = tf.train.AdamOptimizer(learning_rate=1e-4,beta1=0.5,beta2=0.9).minimize(disc_cost,var_list=d_vars) saver = tf.train.Saver() def Train(): losses = [] with tf.Session() as sess: sess.run(tf.global_variables_initializer()) for e in range(epochs): for i in xrange(len(data)//batch_size): batch_images = data[i*batch_size:(i+1)*batch_size] batch_images = batch_images.reshape(batch_size,180) if noise != 'normal0_1' :batch_images = batch_images*2 -1 batch_noise = Get_noise(noise,100)if mode == 'gan': #普通的gan，判别器，生成器各训练一次disc_iters = 1else: #wgan和wgan-gp，判别器训练多次，生成器训练一次disc_iters = 6 for x in range(0, disc_iters): _,d_loss = sess.run([disc_train_op,disc_cost],feed_dict={real_data:batch_images,noise_img:batch_noise}) if clip_disc_weights is not None:_ = sess.run(clip_disc_weights) _,g_loss = sess.run([gen_train_op,gen_cost],feed_dict={noise_img:batch_noise}) Save_lossValue(e,i,d_loss,g_loss) print("第%d个epoch,第%d个batch , d_loss: %.8f, g_loss: %.8f"%(e, i, d_loss, g_loss)) losses.append((d_loss,g_loss))sample_noise = Get_noise(noise,100)gen_samples = sess.run(Generator(noise_img,reuse=True),feed_dict={noise_img:sample_noise}) saver.save(sess,'checkpoints/test2.ckpt') if e % 1 == 0: gen = gen_samples.reshape(100,3,60,1)if noise != 'normal0_1':gen = (gen+1)/2Save_genImages(gen, e) plot_loss(losses) def Test(): saver = tf.train.Saver(var_list=g_vars) with tf.Session() as sess: saver.restore(sess,tf.train.latest_checkpoint("checkpoints"))
# saver.restore(sess,'checkppoints/test2.ckpt') sample_noise = Get_noise(noise,10000)gen_samples = sess.run(Generator(noise_img,reuse=True),feed_dict={noise_img:sample_noise}) if noise != 'normal0_1':gen_images = (gen_samples+1)/2 show_num = len(gen_images)//100 Show_images(gen_images,show_num,save=True) if __name__ == '__main__': Train() #Test()
