SynchronousQueue介绍
SynchronousQueue是一种阻塞队列，该队列没有任务的容量。内部实现采用了一种性能更好的无锁算法。
代码实现里的Dual Queue，其中每一个put对应一个take方法。
简单测试代码
public class SynchronousQueueExample {
public static void main(String args[]) {
final SynchronousQueue queue = new SynchronousQueue();new Thread(new QueueProducer(queue)).start();new Thread(new QueueConsumer(queue)).start();}
}public class QueueProducer implements Runnable {
private SynchronousQueue queue;public QueueProducer(SynchronousQueue queue) {
this.queue = queue;}@Overridepublic void run() {
String event = "FIRST_EVENT";String another_event = "SECOND_EVENT";try {
queue.put(event);System.out.printf("[%s] producer event : %s %n", Thread.currentThread().getName(), event);queue.put(another_event);System.out.printf("[%s] producer event : %s %n", Thread.currentThread().getName(), another_event);} catch (InterruptedException e) {
e.printStackTrace();}}
}public class QueueConsumer implements Runnable {
private SynchronousQueue queue;public QueueConsumer(SynchronousQueue queue) {
this.queue = queue;}@Overridepublic void run() {
try {
String event = (String) queue.take();// thread will block hereSystem.out.printf("[%s] consumed event : %s %n", Thread.currentThread().getName(), event);} catch (InterruptedException e) {
e.printStackTrace();}}
}--------------------------
[Thread-0] producer event : FIRST_EVENT
[Thread-1] consumed event : FIRST_EVENT
--------------------------生产者每生产一个，如果没有消费者消费那就发生阻塞上面例子中。结果只打印了FIRST_EVENT ，因为SECOND_EVENT没有调用 queue.take()方法 ，所以没有打印。
绑定 put和take方法
/*** Puts or takes an item.*/Object transfer(Object e, boolean timed, long nanos) {
/** Basic algorithm is to loop trying one of three actions:** 1. If apparently empty or already containing nodes of same* mode, try to push node on stack and wait for a match,* returning it, or null if cancelled.** 2. If apparently containing node of complementary mode,* try to push a fulfilling node on to stack, match* with corresponding waiting node, pop both from* stack, and return matched item. The matching or* unlinking might not actually be necessary because of* other threads performing action 3:** 3. If top of stack already holds another fulfilling node,* help it out by doing its match and/or pop* operations, and then continue. The code for helping* is essentially the same as for fulfilling, except* that it doesn't return the item.*/SNode s = null; // constructed/reused as neededint mode = (e == null)? REQUEST : DATA;for (;;) {
SNode h = head;if (h == null || h.mode == mode) {
// empty or same-modeif (timed && nanos <= 0) {
// can't waitif (h != null && h.isCancelled())casHead(h, h.next); // pop cancelled nodeelsereturn null;} else if (casHead(h, s = snode(s, e, h, mode))) {
SNode m = awaitFulfill(s, timed, nanos);if (m == s) {
// wait was cancelledclean(s);return null;}if ((h = head) != null && h.next == s)casHead(h, s.next); // help s's fulfillerreturn mode == REQUEST? m.item : s.item;}} else if (!isFulfilling(h.mode)) {
// try to fulfillif (h.isCancelled()) // already cancelledcasHead(h, h.next); // pop and retryelse if (casHead(h, s=snode(s, e, h, FULFILLING|mode))) {
for (;;) {
// loop until matched or waiters disappearSNode m = s.next; // m is s's matchif (m == null) {
// all waiters are gonecasHead(s, null); // pop fulfill nodes = null; // use new node next timebreak; // restart main loop}SNode mn = m.next;if (m.tryMatch(s)) {
casHead(s, mn); // pop both s and mreturn (mode == REQUEST)? m.item : s.item;} else // lost matchs.casNext(m, mn); // help unlink}}} else {
// help a fulfillerSNode m = h.next; // m is h's matchif (m == null) // waiter is gonecasHead(h, null); // pop fulfilling nodeelse {
SNode mn = m.next;if (m.tryMatch(h)) // help matchcasHead(h, mn); // pop both h and melse // lost matchh.casNext(m, mn); // help unlink}}}}说到SynchronousQueue不由的想到LinkedBlockingQueue，ArrayBlockingQueue，PriorityBlockingQueue
- ArrayBlockingQueue
- LinkedBlockingQueue
- PriorityBlockingQueue
- SynchronousQueue
####根据不同的需要BlockingQueue有4种具体实现：
- (1)ArrayBlockingQueue：规定大小的BlockingQueue，其构造函数必须带一个int参数来指明其大小。其所含的对象是以FIFO（先入先出）顺序排序的。
- (2)LinkedBlockingQueue：大小不定的BlockingQueue，若其构造函数带一个规定大小的参数，生成的BlockingQueue有大小限制， 若不带大小参数，所生成的BlockingQueue的大小由Integer.MAX_VALUE来决定。其所含的对象是以FIFO（先入先出）顺序排序的。LinkedBlockingQueue和ArrayBlockingQueue比较起来，它们背后所用的数据结构不一样， 导致LinkedBlockingQueue的数据吞吐量要大于ArrayBlockingQueue，但在线程数量很大时其性能的可预见性低于ArrayBlockingQueue。
- (3)PriorityBlockingQueue：类似于LinkedBlockingQueue，但其所含对象的排序不是FIFO，而是依据对象的自然排序顺序或者是构造函数所带的Comparator决定的顺序。
- (4)SynchronousQueue：特殊的BlockingQueue，对其的操作必须是放和取交替完成的。
####ThreadPoolExecutor
/*** Creates a new <tt>ThreadPoolExecutor</tt> with the given initial* parameters and default thread factory.** @param corePoolSize the number of threads to keep in the* pool, even if they are idle.* @param maximumPoolSize the maximum number of threads to allow in the* pool.* @param keepAliveTime when the number of threads is greater than* the core, this is the maximum time that excess idle threads* will wait for new tasks before terminating.* @param unit the time unit for the keepAliveTime* argument.* @param workQueue the queue to use for holding tasks before they* are executed. This queue will hold only the <tt>Runnable</tt>* tasks submitted by the <tt>execute</tt> method.* @param handler the handler to use when execution is blocked* because the thread bounds and queue capacities are reached.* @throws IllegalArgumentException if corePoolSize or* keepAliveTime less than zero, or if maximumPoolSize less than or* equal to zero, or if corePoolSize greater than maximumPoolSize.* @throws NullPointerException if <tt>workQueue</tt>* or <tt>handler</tt> are null.*/public ThreadPoolExecutor(int corePoolSize,int maximumPoolSize,long keepAliveTime,TimeUnit unit,BlockingQueue<Runnable> workQueue,RejectedExecutionHandler handler) {
this(corePoolSize, maximumPoolSize, keepAliveTime, unit, workQueue,Executors.defaultThreadFactory(), handler);}
上面的每一个参数很详细的介绍了ThreadPoolExecutor的用法，保持线程的数量，最大化线程的数量，调度时间的间隔，用到的线程队列等。
主要的execute方法。
/*** Executes the given task sometime in the future. The task* may execute in a new thread or in an existing pooled thread.** If the task cannot be submitted for execution, either because this* executor has been shutdown or because its capacity has been reached,* the task is handled by the current <tt>RejectedExecutionHandler</tt>.** @param command the task to execute* @throws RejectedExecutionException at discretion of* <tt>RejectedExecutionHandler</tt>, if task cannot be accepted* for execution* @throws NullPointerException if command is null*/public void execute(Runnable command) {
if (command == null)throw new NullPointerException();if (poolSize >= corePoolSize || !addIfUnderCorePoolSize(command)) {
if (runState == RUNNING && workQueue.offer(command)) {
if (runState != RUNNING || poolSize == 0)ensureQueuedTaskHandled(command);}else if (!addIfUnderMaximumPoolSize(command))reject(command); // is shutdown or saturated}}在线程池中每一个任务被包装成Runnable 类型，传入到execute方法中 ， 该方法中会判断是否超过最大线程，是否有空余线程，当调用停止或者达到最大容量会调用RejectedExecutionHandler。
/*** Rechecks state after queuing a task. Called from execute when* pool state has been observed to change after queuing a task. If* the task was queued concurrently with a call to shutdownNow,* and is still present in the queue, this task must be removed* and rejected to preserve shutdownNow guarantees. Otherwise,* this method ensures (unless addThread fails) that there is at* least one live thread to handle this task* @param command the task*/private void ensureQueuedTaskHandled(Runnable command) {
final ReentrantLock mainLock = this.mainLock;mainLock.lock();boolean reject = false;Thread t = null;try {
int state = runState;if (state != RUNNING && workQueue.remove(command))reject = true;else if (state < STOP &&poolSize < Math.max(corePoolSize, 1) &&!workQueue.isEmpty())t = addThread(null);} finally {
mainLock.unlock();}if (reject)reject(command);else if (t != null)t.start();}/*** Invokes the rejected execution handler for the given command.*/void reject(Runnable command) {
handler.rejectedExecution(command, this);}

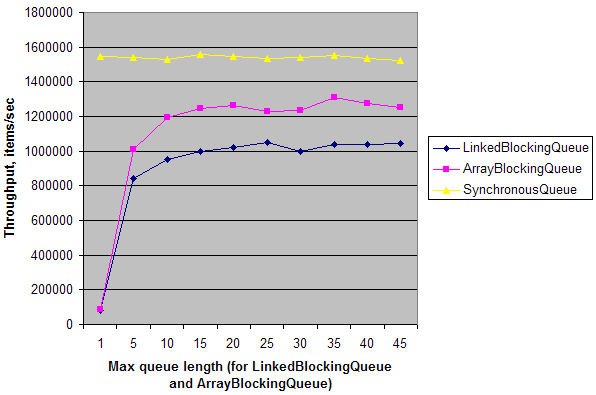

网上的一个测试
public class Test {
static ExecutorService e = Executors.newFixedThreadPool(2);static int N = 1000000;public static void main(String[] args) throws Exception {
for (int i = 0; i < 10; i++) {
int length = (i == 0) ? 1 : i * 5;System.out.print(length + "\t");System.out.print(doTest(new LinkedBlockingQueue<Integer>(length), N) + "\t");System.out.print(doTest(new ArrayBlockingQueue<Integer>(length), N) + "\t");System.out.print(doTest(new SynchronousQueue<Integer>(), N));System.out.println();}e.shutdown();}private static long doTest(final BlockingQueue<Integer> q, final int n) throws Exception {
long t = System.nanoTime();e.submit(new Runnable() {
public void run() {
for (int i = 0; i < n; i++)try {
q.put(i); } catch (InterruptedException ex) {
}}}); Long r = e.submit(new Callable<Long>() {
public Long call() {
long sum = 0;for (int i = 0; i < n; i++)try {
sum += q.take(); } catch (InterruptedException ex) {
}return sum;}}).get();t = System.nanoTime() - t;return (long)(1000000000.0 * N / t); // Throughput, items/sec}
}
