题目描述：
设计带有异步复位的可加减控制的50进制加减计数器
50进制加减计数器源代码：
library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;
entity count_50 is
port(clk,rd,updown:in std_logic;q:out std_logic_vector(5 downto 0));
end count_50;architecture count of count_50 is
signal y:std_logic_vector(5 downto 0);
begin
process (clk,rd)
begin
if rd = '0'then y <= "000000";
elseif (clk'event and clk = '0')thenif(updown = '1')thenif y = "110001" theny <= "000000";elsey <= y+1;end if;elseif y = "000000" theny <= "110001";elsey <= y-1;end if;end if;end if;
end if;
end process;
q <= y;
end count;

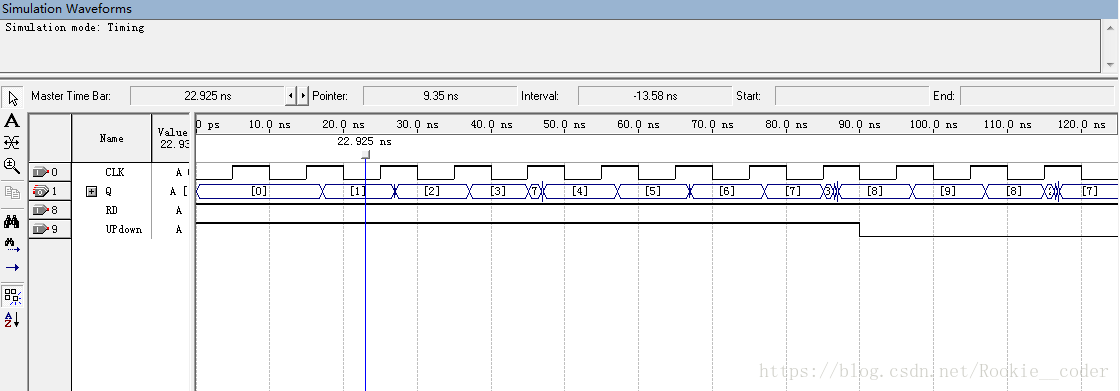

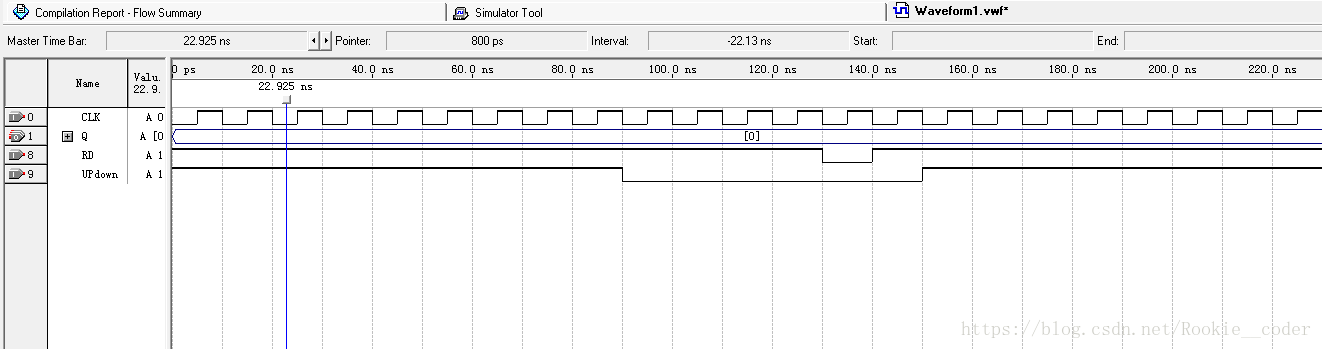

波形图如下：
