进入华为软件 eNSP 学习的第九天

热度:84   发布时间:2023-12-02 20:39:29.0

                                          真机大赛

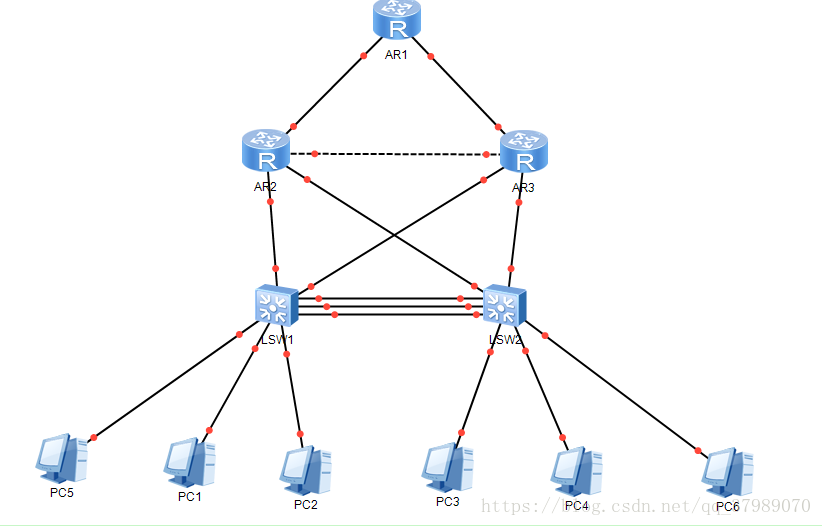

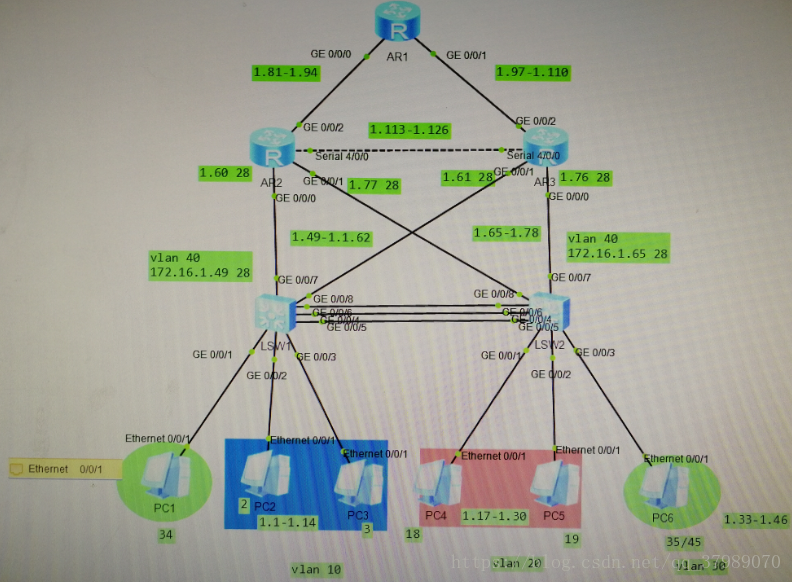

实验拓扑:

实验需求:

1、全网使用静态路由打通  (10分每少一条路由加一分钟)

2、R1上有一个环回口 100.100.100.100 32的位的路由(5分)

3、PC1与PC2在同一个vlan,PV3与PC4在同一个vlan,PC5与PC6在同一个vlan4、网关在交换机上,SW1与SW2之间有三条链路,要求主走两条链路,

当断掉一条链路之后,备份链路立即切换为活跃链路,当故障链路恢复后要求10S后抢占会活跃链路

(20分,每错一个点加一分钟,如果因为某个故障导致后面全部错误,那么最高加10分钟)

5、交换机与路由器之间链路要有冗余性。(15分)

6、当R1G0/0/0口故障后,要求PC访问R1的环回口走SW1-R2-R3-R1,反之SW2的PC同理(15)

7、当R1的G0/0/0、S1/0/0口同时故障后,要求PC访问R1的环回口走SW1-R3-R1,反之SW2的PC同理(15分)

8、所有设备需要配置telnet管理。要求所有设备能够被telnet

9、所有IP只能在172.16.1.0/24位中选取。保证PC段至少有15个ip。



评分标准:

  1. 所有需求100分,
  2. 考试时间为1小时,超过1小时不参与竞选
  3. 每错一个点加一分钟,根据实际情况积分
  4. 如果因为某个故障导致后面全部错误,那么最高加10分钟
  5. 最终解释权归季老师所有。
  6. 比赛以团队为赛为主,一共五个小组,考试以两个小组同时进行。
  7. 第一优先比较时间,时间最短者获胜。
  8. 所有配置不允许复制粘贴。


















SW1

sysname SW1

vlan batch 10 20 30 40

interface Vlanif10

 ip address 172.16.1.14 255.255.255.240

interface Vlanif20

 ip address 172.16.1.29 255.255.255.240



interface Vlanif30

 ip address 172.16.1.46 255.255.255.240



interface Vlanif40

 ip address 172.16.1.49 255.255.255.240

port link-type trunk

 port trunk allow-pass vlan 2 to 4094

 mode lacp-static

 lacp preempt enable

 max active-linknumber 2

 lacp preempt delay 10



interface Eth-Trunk1

 port link-type trunk

 port trunk allow-pass vlan 2 to 4094

 mode lacp-static

 lacp preempt enable

 max active-linknumber 2

 lacp preempt delay 10



interface GigabitEthernet0/0/1

 port link-type access

 port default vlan 30



interface GigabitEthernet0/0/2

 port link-type access

 port default vlan 10



interface GigabitEthernet0/0/3

 port link-type access

 port default vlan 10



interface GigabitEthernet0/0/4

 eth-trunk 1



interface GigabitEthernet0/0/5

 eth-trunk 1



interface GigabitEthernet0/0/6

 eth-trunk 1



interface GigabitEthernet0/0/7

 port link-type access

 port default vlan 40



interface GigabitEthernet0/0/8

 port link-type access

 port default vlan 40



ip route-static 0.0.0.0 0.0.0.0 172.16.1.62





SW2



interface Vlanif10

 ip address 172.16.1.13 255.255.255.240

#

interface Vlanif20

 ip address 172.16.1.30 255.255.255.240

#

interface Vlanif30

 ip address 172.16.1.45 255.255.255.240

#

interface Vlanif40

 ip address 172.16.1.65 255.255.255.240



interface Eth-Trunk1

 port link-type trunk

 port trunk allow-pass vlan 2 to 4094

 mode lacp-static

 lacp preempt enable

 max active-linknumber 2

 lacp preempt delay 10

#

interface GigabitEthernet0/0/1

 port link-type access

 port default vlan 20

#

interface GigabitEthernet0/0/2

 port link-type access

 port default vlan 20

#

interface GigabitEthernet0/0/3

 port link-type access

 port default vlan 30

#

interface GigabitEthernet0/0/4

 eth-trunk 1

#

interface GigabitEthernet0/0/5

 eth-trunk 1

#

interface GigabitEthernet0/0/6

 eth-trunk 1

#

interface GigabitEthernet0/0/7

 port link-type access

 port default vlan 40

#

interface GigabitEthernet0/0/8

 port link-type access

 port default vlan 40



ip route-static 0.0.0.0 0.0.0.0 172.16.1.78







R1



interface GigabitEthernet0/0/0

 ip address 172.16.1.94 255.255.255.240

#

interface GigabitEthernet0/0/1

 ip address 172.16.1.97 255.255.255.240

#

interface LoopBack0

 ip address 100.100.100.100 255.255.255.255



ip route-static 172.16.1.0 255.255.255.0 172.16.1.110

ip route-static 172.16.1.0 255.255.255.0 172.16.1.81 preference 100

ip route-static 172.16.1.48 255.255.255.240 172.16.1.81

ip route-static 172.16.1.48 255.255.255.240 172.16.1.110 preference 100

ip route-static 172.16.1.64 255.255.255.240 172.16.1.110

ip route-static 172.16.1.64 255.255.255.240 172.16.1.81 preference 100

ip route-static 172.16.1.112 255.255.255.240 172.16.1.81

ip route-static 172.16.1.112 255.255.255.240 172.16.1.110 preference 100



R2



interface Serial 1/0/0

ip address 172.16.1.113 255.255.255.240





interface GigabitEthernet0/0/0

 ip address 172.16.1.60 255.255.255.240

 vrrp vrid 1 virtual-ip 172.16.1.62

 vrrp vrid 1 priority 200

 vrrp vrid 1 track interface GigabitEthernet0/0/2 reduced 60

 vrrp vrid 1 track interface Serial4/0/0 reduced 60



interface GigabitEthernet0/0/1

 ip address 172.16.1.77 255.255.255.240

 vrrp vrid 2 virtual-ip 172.16.1.78

 vrrp vrid 2 track interface GigabitEthernet0/0/2 reduced 120

 vrrp vrid 2 track interface Serial 1/0/0 reduced 120

 vrrp vrid 2 track interface GigabitEthernet0/0/0 reduced 120



interface GigabitEthernet0/0/2

 ip address 172.16.1.81 255.255.255.240



ip route-static 100.100.100.100 255.255.255.255 172.16.1.94

ip route-static 100.100.100.100 255.255.255.255 172.16.1.126

ip route-static 172.16.1.0 255.255.255.0 172.16.1.49

ip route-static 172.16.1.0 255.255.255.0 172.16.1.65 preference 100

ip route-static 172.16.1.0 255.255.255.0 172.16.1.126 preference 90

ip route-static 172.16.1.96 255.255.255.240 172.16.1.94 preference 100

ip route-static 172.16.1.96 255.255.255.240 172.16.1.126





R3



interface Serial 1/0/0

 link-protocol ppp

 ip address 172.16.1.126 255.255.255.240



interface GigabitEthernet0/0/0

 ip address 172.16.1.76 255.255.255.240

 vrrp vrid 2 virtual-ip 172.16.1.78

 vrrp vrid 2 priority 200

 vrrp vrid 2 track interface GigabitEthernet0/0/2 reduced 60

 vrrp vrid 2 track interface Serial 1/0/0 reduced 60



interface GigabitEthernet0/0/1

 ip address 172.16.1.61 255.255.255.240

 vrrp vrid 1 virtual-ip 172.16.1.62

 vrrp vrid 1 preempt-mode timer delay 1



interface GigabitEthernet0/0/2

 ip address 172.16.1.110 255.255.255.240



ip route-static 100.100.100.100 255.255.255.255 172.16.1.97

ip route-static 100.100.100.100 255.255.255.255 172.16.1.113 preference 100

ip route-static 172.16.1.0 255.255.255.0 172.16.1.65

ip route-static 172.16.1.0 255.255.255.0 172.16.1.49 preference 100

ip route-static 172.16.1.0 255.255.255.0 172.16.1.113 preference 90

ip route-static 172.16.1.80 255.255.255.240 172.16.1.97

ip route-static 172.16.1.80 255.255.255.240 172.16.1.113 preference 100
