JavaScript兑现 页面滚动图片加载

热度:226   发布时间:2012-11-10 10:48:50.0
JavaScript实现 页面滚动图片加载

  现在的页面大多都具有的特点 -?内容丰富,图片较多;像我们经常浏览的淘宝,京东,团购网站之类的(本人网购控,属于一个月不在网上花点钱就不痛快),一个页面几十张图片那叫毛毛雨,所以现在流行起了一个方法 - 滚动动态加载。这个方法能解决很大程度的HTTP请求,首先页面只加载窗口显示区的图片,只有等到页面滚动,且滚动到相应位置的时候再去加载图片,这样做网页加载快了(请求少了,加载的东西少了能不提快么)。在《高性能网站建设指南》第一章就说到,减少HTTP请求的重要性,这是提高网页前端性能,优化页面加载速度很实用的做法。


  原理:

1.给页面绑定滚动事件;

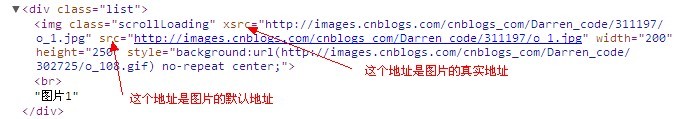

2.加载页面的时候把真正的图片地址放在某属性中;

3.然后再滚动过程中判断元素是否进入当前浏览器窗口内;

4.最后加载图片,当然加载什么,用什哪种用户体验都得由你决定;


  难点

  浏览器兼容是造成难点的原因所在,DOM标准和IE标准,每天前端的工作都在和它们打交道。思考下面的几段代码

  1.window.pageYOffset ? window.pageYOffset : window.document.documentElement.scrollTop

目的:获得当前页面相对于窗口显示区左上角的 Y 位置.
DOM标准:window.pageYOffset;
IE标准:window.document.documentElement.scrollTop

  2.window.innerHeight ? window.innerHeight : document.documentElement.clientHeight

目的:声明了窗口的文档显示区的高度和宽度,以像素计.
DOM标准:innerheight 和 innerwidth;
IE标准:document.documentElement 或 ducument.body (与 DTD 相关)的 clientWidth 和 clientHeight 属性作为替代

  3.obj.getBoundingClientRect().top + window.document.documentElement.scrollTop + window.document.body.scrollTop

目的:获取页面元素的位置.
当浏览器为 非webkit内核 时,document.body.scrollTop值恒定为0,使用 document.documentElement.scrollTop才能取到正确值 ;?
当浏览器为 webkit内核 时,document.documentElement.scrollTop值恒定为0,使用 document.body;
我还搜索到一种说法是和DTD相关(即 当页面指定了 DOCTYPE时,使用 document.documentElement ; 当页面没有指定了 DOCTYPE时,使用 document.body),请确定知道的朋友帮忙指出下,不胜感谢。

?

  细节

?1.因为真正的地址最初是在某属性中(默认是xsrc,可自己设置),所以默认的图片地址最好是一个像素的透明图片,这样可以避免在浏览器中出现红X;

?

2.在图片load的时候可以加入等待的图片,这样用户才会知道这里有图片需要加载,良好的用户体验是前端一直所追求的(例子中有体现);

3.在图片load成功后可以加入合适的显示效果(例子中木有体现,可以自己尝试);

?--------------------------------------------------------------------------

?JavaScript源码如下:

var?scrollLoad?=?(function?(options)?{
????????
var?defaults?=?(arguments.length?==?0)???{?src:?'xSrc',?time:?300}?:?{?src:?options.src?||?'xSrc',?time:?options.time?||300};
????????
var?camelize?=?function?(s)?{
????????????
return?s.replace(/-(\w)/g,?function?(strMatch,?p1)?{
????????????????
return?p1.toUpperCase();
????????????});
????????};
????????
this.getStyle?=?function?(element,?property)?{
????????????
if?(arguments.length?!=?2)?return?false;
????????????
var?value?=?element.style[camelize(property)];
????????????
if?(!value)?{
????????????????
if?(document.defaultView?&&?document.defaultView.getComputedStyle)?{
????????????????????
var?css?=?document.defaultView.getComputedStyle(element,?null);
????????????????????value?
=?css???css.getPropertyValue(property)?:?null;
????????????????}?
else?if?(element.currentStyle)?{
????????????????????value?
=?element.currentStyle[camelize(property)];
????????????????}
????????????}
????????????
return?value?==?'auto'???''?:?value;
????????};
????????
var?_init?=?function?()?{
????????????
var?offsetPage?=?window.pageYOffset???window.pageYOffset?:?window.document.documentElement.scrollTop,
????????????????offsetWindow?
=?offsetPage?+?Number(window.innerHeight???window.innerHeight?:?document.documentElement.clientHeight),
????????????????docImg?
=?document.images,
????????????????_len?
=?docImg.length;
????????????
if?(!_len)?return?false;
????????????
for?(var?i?=?0;?i?<?_len;?i++)?{
????????????????
var?attrSrc?=?docImg[i].getAttribute(defaults.src),
????????????????????o?
=?docImg[i],?tag?=?o.nodeName.toLowerCase();
????????????????
if?(o)?{
????????????????????postPage?
=?o.getBoundingClientRect().top?+?window.document.documentElement.scrollTop?+?window.document.body.scrollTop;?postWindow?=?postPage?+?Number(this.getStyle(o,?'height').replace('px',?''));
????????????????????
if?((postPage?>?offsetPage?&&?postPage?<?offsetWindow)?||?(postWindow?>?offsetPage?&&?postWindow?<?offsetWindow))?{
????????????????????????
if?(tag?===?"img"?&&?attrSrc?!==?null)?{
????????????????????????????o.setAttribute(
"src",?attrSrc);
????????????????????????}
????????????????????????o?
=?null;
????????????????????}
????????????????}
????????????};
????????????window.onscroll?
=?function?()?{
????????????????setTimeout(
function?()?{
????????????????????_init();
????????????????},?defaults.time);
????????????}
????????};
????????
return?_init();
????});

? ? scrollLoad();??


demo下载

?可传递一个参数设置src原地址和响应时间 ?

?

scrollLoad({
????src:'userSrc',?//字符串型
????time:?100? ? ? ?//数字型
})?
?

最后,祝大家工作愉快,学习进步,哈哈..

如果觉得此文还算用心,请劳驾点右下角 的推荐 ^.^ 。
