【D3.V3.js系列教程】--(十三)轴
1、定义和创建X轴
//Define X axis
var xAxis = d3.svg.axis()
.scale(xScale)
.orient("bottom");
//Create X axis
svg.append("g")
.call(xAxis);

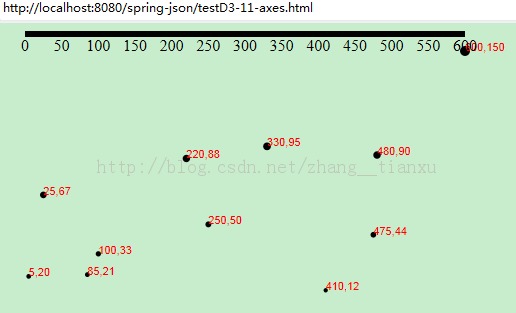

效果:
2、调整X轴的样式
变成刻度尺:
.axis path,
.axis line {
fill: none;
stroke: black;
shape-rendering: crispEdges;
}
.axis text {
font-family: sans-serif;
font-size: 11px;
}

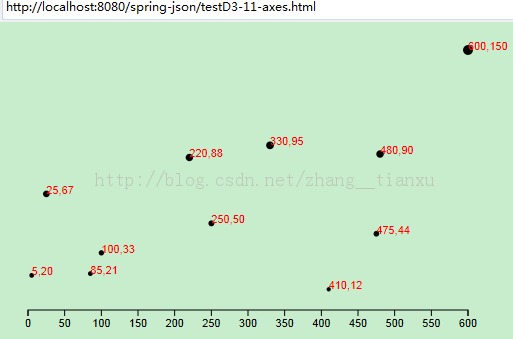

调整坐标位置到下面:
svg.append("g")
.attr("class", "axis")
.attr("transform", "translate(0," + (h - padding) + ")")
.call(xAxis);
效果:
3、设置最小标度
var xAxis = d3.svg.axis()
.scale(xScale)
.orient("bottom")
.ticks(5); //Set rough # of ticks

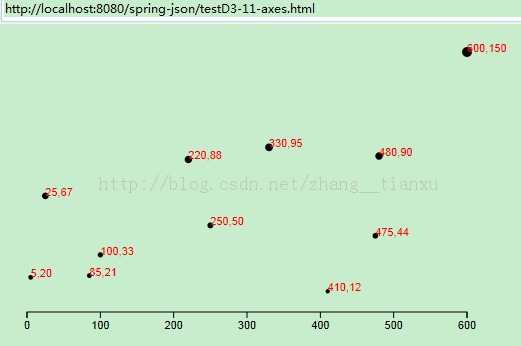

效果:
4、Y轴
//Define Y axis
var yAxis = d3.svg.axis()
.scale(yScale)
.orient("left")
.ticks(5);
同样设置起始坐标
//Create Y axis
svg.append("g")
.attr("class", "axis")
.attr("transform", "translate(" + padding + ",0)")
.call(yAxis);

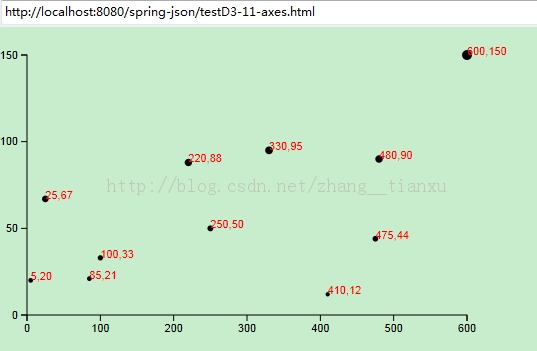

效果:

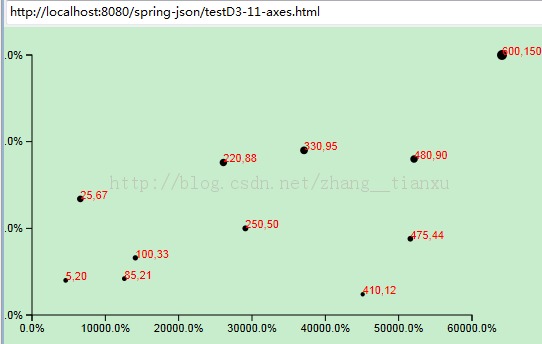

5、设置刻度的格式
var formatAsPercentage = d3.format(".1%");
xAxis.tickFormat(formatAsPercentage);
6、最后的源码
<!DOCTYPE html> <html> <head> <meta charset="utf-8"> <title>testD3-11-axes.html</title> <script type="text/javascript" src="http://localhost:8080/spring/js/d3.v3.js"></script> <style type="text/css"> .axis path, .axis line { fill: none; stroke: black; shape-rendering: crispEdges; } .axis text { font-family: sans-serif; font-size: 11px; } </style> </head> <body> <script type="text/javascript"> //Width and height var w = 500; var h = 300; var padding = 20; var dataset = [ [5, 20], [480, 90], [250, 50], [100, 33], [330, 95], [410, 12], [475, 44], [25, 67], [85, 21], [220, 88], [600, 150] ]; //Create scale functions var xScale = d3.scale.linear() .domain([0, d3.max(dataset, function(d) { return d[0]; })]) .range([padding, w - padding * 2]); var yScale = d3.scale.linear() .domain([0, d3.max(dataset, function(d) { return d[1]; })]) .range([h - padding, padding]); var rScale = d3.scale.linear() .domain([0, d3.max(dataset, function(d) { return d[1]; })]) .range([2, 5]); var formatAsPercentage = d3.format(".1%");//设置刻度的格式 //Create SVG element var svg = d3.select("body") .append("svg") .attr("width", w) .attr("height", h); svg.selectAll("circle") .data(dataset) .enter() .append("circle") .attr("cx", function(d) { return xScale(d[0])+30;//设置原点坐标,以及横轴位移量 }) .attr("cy", function(d) { return yScale(d[1]); }) .attr("r", function(d) { return rScale(d[1]); }); svg.selectAll("text") .data(dataset) .enter() .append("text") .text(function(d) { return d[0] + "," + d[1]; }) .attr("x", function(d) { return xScale(d[0])+30; }) .attr("y", function(d) { return yScale(d[1]); }) .attr("font-family", "sans-serif") .attr("font-size", "11px") .attr("fill", "red"); //Define X axis var xAxis = d3.svg.axis() .scale(xScale) .ticks(5)//最多刻度数,连上原点 .orient("bottom") .tickFormat(formatAsPercentage);//添加刻度格式 //Define Y axis var yAxis = d3.svg.axis() .scale(yScale) .orient("left") .ticks(5) .tickFormat(formatAsPercentage); //Create X axis svg.append("g") .attr("class", "axis") .attr("transform", "translate(0," + (h - padding) + ")")//设置据下边界的距离 .call(xAxis); //Create Y axis svg.append("g") .attr("class", "axis") .attr("transform", "translate(" + padding + ",0)")//设置轴据左边界的距离 .call(yAxis); </script> </body> </html>
