第七章 企业项目开发-本地缓存guava cache

热度:368   发布时间:2016-04-22 19:20:59.0
第七章 企业项目开发--本地缓存guava cache

1、在实际项目开发中,会使用到很多缓存技术,而且数据库的设计一般也会依赖于有缓存的情况下设计。

  • 常用的缓存分两种:本地缓存和分布式缓存。
  • 常用的本地缓存是guava cache,本章主要介绍guava cache在项目中的使用。

关于常用缓存以及每种缓存常用场景的介绍,之后可以去查看我记录的"Java缓存相关"系列博客。链接如下:

第一章 常用的缓存技术



2、实际使用

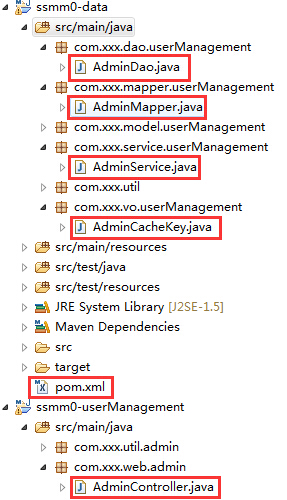

本项目的代码基于第六章的代码进行构建,这里只列出修改过的代码:

2.1、ssmm0-data

pom.xml:

        <!-- guava cache -->        <dependency>            <groupId>com.google.guava</groupId>            <artifactId>guava</artifactId>            <version>14.0.1</version>        </dependency>
View Code

在pom.xml中引入了guava cache14.0.1的依赖包。

AdminMapper:

package com.xxx.mapper.userManagement;import java.util.List;import org.apache.ibatis.annotations.Insert;import org.apache.ibatis.annotations.Param;import org.apache.ibatis.annotations.Result;import org.apache.ibatis.annotations.Results;import org.apache.ibatis.annotations.Select;import com.xxx.model.userManagement.Admin;/** * 管理员Mapper */public interface AdminMapper {        /**************注解**************/    @Insert("INSERT INTO userinfo(username, password) VALUES(#{username},#{password})")    public int insertAdmin(Admin admin);    @Select("SELECT * FROM userinfo WHERE username = #{username} AND password = #{password}")    @Results(value = {             @Result(id = true, column = "id", property = "id"),            @Result(column = "username", property = "username"),            @Result(column = "password", property = "password") })    public Admin selectAdmin(@Param("username") String username,                             @Param("password") String password);        /***************xml**************/    /**     * 条件不定式查询     * 我们这里使用@Param指定参数,这样的话,在AdminMapper.xml中就不用再使用parameterType属性了;否则得写parameterType属性     */    public List<Admin> getAdminByConditions(@Param("username")String username,                                            @Param("password")String password,                                             @Param("start")int start,                                             @Param("limit")int limit);        /**     * 返回主键     */    public int insertAdminWithBackId(Admin admin);        /****************guava cache*****************/    @Select("SELECT * FROM userinfo WHERE username = #{username}")    @Results(value = {             @Result(id = true, column = "id", property = "id"),            @Result(column = "username", property = "username"),            @Result(column = "password", property = "password") })    public List<Admin> getUserByName(@Param("username") String username);}
View Code

将使用到的两个方法:

  • public List<Admin> getUserByName(String username)
  • public List<Admin> getAdminByConditions(String username, String password, int start, int limit)

AdminDao:

package com.xxx.dao.userManagement;import java.util.List;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Repository;import com.xxx.mapper.userManagement.AdminMapper;import com.xxx.model.userManagement.Admin;/** * 管理员DAO */@Repositorypublic class AdminDao {    @Autowired    private AdminMapper adminMapper;    /***************注解*****************/    public boolean register(Admin admin){        return adminMapper.insertAdmin(admin)==1?true:false;    }        public Admin login(String username ,String password){        return adminMapper.selectAdmin(username, password);    }    /****************xml******************/    public List<Admin> findAdmin(String username, String password, int start, int limit){        return adminMapper.getAdminByConditions(username, password, start, limit);    }        public int insertAdminWithBackId(Admin admin){        return adminMapper.insertAdminWithBackId(admin);    }    /******************guava cache********************/    public List<Admin> getUserByName(String username){        return adminMapper.getUserByName(username);    }}
View Code

将使用到的两个方法:

  • public List<Admin> getUserByName(String username)
  • public List<Admin> findAdmin(String username, String password, int start, int limit)

AdminService:

package com.xxx.service.userManagement;import java.util.List;import java.util.concurrent.ExecutionException;import java.util.concurrent.TimeUnit;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service;import com.google.common.cache.CacheBuilder;import com.google.common.cache.CacheLoader;import com.google.common.cache.LoadingCache;import com.xxx.dao.userManagement.AdminDao;import com.xxx.model.userManagement.Admin;import com.xxx.vo.userManagement.AdminCacheKey;/** * 管理员service */@Servicepublic class AdminService {    @Autowired    private AdminDao adminDao;    public boolean register(Admin admin) {        return adminDao.register(admin);    }    public Admin login(String username, String password) {        return adminDao.login(username, password);    }    /*********** 以下方法是为了测试mybatis中使用xml **********/    public List<Admin> findAdmin(String username,                                  String password,                                  int start,                                 int limit) {        return adminDao.findAdmin(username, password, start, limit);    }    public Admin insertAdminWithBackId(Admin admin) {        int record = adminDao.insertAdminWithBackId(admin);        if (record == 1) {            return admin;// 这时的admin已经被赋予主键了        }        return null;    }    /************************ guava cache *************************/    /************单条件的查询,key为String***********/    public List<Admin> findByUsername(String username) {        List<Admin> adminList = null;        try {            adminList = adminListCache.get(username);        } catch (ExecutionException e) {            e.printStackTrace();        }        return adminList;    }    LoadingCache<String, List<Admin>> adminListCache = CacheBuilder.newBuilder()            .expireAfterWrite(20, TimeUnit.MINUTES)// 缓存20分钟            .maximumSize(1000)// 最多缓存1000个对象            .build(new CacheLoader<String, List<Admin>>() {                public List<Admin> load(String username) throws Exception {                    return adminDao.getUserByName(username);                }            });    /************多条件的查询,key为Object(封装了多个条件的VO类)***********/    public List<Admin> findAdminList(String username,                                      String password,                                     int start,                                      int limit) {        /*         * 注意:         * 如果以一个新建的对象做为key的话,因为每次都是新建一个对象,所以这样的话,实际上每次访问key都是不同的,即每次访问都是重新进行缓存;         * 但是实际上,我们想要根据对象的属性来判断对象是否相等,只需要根据这些属性重写对象的hashCode与equals方法即可,         * 所以重写了AdminCacheKey类的hashCode和equals方法,这样,每次访问的话,就会以每个条件是否相等来判断对象(即key)是否相等了,这一块儿的缓存就会起作用了         */        AdminCacheKey cacheKey = new AdminCacheKey(username,                                                    password,                                                    start,                                                   limit);        List<Admin> adminList = null;        try {            System.out.println(cacheKey);            adminList = adminsCache.get(cacheKey);        } catch (ExecutionException e) {            e.printStackTrace();        }        return adminList;    }    LoadingCache<AdminCacheKey, List<Admin>> adminsCache = CacheBuilder.newBuilder()            .expireAfterWrite(60, TimeUnit.MINUTES) // 缓存项在给定时间内(60min)没有被写访问(创建或覆盖),则回收            .maximumSize(100) // 最多缓存100项            .build(new CacheLoader<AdminCacheKey, List<Admin>>() {                public List<Admin> load(AdminCacheKey key) throws Exception {                    return adminDao.findAdmin(key.getUsername(),                                              key.getPassword(),                                               key.getStart(),                                               key.getLimit());                }            });}
View Code

将使用到的两个方法:

  • public List<Admin> findByUsername(String username)
  • public List<Admin> findAdminList(String username, String password, int start, int limit)

这一块儿是整个guava cache使用的部分。这里边写出了两种guava cache使用的方式:

  • 单查询条件:key为String或Object都可以
  • 多查询条件:key为Object,该Object封装了多个查询条件,并通过这些查询条件重写了该Object的hashcode()和equals()

这一部分中guava cache的使用方式,就是实际开发中最常用的方法。

AdminCacheKey:

package com.xxx.vo.userManagement;/** * guava cache的key */public class AdminCacheKey {    private String username;    private String password;    private int start;    private int limit;    public AdminCacheKey() {    }    public AdminCacheKey(String username, String password, int start, int limit) {        this.username = username;        this.password = password;        this.start = start;        this.limit = limit;    }    public String getUsername() {        return username;    }    public void setUsername(String username) {        this.username = username;    }    public String getPassword() {        return password;    }    public void setPassword(String password) {        this.password = password;    }    public int getStart() {        return start;    }    public void setStart(int start) {        this.start = start;    }    public int getLimit() {        return limit;    }    public void setLimit(int limit) {        this.limit = limit;    }    @Override    public int hashCode() {        final int prime = 31;        int result = 1;        result = prime * result + limit;        result = prime * result                + ((password == null) ? 0 : password.hashCode());        result = prime * result + start;        result = prime * result                + ((username == null) ? 0 : username.hashCode());        return result;    }    @Override    public boolean equals(Object obj) {        if (this == obj)            return true;        if (obj == null)            return false;        if (getClass() != obj.getClass())            return false;        AdminCacheKey other = (AdminCacheKey) obj;        if (limit != other.limit)            return false;        if (password == null) {            if (other.password != null)                return false;        } else if (!password.equals(other.password))            return false;        if (start != other.start)            return false;        if (username == null) {            if (other.username != null)                return false;        } else if (!username.equals(other.username))            return false;        return true;    }}
View Code

该类是封装了多个查询条件的一个VO类。

2.2、ssmm0-userManagement

AdminController:

package com.xxx.web.admin;import java.util.List;import javax.servlet.http.HttpServletRequest;import javax.servlet.http.HttpServletResponse;import javax.servlet.http.HttpSession;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Controller;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestParam;import org.springframework.web.bind.annotation.ResponseBody;import org.springframework.web.servlet.ModelAndView;import com.xxx.model.userManagement.Admin;import com.xxx.service.userManagement.AdminService;import com.xxx.util.admin.AdminCookieUtil;/** * adminController */@Controller@RequestMapping("/admin")public class AdminController {        @Autowired    private AdminService adminService;        /**     * 管理员注册     */    @ResponseBody    @RequestMapping("/register")    public boolean register(@RequestParam("username") String username,                            @RequestParam("password") String password){        Admin admin = new Admin();        admin.setUsername(username);        admin.setPassword(password);                boolean isRegisterSuccess = adminService.register(admin);                return isRegisterSuccess;    }        /**     * 管理员登录     */    @RequestMapping("/login")    public ModelAndView login(@RequestParam("username") String username,                              @RequestParam("password") String password,                              HttpServletResponse response,                              HttpSession session){                        Admin admin = adminService.login(username, password);                ModelAndView modelAndView = new ModelAndView();        if(admin == null){            modelAndView.addObject("message", "用户不存在或者密码错误!请重新输入");            modelAndView.setViewName("error");        }else{            modelAndView.addObject("admin", admin);            modelAndView.setViewName("userinfo");            /*             * 这为什么不直接传一个username,而传了一个admin,             * 是因为在实际开发中,你传过去的信息可能不只是username,还有用户手机号、地址等等             */            //使用cookie            AdminCookieUtil.addLoginCookie(admin, response);            //使用session            //session.setAttribute("adminSession", admin);        }                return modelAndView;    }        /*****************************mybatis xml方式解决的问题*******************************/    /**     * 根据username或password查找List<Admin>     */    @ResponseBody    @RequestMapping("/findAdmin")    public List<Admin> findAdmin(@RequestParam(value="username",required=false) String username,                                    @RequestParam(value="password",required=false) String password,                                    @RequestParam("start") int start,                                    @RequestParam("limit") int limit,                                    HttpServletRequest request,                                    HttpSession session){        Admin admin = AdminCookieUtil.getLoginCookie(request);        //Admin admin = (Admin) session.getAttribute("adminSession");                if(admin == null){//未登录            return null;        }        System.out.println(admin.toJson());        List<Admin> adminList = adminService.findAdmin(username, password, start, limit);        return adminList;    }        /**     * 插入一个用户并返回主键     * 注意:get请求也会自动装配(即将前台传入的username和password传入admin)     */    @ResponseBody    @RequestMapping("/insert")    public Admin insertAdminWithBackId(Admin admin){        return adminService.insertAdminWithBackId(admin);    }    /*************************guava cache******************************/    /**     * 根据username查找List<Admin>     */    @ResponseBody    @RequestMapping("/findAdminByUsername")    public List<Admin> findAdminByUserName(@RequestParam(value="username") String username){                List<Admin> adminList = adminService.findByUsername(username);        return adminList;    }        @ResponseBody    @RequestMapping("/findAdminList")    public List<Admin> findAdminList(@RequestParam(value="username") String username,                                         @RequestParam(value="password",required=false) String password,                                         @RequestParam("start") int start,                                         @RequestParam("limit") int limit){                List<Admin> adminList = adminService.findAdminList(username, password, start, limit);        return adminList;    }}
View Code

将使用到的两个方法:

  • public List<Admin> findAdminByUserName(String username)
  • public List<Admin> findAdminList(String username, String password, int start, int limit)

3、测试

  • 单元测试:使用springJunit去测就行
  • 整体测试:代码写好之后,注意对代码去做测试的方法,先运行相应的controller的方法,然后对查询出来的部分数据在数据库中直接进行修改,再运行之前的controller对应的方法。出现两种结果:
    • 第二次运行与第一次结果相同:缓存成功
    • 第二次运行与第一次结果不同:缓存不成功



4、总结:

  • 常用的几个API:
    • get(Object key):首先获取value-->若获取不到,先缓存-->再从缓存中去取(以上三步是原子操作),使用该方法优先于使用put
    • getIfPresent(Object key):获取value,若获取不到,返回null;若获取的到,返回value
    • put(Object key, Object value):显示的添加缓存key-value
  • guava cache的get(Object key)的value不能为null(这个可以去看源代码的注释),看下边的代码例子:
        LoadingCache<String, List<Admin>> adminListCache = CacheBuilder.newBuilder()            .expireAfterWrite(20, TimeUnit.MINUTES)// 缓存20分钟            .maximumSize(1000)// 最多缓存1000个对象            .build(new CacheLoader<String, List<Admin>>() {                public List<Admin> load(String username) throws Exception {                    //1、下边这样null的话,不抛异常                    /*List<Admin> admins = adminDao.getUserByName(username);                    if(admins==null){                        return null;                     }                    return admins;*/                    //2、但是如果这里查询出来的结果为null的话,也没关系                    //return adminDao.getUserByName(username);                    //3、如果这里直接返回null,就会出现com.google.common.cache.CacheLoader$InvalidCacheLoadException                    return null;                }            });
    View Code

    注意:该代码中的三种null情况,只有第三种会抛出异常。前两种不为空的原因是因为,即使admins没有元素,admins也不会是null,而是[],这应该是mybatis的功劳?!这个是个问题,以后在读mybatis源码的时候,会仔细研究!!!但是实际使用中,我们判断一个list是否为空,会使用CollectionUtil.isNotEmpty(list)类似于下边这样,就会抛出异常了。

        LoadingCache<String, List<Admin>> adminListCache = CacheBuilder.newBuilder()            .expireAfterWrite(20, TimeUnit.MINUTES)// 缓存20分钟            .maximumSize(1000)// 最多缓存1000个对象            .build(new CacheLoader<String, List<Admin>>() {                public List<Admin> load(String username) throws Exception {                    //1、下边这样null的话,不抛异常                    List<Admin> admins = adminDao.getUserByName(username);                    //System.out.println(admins);//如果admins为空,不会返回null,而是返回[]                    if(CollectionUtils.isEmpty(admins)){                        System.out.println(admins+"-->");                        return null;                     }                    return admins;                    //2、但是如果这里查询出来的结果为null的话,也没关系                    //return adminDao.getUserByName(username);                    //3、如果这里直接返回null,就会出现com.google.common.cache.CacheLoader$InvalidCacheLoadException                    //return null;                }            });
    View Code

    但是,为了在guava cache的使用中不抛出异常,我们这里直接使用下边这句就好了,由mybatis将[]返回就好了。

    return adminDao.getUserByName(username);
