iPhone开发【十五】多线程开发之NSThread——异步上载图片

热度:4   发布时间:2016-04-25 06:15:48.0
iPhone开发【十五】多线程开发之NSThread——异步下载图片

转载请注明出处,原文网址:http://blog.csdn.net/m_changgong/article/details/8220819  作者:张燕广

实现的功能:1)演示多线程NSThread开发;2)子线程中执行下载图片工作,图片下载完成前显示等待框;

关键词:多线程 NSThread 等待框

1、新建视图控制器ViewController.m(不带xib),作为根视图控制器,通过ViewController的-(void)loadView方法构建UI,ViewController.h如下:

#import <UIKit/UIKit.h>@interface ViewController : UIViewController<NSURLConnectionDelegate>@property(strong,nonatomic)UIImageView *imageView;@property(strong,nonatomic)NSMutableData *buffer;@property Boolean done;@end


ViewController.m如下:

#import "ViewController.h"@implementation ViewController@synthesize imageView;@synthesize buffer;@synthesize done;-(void)loadView{    //初始化视图    [self initViews];        NSString *url = @"http://avatar.csdn.net/4/D/5/1_m_changgong.jpg";    //在子线程执行图片下载操作    [NSThread detachNewThreadSelector:@selector(downloadAppImage:) toTarget:self withObject:url];}//初始化视图组件-(void)initViews{    CGRect frame = [UIScreen mainScreen].applicationFrame;    imageView = [[UIImageView alloc]initWithFrame:frame];    self.view = imageView;    [self.view setBackgroundColor:[UIColor whiteColor]];}//下载图片-(void)downloadAppImage:(NSString *) url{    //展示等待框    [self showWaiting];        done = NO;    //初始化缓冲区    buffer = [NSMutableData data];    [[NSURLCache sharedURLCache] removeAllCachedResponses];    //设置请求及连接    NSMutableURLRequest *request = [NSMutableURLRequest requestWithURL:[NSURL URLWithString:url]];    NSURLConnection *connnection = [[NSURLConnection alloc]initWithRequest:request delegate:self];    if(connnection!=nil){        while(!done){             //NSLog(@"doing..");            [[NSRunLoop currentRunLoop] runMode:NSDefaultRunLoopMode beforeDate:[NSDate distantFuture]];        }    }    //生成UIImage实例    UIImage *img = [UIImage imageWithData:buffer];    //通知主线程    [self performSelectorOnMainThread:@selector(showImage:) withObject:img waitUntilDone:NO];         request = nil;    connnection = nil;}//填充图片-(void)showImage:(UIImage *)img{      [self.imageView setImage:img];        //关闭等待框    [self hiddenWaiting];}-(void)httpConnectEnd{    NSLog(@"httpConnectEnd");}-(void)httpConnectEndWithError{    [self hiddenWaiting];        NSLog(@"httpConnectEndWithError");}//展示等待框-(void)showWaiting{    int width = 32;    int height = 32;    CGRect frame = CGRectMake(0, -20, 320, 480);    int x = frame.size.width;    int y = frame.size.height;    NSLog(@"x=%d,y=%d",x,y);        frame = CGRectMake((x-width)/2, (y-height)/2, width, height);    UIActivityIndicatorView *progressInd = [[UIActivityIndicatorView alloc]initWithFrame:frame];    [progressInd startAnimating];    progressInd.activityIndicatorViewStyle = UIActivityIndicatorViewStyleWhiteLarge;        frame = CGRectMake((x-70)/2, (y-height)/2+height, 80, 20);    UILabel *waitinglabel = [[UILabel alloc]initWithFrame:frame];    waitinglabel.text = @"正在下载应用程序图片...";    waitinglabel.textColor = [UIColor redColor];    waitinglabel.font = [UIFont systemFontOfSize:15];    waitinglabel.backgroundColor = [UIColor clearColor];        frame = CGRectMake(0, -20, 320, 480);    UIView *waitingView = [[UIView alloc]initWithFrame:frame];    waitingView.backgroundColor = [UIColor blackColor];    waitingView.alpha = 0.7;        [waitingView addSubview:progressInd];    [waitingView addSubview:waitinglabel];        [waitingView setTag:110];//设置tag    [self.view addSubview:waitingView];}//隐藏等待框-(void)hiddenWaiting{    //根据tag找到waitingView    [[self.view viewWithTag:110]removeFromSuperview];}- (void)viewDidUnload{    [super viewDidUnload];    // Release any retained subviews of the main view.}- (BOOL)shouldAutorotateToInterfaceOrientation:(UIInterfaceOrientation)interfaceOrientation{    return (interfaceOrientation != UIInterfaceOrientationPortraitUpsideDown);}#pragma mark NSURLConnection Delegate methods//不执行缓存-(NSCachedURLResponse *)connection:(NSURLConnection *)connection willCacheResponse:(NSCachedURLResponse *)cachedResponse{    return nil;}//连接发生错误-(void)connection:(NSURLConnection *)connection didFailWithError:(NSError *)error{    [self performSelectorOnMainThread:@selector(httpConnectEndWithError) withObject:self waitUntilDone:NO];    [buffer setLength:0];}//接收数据-(void)connection:(NSURLConnection *)connection didReceiveData:(NSData *)data{    [buffer appendData:data];}//下载完毕-(void)connectionDidFinishLoading:(NSURLConnection *)connection{    //NSLog(@"connectionDidFinishLoading");    [self performSelectorOnMainThread:@selector(httpConnectEnd) withObject:nil waitUntilDone:NO];     //self.done = YES;}@end

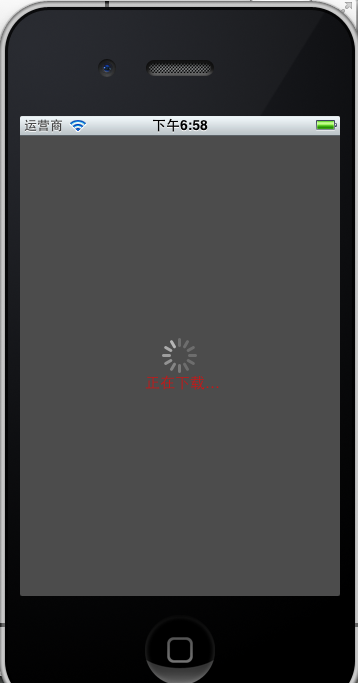

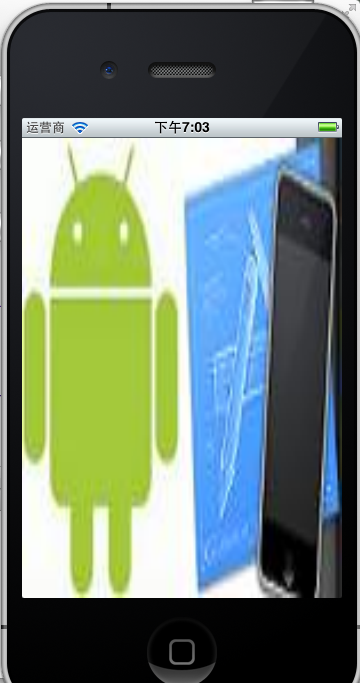

2、运行效果如下:
