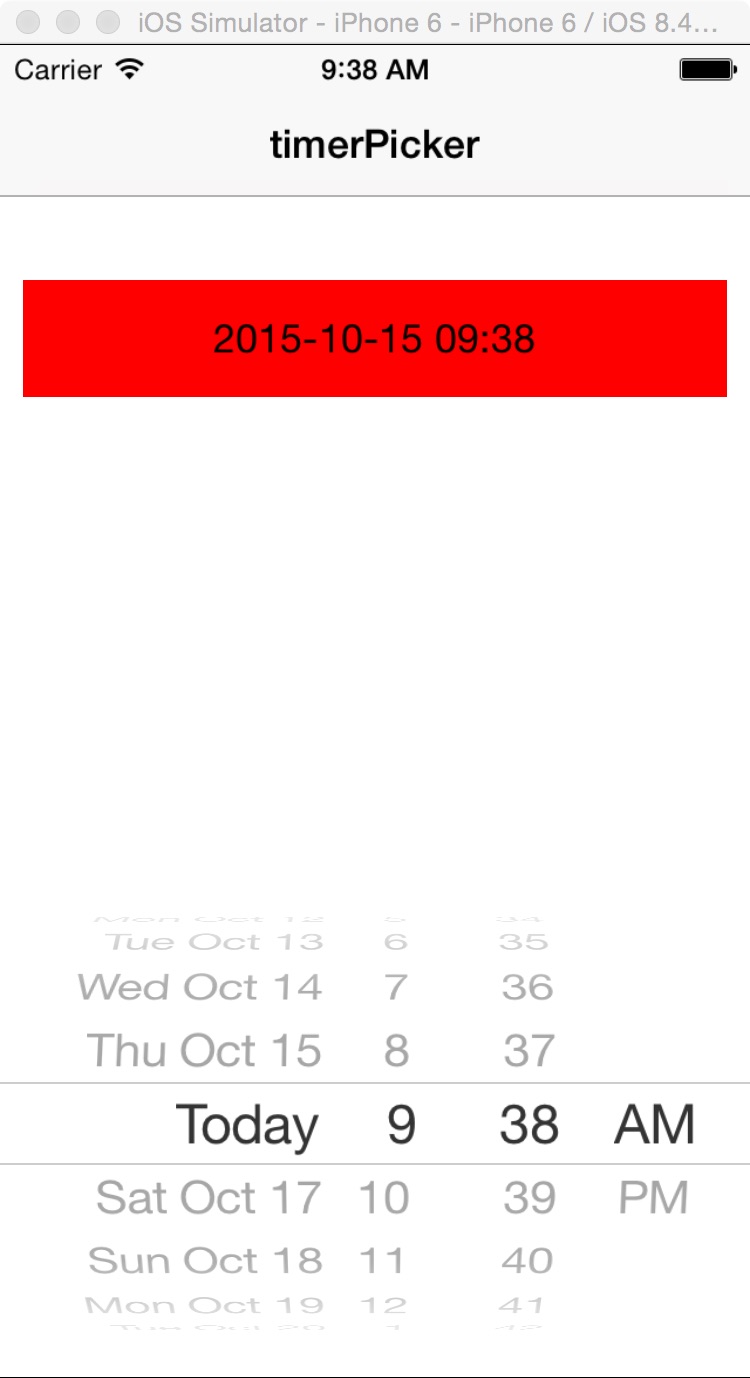

一, 效果图。

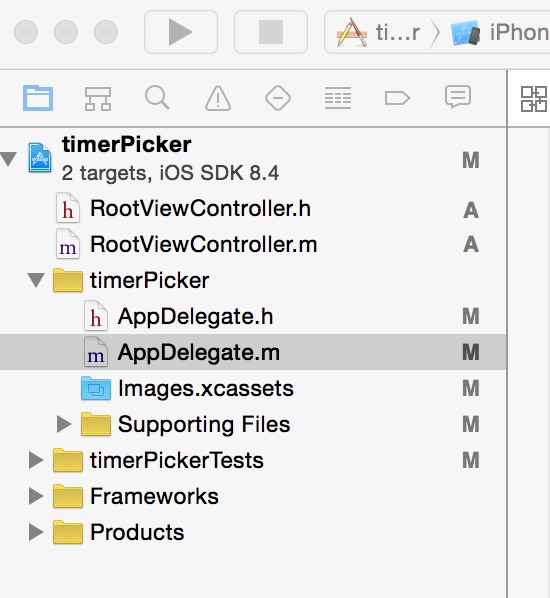

二,工程图。
三,代码。
RootViewController.h
#import <UIKit/UIKit.h>@interface RootViewController : UIViewController{ UIDatePicker *datePicker; UILabel *timeLabel;}@end
RootViewController.m
#import "RootViewController.h"@interface RootViewController ()@end@implementation RootViewController- (id)initWithNibName:(NSString *)nibNameOrNil bundle:(NSBundle *)nibBundleOrNil{ self = [super initWithNibName:nibNameOrNil bundle:nibBundleOrNil]; if (self) { // Custom initialization } return self;}- (void)viewDidLoad{ [super viewDidLoad]; // Do any additional setup after loading the view. self.title=@"timerPicker"; timeLabel=[[UILabel alloc]init]; timeLabel.backgroundColor=[UIColor redColor]; timeLabel.frame=CGRectMake(10, 100, 300, 50); timeLabel.textAlignment=NSTextAlignmentCenter; [self.view addSubview:timeLabel]; }//点击任意处,弹出时间选择框-(void)touchesBegan:(NSSet *)touches withEvent:(UIEvent *)event{ datePicker = [[UIDatePicker alloc]initWithFrame:CGRectMake(0, self.view.frame.size.height-216, 0, 0)]; datePicker.datePickerMode = UIDatePickerModeDateAndTime; [datePicker addTarget:self action:@selector(dateChanged:) forControlEvents:UIControlEventValueChanged ]; [self.view addSubview:datePicker];}//开始结束时间选择框- (void)dateChanged:(id)sender{ NSDate *date = datePicker.date; NSDateFormatter *dateFormatter = [[NSDateFormatter alloc] init]; [dateFormatter setDateFormat:@"yyyy-MM-dd hh:mm"]; //设备默认的值 dateFormatter.locale=[NSLocale systemLocale]; //将所选择的时候转化为需要的时间格式 NSString *dateStr = [NSString stringWithFormat:@"%@",[dateFormatter stringFromDate:date]]; timeLabel.text=dateStr; //让选择完时间后,选择框,消失,这个时间可以自己调整 [UIView animateWithDuration:.5f delay:.5f options:UIViewAnimationOptionCurveEaseInOut animations:^{ [datePicker setFrame:CGRectMake(0, self.view.frame.size.height, 0, 0)]; } completion:nil];}- (void)didReceiveMemoryWarning{ [super didReceiveMemoryWarning]; // Dispose of any resources that can be recreated.}
