C#生成word报告
参考：http://blog.csdn.net/malei0311/article/details/6961082
http://blog.sina.com.cn/s/blog_6e2920850100m6mt.html
注：本文所用版本为VS2015/C# + SQL Server2014 + Word2013。
源码下载地址：http://download.csdn.net/detail/wjk343977868/8528695
1、建立word书签模板（格式：.docx）

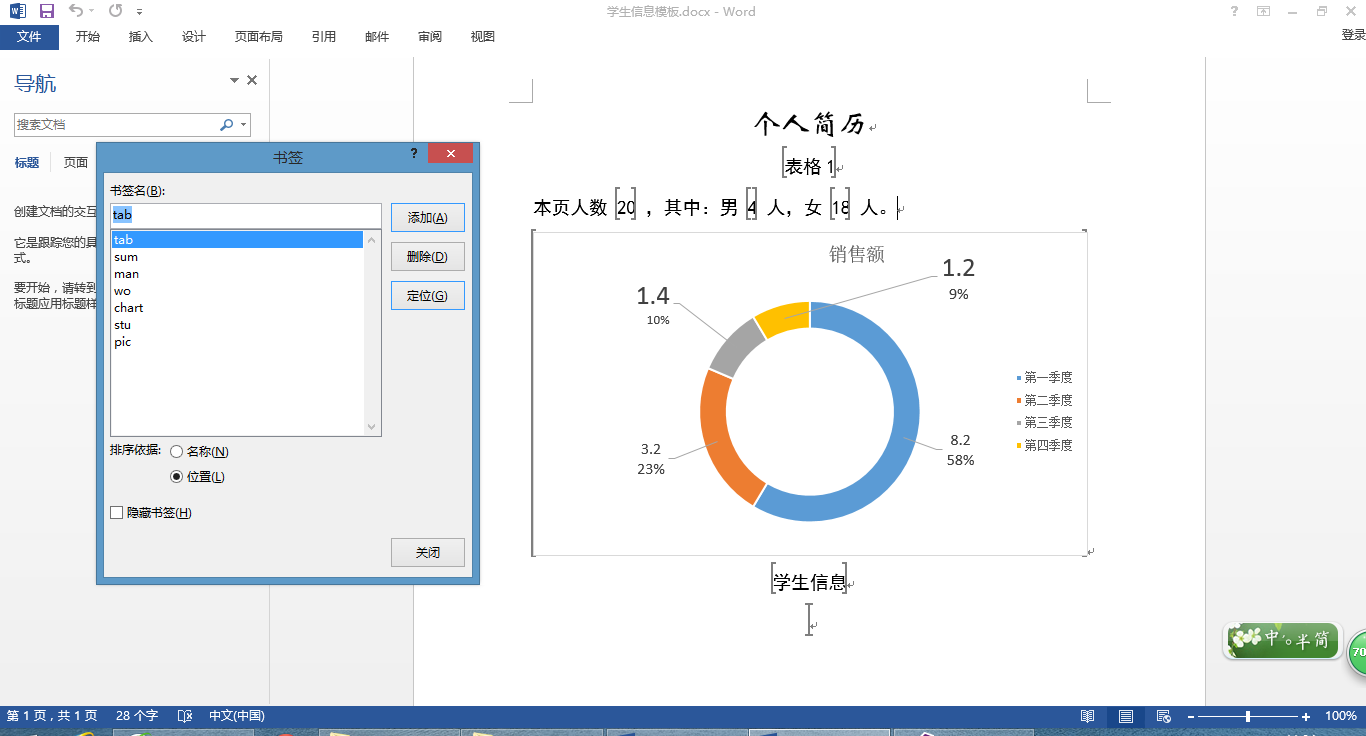

如下图所示，新建书签的排列顺序为由上到下、由左至右。新建书签的快捷键为：ctrl+shift+F5。

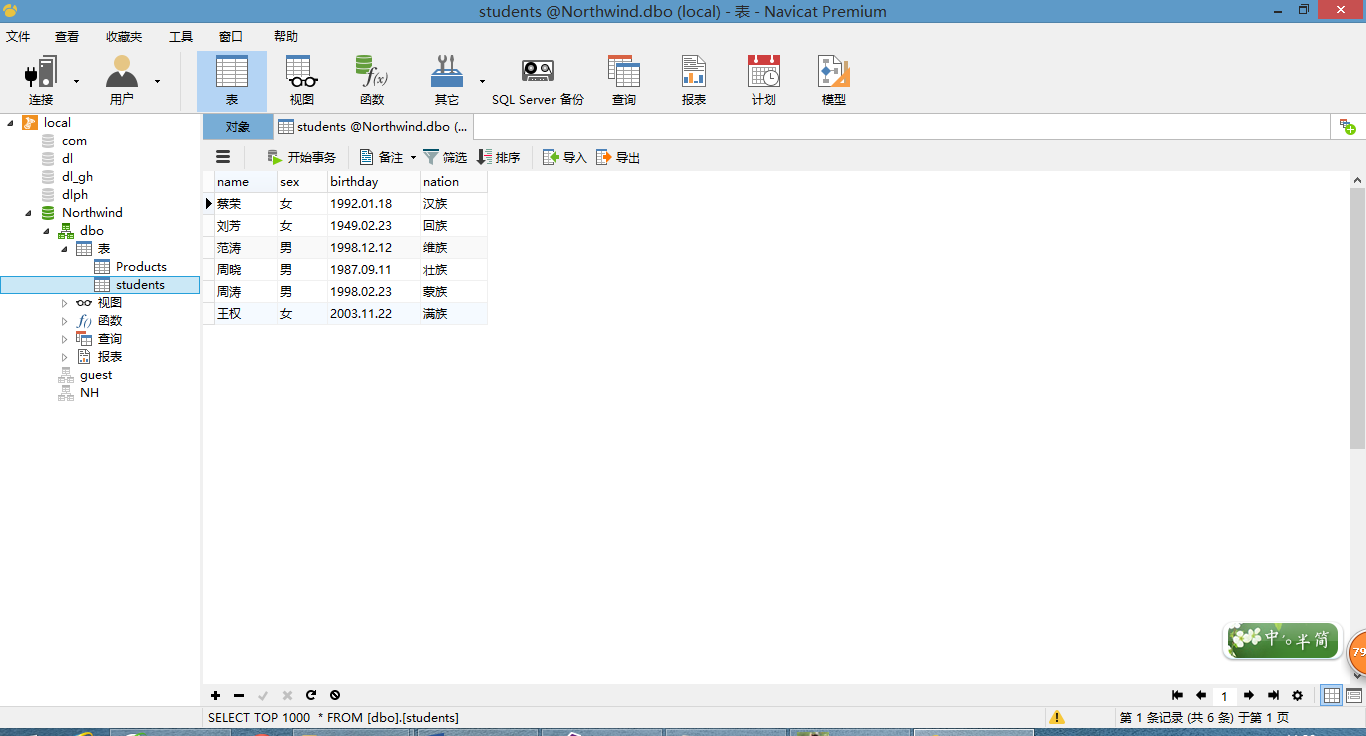

2、数据库表结构和数据，如下图
3、建立C#窗体程序
添加引用：
C:\Program Files(x86)\Microsoft Visual Studio 14.0\Visual Studio Tools for Office\PIA\Office15\Microsoft.Office.Interop.Excel.dll
C:\ProgramFiles (x86)\Microsoft Visual Studio 14.0\Visual Studio Tools forOffice\PIA\Office15\Microsoft.Office.Interop.Word.dll
将报告模板放在程序的\bin\bug\目录下。
XML书签配置文件如下：
<?xml version="1.0"?><Configxmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"><TextList> <Bookmark Name="sum" UseText="false"NewParagraph='false'> <Sql> SELECT COUNT(*) as sum FROMstudents; </Sql> <Text> </Text> </Bookmark> <Bookmark Name="man" UseText="false"NewParagraph='false'> <Sql> SELECT COUNT(*) as man FROMstudents where sex=N'男'; </Sql> <Text> </Text> </Bookmark> <Bookmark Name="wo" UseText="false"NewParagraph='false'> <Sql> SELECT COUNT(*) as wo FROMstudents where sex=N'女'; </Sql> <Text> </Text> </Bookmark> <Bookmark Name="stu" UseText="true"NewParagraph='true'> <Sql></Sql> <Text> 中国科学院大学——2015 </Text> </Bookmark> </TextList> <TableList> <Bookmark Name="tab"> <Sql> SELECT name=N'姓名',sex=N'性别',birthday=N'生日',nation=N'民族' UNIONALL SELECTname,sex,birthday,nation from students; </Sql> </Bookmark> </TableList> <ChartList> <Bookmark Name="chart"> <Sql> SELECTproductName,UnitPrice from Products; </Sql> </Bookmark> </ChartList> <ImageList> <Bookmark Name="pic"> <FilePath> pic2.jpg </FilePath> <Width>440</Width> <Height>220</Height> </Bookmark> </ImageList></Config>
XML书签配置文件解析类见：
class XMLManager{ private string _filepath; public XMLManager(string filepath) { _filepath = filepath; } /// <summary> /// 将XML字符串反序列化成指定类型的对象。 /// </summary> /// <typeparam name="T">对象的类型。</typeparam> /// <param name="stream">直接从文件流读取</param> /// <returns>T</returns> public static T DesrializeXml<T>(Stream stream) { var serializer = new XmlSerializer(typeof(T)); return (T)serializer.Deserialize(stream); }}[XmlRoot(ElementName = "Config")]public class Configs{ [XmlArrayItem(ElementName = "Bookmark")] public List<TextBookmark> TextList { get; set; } = new List<TextBookmark>(); [XmlArrayItem(ElementName = "Bookmark")] public List<TableBookmark> TableList { get; set; } = new List<TableBookmark>(); [XmlArrayItem(ElementName = "Bookmark")] public List<ChartBookmark> ChartList { get; set; } = new List<ChartBookmark>(); [XmlArrayItem(ElementName = "Bookmark")] public List<ImageBookmark> ImageList { get; set; } = new List<ImageBookmark>();}public class TextBookmark{ [XmlAttribute(AttributeName = "Name")] public string Name { get; set; } = string.Empty; [XmlAttribute(AttributeName = "UseText")] public bool UseText { get; set; } [XmlAttribute(AttributeName = "NewParagraph")] public bool NewParagraph { get; set; } [XmlElement(ElementName = "Text")] public string Text { get; set; } = string.Empty; [XmlElement(ElementName = "Sql")] public string Sql { get; set; } = string.Empty;}public class TableBookmark{ [XmlAttribute(AttributeName = "Name")] public string Name { get; set; } = string.Empty; [XmlElement(ElementName = "Sql")] public string Sql { get; set; } = string.Empty;}public class ChartBookmark{ [XmlAttribute(AttributeName = "Name")] public string Name { get; set; } = string.Empty; [XmlElement(ElementName = "Sql")] public string Sql { get; set; } = string.Empty;}public class ImageBookmark{ [XmlAttribute(AttributeName = "Name")] public string Name { get; set; } = string.Empty; [XmlElement(ElementName = "FilePath")] public string FilePath { get; set; } = string.Empty; [XmlElement(ElementName = "Width")] public float Width { get; set; } = 440; [XmlElement(ElementName = "Height")] public float Height { get; set; } = 220;}生成报告类源码见：GenerateReport.cs
class GenerateReport{ object oMissing = System.Reflection.Missing.Value; Word._Application oWord; Word._Document oDoc; //通过模板创建文档 public void start(object filepath) { //Start Word and create a new document. killWinWordProcess(); oWord = new Word.Application(); oWord.Visible = false;//测试看效果为true，后台执行false oDoc = oWord.Documents.Add(ref filepath, ref oMissing, ref oMissing, ref oMissing); } /// <summary> /// 在书签处插入值 /// </summary> /// <param name="bookmark"></param> /// <param name="value"></param> /// <returns></returns> public bool InsertValue(string bookmark, string value) { object bkObj = bookmark; if (oWord.ActiveDocument.Bookmarks.Exists(bookmark)) { oWord.ActiveDocument.Bookmarks.get_Item(ref bkObj).Select(); oWord.Selection.TypeText(value); return true; } return false; } // 杀掉winword.exe进程 public void killWinWordProcess() { System.Diagnostics.Process[] processes = System.Diagnostics.Process.GetProcessesByName("WINWORD"); foreach (System.Diagnostics.Process process in processes) { bool b = process.MainWindowTitle == ""; if (process.MainWindowTitle == "") { process.Kill(); } } } //插入图片 public void InsertPicture(string bookmark, string picturePath, float width, float hight) { object miss = System.Reflection.Missing.Value; object oStart = bookmark; Object linkToFile = false; //图片是否为外部链接 Object saveWithDocument = true; //图片是否随文档一起保存 object range = oDoc.Bookmarks.get_Item(ref oStart).Range;//图片插入位置 oDoc.InlineShapes.AddPicture(picturePath, ref linkToFile, ref saveWithDocument, ref range); oDoc.Application.ActiveDocument.InlineShapes[1].Width = width; //设置图片宽度 oDoc.Application.ActiveDocument.InlineShapes[1].Height = hight; //设置图片高度 } //保存新文件 public void SaveDocument(string filePath) { object fileName = filePath; object format = WdSaveFormat.wdFormatDocumentDefault;//保存格式 object miss = System.Reflection.Missing.Value; oDoc.SaveAs(ref fileName, ref format, ref oMissing, ref oMissing, ref oMissing); //关闭wordDoc，wordApp对象 object SaveChanges = WdSaveOptions.wdSaveChanges; object OriginalFormat = WdOriginalFormat.wdOriginalDocumentFormat; object RouteDocument = false; oDoc.Close(ref SaveChanges, ref OriginalFormat, ref RouteDocument); oWord.Quit(ref SaveChanges, ref OriginalFormat, ref RouteDocument); } /// <summary> /// 插入表格,bookmark书签 /// </summary> /// <param name="bookmark"></param> /// <param name="rows"></param> /// <param name="columns"></param> /// <param name="width"></param> /// <returns></returns> public Table InsertTable(string bookmark, int rows, int columns, float width) { object miss = System.Reflection.Missing.Value; object oStart = bookmark; Range range = oDoc.Bookmarks.get_Item(ref oStart).Range;//表格插入位置 Table newTable = oDoc.Tables.Add(range, rows, columns, ref miss, ref miss); //设置表的格式 newTable.Borders.Enable = 1; //允许有边框，默认没有边框(为0时报错，1为实线边框，2、3为虚线边框，以后的数字没试过) newTable.Borders.OutsideLineWidth = WdLineWidth.wdLineWidth050pt;//边框宽度 if (width != 0) { newTable.PreferredWidth = width;//表格宽度 } newTable.AllowPageBreaks = false; return newTable; } //给表格添加一行 public void AddRow(Microsoft.Office.Interop.Word.Table table) { object miss = System.Reflection.Missing.Value; table.Rows.Add(ref miss); } //给表格中单元格插入元素，table所在表格，row行号，column列号，value插入的元素 public void InsertCell(Microsoft.Office.Interop.Word.Table table, int row, int column, string value) { table.Cell(row, column).Range.Text = value; } /// <summary> /// 插入图表（Chart对象方式） /// </summary> /// <param name="bookMarkName"></param> public void setChart(string bookMarkName,Dictionary<string,string> chartDic) { //获取内嵌图表 var inlineShape = oDoc.Bookmarks.Cast<Bookmark>().FirstOrDefault(o => o.Name == bookMarkName).Range.InlineShapes[1]; //Microsoft.Office.Interop.Word.Chart wdChart = oDoc.InlineShapes.AddChart(Microsoft.Office.Core.XlChartType.xlColumnClustered, ref oMissing).Chart; Word.Chart wdChart = inlineShape.Chart; Word.ChartData chartData = wdChart.ChartData; Excel.Workbook dataWorkbook = (Excel.Workbook)chartData.Workbook; dataWorkbook.Application.Visible = false; Excel.Worksheet dataSheet = (Excel.Worksheet)dataWorkbook.Worksheets[1]; //设定范围 Excel.Range tRange = dataSheet.Cells.get_Range("A1", "B"+chartDic.Count.ToString()); Excel.ListObject tbl1 = dataSheet.ListObjects[1]; tbl1.Resize(tRange); int i = 0; foreach(var item in chartDic) { i++; ((Excel.Range)dataSheet.Cells.get_Range("A" + (i + 1).ToString(), oMissing)).FormulaR1C1 = item.Key; ((Excel.Range)dataSheet.Cells.get_Range("B" + (i + 1).ToString(), oMissing)).FormulaR1C1 = item.Value; } //为图例赋值 //((Excel.Range)dataSheet.Cells.get_Range("A2", oMissing)).FormulaR1C1 = "Bikes"; //((Excel.Range)dataSheet.Cells.get_Range("A3", oMissing)).FormulaR1C1 = "Accessories"; //((Excel.Range)dataSheet.Cells.get_Range("A4", oMissing)).FormulaR1C1 = "Repairs"; //((Excel.Range)dataSheet.Cells.get_Range("A5", oMissing)).FormulaR1C1 = "Clothing"; //为图表赋值 //((Excel.Range)dataSheet.Cells.get_Range("B2", oMissing)).FormulaR1C1 = "100"; //可设置某一行数据不可见 //((Excel.Range)dataSheet.Cells.get_Range("B2", oMissing)).EntireRow.Hidden = true; //((Excel.Range)dataSheet.Cells.get_Range("B3", oMissing)).FormulaR1C1 = "200"; //((Excel.Range)dataSheet.Cells.get_Range("B4", oMissing)).FormulaR1C1 = "900"; //((Excel.Range)dataSheet.Cells.get_Range("B5", oMissing)).FormulaR1C1 = "370"; //设置字体样式、大小、颜色 //wdChart.ChartTitle.Font.Italic = true; //wdChart.ChartTitle.Font.Size = 18; //wdChart.ChartTitle.Font.Color = Color.Black.ToArgb(); //设置标题 //wdChart.ChartTitle.Text = "2007 Sales"; //设置图表样式 //wdChart.ChartTitle.Format.Line.Visible = Microsoft.Office.Core.MsoTriState.msoTrue; //wdChart.ChartTitle.Format.Line.ForeColor.RGB = Color.Black.ToArgb(); //是否显示图表标签 //wdChart.ApplyDataLabels(Microsoft.Office.Interop.Word.XlDataLabelsType.xlDataLabelsShowLabel, oMissing, oMissing, oMissing, oMissing, oMissing, oMissing, oMissing, oMissing, oMissing); } /// <summary> /// 插入一段文字,text为文字内容 /// </summary> /// <param name="bookmark"></param> /// <param name="text"></param> public void InsertText(string bookmark, string text) { object oStart = bookmark; object range = oDoc.Bookmarks.get_Item(ref oStart).Range; Paragraph wp = oDoc.Content.Paragraphs.Add(ref range); wp.Format.SpaceBefore = 1; wp.Range.Text = text; wp.Format.SpaceAfter = 1; wp.Range.InsertParagraphAfter(); oDoc.Paragraphs.Last.Range.Text = "\n"; }}生成的测试报告如下：
备注：其他生成word报告的资料可参考，
http://zhangbin647.blog.163.com/blog/static/5752413201152035750294/
http://www.360doc.com/content/11/1031/16/665991_160573635.shtml
http://blog.csdn.net/wudi626/article/details/2337857
