想做一个页面，实现下面的功能，该页面叫Menufecturing Method。
左面一个TreeView点击相应的节点，在右面的iframe中显示绑定的数据，实现对SQL数据库表的显示。该页面叫MethodIframe

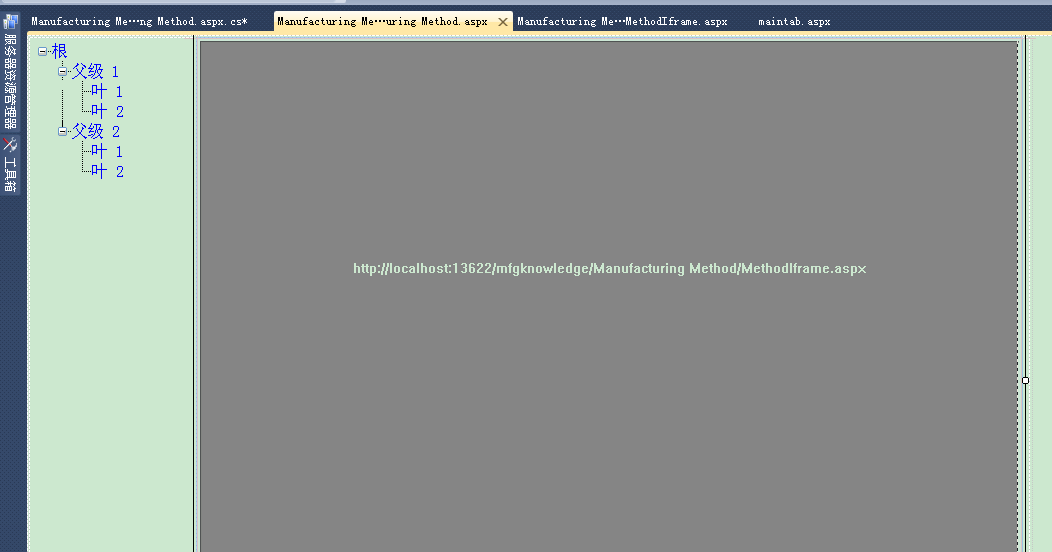

iframe框架如下图
目前在Menufecturing Method里面前台代码：
</head>
<body style="padding-top: 0px; padding-right: 0px; padding-left: 0px; padding-bottom: 0px; margin: 0px; ">
<form id="form1" runat="server">
<div style="height: 833px">
<table style="height: 863px; width: 1005px" >
<tr>
<td valign="top" class="style1" >
<asp:TreeView ID="TreeView1" runat="server" ShowLines="True">
</asp:TreeView>
</td>
<td valign="top" >
<iframe src=MethodIframe.aspx
style="width:815px; height: 675px" frameborder=0 scrolling=yes id="I1"
name="I1"></iframe>
</td>
</tr>
</table>
</div>
</form>
</body>
</html>
后台代码
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using System.Data.SqlClient ;
using System.Configuration;
public partial class Manufacturing_Method_Manufacturing_Method : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
if (!IsPostBack)
{
treedata();
tabledata();
tabledata1();
}
}
protected void treedata()
{
SqlConnection conn = new SqlConnection();
conn.ConnectionString = "Data Source=BUAA-TORNADO;Initial Catalog=knowledgebase;Integrated Security=True";
conn.Open();
SqlDataAdapter ada = new SqlDataAdapter("select * from TestPart114_Basic", conn);
SqlDataAdapter ada1 = new SqlDataAdapter("select * from TestPart114_Decomposition", conn);
DataSet ds = new DataSet();
DataSet ds1 = new DataSet();
ada.Fill(ds);
ada1.Fill(ds1);
for (int i = 0; i < ds.Tables[0].Rows.Count; i++)
{
string node = ds.Tables[0].Rows[i][1].ToString();
TreeNode nodes = new TreeNode();
nodes.Text = node;
nodes.Value = ds.Tables[0].Rows[i][0].ToString();
nodes.ImageUrl = "~/image/文件夹.png";
//nodes.NavigateUrl = "WebForm1.aspx";
//nodes.Target = "menu1";
TreeView1.Nodes.Add(nodes);
}
for (int i = 0; i < ds1.Tables[0].Rows.Count; i++)
{
string node = ds1.Tables[0].Rows[i][1].ToString();
TreeNode nodes = new TreeNode();
nodes.Text = node;
nodes.Value = ds1.Tables[0].Rows[i][0].ToString();
nodes.ImageUrl = "~/image/资源树.png";
TreeView1.Nodes[0].ChildNodes.Add(nodes);
}
conn.Close();
}
protected void tabledata()
{
SqlConnection conn = new SqlConnection();
conn.ConnectionString = "Data Source=BUAA-TORNADO;Initial Catalog=knowledgebase;Integrated Security=True";
conn.Open();
SqlDataAdapter ada = new SqlDataAdapter("select * from TestPart114_Decomposition", conn);
DataSet ds = new DataSet();
ada.Fill(ds);
GridView1.DataSource = ds;
GridView1.DataBind();
conn.Close();
}
protected void tabledata1()
{
SqlConnection conn = new SqlConnection();
conn.ConnectionString = "Data Source=BUAA-TORNADO;Initial Catalog=knowledgebase;Integrated Security=True";
conn.Open();
SqlDataAdapter ada = new SqlDataAdapter("select * from TestPart114_Basic", conn);
DataSet ds = new DataSet();
ada.Fill(ds);
GridView2.DataSource = ds;
GridView2.DataBind();
conn.Close();
}
#region 测试用的
protected void tabletest()
{
DataTable auto = new DataTable();
auto.Columns.Add("ID");
auto.Columns.Add("Name");
auto.Columns.Add("Text");
for (int i = 1; i <= 10; i++)
{
string txt = "选项" + i;
string txt_1 = "文本" + i;
auto.Rows.Add(new object[] { i, txt,txt_1 });
}
GridView2.DataSource = auto;
GridView2.DataBind();
}
#endregion
protected void TreeView1_SelectedNodeChanged(object sender, EventArgs e)
{
string stext = TreeView1.SelectedNode.Text;//获得点击的文本
string svalue = TreeView1.SelectedNode.Value;
tabledata1();
}
}
------解决思路----------------------
1.百度搜 框架网页 第一个
2.TrreView的点击事件取值,给Iframe 的SRC重新赋值实现绑定
3.不涉及跨域的情况下可以直接操作Iframe里面的dom元素,不要使用GridView 使用json来实现表格绑定
------解决思路----------------------
点击左侧的TreeView节点、右侧GridView控件呈现数据库数据显示示例
//TreeView控件设置
<asp:TreeView ID="TreeView1" runat="server" Height="241px" Font-Size="12pt" ForeColor="Black" Width="121px" style="left: 1px; position: relative; top: -64px" ImageSet="Faq" >
<Nodes>
<asp:TreeNode Text="后台管理" ToolTip="后台管理" Value="后台管理">
<asp:TreeNode Text="系统管理" ToolTip="系统管理" Value="系统管理">
<asp:TreeNode Text="管理员" ToolTip="管理员" Value="管理员" Target="rightFrame" NavigateUrl="AdminManage.aspx"></asp:TreeNode>
<asp:TreeNode Text="类型管理" ToolTip="类型管理" Value="类型管理" Target="rightFrame"
NavigateUrl="~/Module/Admin/BlogType.aspx"></asp:TreeNode>//codego.net/11/1/1/
</asp:TreeNode>
//点击管理员管理GridView控件呈现数据；
<asp:GridView ID="gvAdmin" runat="server" CellPadding="4" ForeColor="#333333" GridLines="None" AutoGenerateColumns="False" Font-Size="9pt" Width="500px" AllowPaging="True" OnPageIndexChanging="GridView1_PageIndexChanging" OnRowDeleting="GridView1_RowDeleting" Font-Bold="False" OnRowDataBound="gvAdmin_RowDataBound">
<FooterStyle BackColor="#1C5E55" Font-Bold="True" ForeColor="White" />
<Columns>
<asp:BoundField HeaderText="管理员ID" DataField="ID" />
<asp:BoundField HeaderText="用户名" DataField="UserName" />
<asp:BoundField HeaderText="管理员性别" DataField="Sex" />
<asp:BoundField HeaderText="QQ" DataField="QQ" />
<asp:BoundField HeaderText="注册时间" DataField="RegTime" />
<asp:HyperLinkField DataNavigateUrlFields="ID" DataNavigateUrlFormatString="AdminInfo.aspx?ID={0}"
HeaderText="详细信息" Text="详细信息" />
<asp:CommandField ShowDeleteButton="True" HeaderText="删除" />
</Columns>
<SelectedRowStyle BackColor="#C5BBAF" ForeColor="#333333" Font-Bold="True" />
<PagerStyle BackColor="#666666" ForeColor="White" HorizontalAlign="Center" />
<HeaderStyle BackColor="#1C5E55" Font-Bold="True" ForeColor="White" />
<AlternatingRowStyle BackColor="White" />
<RowStyle BackColor="#E3EAEB" />
<EditRowStyle BackColor="#7C6F57" />
</asp:GridView>
------解决思路----------------------
简单点，不同的数据放在不同的.aspx文件中显示。这样你的treeview节点负责重定向iframe的内容页url就OK了。
treeview的Click事件中写 Response.Redirect(URL); 相应的page中准备数据显示。
另一种方式，1个page里面放几个Panel，TreeView控制显示和隐藏。
