Android中ICS4.0Launcher中Fold的功能详解【androidICS4.0-->Launcher系列三】

         AndroidICS4.0的文件夹和2.3的文件夹区别比较大,主要区别有:

       一、android2.3的文件夹大小是固定的,4.0的文件夹大小是按照里面的元素大小决定的。

       二、android2.3的文件夹图标是固定的文件夹的形式展示的,而4.0是从文件中取前3个的缩略图垂直展示在屏幕上的。估计谷歌怕侵犯苹果文件夹的知识产权,所以没有做成和苹果一样的效果。

       三、android2.3的文件中可以放多于16的应用程序的快捷方式,而4.0最多只能放16个快捷方式。

       四、android2.3的文件夹中的图标不可以交换位置,而4.0的文件夹中的图标可以相互交换位置。

转载请标明出处:http://blog.csdn.net/wdaming1986/article/details/7748738

 对比图如下:

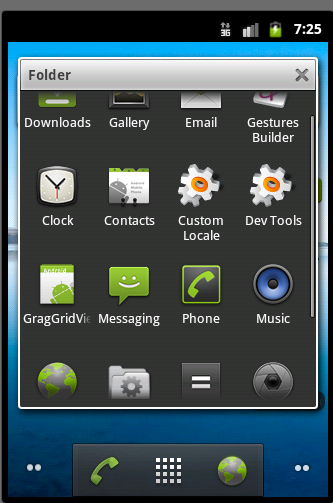

                      android2.3的文件夹                                                                android4.0的文件夹





下面来看看4.0的代码怎么实现文件夹的:



Step 1:如果系统一开始有fold,一启动launcher的时候,在Launcher.java类中bindFolders回调方法中:

 /**     * Implementation of the method from LauncherModel.Callbacks.     */    public void bindFolders(HashMap<Long, FolderInfo> folders) {        setLoadOnResume();        sFolders.clear();        sFolders.putAll(folders);    }

绑定所有fold的对象交给sFolders,去处理。
private static HashMap<Long, FolderInfo> sFolders = new HashMap<Long, FolderInfo>();



Step 2:如果是把一个图标拖放到另一图标上面,也形成folder。具体流程如下:

1、首先在workspace中的onDrop()方法中会判断是否会形成一个fold。代码如下:

public void onDrop(DragObject d) {    ...  ...     // If the item being dropped is a shortcut and the nearest drop                // cell also contains a shortcut, then create a folder with the two shortcuts.                if (!mInScrollArea && createUserFolderIfNecessary(cell, container,                        dropTargetLayout, mTargetCell, false, d.dragView, null)) {                    return;                }    ... ...}


2、在Workspace.java类的createUserFolderIfNecessary()方法中来增加fold,具体代码如下:

boolean createUserFolderIfNecessary(View newView, long container, CellLayout target,            int[] targetCell, boolean external, DragView dragView, Runnable postAnimationRunnable) {    。。。 。。。 FolderIcon fi =                mLauncher.addFolder(target, container, screen, targetCell[0], targetCell[1]);            destInfo.cellX = -1;            destInfo.cellY = -1;            sourceInfo.cellX = -1;            sourceInfo.cellY = -1;  。。。 。。。}

通过mLauncher.addFolder来传递folder的信息,包含一些位置信息绑定哪个屏幕的。




3、在Launcher.java类的addFolder()这个方法是真正形成folder的,以及在launcher的数据库中插入一条信息,代码如下:

 FolderIcon addFolder(CellLayout layout, long container, final int screen, int cellX,            int cellY) {        final FolderInfo folderInfo = new FolderInfo();        folderInfo.title = getText(R.string.folder_name);        // Update the model        LauncherModel.addItemToDatabase(Launcher.this, folderInfo, container, screen, cellX, cellY,                false);        sFolders.put(folderInfo.id, folderInfo);        // Create the view        FolderIcon newFolder =            FolderIcon.fromXml(R.layout.folder_icon, this, layout, folderInfo, mIconCache);        mWorkspace.addInScreen(newFolder, container, screen, cellX, cellY, 1, 1,                isWorkspaceLocked());        return newFolder;    }

FolderIcon.fromXml()这个方法是从xml中形成folder,addInScreen(),把相应的信息插入数据库。



4、在FolderIcon.java中fromXml()方法中的代码如下:



static FolderIcon fromXml(int resId, Launcher launcher, ViewGroup group,            FolderInfo folderInfo, IconCache iconCache) {        if (INITIAL_ITEM_ANIMATION_DURATION >= DROP_IN_ANIMATION_DURATION) {            throw new IllegalStateException("DROP_IN_ANIMATION_DURATION must be greater than " +                    "INITIAL_ITEM_ANIMATION_DURATION, as sequencing of adding first two items " +                    "is dependent on this");        }        FolderIcon icon = (FolderIcon) LayoutInflater.from(launcher).inflate(resId, group, false);        icon.mFolderName = (BubbleTextView) icon.findViewById(R.id.folder_icon_name);        icon.mFolderName.setText(folderInfo.title);        icon.mPreviewBackground = (ImageView) icon.findViewById(R.id.preview_background);        icon.setTag(folderInfo);        icon.setOnClickListener(launcher);        icon.mInfo = folderInfo;        icon.mLauncher = launcher;        icon.setContentDescription(String.format(launcher.getString(R.string.folder_name_format),                folderInfo.title));        Folder folder = Folder.fromXml(launcher);        folder.setDragController(launcher.getDragController());        folder.setFolderIcon(icon);        folder.bind(folderInfo);        icon.mFolder = folder;        icon.mFolderRingAnimator = new FolderRingAnimator(launcher, icon);        folderInfo.addListener(icon);        return icon;    }

     Folder folder = Folder.fromXml(launcher);是真正产生了一个folder对象。代码如下:

 /**     * Creates a new UserFolder, inflated from R.layout.user_folder.     *     * @param context The application's context.     *     * @return A new UserFolder.     */    static Folder fromXml(Context context) {        return (Folder) LayoutInflater.from(context).inflate(R.layout.user_folder, null);    }



并且给folder设置拖拽的控制器,绑定folderInfo设置folderInfo.addListener(icon)图标改变的监听。
这个接口 interface  FolderListener定义了一个方法---->如下:

   interface FolderListener {        public void onAdd(ShortcutInfo item);        public void onRemove(ShortcutInfo item);        public void onTitleChanged(CharSequence title);        public void onItemsChanged();    }



在folder.bind(folderInfo);方法中的操作如下:



    void bind(FolderInfo info) {        mInfo = info;        ArrayList<ShortcutInfo> children = info.contents;        ArrayList<ShortcutInfo> overflow = new ArrayList<ShortcutInfo>();        setupContentForNumItems(children.size());        int count = 0;        for (int i = 0; i < children.size(); i++) {            ShortcutInfo child = (ShortcutInfo) children.get(i);            if (!createAndAddShortcut(child)) {                overflow.add(child);            } else {                count++;            }        }        // We rearrange the items in case there are any empty gaps        setupContentForNumItems(count);        // If our folder has too many items we prune them from the list. This is an issue         // when upgrading from the old Folders implementation which could contain an unlimited        // number of items.        for (ShortcutInfo item: overflow) {            mInfo.remove(item);            LauncherModel.deleteItemFromDatabase(mLauncher, item);        }        mItemsInvalidated = true;        updateTextViewFocus();        mInfo.addListener(this);        if (!sDefaultFolderName.contentEquals(mInfo.title)) {            mFolderName.setText(mInfo.title);        } else {            mFolderName.setText("");        }    }

主要的操作是:给拖拽进来的快捷方式安排位置,判断Folder是否已经放满,设置监听,设置folder的Name;



5、folder桌面的缩略图怎么形成的,是在第2步Workspace.java的createUserFolderIfNecessary()方法中

// If the dragView is null, we can't animate            boolean animate = dragView != null;            if (animate) {                fi.performCreateAnimation(destInfo, v, sourceInfo, dragView, folderLocation, scale,                        postAnimationRunnable);            } else {                fi.addItem(destInfo);                fi.addItem(sourceInfo);            }

fi.performCreateAnimation()这个方法是给folder添加个动画。



6、在FolderIcon.java中的performCreateAnimation()方法中:

 public void performCreateAnimation(final ShortcutInfo destInfo, final View destView,            final ShortcutInfo srcInfo, final View srcView, Rect dstRect,            float scaleRelativeToDragLayer, Runnable postAnimationRunnable) {        Drawable animateDrawable = ((TextView) destView).getCompoundDrawables()[1];        computePreviewDrawingParams(animateDrawable.getIntrinsicWidth(), destView.getMeasuredWidth());        // This will animate the dragView (srcView) into the new folder        onDrop(srcInfo, srcView, dstRect, scaleRelativeToDragLayer, 1, postAnimationRunnable);        // This will animate the first item from it's position as an icon into its        // position as the first item in the preview        animateFirstItem(animateDrawable, INITIAL_ITEM_ANIMATION_DURATION);        postDelayed(new Runnable() {            public void run() {                addItem(destInfo);            }        }, INITIAL_ITEM_ANIMATION_DURATION);    }

computePreviewDrawingParams()这个方法是计算绘制folder图标的方法;



7、在FolderIcon.java类中的computePreviewItemDrawingParams()方法中:

 private PreviewItemDrawingParams computePreviewItemDrawingParams(int index,            PreviewItemDrawingParams params) {        index = NUM_ITEMS_IN_PREVIEW - index - 1;        float r = (index * 1.0f) / (NUM_ITEMS_IN_PREVIEW - 1);        float scale = (1 - PERSPECTIVE_SCALE_FACTOR * (1 - r));        float offset = (1 - r) * mMaxPerspectiveShift;        float scaledSize = scale * mBaselineIconSize;        float scaleOffsetCorrection = (1 - scale) * mBaselineIconSize;        // We want to imagine our coordinates from the bottom left, growing up and to the        // right. This is natural for the x-axis, but for the y-axis, we have to invert things.        float transY = mAvailableSpaceInPreview - (offset + scaledSize + scaleOffsetCorrection);        float transX = offset + scaleOffsetCorrection;        float totalScale = mBaselineIconScale * scale;        final int overlayAlpha = (int) (80 * (1 - r));        if (params == null) {            params = new PreviewItemDrawingParams(transX, transY, totalScale, overlayAlpha);        } else {            params.transX = transX;            params.transY = transY;            params.scale = totalScale;            params.overlayAlpha = overlayAlpha;        }        return params;    }

主要工作是:计算图标的排列,每一个相对上一个有点偏移的距离;效果图如下:

以上基本是把Step 2流程大致过了一遍。



Step 3:folder类中的长按事件的传递,以及Fold中长按交换位置的流程过一下:

1、先来说给Folder设置长按监听的地方,因为Folder.java类是继承了View.OnClickListener,
        View.OnLongClickListener事件,所以,长按事件就交给自己的onLongClick()事件来处理。



2、所以Folder中的长按事件,被自己的public boolean onLongClick(View v) {}时间捕获,代码如下:

public boolean onLongClick(View v) {  ...  ...   mLauncher.getWorkspace().onDragStartedWithItem(v);            mLauncher.getWorkspace().beginDragShared(v, this);            mIconDrawable = ((TextView) v).getCompoundDrawables()[1];            mCurrentDragInfo = item;            mEmptyCell[0] = item.cellX;            mEmptyCell[1] = item.cellY;            mCurrentDragView = v;            mContent.removeView(mCurrentDragView);            mInfo.remove(mCurrentDragInfo);            mDragInProgress = true;            mItemAddedBackToSelfViaIcon = false;   ...  ...}

同样拖拽事件是交给Workspace来处理,最后也是统一交给DragController.java类处理和分发相应的事件。这个过程在
Android-->Launcher拖拽事件详解【androidICS4.0--Launcher系列二】中做了详细的介绍,这里就不做赘述了。



3、主要看Folder.java类中的onDragOver()这个方法,当在文件夹中拖拽到另一个快捷方式的上面的时候,发生交换,

来看代码如下:

 public void onDragOver(DragObject d) {        float[] r = getDragViewVisualCenter(d.x, d.y, d.xOffset, d.yOffset, d.dragView, null);        mTargetCell = mContent.findNearestArea((int) r[0], (int) r[1], 1, 1, mTargetCell);        if (mTargetCell[0] != mPreviousTargetCell[0] || mTargetCell[1] != mPreviousTargetCell[1]) {            mReorderAlarm.cancelAlarm();            mReorderAlarm.setOnAlarmListener(mReorderAlarmListener);            mReorderAlarm.setAlarm(150);            mPreviousTargetCell[0] = mTargetCell[0];            mPreviousTargetCell[1] = mTargetCell[1];        }    }

这个方法主要做的操作是:判断拖拽的是哪个对象mContent.findNearestArea((int) r[0], (int) r[1], 1, 1, mTargetCell);判断在

哪个目标的附近,然后判断和是否是正在拖拽的对象的坐标,设置mReorderAlarmListener来进行交换,设置150毫秒用来处理动画的。



4、在ReorderAlarmListener内部类的代码如下:

  OnAlarmListener mReorderAlarmListener = new OnAlarmListener() {        public void onAlarm(Alarm alarm) {            realTimeReorder(mEmptyCell, mTargetCell);        }    };



5、在realTimeReorder()方法中传递这个快捷方式在屏幕x轴,y轴上的为止,进行交换,代码如下:

 private void realTimeReorder(int[] empty, int[] target) {        boolean wrap;        int startX;        int endX;        int startY;        int delay = 0;        float delayAmount = 30;        if (readingOrderGreaterThan(target, empty)) {            wrap = empty[0] >= mContent.getCountX() - 1;            startY = wrap ? empty[1] + 1 : empty[1];            for (int y = startY; y <= target[1]; y++) {                startX = y == empty[1] ? empty[0] + 1 : 0;                endX = y < target[1] ? mContent.getCountX() - 1 : target[0];                for (int x = startX; x <= endX; x++) {                    View v = mContent.getChildAt(x,y);                    if (mContent.animateChildToPosition(v, empty[0], empty[1],                            REORDER_ANIMATION_DURATION, delay)) {                        empty[0] = x;                        empty[1] = y;                        delay += delayAmount;                        delayAmount *= 0.9;                    }                }            }        } else {            wrap = empty[0] == 0;            startY = wrap ? empty[1] - 1 : empty[1];            for (int y = startY; y >= target[1]; y--) {                startX = y == empty[1] ? empty[0] - 1 : mContent.getCountX() - 1;                endX = y > target[1] ? 0 : target[0];                for (int x = startX; x >= endX; x--) {                    View v = mContent.getChildAt(x,y);                    if (mContent.animateChildToPosition(v, empty[0], empty[1],                            REORDER_ANIMATION_DURATION, delay)) {                        empty[0] = x;                        empty[1] = y;                        delay += delayAmount;                        delayAmount *= 0.9;                    }                }            }        }    }

readingOrderGreaterThan()这个方法的作用是判断是从上往下拖动,还是从下往上拖动,这两种情况的交换方式不一样。循环也就不一样。交换的过程中通过animateChildToPosition();这个方法设置了一个动画。



6、在放下的时候会触发Folder.java的onDrop()方法,

 public void onDrop(DragObject d) {        ShortcutInfo item;   。。。  。。。if (d.dragView.hasDrawn()) {                mLauncher.getDragLayer().animateViewIntoPosition(d.dragView, mCurrentDragView);            } else {                mCurrentDragView.setVisibility(VISIBLE);            }  mInfo.add(item); 。。。  。。。 }

作用是设置放下的view可见,把当前的这个快捷方式添加到mInfo中。



7、当执行完onDrop()方法后会走onDropCompleted()方法:

public void onDropCompleted(View target, DragObject d, boolean success) {  ... ... // Reordering may have occured, and we need to save the new item locations. We do this once        // at the end to prevent unnecessary database operations.        updateItemLocationsInDatabase();  ...  ...}

这个方法的作用是更新item的位置信息在数据库中。

private void updateItemLocationsInDatabase() {        ArrayList<View> list = getItemsInReadingOrder();        for (int i = 0; i < list.size(); i++) {            View v = list.get(i);            ItemInfo info = (ItemInfo) v.getTag();            LauncherModel.moveItemInDatabase(mLauncher, info, mInfo.id, 0,                        info.cellX, info.cellY);        }    }

好了,folder的大致流程就是这些,更详细的请参考launcher源代码。

写的仓促,欢迎大家指出里面的错误,如果有不解的欢迎留言!
