①Google地图的组成元素:地图模型、地图展示、地图控制。

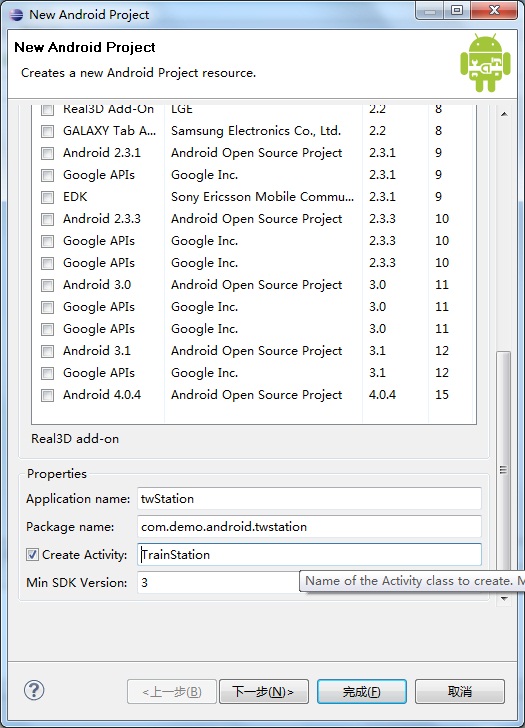

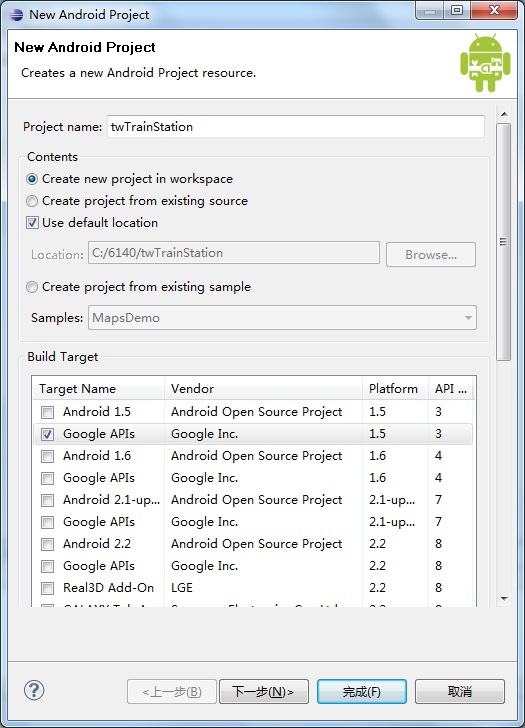

②创建新项目,如下图所示:
注意:Google Map API属于Google私有API的部分,因此在选择Build Target时需选“Google APIs”选项。
③定义目录中的“AndroidMainfest”列表文件,添加以下内容,如下图所示:
<?xml version="1.0" encoding="utf-8"?><manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.demo.android.twstation" android:versionCode="1" android:versionName="1.0"> <uses-sdk android:minSdkVersion="3" /> <application android:icon="@drawable/icon" android:label="@string/app_name"> <uses-library android:name="com.google.android.maps"/> <activity android:name=".TrainStation" android:label="@string/app_name"> <intent-filter> <action android:name="android.intent.action.MAIN" /> <category android:name="android.intent.category.LAUNCHER" /> </intent-filter> </activity> </application> <uses-permission android:name="android.permission.INTERNET"></uses-permission></manifest>
④定义XML资源文件:
打开“res/layout/main.xml”文件,修改后如图所示:
<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent" ><com.google.android.maps.MapViewandroid:id="@+id/map"android:layout_width="fill_parent"android:layout_height="fill_parent"android:apiKey="此处填入申请到的开发密钥(API Key)"android:clickable="true"/></LinearLayout>
⑤产生地图:
打开“src/com/demo/android/twstation/TrainStation.java”文件,修改后程序代码如下:
package com.demo.android.twstation;import android.os.Bundle;import com.google.android.maps.MapActivity;;public class TrainStation extends MapActivity { /** Called when the activity is first created. */ @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); } @Override protected boolean isRouteDisplayed(){ //TODO Auto-generated method stub return false; }}

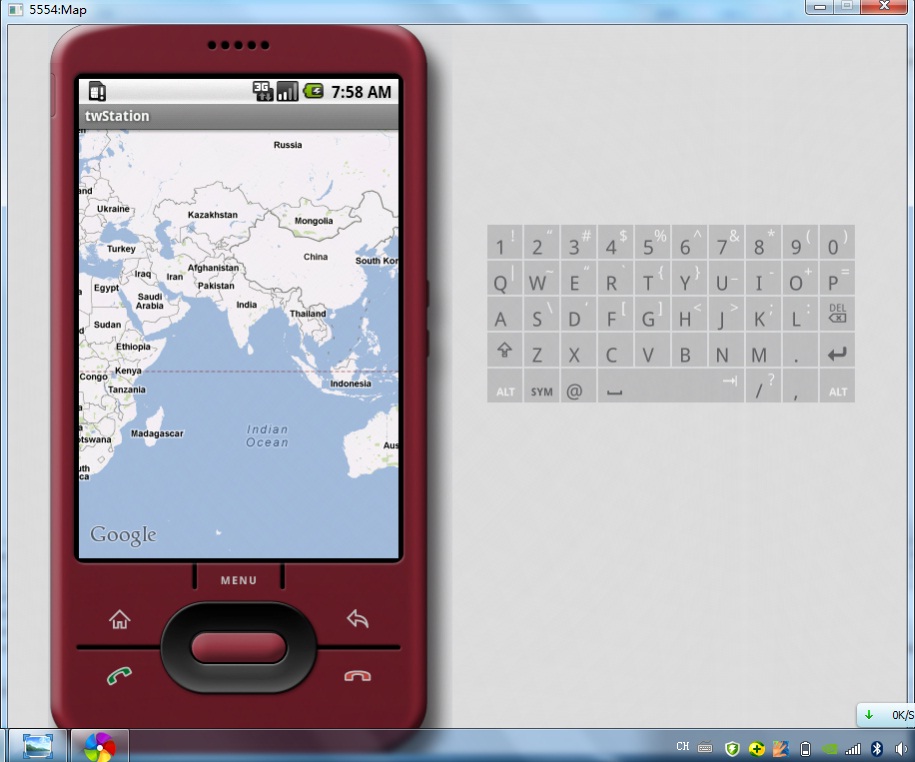

运行结果:
