玩转Android-组件篇-Broadcast Receiver(播音接收器)

热度:77   发布时间:2016-05-01 16:47:50.0
玩转Android---组件篇---Broadcast Receiver(广播接收器)

Braodcast Receiver顾名思义就是广播接收器,它和时间处理机制类似,但是事件处理机制是程序组件级别的(比如:按钮的单击事件),而广播事件处理机制是系统级别的。我们可以用Intent来启动一个组件,也可以用sendBroadcast()方法发起一个系统级别的事件广播来传递消息。我们同样可以在自己的应用程序中实现Broadcast Receiver来监听和响应广播的Intent。

事件的广播通过创建Intent对象并调用sendBroadcast()方法将广播发出。事件的接受是通过定义一个继承BroadcastReceiver的类来实现的,继承该类后覆盖其onReceive()方法,在该方法中响应时间。

下面是android系统中定义了很多标准的Broadcast Action来响应系统的广播事件。

①ACTION_TIME_CHANGED(时间改变时触发)

②ACTION_BOOT_COMPLETED(系统启动完成后触发)--比如有些程序开机后启动就是用这种方式来实现的

③ACTION_PACKAGE_ADDED(添加包时触发)

④ACTION_BATTERY_CHANGED(电量低时触发)

详细:标准广播ACTION常量

常量名称

常量值

意义

ACTION_BOOT_COMPLETED

android.intent.action.BOOT_COMPLETED

系统启动完成

ACTION_TIME_CHANGED

android.intent.action.ACTION_TIME_CHANGED

时间改变

ACITON_DATE_CHANGED

android.intent.action.ACTION_DATE_CHANGED

日期改变

ACTION_TIMEZONE_CHANGED

android.intent.action.ACTION_TIMEZONE_CHANGED

时区该表

ACTION_BATTERY_LOW

android.intent.action.ACTION_BATTERY_LOW

电量低

ACTION_MEDIA_EJECT

android.intent.action.ACTION_MEDIA_EJECT

插入或拔出外部媒体

ACTION_MEDIA_BUTTON

android.intent.action.ACTION_MEDIA_BUTTON

按下媒体按钮

ACTION_PACKAGE_ADDED

android.intent.action.ACTION_PACKAGE_ADDED

添加包

ACTION_PACKAGE_REMOVED

android.intent.action.ACTION_PACKAGE_REMOVED

删除包

?

在这里,要练习3个内容

①自定义Broadcast Receiver

②Notification和NotificationManager的使用

③AlarmManager的使用

?

1、首先看一个自定义的广播事件的例子

package org.hualang.broadcast;import android.app.Activity;import android.content.Intent;import android.os.Bundle;import android.view.View;import android.view.View.OnClickListener;import android.widget.Button;public class BroadCastTest extends Activity {    /** Called when the activity is first created. */	private static final String MY_ACTION="org.hualang.broadcast.action.MY_ACTION";	private Button btn;    @Override    public void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        setContentView(R.layout.main);        btn=(Button)findViewById(R.id.button);        btn.setOnClickListener(new OnClickListener()        {			@Override			public void onClick(View arg0) {				// TODO Auto-generated method stub				Intent intent=new Intent();				intent.setAction(MY_ACTION);				intent.putExtra("msg", "同志们好!同志们辛苦啦!");				sendBroadcast(intent);			}        	        });    }}

?

MyReceiver.java

package org.hualang.broadcast;import android.content.BroadcastReceiver;import android.content.Context;import android.content.Intent;import android.widget.Toast;public class MyReceiver extends BroadcastReceiver {	@Override	public void onReceive(Context arg0, Intent arg1) {		// TODO Auto-generated method stub		String msg=arg1.getStringExtra("msg");		Toast.makeText(arg0, msg, Toast.LENGTH_LONG).show();	}	}

?

注意:在AndroidManifest.xml文件中注册

<receiver android:name="MyReceiver">			<intent-filter>				<action android:name="org.hualang.broadcast.action.MY_ACTION"/>			</intent-filter>		</receiver>

?

?

我们还可以在AndroidManifest.xml文件中注销一个广播接收器,一般在Activity.onResume()方法中使用Context.registerReceiver()方法来注册一个广播接收器,在Activity.onPause()中使用unregisterReceiver(r)方法注销一个广播接收器,例如:

//实例化intent过滤器

IntentFilter filter = new IntentFilte();

//实例化Receiver

MyReceiver r = new Receiver();

//注册Receiver

registerReceiver(r,filter);

?

为了注销一个BroadcastReceiver,应使用Context.unregisterReceiver方法,传入一个BroadcastReceiver实例

//注销

unregisterReceiver(r);

?

2、下面的是Notification的例子,比如手机来短信的时候,会在屏幕最上边有一个通知,那个就是Notification

DisplayActivity.java

package org.hualang.notify;import android.app.Activity;import android.app.Notification;import android.app.NotificationManager;import android.app.PendingIntent;import android.content.Intent;import android.os.Bundle;import android.view.View;import android.view.View.OnClickListener;import android.widget.Button;public class DisplayActivity extends Activity {	private Button cancelbtn;	private Notification n;	private NotificationManager nm;	private static final int ID=1;	public void onCreate(Bundle savedInstanceState)	{		super.onCreate(savedInstanceState);		setContentView(R.layout.main2);		cancelbtn = (Button)findViewById(R.id.button2);		String service = NOTIFICATION_SERVICE;		nm = (NotificationManager)getSystemService(service);				n = new Notification();		int icon = n.icon =R.drawable.icon;		String tickerText = "喜欢HTC的样子,喜欢defy的配置";		long when = System.currentTimeMillis();		n.icon = icon;		n.tickerText = tickerText;		n.when = when;				Intent intent = new Intent(this,NotifyTest2.class);		PendingIntent pi = PendingIntent.getActivity(this, 0 , intent , 0);		n.setLatestEventInfo(this, "My Title", "My Content", pi);		nm.notify(ID, n);		cancelbtn.setOnClickListener(cancelListener);	}	private OnClickListener cancelListener=new OnClickListener()	{		public void onClick(View v)		{			nm.cancel(ID);		}	};}

?MyReceiver.java

package org.hualang.notify;import android.content.BroadcastReceiver;import android.content.Context;import android.content.Intent;public class MyReceiver extends BroadcastReceiver {	@Override	public void onReceive(Context context, Intent intent) {		// TODO Auto-generated method stub		Intent i=new Intent();		i.setFlags(Intent.FLAG_ACTIVITY_NEW_TASK);		i.setClass(context,DisplayActivity.class);		context.startActivity(i);	}	}

?

NotifyTest2.java

package org.hualang.notify;import android.app.Activity;import android.content.Intent;import android.os.Bundle;import android.view.View;import android.view.View.OnClickListener;import android.widget.Button;public class NotifyTest2 extends Activity {    /** Called when the activity is first created. */	private Button btn;	private static final String MY_ACTION="org.hualang.notify.aciton.MY_ACITON";    @Override    public void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        setContentView(R.layout.main);        btn=(Button)findViewById(R.id.button);        btn.setOnClickListener(listener);    }    private OnClickListener listener=new OnClickListener()    {    	public void onClick(View v)    	{    		Intent intent=new Intent();    		intent.setAction(MY_ACTION);    		sendBroadcast(intent);    	}    };}

?

注册AndroidManifest.xml

<receiver android:name="MyReceiver">			<intent-filter>				<action android:name="org.hualang.notify.aciton.MY_ACITON"/>			</intent-filter>		</receiver>		<activity android:name="DisplayActivity">		</activity>

?

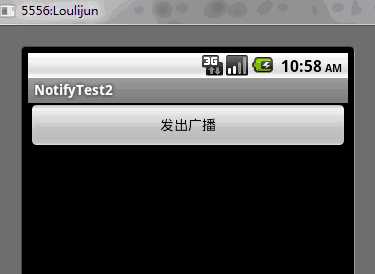

运行结果如下:




?

3、下面是AlarmManager的例子,它是一个闹钟,感兴趣的朋友可以自己写一个小闹钟

AlarmManager常用的属性和方法

属性或方法名称

说明

ELAPSED_REALTIME

设置闹钟时间,从系统启动开始

ELAPSED_REALTIME_WAKEUP

设置闹钟时间,从系统启动开始,如火设备休眠则唤醒

INTERVAL_DAY

设置闹钟时间,间隔一天

INTERVAL_FIFTEEN_MINUTES

间隔15分钟

INTERVAL_HALF_DAY

间隔半天

INTERVAL_HALF_HOUR

间隔半小时

INTERVAL_HOUR

间隔1小时

RTC

设置闹钟时间,从系统当前时间开始(System.currentTimeMillis())

RTC_WAKEUP

设置闹钟时间,从系统当前时间开始,设备休眠则唤醒

set(int type,long tiggerAtTime,PendingIntent operation)

设置在某个时间执行闹钟

setRepeating(int type,long triggerAtTiem,long interval,PendingIntent operation)

设置在某个时间重复执行闹钟

setInexactRepeating(int type,long triggerAtTiem,long interval,PendingIntent operation)

是指在某个时间重复执行闹钟,但不是间隔固定时间

?

AlarmTest.java

package org.hualang.alarm;import android.app.Activity;import android.app.AlarmManager;import android.app.PendingIntent;import android.content.Intent;import android.os.Bundle;import android.util.Log;import android.view.View;import android.view.View.OnClickListener;import android.widget.Button;public class AlarmTest extends Activity {    /** Called when the activity is first created. */	private Button btn1,btn2;	private static final String BC_ACTION="org.hualang.alarm.action.BC_ACTION";    @Override    public void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        setContentView(R.layout.main);        btn1 = (Button)findViewById(R.id.button1);        btn2 = (Button)findViewById(R.id.button2);                final AlarmManager am = (AlarmManager)getSystemService(ALARM_SERVICE);        Intent intent = new Intent();        intent.setAction(BC_ACTION);        intent.putExtra("msg", "你该起床了");        final PendingIntent pi = PendingIntent.getBroadcast(AlarmTest.this, 0, intent, 0);        final long time = System.currentTimeMillis();                btn1.setOnClickListener(new OnClickListener()        {        	public void onClick(View v)        	{        		        		am.setRepeating(AlarmManager.RTC_WAKEUP, time, 5*1000, pi);        	}        });        btn2.setOnClickListener(new OnClickListener()        {        	public void onClick(View v)        	{        		am.cancel(pi);        	}        });    }}

?

MyReceiver.java

package org.hualang.alarm;import android.content.BroadcastReceiver;import android.content.Context;import android.content.Intent;import android.util.Log;import android.widget.Toast;public class MyReceiver extends BroadcastReceiver {	@Override	public void onReceive(Context context, Intent intent) {		// TODO Auto-generated method stub		String msg=intent.getStringExtra("msg");		Log.v("SERVICE","QIAN----------------------");		Toast.makeText(context, msg, Toast.LENGTH_LONG).show();		Log.v("SERVICE", "HOU-----------------------");	}}

?

注册AndroidManifest.xml

<receiver android:name="MyReceiver">			<intent-filter>				<action android:name="org.hualang.alarm.action.BC_ACTION"/>			</intent-filter>		</receiver>

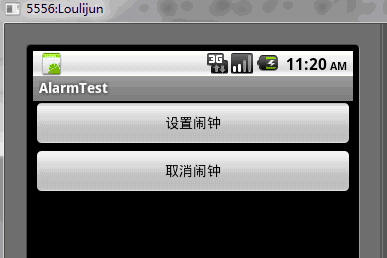

?运行结果:


?

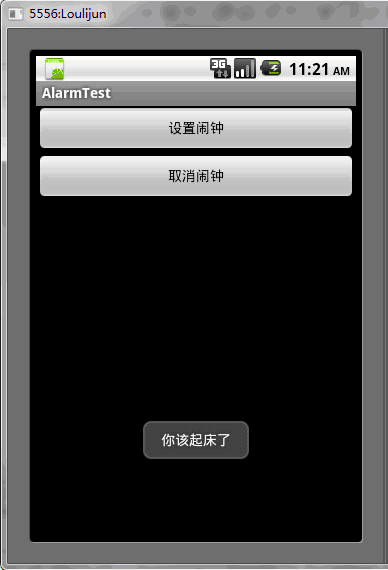

?点击设置闹钟后,会每隔5秒弹出一个Toast,点击取消闹钟就不会弹出了



?
