android ExpandableListView可扩张列表

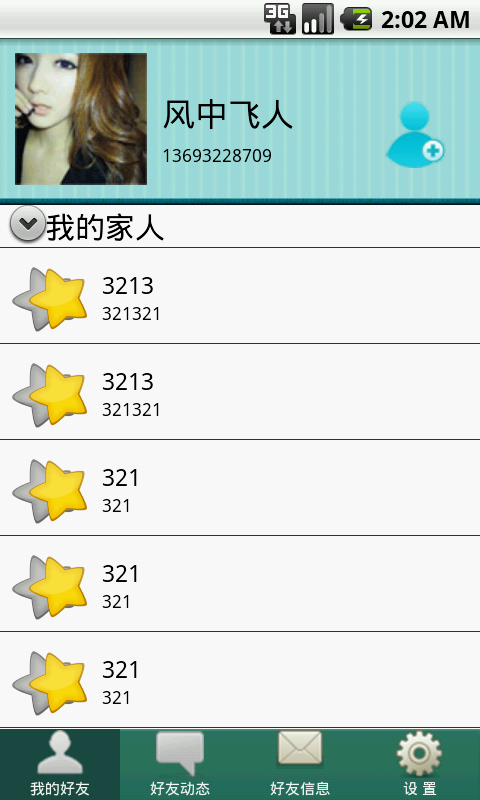

先看一效果图、

列表中要有 图片和文字：

?

?

?

?

所以我们要实现一个自定义的?? 适配器。

?

介绍一个类：BaseExpandableListAdapter??

一看就知道是 适配器的一个基类了。

?

?

所以我们自定义的适配器要 继承它。

?

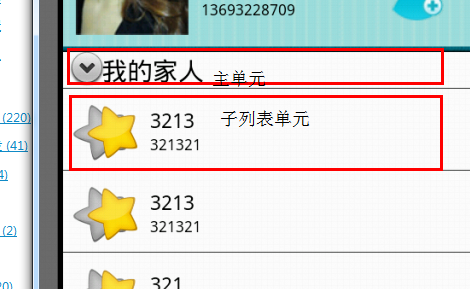

除了 完成这个 适配器，还要有两个自定义模板，分别?? 组和子列表的，单元模板。如下图：

?

?

?

模板布局xml? 要放在 layouts? 下面。

?

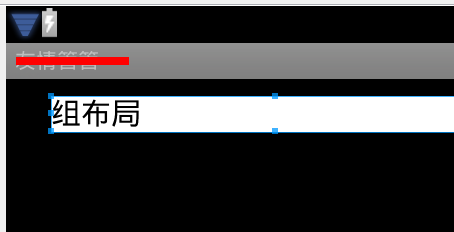

main_tree_group.xml

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="fill_parent"    android:layout_height="45dp"    android:background="@color/white"    android:gravity="center"    android:orientation="vertical" >    <TextView        xmlns:android="http://schemas.android.com/apk/res/android"        android:id="@+id/main_tree_title_id"        android:layout_width="fill_parent"        android:layout_height="wrap_content"        android:layout_marginLeft="20dip"        android:background="@color/white"        android:text="NoData"        android:textColor="@color/black"        android:textSize="20dp"        android:textStyle="bold" /></LinearLayout>

?

?

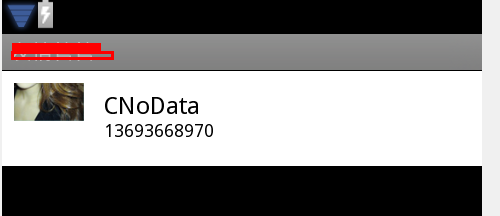

子列表模板文件

main_tree_child.xml

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="fill_parent"    android:layout_height="wrap_content"    android:background="@color/white"    android:gravity="center_vertical"    android:orientation="horizontal"    android:paddingBottom="5dp"    android:paddingLeft="8dp"    android:paddingTop="8dp" >    <ImageView        android:id="@+id/mainChildIcoId"        android:layout_width="50dp"        android:layout_height="50dp"        android:src="@drawable/person_icon" />    <LinearLayout        android:layout_width="wrap_content"        android:layout_height="fill_parent"        android:orientation="vertical" >        <TextView            android:id="@+id/mainChildText1"            android:layout_width="fill_parent"            android:layout_height="wrap_content"            android:layout_marginLeft="10dp"            android:layout_marginTop="5dp"            android:background="@color/white"            android:gravity="center_vertical"            android:text="CNoData"            android:textColor="@color/black"            android:textSize="16dp" />        <TextView            android:id="@+id/mainChildText2"            android:layout_width="fill_parent"            android:layout_height="wrap_content"            android:layout_marginLeft="10dp"            android:background="@color/white"            android:gravity="center_vertical"            android:text="13693668970"            android:textColor="@color/black"            android:textSize="12dp" />    </LinearLayout></LinearLayout>

?

?

?

然后写两个对? 模板文件的??? bean

?

main_tree_group.xml 对应 bean

	//父单元	class ExpandableGroupHolder {		TextView title;	}

main_tree_child.xml

?

	//单元类	class ExpandableListHolder {		TextView nickName;		TextView phone;		ImageView ioc;	}

?

现在来实现最重要的关结。? 适配器??

MainListExpandableListAdapter.java

?

我这里把 上面两个模板对应java bean 写成 自定义适配器的内部类。

?

?

?

?

?

?

?

package com.main.apadter;import java.util.List;import java.util.Map;import android.content.Context;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;import android.widget.BaseExpandableListAdapter;import android.widget.ImageView;import android.widget.TextView;import com.main.R;public class MainListExpandableListAdapter extends BaseExpandableListAdapter {		//单元类	class ExpandableListHolder {		TextView nickName;		TextView phone;		ImageView ioc;	} 		//父单元	class ExpandableGroupHolder {		TextView title;	} 		private List<Map<String, Object>> groupData;//组显示	private List<List<Map<String, Object>>> childData;//子列表		private LayoutInflater mGroupInflater; //用于加载group的布局xml	private LayoutInflater mChildInflater; //用于加载listitem的布局xml		//自宝义构造	public MainListExpandableListAdapter(Context context, List<Map<String, Object>> groupData, List<List<Map<String, Object>>> childData) {		this.childData=childData;		this.groupData=groupData;				mChildInflater = (LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);		mGroupInflater = (LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);	}		//必须实现 得到子数据	@Override	public Object getChild(int groupPosition, int j) {		return childData.get(groupPosition).get(j);	}	@Override	public long getChildId(int groupPosition, int j) {		return groupPosition;	}	@Override	public int getChildrenCount(int i) {		return childData.get(i).size();	}	@Override	public Object getGroup(int i) {		return groupData.get(i);	}	@Override	public int getGroupCount() {		return groupData.size();	}	@Override	public long getGroupId(int i) {		return i;	}	@Override	public boolean hasStableIds() {//行是否具有唯一id		return false;	}	@Override	public boolean isChildSelectable(int i, int j) {//行是否可选		return false;	}		@Override	public View getGroupView(int groupPosition, boolean flag, View convertView, ViewGroup viewgroup) {		ExpandableGroupHolder holder = null; //清空临时变量holder		if (convertView == null) { //判断view（即view是否已构建好）是否为空			convertView = mGroupInflater.inflate(R.layout.main_tree_group, null);			holder = new ExpandableGroupHolder();			holder.title=(TextView) convertView.findViewById(R.id.main_tree_title_id);			convertView.setTag(holder);		} else { //若view不为空，直接从view的tag属性中获得各子视图的引用			holder = (ExpandableGroupHolder) convertView.getTag();		}		String title=(String)this.groupData.get(groupPosition).get("title");		holder.title.setText(title);		notifyDataSetChanged();		return convertView;	}		@Override	public View getChildView(int groupPosition, int childPosition, boolean isLastChild, View convertView,			ViewGroup viewgroup) {		ExpandableListHolder holder = null;		if (convertView == null) {			convertView = mChildInflater.inflate(R.layout.main_tree_child, null);			holder = new ExpandableListHolder();			holder.nickName = (TextView) convertView.findViewById(R.id.mainChildText1);			holder.ioc = (ImageView) convertView.findViewById(R.id.mainChildIcoId);			holder.phone = (TextView) convertView.findViewById(R.id.mainChildText2);			convertView.setTag(holder);		} else {//若行已初始化，直接从tag属性获得子视图的引用			holder = (ExpandableListHolder) convertView.getTag();		} 		Map<String,Object> unitData=this.childData.get(groupPosition).get(childPosition);		holder.nickName.setText((String)unitData.get("nickName"));		holder.ioc.setImageResource((Integer) unitData.get("ico"));		holder.phone.setText((String)unitData.get("phone"));		return convertView;	}}

?

?

?

接下来要做的就是? 利用自定义的适配器。? 添加盟数据进行显了。

?

1、建一个 xml? 设样式并设id ??

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="fill_parent"    android:layout_height="fill_parent"    android:listSelector="@color/white"    android:orientation="vertical" ><ExpandableListView            android:id="@+id/expandable_id"            android:layout_width="fill_parent"            android:layout_height="fill_parent"            android:background="@color/white"            android:drawSelectorOnTop="false"            android:listSelector="@color/white" /></LinearLayout>

?

?

创建activity

public class MainActivity extends Activity {	// 声明对象	private MainListExpandableListAdapter adapter = null;	List<Map<String, Object>> groups;	List<List<Map<String, Object>>> childs;	ExpandableListView expandableListView;	private FriendsDao friendsDao;	@Override	public void onCreate(Bundle savedInstanceState) {		super.onCreate(savedInstanceState);		setContentView(R.layout.main);				friendsDao=new FriendsDao(this,"ll1x.db",null,2);				//为ExpandableListView准备数据		groups = new ArrayList<Map<String, Object>>();		Map<String, Object> group = new HashMap<String, Object>();		group.put("title", "我的家人");		groups.add(group);		List<Map<String, Object>> child1 = new ArrayList<Map<String, Object>>();		Cursor cursor = friendsDao.selectAll();		while(cursor.moveToNext()){			Map<String, Object> child1Data1 = new HashMap<String, Object>();			child1Data1.put("nickName", cursor.getString(cursor.getColumnIndex("nickName")));			child1Data1.put("phone", cursor.getString(cursor.getColumnIndex("phone")));			child1Data1.put("ico", R.drawable.icon);			child1.add(child1Data1);		}		childs = new ArrayList<List<Map<String, Object>>>();		childs.add(child1);		// 实例化ExpandableListView对象		expandableListView = (ExpandableListView) findViewById(R.id.expandable_id);		// 实例化ExpandableListView的适配器		adapter = new MainListExpandableListAdapter(getApplicationContext(), groups, childs);		// 设置适配器		expandableListView.setAdapter(adapter);		// 设置监听器		expandableListView.setOnChildClickListener(new OnChildClickListener() {			public boolean onChildClick(ExpandableListView parent, View v,					int groupPosition, int childPosition, long id) {				Log.d("test", "GroupPosition is " + groupPosition);				Log.d("test", "ChildPosition is" + childPosition);				return false;			}		});	}}

?

ok 可了。可以放到项目当去了。

?

?

?

?

?

?
