最近学习了android 2D 应用的开发，拿来和大家分享一下，学习2D 开发前我们先了解一下SurfaceView的使用以及贴图技术的使用，最后呢，是一个简单的2的游戏的实现。
1.SurfaceView的一些用法
提供了一个专门的绘图渲染的图形嵌入在一个视图层次;SurfaceView负责将图形正确的显示在屏幕上，访问底层图形是通过SurfaceHolder提供接口,可通过调用getHolder()，图形创建SurfaceView的窗口是可见的;实现方法是surfaceCreated(SurfaceHolder)和surfaceDestroyed(SurfaceHolder)销毁图形

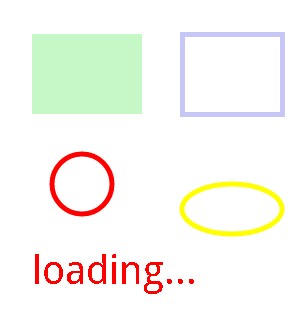

简单的例子如下
package com.nyist.wj;import android.app.Activity;import android.content.Context;import android.graphics.Canvas;import android.graphics.Color;import android.graphics.Paint;import android.graphics.Rect;import android.graphics.RectF;import android.graphics.Paint.Style;import android.os.Bundle;import android.view.SurfaceHolder;import android.view.SurfaceView;public class SurfaceViewActivity extends Activity { MySurfaceView mySurfaceView; /** Called when the activity is first created. */ @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); mySurfaceView = new MySurfaceView(this); setContentView(mySurfaceView); } public class MySurfaceView extends SurfaceView implements SurfaceHolder.Callback {SurfaceViewActivity surfaceViewActivity; // Activity的引用Paint paint; // 画笔的引用public MySurfaceView(Context context) // 构造器{ super(context); this.surfaceViewActivity = (SurfaceViewActivity) context; // 拿到Activity引用 this.getHolder().addCallback(this); // 设置生命周期回调接口的实现者 paint = new Paint(); // 创建画笔 paint.setAntiAlias(true); // 打开抗锯齿}@Overrideprotected void onDraw(Canvas canvas) // onDraw方法{ paint.setColor(Color.WHITE); // 设置画笔颜色为白色 canvas.drawRect(0, 0, getWidth(), getHeight(), paint); // 绘制白色矩形背景 paint.reset(); // 清除画笔设置 paint.setARGB(50, 0, 255, 0); // 设置画笔颜色和透明度 paint.setStrokeWidth(5); // 设置画笔宽度 RectF rf = new RectF(50, 100, 160, 180); // 创建一个矩形 canvas.drawRect(rf, paint); // 绘制矩形 paint.setARGB(50, 0, 0, 255); // 设置画笔颜色和透明度 paint.setStyle(Style.STROKE); // 设置风格为边框 paint.setStrokeWidth(5); // 设置画笔宽度 Rect r = new Rect(200, 100, 300, 180); // 创建一个矩形 canvas.drawRect(r, paint); // 画一个矩形边框 paint.setColor(Color.RED); // 设置画笔颜色 paint.setAntiAlias(true); // 打开抗锯齿 canvas.drawCircle(100, 250, 30, paint);// 画一个圆 paint.setColor(Color.YELLOW); // 设置画笔颜色 rf = new RectF(200, 250, 300, 300); // 创建一个矩形 canvas.drawOval(rf, paint); // 画一个椭圆，充满矩形 paint.reset(); // 清除画笔设置 paint.setColor(Color.RED); // 设置画笔颜色 paint.setTextSize(40); // 设置文字大小 paint.setStyle(Style.FILL_AND_STROKE); canvas.drawText("loading...", 50, 350, paint); // 画一个字符串}@Overridepublic void surfaceCreated(SurfaceHolder holder) // 创建时被调用{ Canvas canvas = holder.lockCanvas(); // 获取画布 try { synchronized (holder) { onDraw(canvas); } // 绘制 } catch (Exception e) { e.printStackTrace(); } finally { if (canvas != null) { holder.unlockCanvasAndPost(canvas); } }}@Overridepublic void surfaceDestroyed(SurfaceHolder holder) {} // 继承方法，空实现@Override// 继承方法，空实现public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) {}}}实现的效果是：
2.贴图技术的使用
贴图技术主要包括图片的移动、旋转、透明度、等变化
下面是关于贴图技术的使用方法 首先是自定义的一个布局
<com.nyist.wj.MysurfaceView android:id="@+id/mysurfaceview" android:layout_width="fill_parent" android:layout_height="fill_parent" />
然后就是实现自定义布局引用的类
package com.nyist.wj;import android.content.Context;import android.graphics.Bitmap;import android.graphics.BitmapFactory;import android.graphics.Canvas;import android.graphics.Matrix;import android.graphics.Paint;import android.util.AttributeSet;import android.view.View;public class MysurfaceView extends View { Bitmap bitmap; Paint paint; public MysurfaceView(Context context,AttributeSet attributeSet) { super(context,attributeSet); // TODO Auto-generated constructor stub this.initBitmap(); } public void initBitmap() { // TODO Auto-generated method stub paint=new Paint(); bitmap=BitmapFactory.decodeResource(getResources(), R.drawable.ball); } @Override protected void onDraw(Canvas canvas) { // TODO Auto-generated method stub super.onDraw(canvas); //打开抗锯齿 paint.setAntiAlias(true); canvas.drawBitmap(bitmap, 50,50,paint); canvas.save(); Matrix matrix=new Matrix(); //移动 matrix.setTranslate(100, 100); Matrix matrix2=new Matrix();// 旋转 matrix2.setRotate(50); Matrix matrix3=new Matrix(); matrix3.setConcat(matrix, matrix2); //缩放 matrix.setScale(0.5f, 0.5f); matrix2.setConcat(matrix3, matrix); canvas.drawBitmap(bitmap, matrix2, paint); canvas.restore(); canvas.save(); paint.setAlpha(200); matrix.setTranslate(150, 150); //放大 matrix2.setScale(1.3f, 1.3f); //设置总矩阵 matrix3.setConcat(matrix, matrix2); canvas.drawBitmap(bitmap, matrix3, paint); paint.reset(); } }

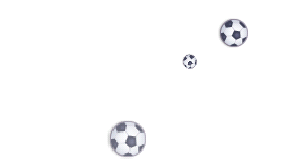

实现的效果如下 解释一下：这是横屏显示的结果，左上方是原图片大小 接着是缩放的和放大的图片
3.广告条的实现方法
广告虽不好，但是这确实为android开发者提供了一点微薄的力量，下面就看看广告条的开发

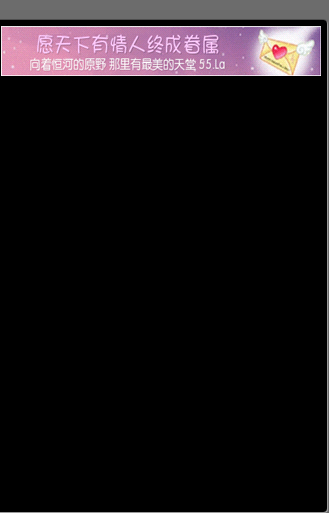

效果图：
实现的过程有自定义的View
<com.nyist.wj.myView android:layout_width="fill_parent" android:layout_height="50dip" />
实现view的方法
package com.nyist.wj;import android.content.Context;import android.content.Intent;import android.content.res.Resources;import android.graphics.Bitmap;import android.graphics.BitmapFactory;import android.graphics.Canvas;import android.graphics.Matrix;import android.graphics.Paint;import android.os.Bundle;import android.util.AttributeSet;import android.view.MotionEvent;import android.view.View;public class myView extends View { Bitmap[] bitmap; int currentindex = 1; int time = 3000; boolean isAnima = false; Paint paint; int[] imageID; // 初始化图片数阻 boolean initFlag = false; float prex, prey; int xoffset; public myView(Context context, AttributeSet attributeSet) { super(context, attributeSet); // TODO Auto-generated constructor stub this.imageID = new int[] { R.drawable.test1, R.drawable.test2, R.drawable.test3, R.drawable.test4 }; // 生成图片数组 bitmap = new Bitmap[imageID.length]; paint = new Paint(); // 抗锯齿 paint.setFlags(Paint.ANTI_ALIAS_FLAG); this.setOnTouchListener(null); new Thread() { public void run() { while (true) { if (!isAnima) { currentindex = (currentindex + 1) % imageID.length; } // 刷帧重绘 myView.this.postInvalidate(); try { Thread.sleep(time); } catch (Exception e) { // TODO: handthele exception } } }; }.start(); } public void initBitmap() { Resources resources = this.getResources(); for (int i = 0; i < imageID.length; i++) { // ------------------------------ // 实现图片 的缩放 bitmap[i] = scaleChange(BitmapFactory.decodeResource(resources, imageID[i] )); } } public static Bitmap scaleChange(Bitmap bitmap) { int w = bitmap.getWidth(); int h = bitmap.getHeight(); double xratio = (double) Constant.SCREEN_WIDTH / w; double yratio = 50.0 / h; // 生成矩阵 Matrix matrix = new Matrix(); matrix.postScale((float) xratio, (float) yratio); Bitmap result = Bitmap.createBitmap(bitmap, 0, 0, w, h, matrix, true); return result; } @Override public void onDraw(Canvas canvas) { // TODO Auto-generated method stub // 第一次运行onDraw方法的时候，调用初始化图片数组的方法 if (!initFlag) { initBitmap(); initFlag = true; } if (canvas == null) { return; } if (!isAnima) { // ------------------------------------- // 当没有播放动画时候绘制当前图片 drawAD(canvas, xoffset, currentindex); } if (isAnima) { // 当向右滑动时候 if (xoffset > 0) { int size = imageID.length; // 得到上一张图片的索引 int preIndex = (currentindex - 1 + size) % size; // 根据x轴偏移量，算出上一张图片绘制时的x坐标 int nextIndex = xoffset - Constant.SCREEN_WIDTH; // 绘制当前索引图片 drawAD(canvas, xoffset, (preIndex + 1) % size); drawAD(canvas, nextIndex, preIndex); } // 当往左抹时 else if (xoffset < 0) { int size = imageID.length; // 得到下一张图片的索引 int preIndex = (currentindex + 1 + size) % size; int nextIndex = xoffset + Constant.SCREEN_WIDTH; // 绘制当前图片的索引 drawAD(canvas, xoffset, (preIndex - 1 + size) % size); drawAD(canvas, nextIndex, preIndex); } } } public void drawAD(Canvas canvas, int offset, int Index) { canvas.drawBitmap(bitmap[Index], offset, 0, paint); } @Override public boolean onTouchEvent(MotionEvent event) { // TODO Auto-generated method stub float x = event.getX(); float y = event.getY(); switch (event.getAction()) { case MotionEvent.ACTION_DOWN: prex = x; prey = y; System.out.println("------------------------------------"); System.out.println("+++++++++++++++++++++++++++++++++++" + currentindex); return true; case MotionEvent.ACTION_MOVE: if (!isAnima && Math.abs(x - prex) > 10) { isAnima = true; } if (isAnima) { xoffset = (int) (xoffset + x - prex); prex = x; prey = y; } this.postInvalidate(); return true; case MotionEvent.ACTION_UP: if (isAnima) { if (x < Constant.SCREEN_WIDTH / 4 && xoffset < 0) { int size = imageID.length; currentindex = (currentindex + 1) % size; } else if (x > Constant.SCREEN_WIDTH * 3 / 4 && xoffset > 0) { int size = imageID.length; currentindex = (currentindex - 1 + size) % size; } } isAnima = false; xoffset = 0; this.postInvalidate(); return true; } return false; }}
接着是在activity中的插入
package com.nyist.wj;import android.app.Activity;import android.content.pm.ActivityInfo;import android.os.Bundle;import android.util.DisplayMetrics;import android.view.Window;import android.view.WindowManager;public class GuangGaoActivity extends Activity { /** Called when the activity is first created. */ @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); requestWindowFeature(Window.FEATURE_NO_TITLE); getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN,WindowManager.LayoutParams.FLAG_FULLSCREEN);// setRequestedOrientation(ActivityInfo.SCREEN_ORIENTATION_LANDSCAPE); setContentView(R.layout.main); DisplayMetrics displayMetrics=new DisplayMetrics(); getWindowManager().getDefaultDisplay().getMetrics(displayMetrics); Constant.SCREEN_HEIGHT=displayMetrics.heightPixels; //获取具体的屏幕分辨率数值 Constant.SCREEN_WIDTH=displayMetrics.widthPixels; }}
4.下面是介绍2D下简单的游戏开发

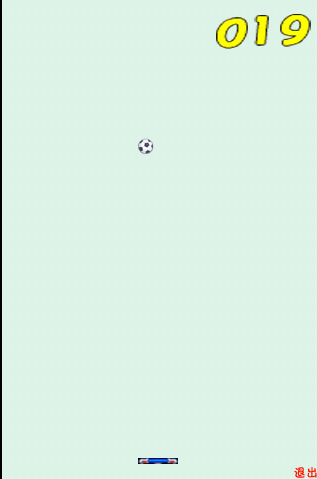

效果图如下
主要用到的SurfaceView 和贴图技术以及声音的处理
用到的处理方法共有5个类
1.BallGameActivity 设置屏幕的相关属性
2.GameSurfaceView 实现显示界面的设置
3.ThreadForDraw 刷帧线程重新绘制游戏界面
4.ThreadForGo 控制小球移动
5.ThreadForTimecControl 计算小球运行的时间
下面分别介绍每个类是如何实现的
1.BallGameActivity
package com.nyist.wj;import java.util.HashMap;import org.apache.http.auth.AUTH;import android.app.Activity;import android.content.Context;import android.media.AudioManager;import android.media.SoundPool;import android.os.Bundle;import android.view.Window;import android.view.WindowManager;public class BallGameActivity extends Activity { GameSurfaceView gameSurfaceView; // 声音缓冲池 SoundPool soundPool; // 存放声音ID的 map HashMap<Integer, Integer> soundpoolMap; /** Called when the activity is first created. */ @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); // 初始化声音 initSounds(); // 设置全屏 requestWindowFeature(Window.FEATURE_NO_TITLE); getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN, WindowManager.LayoutParams.FLAG_FULLSCREEN); gameSurfaceView = new GameSurfaceView(this); setContentView(gameSurfaceView); // 循环播放音乐 playSound(1, -1); } public void playSound(int sound, int loop) { // TODO Auto-generated method stub // 播放声音的方法 AudioManager audioManager = (AudioManager) this .getSystemService(Context.AUDIO_SERVICE); float streamVolumeMax = audioManager .getStreamMaxVolume(audioManager.STREAM_MUSIC); float streamVolumeCurrent = audioManager .getStreamVolume(AudioManager.STREAM_MUSIC); float volume = streamVolumeCurrent / streamVolumeMax; // 参数 声音资源的ID 左声道 右声道 优先级 循环次数 回访速度 soundPool.play(soundpoolMap.get(sound), volume, volume, 1, loop, 0.5f); } public void initSounds() { // TODO Auto-generated method stub // 参数 播放的个数 音频类型 播放的质量 soundPool = new SoundPool(4, AudioManager.STREAM_MUSIC, 100); // 创建声音资源的MAP soundpoolMap = new HashMap<Integer, Integer>(); // 将加载声音的资源 放在map中 soundpoolMap.put(1, soundPool.load(this, R.raw.bg, 1)); }}
2.GameSurfaceView
package com.nyist.wj;import android.graphics.Bitmap;import android.graphics.BitmapFactory;import android.graphics.Canvas;import android.view.MotionEvent;import android.view.SurfaceHolder;import android.view.SurfaceView;public class GameSurfaceView extends SurfaceView implements SurfaceHolder.Callback { BallGameActivity ballGameActivity; ThreadForTimecControl threadForTimecControl; ThreadForGo threadForGo; ThreadForDraw threadForDraw; int backSize = 16; // 背景块大小 int screenWidth = 320; // 屏幕宽度 int screenHeight = 480; // 屏幕高度 int bannerWidth = 40; // 挡板宽度 int bannerHeight = 6; // 挡板高度 int bottomSpance = 16; // 下端留白 int bannerSpan = 5; // 板每次移动的距离 int ballSpan = 8; // 球每次移动的距离 int ballSize = 16; // 小球大小 int hintWidth = 100; // 游戏说明宽度 int hintHeight = 20; // 游戏说明高度 int status = 0; // 游戏状态控制 0-等待开始 1-进行中 2-游戏结束 3-游戏胜利 int score = 0; // 得分 int ballx; // 小球x坐标 int bally; // 小球y坐标 int direction = 0; // 小球方向 int bannerX; // 挡板X坐标 int bannerY; // 挡板Y坐标 int scoreWidth = 32; Bitmap iback; // 背景图 Bitmap[] iscore = new Bitmap[10];// 得分图 Bitmap iball; // 小球用图 Bitmap ibanner; // 挡板用图 Bitmap ibegin; // 开始用图 Bitmap igameover; // 游戏结束用图 Bitmap iwin; // 游戏结束用图 Bitmap iexit; // 退出用图 Bitmap ireplay; // 重玩用图 public GameSurfaceView(BallGameActivity ballGameActivity) { super(ballGameActivity); // 注册回调接口 getHolder().addCallback(this); this.ballGameActivity = ballGameActivity; initBitmap(); // /////////---------------------------------------------- threadForDraw = new ThreadForDraw(this); // TODO Auto-generated constructor stub } public void initBitmap() { iback = BitmapFactory.decodeResource(getResources(), R.drawable.back); iscore[0] = BitmapFactory.decodeResource(getResources(), R.drawable.d0); iscore[1] = BitmapFactory.decodeResource(getResources(), R.drawable.d1); iscore[2] = BitmapFactory.decodeResource(getResources(), R.drawable.d2); iscore[3] = BitmapFactory.decodeResource(getResources(), R.drawable.d3); iscore[4] = BitmapFactory.decodeResource(getResources(), R.drawable.d4); iscore[5] = BitmapFactory.decodeResource(getResources(), R.drawable.d5); iscore[6] = BitmapFactory.decodeResource(getResources(), R.drawable.d6); iscore[7] = BitmapFactory.decodeResource(getResources(), R.drawable.d7); iscore[8] = BitmapFactory.decodeResource(getResources(), R.drawable.d8); iscore[9] = BitmapFactory.decodeResource(getResources(), R.drawable.d9); iball = BitmapFactory.decodeResource(getResources(), R.drawable.ball); ibanner = BitmapFactory.decodeResource(getResources(), R.drawable.banner); ibegin = BitmapFactory.decodeResource(getResources(), R.drawable.begin); igameover = BitmapFactory.decodeResource(getResources(), R.drawable.gameover); iwin = BitmapFactory.decodeResource(getResources(), R.drawable.win); iexit = BitmapFactory.decodeResource(getResources(), R.drawable.exit); ireplay = BitmapFactory.decodeResource(getResources(), R.drawable.replay); // 初始化小球位置及板X坐标 initBallAndBanner(); } public void initBallAndBanner() { // 初始化小球位置 bally = screenHeight - bottomSpance - bannerHeight - ballSize; ballx = screenWidth / 2 - ballSize / 2; // 初始化板X坐标 bannerX = screenWidth / 2 - bannerWidth / 2; bannerY = screenHeight - bottomSpance - bannerHeight; } public void replay() { if (status == 2 || status == 3) { // 初始化小球的位置 initBallAndBanner(); score = 0; status = 0; direction = 3; } } @Override protected void onDraw(Canvas canvas) { // TODO Auto-generated method stub super.onDraw(canvas); // 清除背景 int colum = screenWidth / backSize + ((scoreWidth % backSize == 0) ?0:1); int rows = screenHeight / backSize + ((screenHeight % backSize == 0) ? 0 : 1); for (int i = 0; i < rows; i++) { for (int j = 0; j < colum; j++) { canvas.drawBitmap(iback, 16*j, 16*i, null); } } // 绘制得分 String scorestr = score + ""; int loop = 3 - scorestr.length(); for (int i = 0; i < loop; i++) { scorestr = "0" + scorestr; } int startX = screenWidth - scoreWidth * 3 - 10; for (int i = 0; i < 3; i++) { int tempScore = scorestr.charAt(i) - '0'; canvas.drawBitmap(iscore[tempScore], startX + i * scoreWidth, 5, null); } // 绘制小球 canvas.drawBitmap(iball, ballx, bally, null); // 绘制板 canvas.drawBitmap(ibanner, bannerX, bannerY, null); // 绘制开始提示 if (status == 0) { canvas.drawBitmap(ibegin, screenWidth / 2 - hintWidth / 2, screenHeight / 2 - hintHeight / 2, null); } // 绘制失败提示 if (status == 2) { canvas.drawBitmap(igameover, screenWidth / 2 - hintWidth / 2, screenHeight / 2 - hintHeight / 2, null); } // 绘制胜利提示 if (status == 3) { canvas.drawBitmap(iwin, screenWidth / 2 - hintWidth / 2, screenHeight / 2 - hintHeight / 2, null); } // 绘制退出提示 canvas.drawBitmap(iexit, screenWidth - 32, screenHeight - 16, null); // /绘制重玩提示 if (status == 2 || status == 3) { canvas.drawBitmap(ireplay, 0, screenHeight - 16, null); } } @Override public boolean onTouchEvent(MotionEvent event) { int x = (int) event.getX(); int y = (int) event.getY(); if (x < screenWidth && x > screenWidth - 32 && y < screenHeight && y > screenHeight - 16) { // ---------------------- // 按下退出选项退出系统 ballGameActivity.soundPool.stop(1); System.exit(0); } // 等待状态 if (status == 0) { status = 1; // ---------------------------------------------- threadForTimecControl = new ThreadForTimecControl(this); threadForGo = new ThreadForGo(this); threadForTimecControl.start(); threadForGo.start(); } else if (status == 1) { bannerX = x; } else if (status == 2 || status == 3) { if (x < 32 && x > 0 && y < screenHeight && y > screenHeight - 16) { //按下重玩 replay(); } } // TODO Auto-generated method stub return super.onTouchEvent(event); } @Override public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) { // TODO Auto-generated method stub } @Override public void surfaceCreated(SurfaceHolder holder) { // TODO Auto-generated method stub // ---------------------------------- // 创建时候启动相关进程 this.threadForDraw.flag = true; threadForDraw.start(); } @Override public void surfaceDestroyed(SurfaceHolder holder) { // 释放相应的进程 boolean retry = true; this.threadForDraw.flag = false; // 不断的循环知道刷帧结束 while (retry) { try { threadForDraw.join(); retry = false; } catch (InterruptedException e) { // TODO: handle exception } } }}
3.ThreadForDraw
package com.nyist.wj;import android.graphics.Canvas;import android.view.SurfaceHolder;public class ThreadForDraw extends Thread {boolean flag=true;int sleep=100;GameSurfaceView gameSurfaceView;SurfaceHolder surfaceHolder;public ThreadForDraw (GameSurfaceView gameSurfaceView){ this.gameSurfaceView=gameSurfaceView; this.surfaceHolder=gameSurfaceView.getHolder(); }@Overridepublic void run() { // TODO Auto-generated method stub Canvas canvas; while (this.flag) { canvas=null; try { canvas=this.surfaceHolder.lockCanvas(null); synchronized (this.surfaceHolder) { gameSurfaceView.onDraw(canvas); } } catch (Exception e) { }finally{ if (canvas!=null) { this.surfaceHolder.unlockCanvasAndPost(canvas); } } try { Thread.sleep(sleep); } catch (Exception e) { // TODO: handle exception } } super.run();}}
4.ThreadForGo
package com.nyist.wj;//游戏过程中移动小球的线程public class ThreadForGo extends Thread { // 设置线程执行的标志 boolean flag = true; // 游戏界面的引用 GameSurfaceView gameSurfaceView; public ThreadForGo(GameSurfaceView gameSurfaceView) { this.gameSurfaceView = gameSurfaceView; } @Override public void run() { // TODO Auto-generated method stub while (flag) { switch (gameSurfaceView.direction) { case 0: // 右上控制当前方向移动球 gameSurfaceView.ballx = gameSurfaceView.ballx + gameSurfaceView.ballSpan; gameSurfaceView.bally = gameSurfaceView.bally - gameSurfaceView.ballSpan; // 判断是否碰壁 if (gameSurfaceView.ballx >= gameSurfaceView.screenWidth - gameSurfaceView.ballSize) { // 碰到上壁 gameSurfaceView.direction = 3; } else if (gameSurfaceView.bally <= 0) { gameSurfaceView.direction = 1; } break; case 1: // 右下 gameSurfaceView.ballx = gameSurfaceView.ballx + gameSurfaceView.ballSpan; gameSurfaceView.bally = gameSurfaceView.bally + gameSurfaceView.ballSpan; // 碰到下壁 if (gameSurfaceView.bally >= gameSurfaceView.screenHeight - gameSurfaceView.bannerHeight - gameSurfaceView.bottomSpance - gameSurfaceView.ballSize) { // /----------------------------------------- checkCollision(1); // 碰到右臂 } else if (gameSurfaceView.ballx >= gameSurfaceView.screenWidth - gameSurfaceView.ballSize) { gameSurfaceView.direction = 2; } break; case 2: // 左下 gameSurfaceView.ballx = gameSurfaceView.ballx - gameSurfaceView.ballSpan; gameSurfaceView.bally = gameSurfaceView.bally + gameSurfaceView.ballSpan; // 碰到下壁 if (gameSurfaceView.bally >= gameSurfaceView.screenHeight - gameSurfaceView.bannerHeight - gameSurfaceView.bottomSpance - gameSurfaceView.ballSize) { // ////////////////////----------------------------------- checkCollision(2); } // 碰到左壁 else if (gameSurfaceView.ballx <= 0) { gameSurfaceView.direction = 1; } break; case 3: gameSurfaceView.ballx = gameSurfaceView.ballx - gameSurfaceView.ballSpan; gameSurfaceView.bally = gameSurfaceView.bally - gameSurfaceView.ballSpan; // /碰到左壁 if (gameSurfaceView.ballx <= 0) { gameSurfaceView.direction = 0; } // 碰到上壁 else if (gameSurfaceView.bally <= 0) { gameSurfaceView.direction = 2; } break; default: break; } try { Thread.sleep(100); } catch (Exception e) { // TODO: handle exception } } } public void checkCollision(int dirction) { if (gameSurfaceView.ballx >= gameSurfaceView.bannerX - gameSurfaceView.ballSize && gameSurfaceView.ballx <= gameSurfaceView.bannerX + gameSurfaceView.bannerWidth) { switch (dirction) { case 1: gameSurfaceView.direction = 0; break; case 2: gameSurfaceView.direction = 3; break; default: break; } } else { // 没有碰到板 gameSurfaceView.threadForTimecControl.flag = false; gameSurfaceView.threadForGo.flag = false; gameSurfaceView.status = 2; } }}
5.ThreadForTimecControl
package com.nyist.wj;public class ThreadForTimecControl extends Thread { //计算生存时间的线程 //判断是否胜利的值 int highest = 200;// 游戏界面的引入 GameSurfaceView gameSurfaceView; //线程标志位 boolean flag = true; public ThreadForTimecControl(GameSurfaceView gameSurfaceView) { this.gameSurfaceView = gameSurfaceView; } @Override public void run() { // TODO Auto-generated method stub while(flag){ gameSurfaceView.score++; if (gameSurfaceView.score==highest) { //游戏胜利 gameSurfaceView.status=3; //---------------------------------------- gameSurfaceView.threadForTimecControl.flag=false; gameSurfaceView.threadForGo.flag=false; } try { Thread.sleep(1000); } catch (Exception e) { // TODO: handle exception } } }}
ps：个人总结

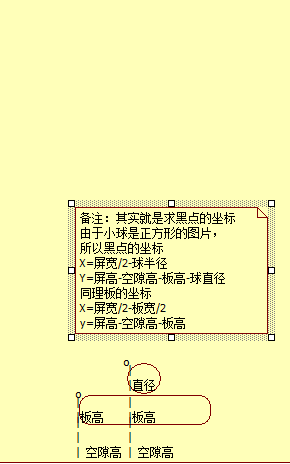

小球的初始位置确定
代码是
// 初始化小球位置 bally = screenHeight - bottomSpance - bannerHeight - ballSize; ballx = screenWidth / 2 - ballSize / 2; // 初始化板X坐标 bannerX = screenWidth / 2 - bannerWidth / 2; bannerY = screenHeight - bottomSpance - bannerHeight;
