Android基于XMPP Smack Openfire开发IM【4】初步实现两个客户端通信_Android

Android基于XMPP Smack Openfire开发IM【四】初步实现两个客户端通信

本博客要介绍的内容：
Openfire做服务器端，两个客户端：Spark、android模拟器。实现两个客户端之间的通信。

第一步：启动openfire服务器。（这里需要用到两个用户登录，前面的博客中已经说明如何添加用户了。）
[img]

[/img]

第二步：启动Spark客户端，如果您还没有Spark，下载请到：http://www.igniterealtime.org/downloads/index.jsp；安装简单。

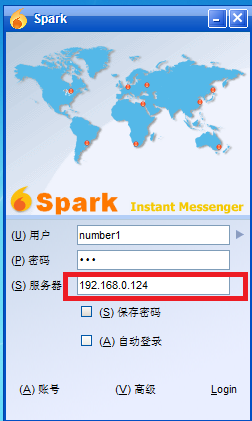

我电脑的ip为：192.168.0.124，根据自己的修改。

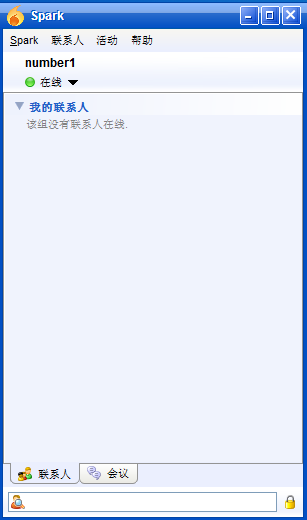

安装后运行如下下图：
[img]

[/img]

第三步：启动eclipse中的项目（另一个客户端），代码如下：

package com.example.openfiretest;import org.jivesoftware.smack.Chat;import org.jivesoftware.smack.ChatManager;import org.jivesoftware.smack.ChatManagerListener;import org.jivesoftware.smack.ConnectionConfiguration;import org.jivesoftware.smack.MessageListener;import org.jivesoftware.smack.XMPPConnection;import org.jivesoftware.smack.packet.Message;import android.os.Bundle;import android.os.Handler;import android.app.Activity;import android.content.Intent;import android.view.Menu;import android.view.View;import android.view.View.OnClickListener;import android.view.Window;import android.widget.CheckBox;import android.widget.EditText;import android.widget.Toast;public class MainActivity extends Activity {				private EditText accountEditText;	private EditText passwordEditText;	public void onCreate(Bundle savedInstanceState) {		super.onCreate(savedInstanceState);		requestWindowFeature(Window.FEATURE_NO_TITLE);		setContentView(R.layout.activity_main);		accountEditText = (EditText) findViewById(R.id.username);		passwordEditText = (EditText) findViewById(R.id.password);		findViewById(R.id.login).setOnClickListener(new OnClickListener() {			public void onClick(View v) {				String account = accountEditText.getText().toString();				String password = passwordEditText.getText().toString();				if (account.equals("") || password.equals("")) {					Toast.makeText(MainActivity.this, "账号或密码不能为空！",							Toast.LENGTH_SHORT).show();				} else {					ClientConServer ccs = new ClientConServer(MainActivity.this);					boolean b = ccs.login(account, password);					// 如果登录成功					if (b) {						Toast.makeText(MainActivity.this, "登陆成功！",								Toast.LENGTH_SHORT).show();												Intent intent = new Intent(MainActivity.this,ChatActivity.class);						startActivity(intent);																	} else {						Toast.makeText(MainActivity.this, "登陆失败！",								Toast.LENGTH_SHORT).show();					}				}			}		});	}	}

package com.example.openfiretest;import java.util.Collection;import org.jivesoftware.smack.Chat;import org.jivesoftware.smack.ChatManager;import org.jivesoftware.smack.ChatManagerListener;import org.jivesoftware.smack.ConnectionConfiguration;import org.jivesoftware.smack.MessageListener;import org.jivesoftware.smack.Roster;import org.jivesoftware.smack.RosterEntry;import org.jivesoftware.smack.RosterGroup;import org.jivesoftware.smack.XMPPConnection;import org.jivesoftware.smack.XMPPException;import org.jivesoftware.smack.packet.Message;import android.content.Context;import android.content.Intent;import android.os.Handler;import android.util.Log;import android.widget.Toast;public class ClientConServer {	private static int PORT=5222;	private Context context;	public ClientConServer(Context context){		this.context=context;	}	//这里收到消息后，通过广播将消息发送到需要的地方.哈哈，既然收到了服务器发送来的信息，如何处理自己决定。	private Handler handler = new Handler(){          public void handleMessage(android.os.Message m) {              Message msg=new Message();              msg=(Message) m.obj;             //把从服务器获得的消息通过广播发送              Intent intent = new Intent("org.yhn.mes");              String[] message=new String[]{                      msg.getFrom(),                      msg.getBody()};             System.out.println("==========收到服务器消息  From==========="+message[0].toString());            System.out.println("==========收到服务器消息  Body==========="+message[1].toString());            intent.putExtra("message", message);              context.sendBroadcast(intent);          };      };		public boolean login(String a,String p){			//ConnectionConfiguration config = new ConnectionConfiguration("192.168.0.124", PORT);		/** 是否启用安全验证 */			//config.setSASLAuthenticationEnabled(false);		/** 是否启用调试 */        //config.setDebuggerEnabled(true);        /** 创建connection链接 */			//XMPPConnection connection = new XMPPConnection(config);		XMPPConnection connection = ConnUtil.getConnection();		try {			/** 建立连接 */			connection.connect();									/** 登录*/			connection.login(a, p);			/** 开启读写线程，并加入到管理类中*/			//ClientSendThread cst=new ClientSendThread(connection);			//cst.start();			//ManageClientThread.addClientSendThread(a, cst);						//获取用户组、成员信息。			System.out.println("======开始获取组及用户==========");			Roster roster = connection.getRoster();			Collection<RosterGroup> entriesGroup = roster.getGroups();			System.out.println("组的个数："+entriesGroup.size());			for(RosterGroup group: entriesGroup){				Collection<RosterEntry> entries = group.getEntries();				System.out.println("=========groupName==="+group.getName());				for (RosterEntry entry : entries) {					//Presence presence = roster.getPresence(entry.getUser());					//Log.i("---", "user: "+entry.getUser());					System.out.println("组成员的名字："+entry.getName());					System.out.println("组成员的user："+entry.getUser());										//Log.i("---", "tyep: "+entry.getType());					//Log.i("---", "status: "+entry.getStatus());					//Log.i("---", "groups: "+entry.getGroups());				}			}			System.out.println("======结束获取组及用户==========");									//在登陆以后应该建立一个监听消息的监听器，用来监听收到的消息：			ChatManager chatManager = connection.getChatManager();			chatManager.addChatListener(new MyChatManagerListener());									return true;		} catch (XMPPException e) {			e.printStackTrace();		}		return false;	 }	/** message listener*/      class MyChatManagerListener implements ChatManagerListener {      	    	        public void chatCreated(Chat chat, boolean arg1) {              chat.addMessageListener(new MessageListener(){                  public void processMessage(Chat arg0, Message msg) {                      /**通过handler转发消息*/                      android.os.Message m=handler.obtainMessage();                      m.obj=msg;                      m.sendToTarget();                 	                	                }              });          }     }}

package com.example.openfiretest;import org.jivesoftware.smack.ConnectionConfiguration;import org.jivesoftware.smack.XMPPConnection;public class ConnUtil {			private static XMPPConnection connection;	public static synchronized XMPPConnection getConnection(){		if(connection!=null){			return connection;		}else{			ConnectionConfiguration config = new ConnectionConfiguration("192.168.0.124", 5222);			/** 是否启用安全验证 */			config.setSASLAuthenticationEnabled(false);			/** 是否启用调试 */	        //config.setDebuggerEnabled(true);	        /** 创建connection链接 */			connection = new XMPPConnection(config);				}				return connection;			}}

package com.example.openfiretest;import org.jivesoftware.smack.Chat;import org.jivesoftware.smack.ChatManager;import org.jivesoftware.smack.ChatManagerListener;import org.jivesoftware.smack.ConnectionConfiguration;import org.jivesoftware.smack.MessageListener;import org.jivesoftware.smack.XMPPConnection;import org.jivesoftware.smack.XMPPException;import org.jivesoftware.smack.packet.Message;import android.app.Activity;import android.content.Intent;import android.os.Bundle;import android.util.Log;import android.view.View;import android.view.View.OnClickListener;import android.view.Window;import android.widget.Button;import android.widget.EditText;import android.widget.TextView;import android.widget.Toast;public class ChatActivity extends Activity {      String account;      String chatNick;      public static String chatContents;      TextView chatTextView;             public void onCreate(Bundle savedInstanceState) {              super.onCreate(savedInstanceState);              requestWindowFeature(Window.FEATURE_NO_TITLE);              setContentView(R.layout.activity_chat);              /** 设置top面板信息*/              //chatNick=getIntent().getStringExtra("nick");              //account=getIntent().getStringExtra("account");                         //这里的用户昵称和账号是手动添加的。            chatNick = "忍者无敌笑哈哈";            account = "[email protected]";            TextView nick_tv=(TextView) findViewById(R.id.chat_top_nick);             nick_tv.setText(chatNick);                            Button send_btn=(Button) findViewById(R.id.chat_btn_send);              send_btn.setOnClickListener(new OnClickListener(){                  public void onClick(View arg0) {                      EditText input=(EditText) findViewById(R.id.chat_input);                      String content=input.getText().toString();                      try {                      	XMPPConnection connection = ConnUtil.getConnection();                        ChatManager cm = connection.getChatManager();                          Chat chat=cm.createChat(account, new MessageListener(){                              public void processMessage(Chat arg0, Message msg) {                                  Log.i("---", msg.getFrom()+"说："+msg.getBody());                                  //添加消息到聊天窗口  ,                            }                          });                          Message m=new Message();                          m.setBody(content);                          chat.sendMessage(m);                      } catch (XMPPException e) {                          e.printStackTrace();                      }                  }              });       }  }

启动后如下图：
[img]

[/img]

第四步：这时，Spark客户端的篮球组中多了一个人。（不清楚组添加、用户添加的请看前面的博客）；
[img]

[/img]

第五步：手机模拟器发送消息给Spark，输入信息后点击发送，
[img]

[/img]

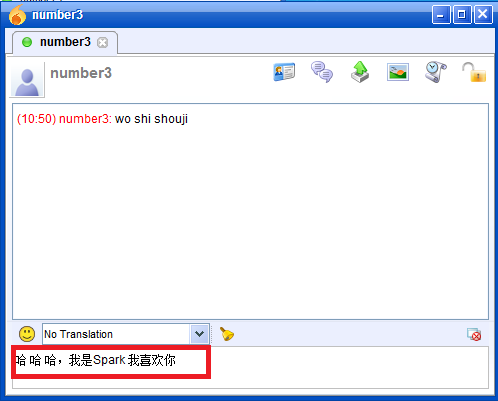

第六步：Spark给手机模拟器发送消息，输入消息后按Ctrl+Enter发送，手机端把收到的消息，通过控制台打印。
[img]

[/img]

第七步：openfire服务器端发送消息给所有的客户端：
[img]

[/img]

over

菜鸟学习openfire,如有不妥之处，多多批评。
