Android4.0源码Launcher启动流程分析【android源码Launcher系列一】

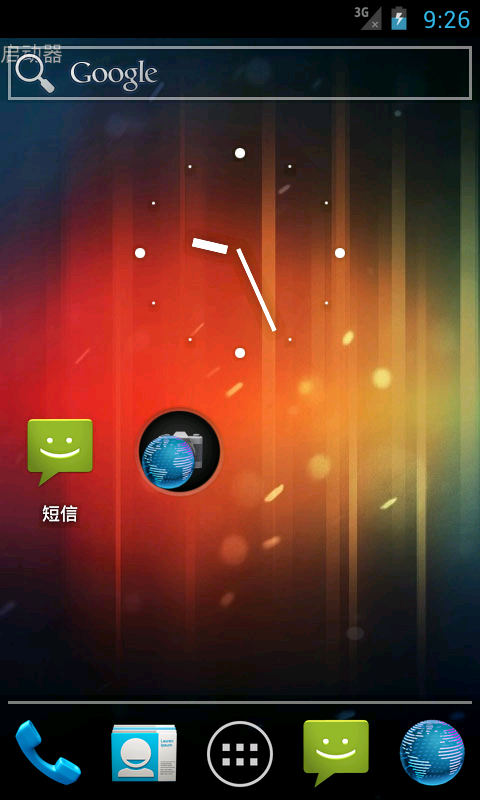

??? 最近研究ICS4.0的Launcher，发现4.0和2.3有稍微点区别，但是区别不是特别大，所以我就先整理一下Launcher启动的大致流程。 Launcher其实是贯彻于手机的整个系统的，时时刻刻都在运行，要是Launcher不运行了，手机就得黑屏了。Launcher的 LauncherMode=singletask，所以说不管Launcher启动了哪个应用，总有个Launcher的实例在堆栈中，并且位于栈底。点击Home键进入到Launcher，上篇Android的全局键（home键/长按耳机键）详解【android源码解析八】中有详细的介绍。大致思路其实就是启动launcher的时候，新启动一个task。大致先说这么多，先看截图：

????????????????????????????????????

?????????????????????????????????????????????????????????????????????????? 图（1）

????? 上图是4.0的Launcher界面，下面我们分步来解析一下Launcher的启动过程。

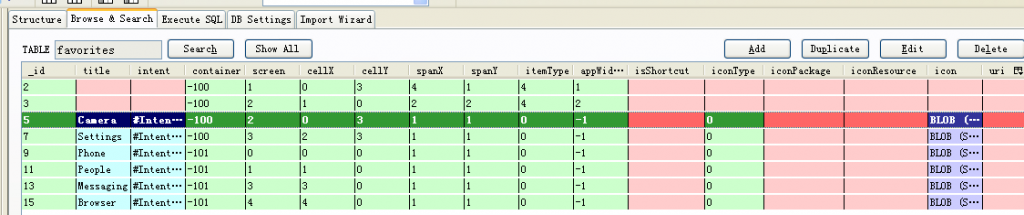

???? Step 0：首先要给大家介绍一下Launcher的数据库，这个数据库中存放着待机界面的图标，主屏底部的应用程序图标和桌面folder中各应用程序的图标，ICS4.0的folder中只能放应用程序的快捷方式，shortcut不能放到这个folder中，先看截图：?

??????????????????????????????????????????????????????????????????????? 图（2）

????? ?说说各字段的含义：

??????????????? title：表示桌面应用程序的名字，有的title为空，表示是widget的快捷方式；

?????????????intent：表示启动这个图标的intent放到数据库中，当click的时候就会调用这个字段，启动相应的应用程序；

???????container：表示应用程序的容器，folder的容器为整数，-100：表示在桌面的程序，-101：表示是主屏底部的程序；

?????????? screen：表示在第几个屏，folder的screen都是0, container=-101的为0,1,3,4；2为allapp的按钮；

?????????????? cellX：表示在屏幕X轴的位置，（0,1,2,3），左上角为0点，往右依次增加；

???????????????cellY：表示在屏幕Y轴的位置，（0,1,2,3），左上角为0点，往下依次增加；

????????????? spallX：表示占X轴几个格；

????????????? spallY：表示占Y轴几个格；

???????? itemType：应用程序用0表示，shortcut用1表示，folder用2表示，widget用4表示；

??? appWidgetId：-1表示不是widget，数字大于0表示才是widget；

???????isShortCut：值为0表示不是应用程序的ShortCut，值为1表示是应用程序的ShortCut；

???????? iconType：值为0表示图标的名字被定义为包名的资源id，值为1表示图标用bitmap保存；

???????????????? icon：表示应用程序的图标，二进制的；显示为一张图片；

?????? 说明：folder中的应用快捷方式绑定folder---->是用container的值绑定folder的id的；

??????? 详细的讲解请参考LauncherSettings.java这个类，有数据库字段的详细讲解；

?????????手机是在第一次烧机完成后，数据库的值还没有，这时候launcher解析default_workspace.xml把这个值存到数据库中；所以说想定制什么样的开机桌面就在default_workspace.xml中做相应的配置，具体参照我前面的博客：

Android中源码Launcher主屏幕程序排列详解【安卓Launcher进化一】中有详细的介绍：

?????? i f (!convertDatabase(db)) {
??????????????? ?// Populate favorites table with initial favorites
??????????????? loadFavorites(db, R.xml.default_workspace);
????????}

??????Step?1：开机后先启动LauncherApplication.java这个类的onCreate（）方法，下面看代码：???

???

   @Override    public void onCreate() {        super.onCreate();        // set sIsScreenXLarge and sScreenDensity *before* creating icon cache        // 在创建图标缓存之前先设置sIsScreenXLarge和屏幕设备的分辨率        final int screenSize = getResources().getConfiguration().screenLayout &                Configuration.SCREENLAYOUT_SIZE_MASK;        sIsScreenLarge = screenSize == Configuration.SCREENLAYOUT_SIZE_LARGE ||            screenSize == Configuration.SCREENLAYOUT_SIZE_XLARGE;        sScreenDensity = getResources().getDisplayMetrics().density;        // 实例化图标缓存区的对象        mIconCache = new IconCache(this);        // 实例化一个LauncherModel对象，这个类是保存Launcher的内存启动状态，更新Launcher的数据库的作用        mModel = new LauncherModel(this, mIconCache);        // Register intent receivers        // 注册监听，应用package增加，删除，改变的监听。        IntentFilter filter = new IntentFilter(Intent.ACTION_PACKAGE_ADDED);        filter.addAction(Intent.ACTION_PACKAGE_REMOVED);        filter.addAction(Intent.ACTION_PACKAGE_CHANGED);        filter.addDataScheme("package");        registerReceiver(mModel, filter);        filter = new IntentFilter();        // 注册application是否可用，语言改变，方向改变的监听。4.0支持横竖屏        filter.addAction(Intent.ACTION_EXTERNAL_APPLICATIONS_AVAILABLE);        filter.addAction(Intent.ACTION_EXTERNAL_APPLICATIONS_UNAVAILABLE);        filter.addAction(Intent.ACTION_LOCALE_CHANGED);        filter.addAction(Intent.ACTION_CONFIGURATION_CHANGED);        registerReceiver(mModel, filter);        filter = new IntentFilter();        filter.addAction(SearchManager.INTENT_GLOBAL_SEARCH_ACTIVITY_CHANGED);        registerReceiver(mModel, filter);        filter = new IntentFilter();        filter.addAction(SearchManager.INTENT_ACTION_SEARCHABLES_CHANGED);        registerReceiver(mModel, filter);        // Register for changes to the favorites        // 注册favorites应用程序数据库改变的监听        ContentResolver resolver = getContentResolver();        resolver.registerContentObserver(LauncherSettings.Favorites.CONTENT_URI, true,                mFavoritesObserver);    }

???????Step 2：在LauncherApplication.java中onTerminate（）的方法，解除监听的绑定；

 /**     * There's no guarantee that this function is ever called.     */    @Override    public void onTerminate() {        super.onTerminate();        unregisterReceiver(mModel);        ContentResolver resolver = getContentResolver();        resolver.unregisterContentObserver(mFavoritesObserver);    }

???? Step 3：Step1中的数据库mFavoritesObserver监听内部类如下：

   /**     * Receives notifications whenever the user favorites have changed.     */    private final ContentObserver mFavoritesObserver = new ContentObserver(new Handler()) {        @Override        public void onChange(boolean selfChange) {            mModel.startLoader(LauncherApplication.this, false);        }    };

????? 说明：mModel.startLoader（。。，。。）是开启一个线程，设置线程的优先级NORM_PRIORITY，开始load桌面图标对应的数据库，这个过程是和Launcher.onCreate()同时进行的；

??? Step 4: 接着我们来看看mModel.startLoader(LauncherApplication.this, false)的方法：

   public void startLoader(Context context, boolean isLaunching) {        synchronized (mLock) {            if (DEBUG_LOADERS) {                Log.d(TAG, "startLoader isLaunching=" + isLaunching);            }            // Don't bother to start the thread if we know it's not going to do anything            if (mCallbacks != null && mCallbacks.get() != null) {                // If there is already one running, tell it to stop.                // also, don't downgrade isLaunching if we're already running                isLaunching = isLaunching || stopLoaderLocked();                mLoaderTask = new LoaderTask(context, isLaunching);                sWorkerThread.setPriority(Thread.NORM_PRIORITY);                sWorker.post(mLoaderTask);            }        }    }

?? Step 5：接着我们来看看LoaderTask.java的run（）方法：

        public void run() {            // Optimize for end-user experience: if the Launcher is up and // running with the            // All Apps interface in the foreground, load All Apps first. Otherwise, load the            // workspace first (default).            final Callbacks cbk = mCallbacks.get();            final boolean loadWorkspaceFirst = cbk != null ? (!cbk.isAllAppsVisible()) : true;            keep_running: {                // Elevate priority when Home launches for the first time to avoid                // starving at boot time. Staring at a blank home is not cool.                synchronized (mLock) {                    if (DEBUG_LOADERS) Log.d(TAG, "Setting thread priority to " +                            (mIsLaunching ? "DEFAULT" : "BACKGROUND"));                    android.os.Process.setThreadPriority(mIsLaunching                            ? Process.THREAD_PRIORITY_DEFAULT : Process.THREAD_PRIORITY_BACKGROUND);                }                if (loadWorkspaceFirst) {                    if (DEBUG_LOADERS) Log.d(TAG, "step 1: loading workspace");                    loadAndBindWorkspace();                } else {                    if (DEBUG_LOADERS) Log.d(TAG, "step 1: special: loading all apps");                    loadAndBindAllApps();                }                if (mStopped) {                    break keep_running;                }                // Whew! Hard work done.  Slow us down, and wait until the UI thread has                // settled down.                synchronized (mLock) {                    if (mIsLaunching) {                        if (DEBUG_LOADERS) Log.d(TAG, "Setting thread priority to BACKGROUND");                        android.os.Process.setThreadPriority(Process.THREAD_PRIORITY_BACKGROUND);                    }                }                waitForIdle();                // second step                if (loadWorkspaceFirst) {                    if (DEBUG_LOADERS) Log.d(TAG, "step 2: loading all apps");                    loadAndBindAllApps();                } else {                    if (DEBUG_LOADERS) Log.d(TAG, "step 2: special: loading workspace");                    loadAndBindWorkspace();                }                // Restore the default thread priority after we are done loading items                synchronized (mLock) {                    android.os.Process.setThreadPriority(Process.THREAD_PRIORITY_DEFAULT);                }            }            // Update the saved icons if necessary            if (DEBUG_LOADERS) Log.d(TAG, "Comparing loaded icons to database icons");            for (Object key : sDbIconCache.keySet()) {                updateSavedIcon(mContext, (ShortcutInfo) key, sDbIconCache.get(key));            }            sDbIconCache.clear();            // Clear out this reference, otherwise we end up holding it until all of the            // callback runnables are done.            mContext = null;            synchronized (mLock) {                // If we are still the last one to be scheduled, remove ourselves.                if (mLoaderTask == this) {                    mLoaderTask = null;                }            }        }        public void stopLocked() {            synchronized (LoaderTask.this) {                mStopped = true;                this.notify();            }        }

加载桌面图标对应的数据库的值，这些值能把这些图标显示在屏幕上。

??? Step 6：LauncherApplication.onCreate()方法启动完成后，接着开始调用Launcher.java的onCreate()方法。代码如下：

    @Override    protected void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        // 得到LauncherApplication的对象app        LauncherApplication app = ((LauncherApplication)getApplication());        // 得到LauncherModel对象mModel,设置一个mCallbacks = new WeakReference<Callbacks>(callbacks)的        // 回调callbacks        mModel = app.setLauncher(this);        // 得到图标缓存的对象mIconCache        mIconCache = app.getIconCache();        // 得到拖拽控制类DragController的对象        mDragController = new DragController(this);        // 得到一个LayoutInflater布局的对象        mInflater = getLayoutInflater();        // 得到一个AppWidgetManager的对象        mAppWidgetManager = AppWidgetManager.getInstance(this);        // 得到LauncherAppWidgetHost的一个对象        mAppWidgetHost = new LauncherAppWidgetHost(this, APPWIDGET_HOST_ID);        // Start receiving onAppWidgetChanged calls for your AppWidgets.        mAppWidgetHost.startListening();        if (PROFILE_STARTUP) {            android.os.Debug.startMethodTracing(                    Environment.getExternalStorageDirectory() + "/launcher");        }        // 检查Locale的语言级别，mcc, mnc的改变        checkForLocaleChange();        // 加载Launcher.xml布局文件        setContentView(R.layout.launcher);        // Launcher的布局的初始化        setupViews();        // 第一次启动Android的展示设置向导,        // 这个SharedPreferences中存在        // <boolean name="cling.workspace.dismissed" value="true" />        // 如果值为true，则不显示设置向导，为false，则显示设置向导。        showFirstRunWorkspaceCling();        // 注册数据库观察者        registerContentObservers();        lockAllApps();        mSavedState = savedInstanceState;        restoreState(mSavedState);        // Update customization drawer _after_ restoring the states        if (mAppsCustomizeContent != null) {            mAppsCustomizeContent.onPackagesUpdated();        }        if (PROFILE_STARTUP) {            android.os.Debug.stopMethodTracing();        }        if (!mRestoring) {            mModel.startLoader(this, true);        }        if (!mModel.isAllAppsLoaded()) {            ViewGroup appsCustomizeContentParent = (ViewGroup) mAppsCustomizeContent.getParent();            mInflater.inflate(R.layout.apps_customize_progressbar, appsCustomizeContentParent);        }        // For handling default keys        mDefaultKeySsb = new SpannableStringBuilder();        Selection.setSelection(mDefaultKeySsb, 0);        // 注册系统对话框消失的监听        IntentFilter filter = new IntentFilter(Intent.ACTION_CLOSE_SYSTEM_DIALOGS);        registerReceiver(mCloseSystemDialogsReceiver, filter);        boolean searchVisible = false;        boolean voiceVisible = false;        // If we have a saved version of these external icons, we load them up immediately        // 如果我们已经保存了外部图标的版本，我们立即加载它们        int coi = getCurrentOrientationIndexForGlobalIcons();        if (sGlobalSearchIcon[coi] == null || sVoiceSearchIcon[coi] == null ||                sAppMarketIcon[coi] == null) {            updateAppMarketIcon();            searchVisible = updateGlobalSearchIcon();            voiceVisible = updateVoiceSearchIcon(searchVisible);        }        if (sGlobalSearchIcon[coi] != null) {             updateGlobalSearchIcon(sGlobalSearchIcon[coi]);             searchVisible = true;        }        if (sVoiceSearchIcon[coi] != null) {            updateVoiceSearchIcon(sVoiceSearchIcon[coi]);            voiceVisible = true;        }        if (sAppMarketIcon[coi] != null) {            updateAppMarketIcon(sAppMarketIcon[coi]);        }        mSearchDropTargetBar.onSearchPackagesChanged(searchVisible, voiceVisible);        // On large interfaces, we want the screen to auto-rotate based on the current orientation        if (LauncherApplication.isScreenLarge() || Build.TYPE.contentEquals("eng")) {            setRequestedOrientation(ActivityInfo.SCREEN_ORIENTATION_UNSPECIFIED);        }    }

??? Step 7：其中LauncherModel这个类中有个回调接口，具体定义如下：

 public interface Callbacks {        public boolean setLoadOnResume();        public int getCurrentWorkspaceScreen();        public void startBinding();        public void bindItems(ArrayList<ItemInfo> shortcuts, int start, int end);        public void bindFolders(HashMap<Long,FolderInfo> folders);        public void finishBindingItems();        public void bindAppWidget(LauncherAppWidgetInfo info);        public void bindAllApplications(ArrayList<ApplicationInfo> apps);        public void bindAppsAdded(ArrayList<ApplicationInfo> apps);        public void bindAppsUpdated(ArrayList<ApplicationInfo> apps);        public void bindAppsRemoved(ArrayList<ApplicationInfo> apps, boolean permanent);        public void bindPackagesUpdated();        public boolean isAllAppsVisible();        public void bindSearchablesChanged();    }

对LauncherModel进行初始化的时候mModel = app.setLauncher(this);---->mModel.initialize(launcher);----->

???????????? ?public void initialize(Callbacks callbacks) {
????????????????????? synchronized (mLock) {
????????????????????????????? mCallbacks = new WeakReference<Callbacks>(callbacks);
????????????????????? ?}
?????????????? }

这个callbacks就是定义的接口回调，具体实现是在Launcher.java中定义的，启动Launcher的过程中，这些实现是异步来实现的。还有Launcher.java的onResume（）方法没有讲解，到这儿基本上Android的Launcher已经启动起来了，这个 onResume（）我研究后再更新。

????? 欢迎各界同僚留言指正错误和拍砖！欢迎留言！
