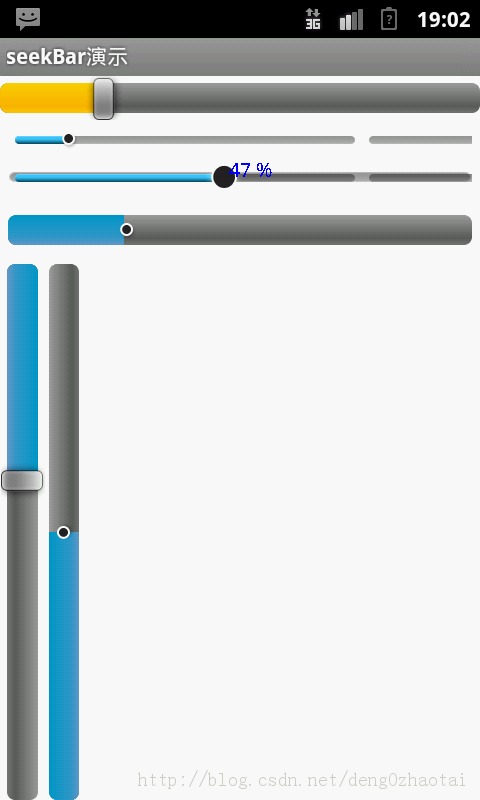

SeekBar的应用非常广，比如用来显示音量条、播放进度条，有水平显示也有垂直显示，但Android只给我们提供了水平的，可以用系统默认的样式也可以用我们自定义的样式，总之进度条的用法多种多样，如果Android没有提供也能我们自己去定制，先上图
使用图片自定义水平进度条时有个缺陷，就是图片不能根据进度条的大小进行拉伸，也就是自适应进度条的长度。当然也可以通过改变进度条的宽度跟图片宽度一致，这样就不会出现上面的情况。我想让图片适应进度条的大小，但还没找到解决办法，我想通过广大网友一起想想办法如何解决这样问题，有知道的朋友可以告诉我，感激不尽！
上图显示的第一个进度条是Android定义的，我们不需要做任何更新，只需要在布局文件中添加就可以，如
<SeekBar android:id="@+id/seekbar" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_alignParentTop="true" />
然后在Activity中根据相应的ID获取对象，并添加监听器
下面看下第二个进度条的在布局文件中的定义
<SeekBar android:id="@+id/proSeek" style="?android:attr/progressBarStyleHorizontal" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_below="@id/seekbar" android:layout_gravity="center_vertical" android:paddingLeft="5dp" android:paddingRight="5dp" android:progressDrawable="@drawable/seekbar_style" android:secondaryProgress="0" android:thumb="@drawable/thumb_selector" />
进度条样式seekbar_style.xml定义 以下是使用图片定义的
<?xml version="1.0" encoding="utf-8"?><layer-list xmlns:android="http://schemas.android.com/apk/res/android" android:opacity="transparent"> <item android:id="@android:id/background" android:drawable="@drawable/player_progress_bg"/> <item android:id="@android:id/secondaryProgress" android:drawable="@drawable/player_progress_buffering"> </item> <item android:id="@android:id/progress" android:drawable="@drawable/player_progress_playing"> </item></layer-list>
<?xml version="1.0" encoding="utf-8"?><selector xmlns:android="http://schemas.android.com/apk/res/android"> <item android:drawable="@drawable/voice_thumb_press" android:state_pressed="true"/> <item android:drawable="@drawable/voice_thumb_normal" android:state_enabled="true" android:state_focused="true" android:state_window_focused="true"/> <item android:drawable="@drawable/voice_thumb_normal"/></selector>至此一个用图片定义的进度条就完成了。
第三个进度条是修改了滑块，这就需要重写SeekBar
关键代码如下：
在布局文件中声明自定义的控件 com.example.seekbar.mSeekBar
<com.example.seekbar.mSeekBar android:id="@+id/proSeek2" style="?android:attr/progressBarStyleHorizontal" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_below="@id/proSeek" android:layout_gravity="center_vertical" android:paddingLeft="5dp" android:paddingRight="5dp" android:progressDrawable="@drawable/seekbar_style_1" android:secondaryProgress="0" android:thumb="@drawable/thumb_selector" />
修改滑块的关键代码
public mSeekBar(Context context, AttributeSet attrs) { super(context, attrs); paint = new Paint(); paint.setTextAlign(Paint.Align.CENTER); paint.setColor(Color.BLUE); res = context.getResources(); bmp = BitmapFactory.decodeResource(res, R.drawable.voice_thumb_press); thumb = new BitmapDrawable(res, bmp); bmpPro = BitmapFactory.decodeResource(res, R.drawable.player_progress_bg); Progress = new BitmapDrawable(res, bmpPro); // 判断屏幕大小 符合条件进行缩放thumb if (Pixels.getpixels_x(100) < ScreenWidth && Pixels.getpixels_y(100) < screenHeight) { thumb = zoomDrawable(thumb, bmp.getWidth(), bmp.getHeight()); } else { paint.setTextSize(20); } Progress = zoomDrawable(Progress, bmpPro.getWidth(), bmpPro.getHeight()); // 设置拖动的图片 setThumb(thumb); // 图片的位置 setThumbOffset(thumb.getIntrinsicWidth()); setBackgroundDrawable(Progress); }第四个进度条是用颜色来填充
主要是下面这个样式文件
seekbar_style_own.xml
<?xml version="1.0" encoding="utf-8"?><layer-list xmlns:android="http://schemas.android.com/apk/res/android" > <item android:id="@android:id/background"> <shape> <corners android:radius="5dip" /> <gradient android:angle="270" android:centerColor="#ff5a5d5a" android:centerY="0.75" android:endColor="#ff747674" android:startColor="#ff9d9e9d" /> </shape> </item> <item android:id="@android:id/secondaryProgress"> <clip> <shape> <corners android:radius="5dip" /> <gradient android:angle="270" android:centerColor="#80ffb600" android:centerY="0.75" android:endColor="#a0ffcb00" android:startColor="#80ffd300" /> </shape> </clip> </item> <item android:id="@android:id/progress"> <clip> <shape> <corners android:radius="5dip" /> <gradient android:angle="270" android:centerColor="#ff3399CC" android:centerY="0.75" android:endColor="#ff6699CC" android:startColor="#ff0099CC" /> </shape> </clip> </item></layer-list>
布局文件中声明如下：
<SeekBar android:id="@+id/proSeek1" android:layout_width="fill_parent" android:layout_height="wrap_content" android:layout_below="@id/proSeek2" android:paddingBottom="10dp" android:paddingLeft="5dp" android:paddingRight="5dp" android:paddingTop="10dp" android:progressDrawable="@drawable/seekbar_style_own" android:secondaryProgress="0" android:thumb="@drawable/thumb_selector" />
再下面就是垂直滑动条的实现
布局文件中声明
<com.example.seekbar.verSeekBar android:id="@+id/verBar" android:layout_width="30dip" android:layout_height="match_parent" android:layout_below="@id/proSeek1" android:progressDrawable="@drawable/seekbar_style_own" />
verSeekBar.java文件
package com.example.seekbar;/* *Author: tanrui *Date: 20/1/2010 */import android.content.Context;import android.graphics.Canvas;import android.graphics.Rect;import android.graphics.drawable.Drawable;import android.util.AttributeSet;import android.util.Log;import android.view.KeyEvent;import android.view.MotionEvent;import android.view.View;import android.widget.AbsSeekBar;public class verSeekBar extends AbsSeekBar { private Drawable mThumb; private int height; private int width; public static final int TOP = 0; public static final int BUTTOM = 1; private int mntype = TOP; public interface OnSeekBarChangeListener { void onProgressChanged(verSeekBar VerticalSeekBar, int progress, boolean fromUser); void onStartTrackingTouch(verSeekBar VerticalSeekBar); void onStopTrackingTouch(verSeekBar VerticalSeekBar); } private OnSeekBarChangeListener mOnSeekBarChangeListener; public verSeekBar(Context context) { this(context, null); } public verSeekBar(Context context, AttributeSet attrs) { this(context, attrs, android.R.attr.seekBarStyle); } public verSeekBar(Context context, AttributeSet attrs, int defStyle) { super(context, attrs, defStyle); } public void setOnSeekBarChangeListener(OnSeekBarChangeListener l) { mOnSeekBarChangeListener = l; } void onStartTrackingTouch() { if (mOnSeekBarChangeListener != null) { mOnSeekBarChangeListener.onStartTrackingTouch(this); } } void onStopTrackingTouch() { if (mOnSeekBarChangeListener != null) { mOnSeekBarChangeListener.onStopTrackingTouch(this); } } void onProgressRefresh(float scale, boolean fromUser) { Log.i("6", "onProgressRefresh==>scale"+scale); Drawable thumb = mThumb; if (thumb != null) { setThumbPos(getHeight(), thumb, scale, Integer.MIN_VALUE); invalidate(); } if (mOnSeekBarChangeListener != null) { mOnSeekBarChangeListener.onProgressChanged(this, getProgress(), fromUser); } } public void setType(int type) { mntype = type; } private void setThumbPos(int w, Drawable thumb, float scale, int gap) { Log.i("6", "setThumbPos==>w"+w); int available = w + getPaddingLeft() - getPaddingRight(); int thumbWidth = thumb.getIntrinsicWidth(); int thumbHeight = thumb.getIntrinsicHeight(); available -= thumbWidth; // The extra space for the thumb to move on the track available += getThumbOffset()* 2; int thumbPos = (int) (scale * available); int topBound, bottomBound; if (gap == Integer.MIN_VALUE) { Rect oldBounds = thumb.getBounds(); topBound = oldBounds.top; bottomBound = oldBounds.bottom; } else { topBound = gap; bottomBound = gap + thumbHeight; } thumb.setBounds(thumbPos, topBound, thumbPos + thumbWidth, bottomBound); } protected void onDraw(Canvas c) { Log.i("6", "onDraw==>height"+height); if(mntype == TOP) { c.rotate(90); c.translate(0, -width); } else { c.rotate(-90); c.translate(-height, 0); } super.onDraw(c); } protected synchronized void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { // width = 200; // height = 120; height = View.MeasureSpec.getSize(heightMeasureSpec); width = View.MeasureSpec.getSize(widthMeasureSpec); Log.i("6", "onMeasure==>height,,width"+height+" "+width); this.setMeasuredDimension(width, height); } @Override public void setThumb(Drawable thumb) { mThumb = thumb; super.setThumb(thumb); } protected void onSizeChanged(int w, int h, int oldw, int oldh) { Log.i("6", "onSizeChanged==>w,,h,,oldw,,oldh"+w+" "+h+" "+oldw+" "+oldh); super.onSizeChanged(h, w, oldw, oldh); } public boolean onTouchEvent(MotionEvent event) { if (!isEnabled()) { return false; } switch (event.getAction()) { case MotionEvent.ACTION_DOWN: setPressed(true); onStartTrackingTouch(); trackTouchEvent(event); break; case MotionEvent.ACTION_MOVE: trackTouchEvent(event); attemptClaimDrag(); break; case MotionEvent.ACTION_UP: trackTouchEvent(event); onStopTrackingTouch(); setPressed(false); break; case MotionEvent.ACTION_CANCEL: onStopTrackingTouch(); setPressed(false); break; } return true; } private void trackTouchEvent(MotionEvent event) { final int Height = getHeight(); Log.i("6", "trackTouchEvent==>Height"+Height); final int available = Height - getPaddingBottom() - getPaddingTop(); int Y = (int) event.getY(); Log.i("6", "trackTouchEvent==>Y"+Y); float scale; float progress = 0; if (Y > Height - getPaddingBottom()) { scale = 1.0f; } else if (Y < getPaddingTop()) { scale = 0.0f; } else { scale = (float) (Y) / (float) available; } final int max = getMax(); progress = scale * max; int temp; if(mntype == TOP) { temp = (int) progress; } else { temp = (int) (max - progress); } setProgress(temp); } private void attemptClaimDrag() { if (getParent() != null) { getParent().requestDisallowInterceptTouchEvent(true); } } public boolean dispatchKeyEvent(KeyEvent event) { if (event.getAction() == KeyEvent.ACTION_DOWN) { KeyEvent newEvent = null; switch (event.getKeyCode()) { case KeyEvent.KEYCODE_DPAD_UP: newEvent = new KeyEvent(KeyEvent.ACTION_DOWN, KeyEvent.KEYCODE_DPAD_RIGHT); break; case KeyEvent.KEYCODE_DPAD_DOWN: newEvent = new KeyEvent(KeyEvent.ACTION_DOWN, KeyEvent.KEYCODE_DPAD_LEFT); break; case KeyEvent.KEYCODE_DPAD_LEFT: newEvent = new KeyEvent(KeyEvent.ACTION_DOWN, KeyEvent.KEYCODE_DPAD_DOWN); break; case KeyEvent.KEYCODE_DPAD_RIGHT: newEvent = new KeyEvent(KeyEvent.ACTION_DOWN, KeyEvent.KEYCODE_DPAD_UP); break; default: newEvent = new KeyEvent(KeyEvent.ACTION_DOWN, event .getKeyCode()); break; } return newEvent.dispatch(this); } return false; }}另外一个只是更新样式就可以，这里就不写出来了，附上源码供大家参考
点击打开链接

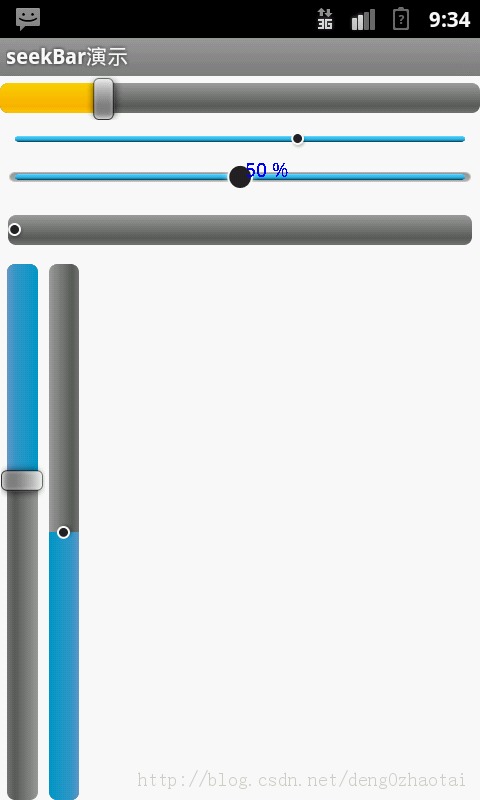

上面提到的图片不能根据控件大小进行拉伸找到解决办法了，原来Android给我们提供了一个工具制作9.png格式的文件，这种格式的图片可以根据控件大小自适应调节大小而不失真。这个工具是draw9patch.bat 在Android SDK的tools目录下可以找到。来看下修改过后的效果
是不是比上面那张好看多了，只需要把.png格式的图片用工具改成9.png格式就OK了。
在这里需要感谢石同事给我的帮助！
