在之前的第一篇文章：
android自动化测试中hierarchyviewer和uiautomatorviewer获取控件信息的方式比对（1）

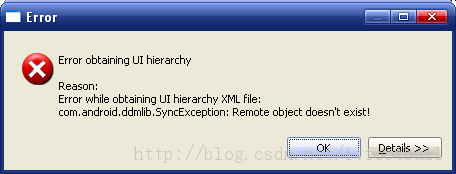

我说uiautomatorviewer获取动态的界面会报错。错误如下：
今天我学习uiautomator的时候，用dumpWindowHierarchy()获得控件信息的时候，发现这个方法可以得到动态的界面信息。这就弥补了uiautomatorviewer的缺陷。下面把过程给大家贴出来。
如何编写java工程文件的信息，前辈们写了很多，我把我学习的连接放给大家。
http://blog.csdn.net/robinzhou/article/details/8447058
我捡主要的将。java代码：
package com.ibm.test;import java.io.File;import com.android.uiautomator.core.UiDevice;import com.android.uiautomator.core.UiObjectNotFoundException;import com.android.uiautomator.testrunner.UiAutomatorTestCase;public class MyUIauto extends UiAutomatorTestCase { private static final String TAG = "MyUIauto"; public void testPressHome() throws UiObjectNotFoundException { File file = new File("/data/local/tmp/local/tmp/qian.xml"); UiDevice uiDevice = getUiDevice(); //uiDevice.pressHome(); String realPath = "qian.xml"; uiDevice.dumpWindowHierarchy(realPath); }}我看了一下dumpWindowHierarchy的方法源码：
public void [More ...] dumpWindowHierarchy(String fileName) { AccessibilityNodeInfo root = getAutomatorBridge().getQueryController().getAccessibilityRootNode(); if(root != null) { AccessibilityNodeInfoDumper.dumpWindowToFile( root, new File(new File(Environment.getDataDirectory(), "local/tmp"), fileName)); } }官网上的说明默认目录是/data/local/tmp目录，但从源码上可以看见它又增加了local/tmp目录。合并起来就是/data/local/tmp/local/tmp目录。这也是我起先随便建立个目录造成的错误的原因，老是报/data/local/tmp/local/tmp/下无文件的错误。后来找到源码才知道。源码网站给大家：
http://grepcode.com/file/repository.grepcode.com/java/ext/com.google.android/android/4.1.2_r1/com/android/uiautomator/core/UiDevice.java#UiDevice.dumpWindowHierarchy%28java.lang.String%29
编写完java工程 以后，用ant命令生成jar包，然后把jar包push到设备上，将秒表打开。然后运行脚本，得到xml文件，抓到本地。查看xml文件如下：
<?xml version='1.0' encoding='UTF-8' standalone='yes' ?><hierarchy rotation="0"> <node index="0" text="" resource-id="" class="android.widget.FrameLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,0][480,854]"> <node index="0" text="" resource-id="android:id/action_bar_overlay_layout" class="android.view.View" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,0][480,854]"> <node index="0" text="" resource-id="android:id/action_bar_container" class="android.widget.FrameLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,38][480,110]"> <node index="0" text="" resource-id="android:id/action_bar" class="android.view.View" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,38][480,110]"> <node index="0" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="true" enabled="false" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[24,38][90,110]"> <node index="0" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[24,55][90,92]"> <node index="0" text="秒表" resource-id="android:id/action_bar_title" class="android.widget.TextView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[24,55][78,92]" /> </node> </node> </node> </node> <node index="1" text="" resource-id="android:id/content" class="android.widget.FrameLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,110][480,764]"> <node index="0" text="" resource-id="com.android.deskclock:id/desk_clock_pager" class="android.support.v4.view.ViewPager" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="true" focused="false" scrollable="true" long-clickable="false" password="false" selected="false" bounds="[0,110][480,764]"> <node index="3" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,110][480,764]"> <node index="0" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[36,110][444,373]"> <node index="0" text="" resource-id="" class="android.widget.RelativeLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[36,140][444,331]"> <node index="0" text="00:06:24.9" resource-id="com.android.deskclock:id/interval_time" class="android.widget.TextView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[261,140][428,189]" /> <node index="1" text="00:06:24.9" resource-id="com.android.deskclock:id/total_time" class="android.widget.TextView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[43,219][436,331]" /> </node> </node> <node index="1" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[18,405][462,477]"> <node index="0" text="暂停" resource-id="com.android.deskclock:id/pause" class="android.widget.Button" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[18,405][160,477]" /> <node index="1" text="停止" resource-id="com.android.deskclock:id/stop" class="android.widget.Button" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[169,405][311,477]" /> <node index="2" text="计次" resource-id="com.android.deskclock:id/mark" class="android.widget.Button" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[320,405][462,477]" /> </node> <node index="2" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[18,510][462,716]"> <node index="0" text="" resource-id="com.android.deskclock:id/list" class="android.widget.ListView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="true" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[18,526][462,700]" /> </node> </node> </node> </node> <node index="2" text="" resource-id="android:id/split_action_bar" class="android.widget.FrameLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,764][480,854]"> <node index="0" text="" resource-id="" class="android.widget.HorizontalScrollView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,764][480,854]"> <node index="0" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,764][480,854]"> <node index="0" text="" resource-id="" class="android.app.ActionBar$Tab" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[0,764][120,854]"> <node index="0" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[24,770][96,850]"> <node index="0" text="" resource-id="com.android.deskclock:id/tab_icon" class="android.widget.ImageView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[36,770][84,818]" /> <node index="1" text="闹钟" resource-id="com.android.deskclock:id/tab_text" class="android.widget.TextView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[24,818][96,850]" /> </node> </node> <node index="1" text="" resource-id="" class="android.app.ActionBar$Tab" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[120,764][240,854]"> <node index="0" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[144,770][216,850]"> <node index="0" text="" resource-id="com.android.deskclock:id/tab_icon" class="android.widget.ImageView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[156,770][204,818]" /> <node index="1" text="世界时间" resource-id="com.android.deskclock:id/tab_text" class="android.widget.TextView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[144,818][216,850]" /> </node> </node> <node index="2" text="" resource-id="" class="android.app.ActionBar$Tab" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[240,764][360,854]"> <node index="0" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[264,770][336,850]"> <node index="0" text="" resource-id="com.android.deskclock:id/tab_icon" class="android.widget.ImageView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[276,770][324,818]" /> <node index="1" text="倒计时" resource-id="com.android.deskclock:id/tab_text" class="android.widget.TextView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="false" bounds="[264,818][336,850]" /> </node> </node> <node index="3" text="" resource-id="" class="android.app.ActionBar$Tab" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="true" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="true" bounds="[360,764][480,854]"> <node index="0" text="" resource-id="" class="android.widget.LinearLayout" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="true" bounds="[384,770][456,850]"> <node index="0" text="" resource-id="com.android.deskclock:id/tab_icon" class="android.widget.ImageView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="true" focused="false" scrollable="false" long-clickable="false" password="false" selected="true" bounds="[396,770][444,818]" /> <node index="1" text="秒表" resource-id="com.android.deskclock:id/tab_text" class="android.widget.TextView" package="com.android.deskclock" content-desc="" checkable="false" checked="false" clickable="false" enabled="true" focusable="false" focused="false" scrollable="false" long-clickable="false" password="false" selected="true" bounds="[384,818][456,850]" /> </node> </node> </node> </node> </node> </node> </node></hierarchy>
所以，这个方式才是获得控件的最佳方法。
