Android系统应用信息中存储跟缓存的计算方法

热度:81   发布时间:2016-04-28 05:31:10.0
Android系统应用信息中存储和缓存的计算方法

进行如下操作:

设置->应用->选择一个应用->应用信息

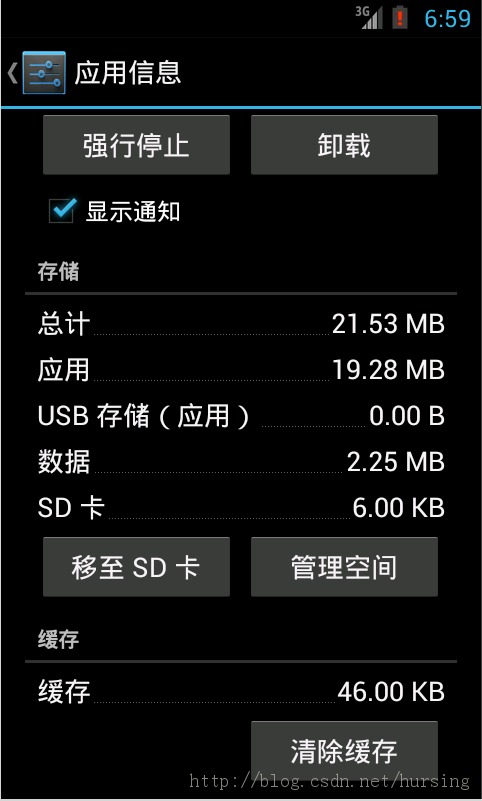

会到达如下界面:

可以看到这个应用占用的磁盘空间。

先说结果,这几项会计算哪些文件(夹)。

1.应用,由三项相加组成

  • /data/data/com.myapp/lib,即so库文件夹大小
  • /data/app/com.myapp-1.apk,原始apk文件的复制
  • [email protected]@[email protected],dalvik虚拟机对dex文件的缓存

2.USB存储(应用)。把程序装到(或移到)sd卡后的大小。/sdcard/Android/...,参考“应用”项。

3.数据 = /data/data/com.myapp/目录大小 - cache子目录大小 - lib子目录大小

4.SD 卡 = /sdcard/Android/data/com.myapp/目录大小 - /sdcard/Android/data/com.myapp/cache目录大小

总计是以上4个之和)

5.缓存 = /data/data/com.myapp/cache目录大小 + /sdcard/Android/data/com.myapp/cache目录大小


下面是分析Android4.2源码怎么做的。比较详细说分析过程,会累赘些,授之以渔吧。

根据应用信息的界面Settings这个名字,猜测到源码

android4.2/packages/apps/Settings/src/com/android/settings/applications/InstalledAppDetails.java

负责,对应的xml是

android4.2/packages/apps/Settings/res/layout/installed_app_details.xml

刷新磁盘占用大小的函数是

InstalledAppDetaileds.refreshSizeInfo()

根据代码线索反查

mDataSize.setText(getSizeStr(dataSize));

->

long dataSize = mAppEntry.dataSize;

->

mAppEntry = mState.getEntry(packageName);

->

mState.requestSize(mAppEntry.info.packageName);

ApplicationsState mState

->

android4.2/packages/apps/Settings/src/com/android/settings/applications/ApplicationState.java

mPm.getPackageSizeInfo(packageName, mBackgroundHandler.mStatsObserver);

final PackageManager mPm

->

android4.2/frameworks/base/core/java/android/app/ApplicationPackageManager.java

public void getPackageSizeInfo(String packageName, int userHandle,
            IPackageStatsObserver observer) {

mPM.getPackageSizeInfo(packageName, userHandle, observer);

private final IPackageManager mPM;

->

IPackageManager是个接口,用查找文件内容的方式搜索它的实现,根据java语法,可用关键字“extends IPackageManager”

用shell命令行可得到这样的结果:

[email protected] ~/Desktop/android4.2 $ grep -rnsw "extends IPackageManager" *
frameworks/base/services/java/com/android/server/pm/PackageManagerService.java:172:public class PackageManagerService extends IPackageManager.Stub {

->

android4.2/frameworks/base/services/java/com/android/server/pm/PackageManagerService.java

public void getPackageSizeInfo(

Message msg = mHandler.obtainMessage(INIT_COPY);
        msg.obj = new MeasureParams(stats, observer);
        mHandler.sendMessage(msg);

->

内部类class MeasureParams

void handleStartCopy() throws RemoteException {

mSuccess = getPackageSizeInfoLI(mStats.packageName, mStats.userHandle, mStats);

->

getPackageSizeInfoLI函数

int res = mInstaller.getSizeInfo(packageName, userHandle, p.mPath, publicSrcDir,
                asecPath, pStats);

final Installer mInstaller

->

frameworks/base/services/java/com/android/server/pm/Installer.java

public int getSizeInfo(

String s = transaction(builder.toString());

->

 private synchronized String transaction(String cmd) {

if (!writeCommand(cmd)) {

->

private boolean writeCommand(String _cmd)

mOut.write(buf, 0, 2);
mOut.write(cmd, 0, len);

->

OutputStream mOut;

LocalSocketAddress address = new LocalSocketAddress("installd",
                    LocalSocketAddress.Namespace.RESERVED);
            mSocket.connect(address);
            mOut = mSocket.getOutputStream();

到此很无语,用socket的方式来通信。

->

查找文件内容,关键字为 "installd", 注意包含双引号

得到结果:

[email protected] ~/Desktop/android4.2 $ grep -rnsw "\"installd\"" *
cts/tools/device-setup/TestDeviceSetup/src/android/tests/getinfo/RootProcessScanner.java:33:            "installd",
frameworks/base/services/java/com/android/server/pm/Installer.java:51:            LocalSocketAddress address = new LocalSocketAddress("installd",
frameworks/base/cmds/installd/installd.h:18:#define LOG_TAG "installd"
frameworks/base/cmds/installd/installd.h:49:#define SOCKET_PATH "installd"

sdk/files/ant/build.xml:1355:                                    <condition property="tested.project.install.target" value="installi" else="installd">
sdk/files/ant/build.xml:1392:    <target name="installd" depends="-set-debug-files, install"

->

frameworks/base/cmds/installd/installd.h

int get_size(const char *pkgname, int persona, const char *apkpath, const char *fwdlock_apkpath,
             const char *asecpath, int64_t *codesize, int64_t *datasize, int64_t *cachesize,
             int64_t *asecsize);

frameworks/base/cmds/installd/installd.c

static int do_get_size(char **arg, char reply[REPLY_MAX])

res = get_size(arg[0], atoi(arg[1]), arg[2], arg[3], arg[4],
            &codesize, &datasize, &cachesize, &asecsize);

->

看到在installd.c没有实现get_size函数。可以根据函数声明搜索文件内容,不过既然是c语言,那可能是把函数分离实现。

所以在installd.c的目录下,看到另一个代码文件里实现了。转载请注明出处:http://blog.csdn.net/hursing

->

frameworks/base/cmds/installd/commands.c

这里就是计算的源码了。

int get_size(const char *pkgname, int persona, const char *apkpath,             const char *fwdlock_apkpath, const char *asecpath,             int64_t *_codesize, int64_t *_datasize, int64_t *_cachesize,             int64_t* _asecsize){    DIR *d;    int dfd;    struct dirent *de;    struct stat s;    char path[PKG_PATH_MAX];    int64_t codesize = 0;    int64_t datasize = 0;    int64_t cachesize = 0;    int64_t asecsize = 0;        /* count the source apk as code -- but only if it's not         * on the /system partition and its not on the sdcard.         */    if (validate_system_app_path(apkpath) &&            strncmp(apkpath, android_asec_dir.path, android_asec_dir.len) != 0) {        if (stat(apkpath, &s) == 0) {            codesize += stat_size(&s);        }    }        /* count the forward locked apk as code if it is given         */    if (fwdlock_apkpath != NULL && fwdlock_apkpath[0] != '!') {        if (stat(fwdlock_apkpath, &s) == 0) {            codesize += stat_size(&s);        }    }        /* count the cached dexfile as code */    if (!create_cache_path(path, apkpath)) {        if (stat(path, &s) == 0) {            codesize += stat_size(&s);        }    }        /* add in size of any libraries */    if (!create_pkg_path_in_dir(path, &android_app_lib_dir, pkgname, PKG_DIR_POSTFIX)) {        d = opendir(path);        if (d != NULL) {            dfd = dirfd(d);            codesize += calculate_dir_size(dfd);            closedir(d);        }    }        /* compute asec size if it is given         */    if (asecpath != NULL && asecpath[0] != '!') {        if (stat(asecpath, &s) == 0) {            asecsize += stat_size(&s);        }    }    if (create_pkg_path(path, pkgname, PKG_DIR_POSTFIX, persona)) {        goto done;    }    d = opendir(path);    if (d == NULL) {        goto done;    }    dfd = dirfd(d);    /* most stuff in the pkgdir is data, except for the "cache"     * directory and below, which is cache, and the "lib" directory     * and below, which is code...     */    while ((de = readdir(d))) {        const char *name = de->d_name;        if (de->d_type == DT_DIR) {            int subfd;            int64_t statsize = 0;            int64_t dirsize = 0;                /* always skip "." and ".." */            if (name[0] == '.') {                if (name[1] == 0) continue;                if ((name[1] == '.') && (name[2] == 0)) continue;            }            if (fstatat(dfd, name, &s, AT_SYMLINK_NOFOLLOW) == 0) {                statsize = stat_size(&s);            }            subfd = openat(dfd, name, O_RDONLY | O_DIRECTORY);            if (subfd >= 0) {                dirsize = calculate_dir_size(subfd);            }            if(!strcmp(name,"lib")) {                codesize += dirsize + statsize;            } else if(!strcmp(name,"cache")) {                cachesize += dirsize + statsize;            } else {                datasize += dirsize + statsize;            }        } else if (de->d_type == DT_LNK && !strcmp(name,"lib")) {            // This is the symbolic link to the application's library            // code.  We'll count this as code instead of data, since            // it is not something that the app creates.            if (fstatat(dfd, name, &s, AT_SYMLINK_NOFOLLOW) == 0) {                codesize += stat_size(&s);            }        } else {            if (fstatat(dfd, name, &s, AT_SYMLINK_NOFOLLOW) == 0) {                datasize += stat_size(&s);            }        }    }    closedir(d);done:    *_codesize = codesize;    *_datasize = datasize;    *_cachesize = cachesize;    *_asecsize = asecsize;    return 0;}
以上是计算了内部磁盘的占用,还不齐,还有线索:

PackageManagerService.java的内部类MeasureParams.handleStartCopy()函数:

void handleStartCopy() throws RemoteException {            synchronized (mInstallLock) {                mSuccess = getPackageSizeInfoLI(mStats.packageName, mStats.userHandle, mStats);            }            final boolean mounted;            if (Environment.isExternalStorageEmulated()) {                mounted = true;            } else {                final String status = Environment.getExternalStorageState();                mounted = (Environment.MEDIA_MOUNTED.equals(status)                        || Environment.MEDIA_MOUNTED_READ_ONLY.equals(status));            }            if (mounted) {                final UserEnvironment userEnv = new UserEnvironment(mStats.userHandle);                final File externalCacheDir = userEnv                        .getExternalStorageAppCacheDirectory(mStats.packageName);                final long externalCacheSize = mContainerService                        .calculateDirectorySize(externalCacheDir.getPath());                mStats.externalCacheSize = externalCacheSize;                final File externalDataDir = userEnv                        .getExternalStorageAppDataDirectory(mStats.packageName);                long externalDataSize = mContainerService.calculateDirectorySize(externalDataDir                        .getPath());                if (externalCacheDir.getParentFile().equals(externalDataDir)) {                    externalDataSize -= externalCacheSize;                }                mStats.externalDataSize = externalDataSize;                final File externalMediaDir = userEnv                        .getExternalStorageAppMediaDirectory(mStats.packageName);                mStats.externalMediaSize = mContainerService                        .calculateDirectorySize(externalMediaDir.getPath());                final File externalObbDir = userEnv                        .getExternalStorageAppObbDirectory(mStats.packageName);                mStats.externalObbSize = mContainerService.calculateDirectorySize(externalObbDir                        .getPath());            }        }
这里计算了sd卡上的磁盘占用。


内部磁盘的计算,是用linux的stat函数。

一些目录和文件的常量,定义在installd.h

认真看代码,则会得到文章开头的结果。

代码计算的结果得到的是占用磁盘的大小,但由于存储器有"4K对齐”的概念,所以占用磁盘大小不等于文件大小。例如一个实际为2.98K的文件,会在应用信息里显示为4K。


转载请注明出处:http://blog.csdn.net/hursing
