玩转Android Camera开发(3):国内首发-使用GLSurfaceView预览Camera 基础拍照demo

GLSurfaceView是OpenGL中的一个类，也是可以预览Camera的，而且在预览Camera上有其独到之处。独到之处在哪？当使用Surfaceview无能为力、痛不欲生时就只有使用GLSurfaceView了，它能够真正做到让Camera的数据和显示分离，所以搞明白了这个，像Camera只开预览不显示这都是小菜，妥妥的。Android4.0的自带Camera源码是用SurfaceView预览的，但到了4.2就换成了GLSurfaceView来预览。如今到了4.4又用了自家的TextureView，所以从中可以窥探出新增TextureView的用意。

虽说Android4.2的Camera源码是用GLSurfaceView预览的，但是进行了大量的封装又封装的，由于是OpenGL小白，真是看的不知所云。俺滴要求不高，只想弄个可拍照的摸清GLSurfaceView在预览Camera上的使用流程。经过一番百度一无所获，后来翻出去Google一大圈也没发现可用的。倒是很多人都在用GLSurfaceView和Surfaceview同时预览Camera，Surfaceview用来预览数据，在上面又铺了一层GLSurfaceView绘制一些信息。无奈自己摸索，整出来的是能拍照也能得到数据，但是界面上不是一块白板就是一块黑板啥都不显示。后来在stackoverflow终于找到了一个可用的链接，哈哈，苍天啊，终于柳暗花明了！参考此链接，自己又改改摸索了一天才彻底搞定。之所以费这么多时间是不明白OpenGL ES2.0的绘制基本流程，跟简单的OpenGL的绘制还是稍有区别。下面上源码:

一、CameraGLSurfaceView.java 此类继承GLSurfaceView，并实现了两个接口

package org.yanzi.camera.preview;import javax.microedition.khronos.egl.EGLConfig;import javax.microedition.khronos.opengles.GL10;import org.yanzi.camera.CameraInterface;import android.content.Context;import android.graphics.SurfaceTexture;import android.opengl.GLES11Ext;import android.opengl.GLES20;import android.opengl.GLSurfaceView;import android.opengl.GLSurfaceView.Renderer;import android.util.AttributeSet;import android.util.Log;public class CameraGLSurfaceView extends GLSurfaceView implements Renderer, SurfaceTexture.OnFrameAvailableListener {	private static final String TAG = "yanzi";	Context mContext;	SurfaceTexture mSurface;	int mTextureID = -1;	DirectDrawer mDirectDrawer;	public CameraGLSurfaceView(Context context, AttributeSet attrs) {		super(context, attrs);		// TODO Auto-generated constructor stub		mContext = context;		setEGLContextClientVersion(2);		setRenderer(this);		setRenderMode(RENDERMODE_WHEN_DIRTY);	}	@Override	public void onSurfaceCreated(GL10 gl, EGLConfig config) {		// TODO Auto-generated method stub		Log.i(TAG, "onSurfaceCreated...");		mTextureID = createTextureID();		mSurface = new SurfaceTexture(mTextureID);		mSurface.setOnFrameAvailableListener(this);		mDirectDrawer = new DirectDrawer(mTextureID);		CameraInterface.getInstance().doOpenCamera(null);	}	@Override	public void onSurfaceChanged(GL10 gl, int width, int height) {		// TODO Auto-generated method stub		Log.i(TAG, "onSurfaceChanged...");		GLES20.glViewport(0, 0, width, height);		if(!CameraInterface.getInstance().isPreviewing()){			CameraInterface.getInstance().doStartPreview(mSurface, 1.33f);		}		}	@Override	public void onDrawFrame(GL10 gl) {		// TODO Auto-generated method stub		Log.i(TAG, "onDrawFrame...");		GLES20.glClearColor(1.0f, 1.0f, 1.0f, 1.0f);		GLES20.glClear(GLES20.GL_COLOR_BUFFER_BIT | GLES20.GL_DEPTH_BUFFER_BIT);		mSurface.updateTexImage();		float[] mtx = new float[16];		mSurface.getTransformMatrix(mtx);		mDirectDrawer.draw(mtx);	}		@Override	public void onPause() {		// TODO Auto-generated method stub		super.onPause();		CameraInterface.getInstance().doStopCamera();	}	private int createTextureID()	{		int[] texture = new int[1];		GLES20.glGenTextures(1, texture, 0);		GLES20.glBindTexture(GLES11Ext.GL_TEXTURE_EXTERNAL_OES, texture[0]);		GLES20.glTexParameterf(GLES11Ext.GL_TEXTURE_EXTERNAL_OES,				GL10.GL_TEXTURE_MIN_FILTER,GL10.GL_LINEAR);        		GLES20.glTexParameterf(GLES11Ext.GL_TEXTURE_EXTERNAL_OES,				GL10.GL_TEXTURE_MAG_FILTER, GL10.GL_LINEAR);		GLES20.glTexParameteri(GLES11Ext.GL_TEXTURE_EXTERNAL_OES,				GL10.GL_TEXTURE_WRAP_S, GL10.GL_CLAMP_TO_EDGE);		GLES20.glTexParameteri(GLES11Ext.GL_TEXTURE_EXTERNAL_OES,				GL10.GL_TEXTURE_WRAP_T, GL10.GL_CLAMP_TO_EDGE);		return texture[0];	}	public SurfaceTexture _getSurfaceTexture(){		return mSurface;	}	@Override	public void onFrameAvailable(SurfaceTexture surfaceTexture) {		// TODO Auto-generated method stub		Log.i(TAG, "onFrameAvailable...");		this.requestRender();	}}

1、Renderer这个接口里有三个回调: onSurfaceCreated() onSurfaceChanged() onDrawFrame(),在onSurfaceCreated里设置了GLSurfaceView的版本: setEGLContextClientVersion(2); 如果没这个设置是啥都画不出来了，因为Android支持OpenGL ES1.1和2.0及最新的3.0，而且版本间差别很大。不告诉他版本他不知道用哪个版本的api渲染。在设置setRenderer(this);后，再设置它的模式为RENDERMODE_WHEN_DIRTY。这个也很关键，看api：

When renderMode is RENDERMODE_CONTINUOUSLY, the renderer is called repeatedly to re-render the scene. When renderMode is RENDERMODE_WHEN_DIRTY, the renderer only rendered when the surface is created, or when requestRender is called. Defaults to RENDERMODE_CONTINUOUSLY.

Using RENDERMODE_WHEN_DIRTY can improve battery life and overall system performance by allowing the GPU and CPU to idle when the view does not need to be updated.

大意是RENDERMODE_CONTINUOUSLY模式就会一直Render，如果设置成RENDERMODE_WHEN_DIRTY，就是当有数据时才rendered或者主动调用了GLSurfaceView的requestRender.默认是连续模式，很显然Camera适合脏模式，一秒30帧，当有数据来时再渲染。

2、正因是RENDERMODE_WHEN_DIRTY所以就要告诉GLSurfaceView什么时候Render，也就是啥时候进到onDrawFrame()这个函数里。SurfaceTexture.OnFrameAvailableListener这个接口就干了这么一件事，当有数据上来后会进到

public void onFrameAvailable(SurfaceTexture surfaceTexture) {
// TODO Auto-generated method stub
Log.i(TAG, "onFrameAvailable...");
this.requestRender();
}

这里，然后执行requestRender()。

3、网上有一些OpenGL ES的示例是在Activity里实现了SurfaceTexture.OnFrameAvailableListener此接口，其实这个无所谓。无论是被谁实现，关键看在回调里干了什么事。

4、与TextureView里对比可知，TextureView预览时因为实现了SurfaceTextureListener会自动创建SurfaceTexture。但在GLSurfaceView里则要手动创建同时绑定一个纹理ID。

5、本文在onSurfaceCreated()里打开Camera，在onSurfaceChanged()里开启预览，默认1.33的比例。原因是相比前两种预览，此处SurfaceTexture创建需要一定时间。如果想要开预览时由Activity发起，则要GLSurfaceView利用Handler将创建的SurfaceTexture传递给Activity。

二、DirectDrawer.java 此类非常关键，负责将SurfaceTexture内容绘制到屏幕上

package org.yanzi.camera.preview;import java.nio.ByteBuffer;import java.nio.ByteOrder;import java.nio.FloatBuffer;import java.nio.ShortBuffer;import android.opengl.GLES11Ext;import android.opengl.GLES20;import android.opengl.Matrix;public class DirectDrawer {	private final String vertexShaderCode =            "attribute vec4 vPosition;" +            "attribute vec2 inputTextureCoordinate;" +            "varying vec2 textureCoordinate;" +            "void main()" +            "{"+                "gl_Position = vPosition;"+                "textureCoordinate = inputTextureCoordinate;" +            "}";    private final String fragmentShaderCode =            "#extension GL_OES_EGL_image_external : require\n"+            "precision mediump float;" +            "varying vec2 textureCoordinate;\n" +            "uniform samplerExternalOES s_texture;\n" +            "void main() {" +            "  gl_FragColor = texture2D( s_texture, textureCoordinate );\n" +            "}";    private FloatBuffer vertexBuffer, textureVerticesBuffer;    private ShortBuffer drawListBuffer;    private final int mProgram;    private int mPositionHandle;    private int mTextureCoordHandle;    private short drawOrder[] = { 0, 1, 2, 0, 2, 3 }; // order to draw vertices    // number of coordinates per vertex in this array    private static final int COORDS_PER_VERTEX = 2;    private final int vertexStride = COORDS_PER_VERTEX * 4; // 4 bytes per vertex    static float squareCoords[] = {       -1.0f,  1.0f,       -1.0f, -1.0f,        1.0f, -1.0f,        1.0f,  1.0f,    };    static float textureVertices[] = {        0.0f, 1.0f,        1.0f, 1.0f,        1.0f, 0.0f,        0.0f, 0.0f,    };    private int texture;    public DirectDrawer(int texture)    {        this.texture = texture;        // initialize vertex byte buffer for shape coordinates        ByteBuffer bb = ByteBuffer.allocateDirect(squareCoords.length * 4);        bb.order(ByteOrder.nativeOrder());        vertexBuffer = bb.asFloatBuffer();        vertexBuffer.put(squareCoords);        vertexBuffer.position(0);        // initialize byte buffer for the draw list        ByteBuffer dlb = ByteBuffer.allocateDirect(drawOrder.length * 2);        dlb.order(ByteOrder.nativeOrder());        drawListBuffer = dlb.asShortBuffer();        drawListBuffer.put(drawOrder);        drawListBuffer.position(0);        ByteBuffer bb2 = ByteBuffer.allocateDirect(textureVertices.length * 4);        bb2.order(ByteOrder.nativeOrder());        textureVerticesBuffer = bb2.asFloatBuffer();        textureVerticesBuffer.put(textureVertices);        textureVerticesBuffer.position(0);        int vertexShader    = loadShader(GLES20.GL_VERTEX_SHADER, vertexShaderCode);        int fragmentShader  = loadShader(GLES20.GL_FRAGMENT_SHADER, fragmentShaderCode);        mProgram = GLES20.glCreateProgram();             // create empty OpenGL ES Program        GLES20.glAttachShader(mProgram, vertexShader);   // add the vertex shader to program        GLES20.glAttachShader(mProgram, fragmentShader); // add the fragment shader to program        GLES20.glLinkProgram(mProgram);                  // creates OpenGL ES program executables    }    public void draw(float[] mtx)    {        GLES20.glUseProgram(mProgram);        GLES20.glActiveTexture(GLES20.GL_TEXTURE0);        GLES20.glBindTexture(GLES11Ext.GL_TEXTURE_EXTERNAL_OES, texture);        // get handle to vertex shader's vPosition member        mPositionHandle = GLES20.glGetAttribLocation(mProgram, "vPosition");        // Enable a handle to the triangle vertices        GLES20.glEnableVertexAttribArray(mPositionHandle);        // Prepare the <insert shape here> coordinate data        GLES20.glVertexAttribPointer(mPositionHandle, COORDS_PER_VERTEX, GLES20.GL_FLOAT, false, vertexStride, vertexBuffer);        mTextureCoordHandle = GLES20.glGetAttribLocation(mProgram, "inputTextureCoordinate");        GLES20.glEnableVertexAttribArray(mTextureCoordHandle);        //        textureVerticesBuffer.clear();//        textureVerticesBuffer.put( transformTextureCoordinates( textureVertices, mtx ));//        textureVerticesBuffer.position(0);        GLES20.glVertexAttribPointer(mTextureCoordHandle, COORDS_PER_VERTEX, GLES20.GL_FLOAT, false, vertexStride, textureVerticesBuffer);        GLES20.glDrawElements(GLES20.GL_TRIANGLES, drawOrder.length, GLES20.GL_UNSIGNED_SHORT, drawListBuffer);        // Disable vertex array        GLES20.glDisableVertexAttribArray(mPositionHandle);        GLES20.glDisableVertexAttribArray(mTextureCoordHandle);    }        private  int loadShader(int type, String shaderCode){        // create a vertex shader type (GLES20.GL_VERTEX_SHADER)        // or a fragment shader type (GLES20.GL_FRAGMENT_SHADER)        int shader = GLES20.glCreateShader(type);        // add the source code to the shader and compile it        GLES20.glShaderSource(shader, shaderCode);        GLES20.glCompileShader(shader);        return shader;    }    private float[] transformTextureCoordinates( float[] coords, float[] matrix)    {                 float[] result = new float[ coords.length ];               float[] vt = new float[4];             for ( int i = 0 ; i < coords.length ; i += 2 ) {           float[] v = { coords[i], coords[i+1], 0 , 1  };           Matrix.multiplyMV(vt, 0, matrix, 0, v, 0);           result[i] = vt[0];           result[i+1] = vt[1];       }       return result;    }}

	@Override	protected void onResume() {		// TODO Auto-generated method stub		super.onResume();		glSurfaceView.bringToFront();	}	@Override	protected void onPause() {		// TODO Auto-generated method stub		super.onPause();		glSurfaceView.onPause();	}

    <FrameLayout        android:layout_width="wrap_content"        android:layout_height="wrap_content" >        <org.yanzi.camera.preview.CameraGLSurfaceView            android:id="@+id/camera_textureview"            android:layout_width="0dip"            android:layout_height="0dip" />    </FrameLayout>

注意事项:

1、在onDrawFrame()里，如果不调用mDirectDrawer.draw(mtx);是啥都显示不出来的！！！这是GLSurfaceView的特别之处。为啥呢？因为GLSurfaceView不是Android亲生的，而Surfaceview和TextureView是。所以得自己按照OpenGL ES的流程画。

2、究竟mDirectDrawer.draw(mtx)里在哪获取的Buffer目前杂家还么看太明白，貌似么有请求buffer，而是根据GLSurfaceView里创建的SurfaceTexture之前，生成的有个纹理ID。这个纹理ID一方面跟SurfaceTexture是绑定在一起的，另一方面跟DirectDrawer绑定，而SurfaceTexture作渲染载体。

3、参考链接里有,有人为了解决问题，给出了下面三段代码:

@Overridepublic void onDrawFrame(GL10 gl){    float[] mtx = new float[16];    mSurface.updateTexImage();    mSurface.getTransformMatrix(mtx);        mDirectVideo.draw(mtx);}

 private float[] transformTextureCoordinates( float[] coords, float[] matrix) {              float[] result = new float[ coords.length ];            float[] vt = new float[4];          for ( int i = 0 ; i < coords.length ; i += 2 ) {        float[] v = { coords[i], coords[i+1], 0 , 1  };        Matrix.multiplyMV(vt, 0, matrix, 0, v, 0);        result[i] = vt[0];        result[i+1] = vt[1];    }    return result; }

textureVerticesBuffer.clear();textureVerticesBuffer.put( transformTextureCoordinates( textureVertices, mtx ));textureVerticesBuffer.position(0);

然后将此矩阵传递给draw()，在draw的时候对textureVerticesBuffer作一个变化，然后再画。

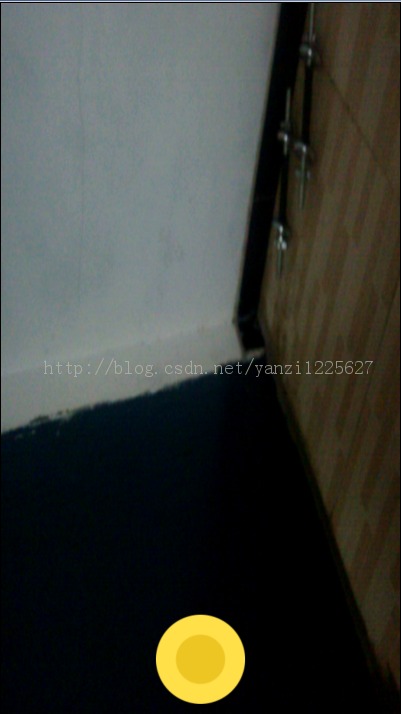

下图是未加这个矩阵变换效果时:

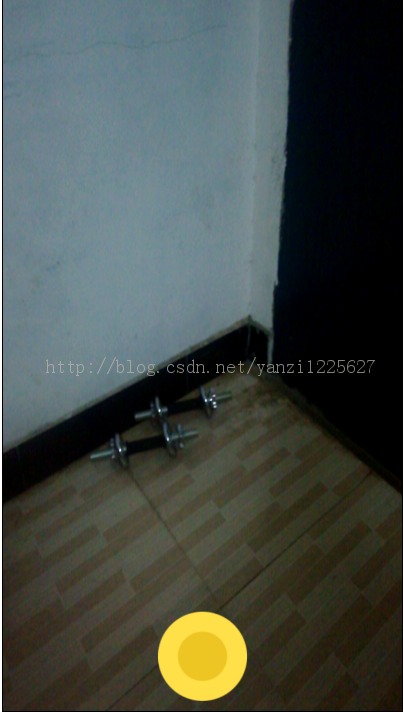

下图为使用了变换矩阵，划片扭曲的还真说不上来咋扭曲的，但足以说明OpenGL ES在渲染效果上的强大，就是设置了个矩阵，不用一帧帧处理，就能得到不一样显示效果。

-----------------------------本文系原创，转载请注明作者yanzi1225627
