LZ最近接手公司一个项目，需要写一个圆形的旋转菜单，并且支持菜单之间的移动换位，本来以为这种demo应该网上是很多的，想不到度娘也是帮不了我，空有旋转功能但是却不能换位置，所以LZ就只能靠自己摸索了。
最终LZ参考了网上的部分代码，重写了一个自定义的view终于实现了这个看似很吊，却没有实际意义的功能。在此贡献出来给广大码农们共享。
话不多说，先上代码：
自定义view类：
public class RoundSpinView extends View { private Paint mPaint = new Paint(); private PaintFlagsDrawFilter pfd; private int startMenu; //菜单的第一张图片的资源id // stone列表 private BigStone[] mStones; // 数目 private static final int STONE_COUNT = 3; // 圆心坐标 private int mPointX = 0, mPointY = 0; // 半径 private int mRadius = 0; // 每两个点间隔的角度 private int mDegreeDelta; private int menuRadius; // 菜单的半径 private int mCur = -1; // 正在被移动的menu; private boolean[] quadrantTouched; //对每个象限触摸情况的记录 // Touch detection private GestureDetector mGestureDetector; private onRoundSpinViewListener mListener; //自定义事件监听器 private final static int TO_ROTATE_BUTTON = 0; //旋转按钮； private Handler handler = new Handler(){ public void handleMessage(Message msg) { switch (msg.what) { case TO_ROTATE_BUTTON: float velocity = Float.parseFloat(msg.obj.toString()); rotateButtons(velocity/75); velocity /= 1.0666F; new Thread(new FlingRunnable(velocity)).start(); break; default: break; } }; }; public interface onRoundSpinViewListener{ public void onSingleTapUp(int position); //监听每个菜单的单击事件 } public RoundSpinView(Context context,AttributeSet attrs) { super(context,attrs); if(attrs!=null){ TypedArray a = getContext().obtainStyledAttributes(attrs, R.styleable.RoundSpinView); startMenu = a.getResourceId(R.styleable.RoundSpinView_menuStart, 0); } pfd = new PaintFlagsDrawFilter(0, Paint.ANTI_ALIAS_FLAG|Paint.FILTER_BITMAP_FLAG); mPaint.setColor(Color.WHITE); mPaint.setStrokeWidth(2); mPaint.setAntiAlias(true); //消除锯齿 mPaint.setStyle(Paint.Style.STROKE); //绘制空心圆 PathEffect effects = new DashPathEffect(new float[]{5,5,5,5},1); mPaint.setPathEffect(effects); quadrantTouched = new boolean[] { false, false, false, false, false }; mGestureDetector = new GestureDetector(getContext(), new MyGestureListener()); setupStones(); } @Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { // TODO Auto-generated method stub super.onMeasure(widthMeasureSpec, heightMeasureSpec); mPointX = this.getMeasuredWidth()/2; mPointY = this.getMeasuredHeight()/2; //初始化半径和菜单半径 mRadius = mPointX-mPointX/5; menuRadius = (int)(mPointX/5.5); computeCoordinates(); } /** * 初始化每个点 */ private void setupStones() { mStones = new BigStone[STONE_COUNT]; BigStone stone; int angle = 270; mDegreeDelta = 360 / STONE_COUNT; for (int index = 0; index < STONE_COUNT; index++) { stone = new BigStone(); if (angle >= 360) { angle -= 360; }else if(angle < 0){ angle += 360; } stone.angle = angle; stone.bitmap = BitmapFactory.decodeResource(getResources(), startMenu + index); angle += mDegreeDelta; mStones[index] = stone; } } /** * 重新计算每个点的角度 */ private void resetStonesAngle(float x, float y) { int angle = computeCurrentAngle(x, y); Log.d("RoundSpinView", "angle:" + angle); for (int index = 0; index < STONE_COUNT; index++) { mStones[index].angle = angle; angle += mDegreeDelta; } } /** * 计算每个点的坐标 */ private void computeCoordinates() { BigStone stone; for (int index = 0; index < STONE_COUNT; index++) { stone = mStones[index]; stone.x = mPointX + (float) (mRadius * Math.cos(Math.toRadians(stone.angle))); stone.y = mPointY + (float) (mRadius * Math.sin(Math.toRadians(stone.angle))); } } /** * 计算某点的角度 * * @param x * @param y * @return */ private int computeCurrentAngle(float x, float y) { float distance = (float) Math .sqrt(((x - mPointX) * (x - mPointX) + (y - mPointY) * (y - mPointY))); int degree = (int) (Math.acos((x - mPointX) / distance) * 180 / Math.PI); if (y < mPointY) { degree = -degree; } Log.d("RoundSpinView", "x:" + x + ",y:" + y + ",degree:" + degree); return degree; } private double startAngle; @Override public boolean dispatchTouchEvent(MotionEvent event) { // resetStonesAngle(event.getX(), event.getY()); // computeCoordinates(); // invalidate(); int x, y; if (event.getAction() == MotionEvent.ACTION_DOWN) { x = (int) event.getX(); y = (int) event.getY(); mCur = getInCircle(x, y); if (mCur == -1) { startAngle = computeCurrentAngle(x, y); } } else if (event.getAction() == MotionEvent.ACTION_MOVE) { x = (int) event.getX(); y = (int) event.getY(); if (mCur != -1) { mStones[mCur].x = x; mStones[mCur].y = y; invalidate(); } else { double currentAngle = computeCurrentAngle(x, y); rotateButtons(startAngle - currentAngle); startAngle = currentAngle; } } else if (event.getAction() == MotionEvent.ACTION_UP) { x = (int) event.getX(); y = (int) event.getY(); if (mCur != -1) { computeCoordinates(); int cur = getInCircle(x, y); if (cur != mCur && cur != -1) { int angle = mStones[mCur].angle; mStones[mCur].angle = mStones[cur].angle; mStones[cur].angle = angle; } computeCoordinates(); invalidate(); mCur = -1; } } // set the touched quadrant to true quadrantTouched[getQuadrant(event.getX() - mPointX, mPointY - event.getY())] = true; mGestureDetector.onTouchEvent(event); return true; } private class MyGestureListener extends SimpleOnGestureListener { @Override public boolean onFling(MotionEvent e1, MotionEvent e2, float velocityX, float velocityY) { // get the quadrant of the start and the end of the fling int q1 = getQuadrant(e1.getX() - mPointX, mPointY - e1.getY()); int q2 = getQuadrant(e2.getX() - mPointX, mPointY - e2.getY()); // the inversed rotations if ((q1 == 2 && q2 == 2 && Math.abs(velocityX) < Math .abs(velocityY)) || (q1 == 3 && q2 == 3) || (q1 == 1 && q2 == 3) || (q1 == 4 && q2 == 4 && Math.abs(velocityX) > Math .abs(velocityY)) || ((q1 == 2 && q2 == 3) || (q1 == 3 && q2 == 2)) || ((q1 == 3 && q2 == 4) || (q1 == 4 && q2 == 3)) || (q1 == 2 && q2 == 4 && quadrantTouched[3]) || (q1 == 4 && q2 == 2 && quadrantTouched[3])) { // CircleLayout.this.post(new FlingRunnable(-1 // * (velocityX + velocityY))); new Thread(new FlingRunnable(velocityX+velocityY)).start(); } else { // the normal rotation // CircleLayout.this // .post(new FlingRunnable(velocityX + velocityY)); new Thread(new FlingRunnable(-(velocityX+velocityY))).start(); } return true; } @Override public boolean onSingleTapUp(MotionEvent e) { int cur = getInCircle((int)e.getX(),(int)e.getY()); if(cur!=-1){ if(mListener!=null){ mListener.onSingleTapUp(cur); }// Toast.makeText(getContext(), "position:"+cur, 0).show(); return true; } return false; } } private class FlingRunnable implements Runnable{ private float velocity; public FlingRunnable(float velocity){ this.velocity = velocity; } @Override public void run() { // TODO Auto-generated method stub if(Math.abs(velocity)>=200){ Message message = Message.obtain(); message.what = TO_ROTATE_BUTTON; message.obj = velocity; handler.sendMessage(message); } } } /** * @return The selected quadrant. */ private static int getQuadrant(double x, double y) { if (x >= 0) { return y >= 0 ? 1 : 4; } else { } return y >= 0 ? 2 : 3; } /* * 旋转菜单按钮 */ private void rotateButtons(double degree) { for (int i = 0; i < STONE_COUNT; i++) { mStones[i].angle -= degree; if (mStones[i].angle < 0) { mStones[i].angle += 360; }else if(mStones[i].angle >=360){ mStones[i].angle -= 360; } } computeCoordinates(); invalidate(); } @Override public void onDraw(Canvas canvas) { //画一个白色的圆环 canvas.drawCircle(mPointX, mPointY, mRadius, mPaint); //将每个菜单画出来 for (int index = 0; index < STONE_COUNT; index++) { if (!mStones[index].isVisible) continue; drawInCenter(canvas, mStones[index].bitmap, mStones[index].x, mStones[index].y); } } /** * 把中心点放到中心处 * * @param canvas * @param bitmap * @param left * @param top */ private void drawInCenter(Canvas canvas, Bitmap bitmap, float left, float top) { Rect dst = new Rect(); dst.left = (int) (left - menuRadius); dst.right = (int) (left + menuRadius); dst.top = (int) (top - menuRadius); dst.bottom = (int) (top + menuRadius); canvas.setDrawFilter(pfd); canvas.drawBitmap(bitmap, null, dst, mPaint); } private int getInCircle(int x, int y) { for (int i = 0; i < STONE_COUNT; i++) { BigStone stone = mStones[i]; int mx = (int) stone.x; int my = (int) stone.y; if (((x - mx) * (x - mx) + (y - my) * (y - my)) < menuRadius * menuRadius) { return i; } } return -1; } public void setOnRoundSpinViewListener(onRoundSpinViewListener listener){ this.mListener = listener; } class BigStone { // 图片 Bitmap bitmap; // 角度 int angle; // x坐标 float x; // y坐标 float y; // 是否可见 boolean isVisible = true; }}layout文件代码：<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:app="http://schemas.android.com/apk/res-auto" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" > <com.example.roundspinviewdemo.view.RoundSpinView android:id="@+id/rsv_test" android:layout_width="match_parent" android:layout_height="match_parent" android:layout_gravity="center" android:background="@drawable/menubkground" app:menuStart="@drawable/menu1" /></LinearLayout>注意：必须加上这一条 ：
xmlns:app="http://schemas.android.com/apk/res-auto"
<?xml version="1.0" encoding="utf-8"?><resources> <!-- 设置旋转菜单对应的第一张图片 --> <declare-styleable name="RoundSpinView"> <attr name="menuStart" format="reference" /> </declare-styleable></resources>
public class MainActivity extends Activity implements onRoundSpinViewListener { private RoundSpinView rsv_test; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); initView(); } private void initView(){ rsv_test = (RoundSpinView)this.findViewById(R.id.rsv_test); rsv_test.setOnRoundSpinViewListener(this); } @Override public void onSingleTapUp(int position) { // TODO Auto-generated method stub switch (position) { case 0: Toast.makeText(MainActivity.this, "place:0", 0).show(); break; case 1: Toast.makeText(MainActivity.this, "place:1", 0).show(); break; case 2: Toast.makeText(MainActivity.this, "place:2", 0).show(); break; default: break; } }}注意：rsv_test.setOnRoundSpinViewListener(this);对自定义view的自定义监听器进行赋值

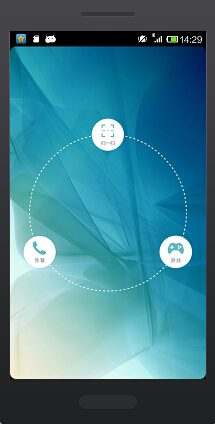

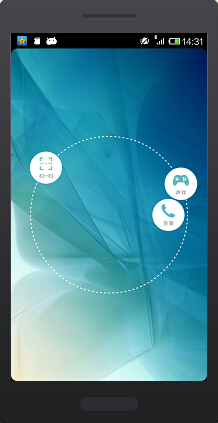

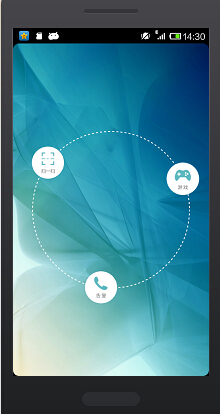

至此，你的项目就可以拥有看上去很高大上的旋转换位菜单功能
这里附上此demo对应的资源链接：点击打开链接
