android事件多图详解

最初向要研究android事件的一些机制,是源于MultiDirectionSlidingDrawer这个widget中handler中

放置的按钮点击无效.我想可能是我用的widget没有把这个事件传播给子view吧.于是想认真的研究下android

中事件传播机制.

这里有一往篇篇文章讲得很不错:

orgcent.com/android-touch-event-mechanism/

可惜我在很多地方现在访问不了,所以在此我根据上面的思想.于是我自己实验实验.

自己用的代码如下:

布局:main.xml

?

<?xml version="1.0" encoding="utf-8"?><cn.ditouch.eventtest.widget.MyLinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="fill_parent"    android:layout_height="fill_parent"    android:orientation="vertical" >    <cn.ditouch.eventtest.widget.MyButton        android:layout_width="fill_parent"        android:layout_height="wrap_content"        android:text="hello android event!" /> </cn.ditouch.eventtest.widget.MyLinearLayout>

?

activity:

?

package cn.ditouch.eventtest; import android.app.Activity;import android.os.Bundle;import android.util.Log;import android.view.MotionEvent; public class AndroidEventTestActivity extends Activity {    private static final String TAG = "AndroidEventTestActivity";     /** Called when the activity is first created. */    @Override    public void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        setContentView(R.layout.main);    }     @Override    public boolean onTouchEvent(MotionEvent event) {        boolean flag = super.onTouchEvent(event);        Log.i(TAG, flag + " onTouchEvent:" + event.toString());        return flag;    }     @Override    public boolean dispatchTouchEvent(MotionEvent ev) {        boolean flag = super.dispatchTouchEvent(ev);        Log.i(TAG, flag + " dispatchTouchEvent:" + ev.toString());        return flag;    } }

?

?

?

MyLinearLayout:

?

package cn.ditouch.eventtest.widget; import android.content.Context;import android.util.AttributeSet;import android.util.Log;import android.view.MotionEvent;import android.widget.LinearLayout; public class MyLinearLayout extends LinearLayout {    private static final String TAG = "MyLinearLayout";     public MyLinearLayout(Context context) {        super(context);    }     public MyLinearLayout(Context context, AttributeSet attrs) {        super(context, attrs);    }     @Override    public boolean onInterceptTouchEvent(MotionEvent ev) {        boolean flag = super.onInterceptTouchEvent(ev);        Log.i(TAG, flag + " onInterceptTouchEvent:" + ev.toString());        return flag;    }     @Override    public boolean onTouchEvent(MotionEvent event) {        boolean flag = super.onTouchEvent(event);        Log.i(TAG, flag + " onTouchEvent:" + event.toString());        return flag;    } }

?

?

MyButton:

?

package cn.ditouch.eventtest.widget; import android.content.Context;import android.util.AttributeSet;import android.util.Log;import android.view.MotionEvent;import android.widget.Button; public class MyButton extends Button {    private static final String TAG = "MyButton";     public MyButton(Context context, AttributeSet attrs) {        super(context, attrs);    }     @Override    public boolean onTouchEvent(MotionEvent event) {        boolean flag = super.onTouchEvent(event);        Log.i(TAG, flag + " onTouchEvent:" + event.toString());        return flag;    } }

?

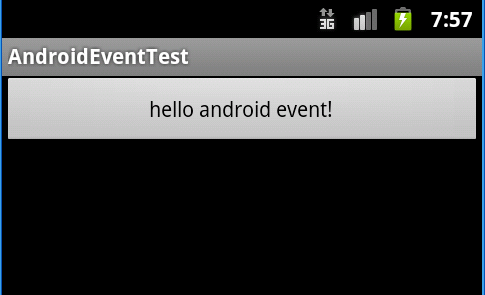

下面是运行时候的几个截图:(注意我是用模拟器的.目前没有在真机上试过,木有真机用啊!)

为了方便大家看action:下面列出一些常量的值 :

?

0 ACTION_DOWN1 ACTION_UP2 ACTION_MOVE3 ACTION_CANCEL4 ACTION_OUTSIDE8 ACTION_SCROLL

?

?

?

运行截图:?

(一)上面默认代码的一些事件:

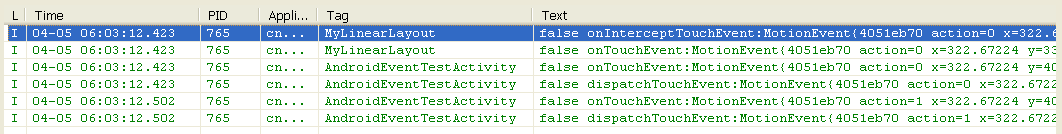

1.在MyLinearLayout上点击.

对于action=0,即ACTION_DOWN事件的传播顺序是:

ViewGroup:onInterceptTouchEvent()->ViewGroup:onTouchEvent()->Activity:onTouchEvent()

对于 action=1,即ACTION_UP的传播顺序为:(注,这个结果与前面的ViewGroup的返回值为false有关)

Activity:onTouchEvent()

上面都是在默认情况下的结果,其中最关键的默认就是MyLinearLayout:onInterceptTouchEvent()返回了false;

dispatchTouchEvent()在下面再详细解释:

下面先学习点理论再继续实验研究:

看下ViewGroup:onInterceptTouchEvent(MotionEvent)的说明文档如下(基于android2.2源代码):

?

/** * Implement this method to intercept all touch screen motion events.  This * allows you to watch events as they are dispatched to your children, and * take ownership of the current gesture at any point. * * <p>Using this function takes some care, as it has a fairly complicated * interaction with {<a href="http://my.oschina.net/link1212" class="referer" target="_blank">@link</a> View#onTouchEvent(MotionEvent) * View.onTouchEvent(MotionEvent)}, and using it requires implementing * that method as well as this one in the correct way.  Events will be * received in the following order: * * <ol> * <li> You will receive the down event here. * <li> The down event will be handled either by a child of this view * group, or given to your own onTouchEvent() method to handle; this means * you should implement onTouchEvent() to return true, so you will * continue to see the rest of the gesture (instead of looking for * a parent view to handle it).  Also, by returning true from * onTouchEvent(), you will not receive any following * events in onInterceptTouchEvent() and all touch processing must * happen in onTouchEvent() like normal. * <li> For as long as you return false from this function, each following * event (up to and including the final up) will be delivered first here * and then to the target's onTouchEvent(). * <li> If you return true from here, you will not receive any * following events: the target view will receive the same event but * with the action {<a href="http://my.oschina.net/link1212" class="referer" target="_blank">@link</a> MotionEvent#ACTION_CANCEL}, and all further * events will be delivered to your onTouchEvent() method and no longer * appear here. * </ol> * * @param ev The motion event being dispatched down the hierarchy. * @return Return true to steal motion events from the children and have * them dispatched to this ViewGroup through onTouchEvent(). * The current target will receive an ACTION_CANCEL event, and no further * messages will be delivered here. */public boolean onInterceptTouchEvent(MotionEvent ev) {    return false;}

?

个人简单翻译理解如下:

?

?

public boolean onInterceptTouchEvent(MotionEvent ev) 实现以方法以拦截屏幕上所有的touch事件.它可以让你监视转发到你的子View中的事件,并在任何点取得当前手势的所有权. 使用这个方法需要注意几点,因为它与View.onTouchEvent(MotionEvent)的交互比较复杂.使用onTouchEvent(MotionEvent) 需要你以正确的方式实现onInterceptTouchEvent().事件会以下面的顺序接收:

?1.onInterceptTouchEvent()发接收到down事件.?

?2.这个down事件,会被这个ViewGroup的子View处理,或者传递给你自己的onTouchEvent()来处理.这意味着你必须实现onTouchEvent()并返回true,这样你才可以收到其余的手势.(而不是寻找一个父view去处理.),同样,如果你在onTouchEvent(),返回true,你在onInterceptTouchEvent()就不会收到接下来的事件,所以的touch事件都要在onTouchEvent()正确处理.?

3.只要你从onInterceptTouchEvent(MotionEvent)返回false,每一个后续事件(包括到最后的up事件.)将被首先传送到此方法中,然后现到目标的onTouchEvent().?

4.如果你在此处返回true,此无法接收到后续的其它事件了,目标对象会接收到相同的事件除了ACTION_CANCEL动作.同时所以其它后续事件将传递给你的onTouchEvent()方法,而不会再出现在这个方法中了.?

返回值 : 返回true会将motion事件从子View偷走.并把他们转发到这个ViewGroup的onTouchEvent()方法.当前的目标对象将接收到一个ACTION_CANCEL事件.后续事件也不会父传播到这里了.

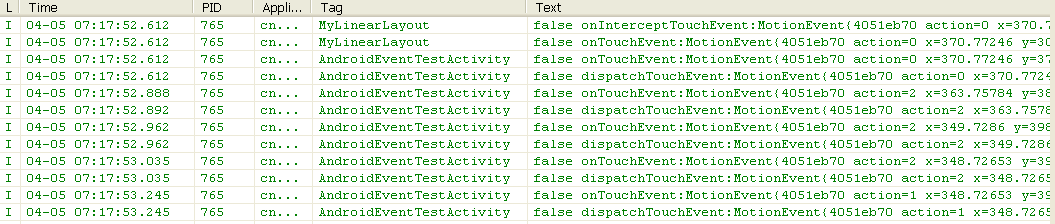

看了理论,对照下再看下有多个输出的在MyLinearLayout上移动的输出结果:

看上面的图还需要了解这样一个概念.后面的事件都没有再经过onInterceptTouchEvent()了.

后面的输入就用android事件的消费概念来解释了.即当MyLinearLayout的onTouchEvent()返回false时,也就是说MyLinearLayout没有不想消费事件.所以后面的事件都直接传递到AndroidEventTestActivity中去了. Acitivty也不消费.这个事件就将被丢弃.

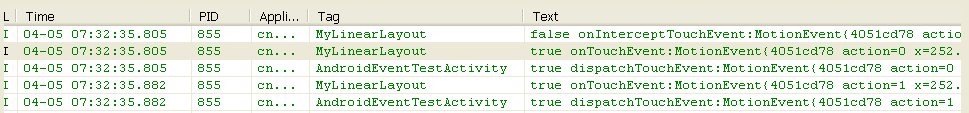

下面在MyLinearLayout:onTouchEvent()返回true看输入结果,应该是都后续事件传递到此方法中:

?

@Overridepublic boolean onTouchEvent(MotionEvent event) {    boolean flag = super.onTouchEvent(event);    Log.i(TAG, flag + " onTouchEvent:" + event.toString());    return true;}

??

?

因为MyLinearLayout返回了true表示要消费事件.所以后面的事件都将会传递到MyLinearLayout:onTouchEvent()中.

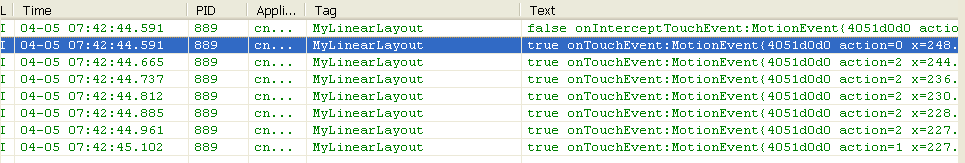

为了更好的看清楚这个返回了true表示消费.现在暂时将dispatchTouchEvent()输出去掉.并移动:

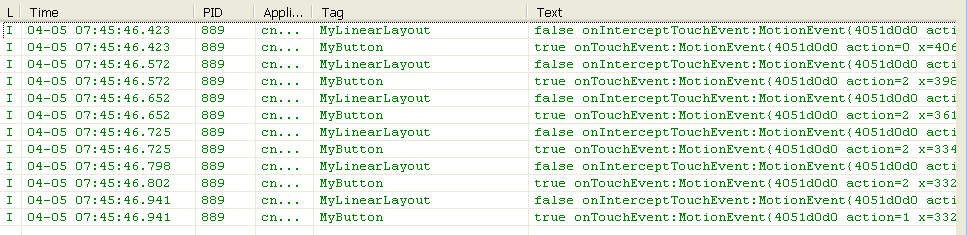

为了更好理解传递消费的传递再看一个在MyButton上移动的事件结果:

这个与在MyLinearLayout上移动,最大的区别就是,由于是在MyLinearLayout中实现的拦截方法onInterceptTouchEvent().

在MyLinearLayout中的onTouchEvent()表示要消费touch事件之后.onTouchEvent()就一直接收到事件,而事件没有经过onInterceptTouchEvent()了.但是在MyButton()上移动之后.每次都会经过MyLinearLayout的拦截方法onInterceptTouchEvent().虽然MyLinearLayout中的onTouchEvent()也将表示对消费事件感兴趣.但事件根本没有经过他了.

?

如果我们有这样的需求.因为Button上的onTouchEvent()其实是在其父类TextView中的实现的.我们想实现虽然是在子View中范围中事件,但我们还是想让它把事件传递给父ViewGroup.这个时候应该怎么办呢?

在onInterceptTouchEvent()中返回true.表示拦截事件.

?

@Overridepublic boolean onInterceptTouchEvent(MotionEvent ev) {    boolean flag = true;    Log.i(TAG, flag + " onInterceptTouchEvent:" + ev.toString());    return flag;}

?

并在onTouchEvent()中处理事件,结果如下:

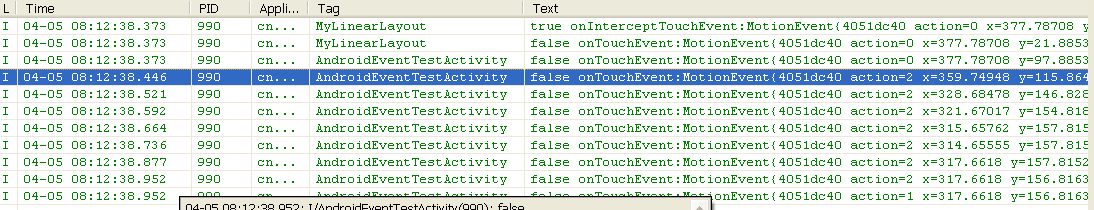

如果MyLinearLayout拦截了些事件但是又不想消费此事件即在onTouchEvent()中返回false,则结果如下(虽然是在MyButton

中移动,且MyButton也表示想要消费此事件)

?

通过上面的介绍与实验我相信对于onInterceptTouchEvent()与的用法,及其与onTouchEvent()的关系,及android事件的消费机制有了很好的理解了.

?

下面就回去开始我们忽略的dispatchTouchEvent()方法吧.
首先看android中文档,源自android2.2源代码:

?

/** * Called to process touch screen events.  You can override this to * intercept all touch screen events before they are dispatched to the * window.  Be sure to call this implementation for touch screen events * that should be handled normally. *  * @param ev The touch screen event. *  * @return boolean Return true if this event was consumed. */public boolean dispatchTouchEvent(MotionEvent ev) {    if (ev.getAction() == MotionEvent.ACTION_DOWN) {        onUserInteraction();    }    if (getWindow().superDispatchTouchEvent(ev)) {        return true;    }    return onTouchEvent(ev);}

?

简单理解如下:

?

用于处理触屏事件,你可以重写此方法可以在所有触屏事件转发到窗口前将其拦截.

对于想通过常规方法处理的触屏事件,请确保调用此实现方法.

返回true表示此方法被消费.

通过查看源代码:

Activity:dispatchTouchEvent()其实就是:

?return false;

?

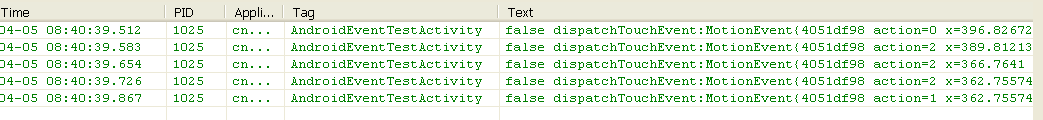

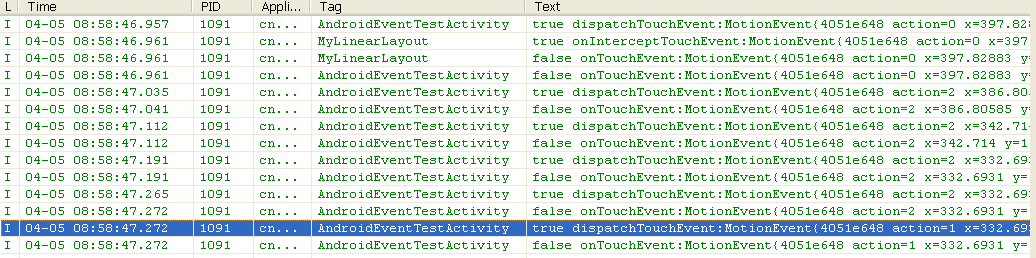

如果在dispatchTouchEvent()中返回true,并不调用其父类的方法那么在屏幕中移动结果如下:

?

好吧,现在知道其实最最先掌握事件的是Acitivity的dispatchTouchEvent()方法了吧.

?

当代码如下时:

?

@Overridepublic boolean dispatchTouchEvent(MotionEvent ev) {    boolean flag = true;    Log.i(TAG, flag + " dispatchTouchEvent:" + ev.toString());    super.dispatchTouchEvent(ev);    return flag;}

?

?

在屏幕上移动的结果如下:

?

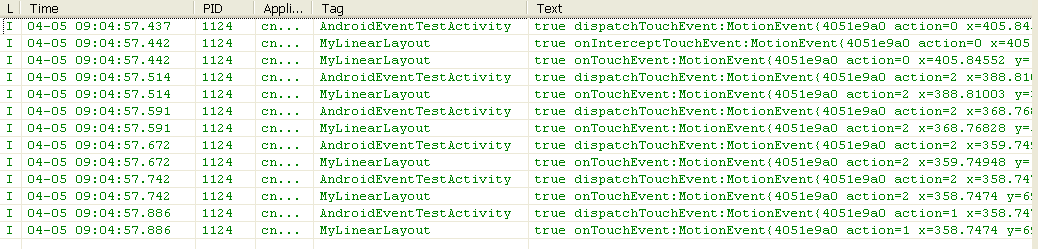

? 当MyLinearLayout的onTouchEvent()返回true时,移动输出结果如下:

到此.经过半天实验,对于android的事件,机制,onInterceptTouchEvent()方法,onDispatchTouchEvent()方法有了很好的了解了.

还有一个问题就是,MotionEvent中并不包括事件来源的最顶层View的信息.还要靠自己去解决.

另外一个注意的地方就是.在移动事件中,多个MotionEvent其实是一个.同一个MotionEvent对象.从其中的hastCode如上面的4051e9a0都是一样就可以知道了.MotionEvent文档中对此也有说明,请参考!
