Android Material Design 详解(使用support v7兼容5.0以次系统)

热度:106   发布时间:2016-04-28 03:20:20.0
Android Material Design 详解(使用support v7兼容5.0以下系统)

Material Design是Google在2014年的I/O大会上推出的全新设计语言。Material Design是基于Android 5.0(API level 21)的,兼容5.0以下的设备时需要使用版本号v21.0.0以上的support v7包中的appcpmpat,不过遗憾的是support包只支持Material Design的部分特性。使用eclipse或Android Studio进行开发时,直接在Android SDK Manager中将Extras->Android Support Library升级至最新版即可。目前最新版本为:

com.android.support:appcompat-v7:21.0.3

本文中示例程序使用minSdkVersion=14,即属于使用support包实现Material Design风格。

使用Material Design的步骤:

一、使用Material主题

1.创建一个Android应用,应用主题Theme.AppCompat(或其子主题,如Theme.AppCompat.Light.DarkActionBar)

2.自定义程序所使用的主题的某些属性,示例:

<style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">        <!--ActionBar的颜色-->        <item name="colorPrimary">@color/primary</item>        <!-- 随主题而改变的颜色(如CheckBox的颜色)-->        <item name="colorAccent">@color/accent</item>        <!--状态栏的颜色 (使用support包时似乎无效。)-->        <item name="colorPrimaryDark">@color/primary_dark</item>        <!--ActionBar的样式-->        <item name="actionBarStyle">@style/AppTheme.ActionBarStyle</item>    </style>    <style name="AppTheme.ActionBarStyle" parent="Widget.AppCompat.ActionBar.Solid">        <item name="android:titleTextStyle">@style/AppTheme.ActionBar.TitleTextStyle</item>    </style>    <style name="AppTheme.ActionBar.TitleTextStyle" parent="@style/TextAppearance.AppCompat.Widget.ActionBar.Title">        <!--ActionBar标题文字颜色-->        <item name="android:textColor">@android:color/white</item>    </style>
3.所有需要使用ActionBar的Activity必须继承自ActionBarActivity,因为即使使用了类似Theme.AppCompat.Light.DarkActionBar这样的主题,系统也不会自动添加ActionBar.

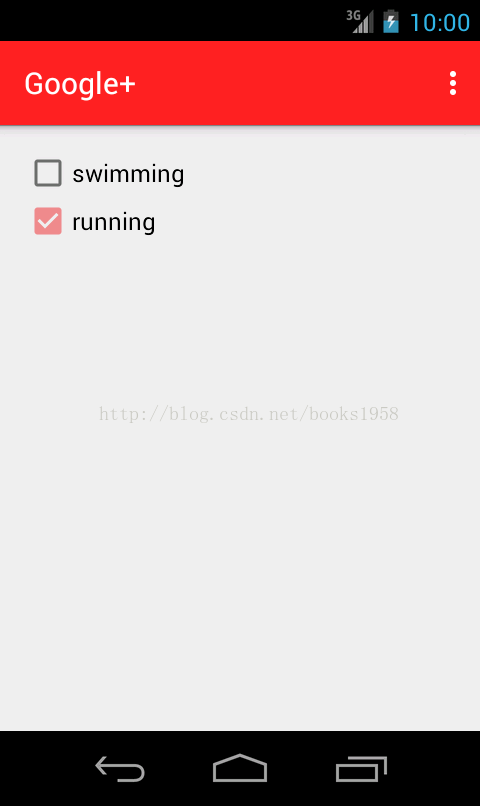

效果图:生气



相对于普通的ActionBar的变化:

(1)右侧三个小点的样式变了。(这个无所谓。。。)

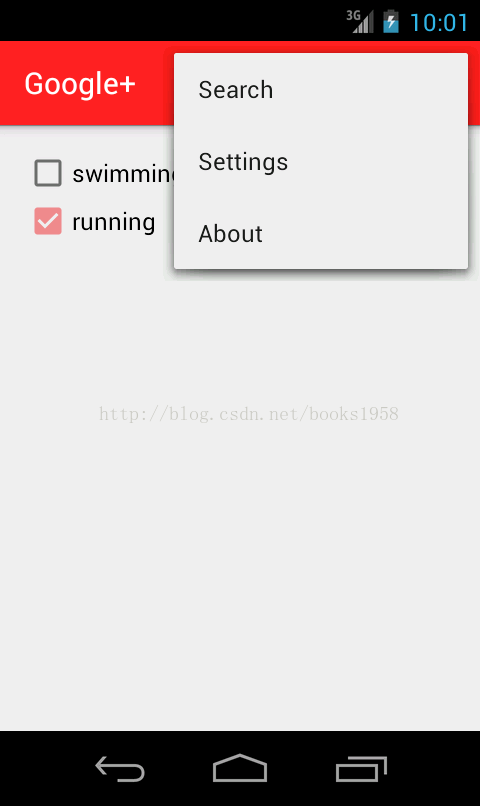

(2)点击右侧三个小点(更多)时,下拉菜单不是从ActionBar的下面开始展开,而是直接从ActionBar之上开始!也许的确有办法把它改成旧的样式,不过查阅官方文档之后发现,Google对此的解释是:菜单是一个临时展现给用户的组件,因此应该悬浮在上面。也就是说,新的设计规则推荐的就是这种默认的样式。

二、使用RecyclerView

RecyclerView是Google在support v7包中提供的一个全新的组件。该组件是一个增强版的ListView,新特性:

1.提高了性能;

2.adapter中自动进行item复用,也就是说,以前的这种繁琐的写法不需要了:

if (convertView == null) {            convertView = LayoutInflater.from(context).inflate(R.layout.friends_item, parent, false);            holder = new ViewHolder();            holder.nameTV = (TextView) convertView.findViewById(R.id.friends_item_name);            holder.phoneTV = (TextView) convertView.findViewById(R.id.friends_item_phone);            convertView.setTag(holder);        } else {            holder = (ViewHolder) convertView.getTag();        }

3.预置了item的添加,删除,移动,修改时的动画,当且改动画也可以自定义。

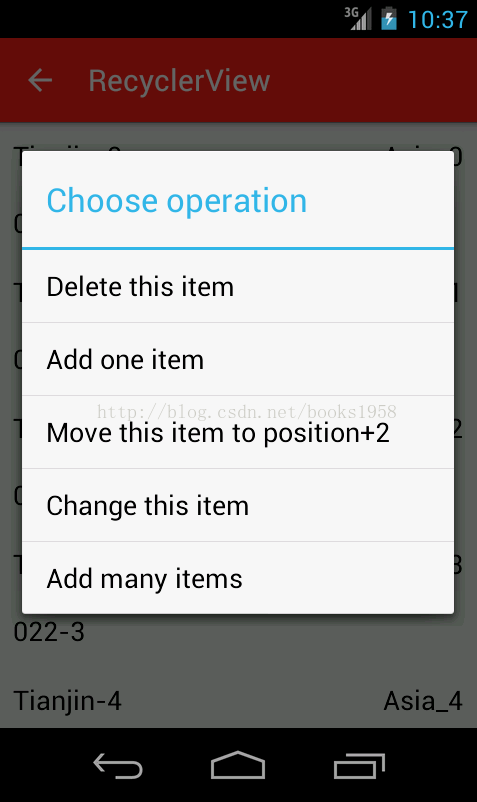

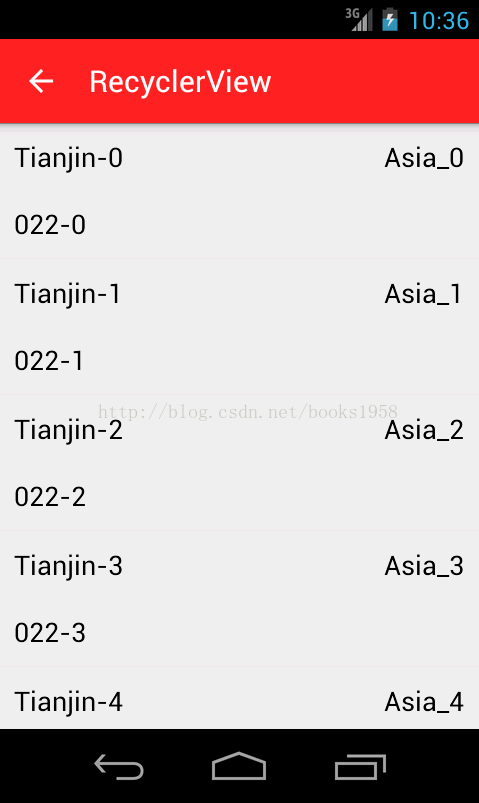

效果图:



示例代码:

(1)主页面,获取到RecyclerView,设置adapter即可。

RecyclerView mRecyclerView = (RecyclerView) findViewById(R.id.my_recycler_view); // use this setting to improve performance if you know that changes // in content do not change the layout size of the RecyclerView  mRecyclerView.setHasFixedSize(true); // use a linear layout managermRecyclerView.setLayoutManager(new LinearLayoutManager(this));//data List<CityInfoBean> myDataset = new ArrayList<CityInfoBean>();        for (int i = 0; i < 50; i++) {            CityInfoBean city = new CityInfoBean();            city.setCityName("Tianjin-" + i);            city.setCityPhone("022-" + i);            city.setLocation("Asia_" + i);            myDataset.add(city);        }        RecyclerViewAdapter mAdapter = new RecyclerViewAdapter(this, myDataset);        mRecyclerView.setAdapter(mAdapter);//RecyclerView doesn't has a 'OnItemClickListener' or 'OnItemLongClickListener' like ListView, // so you should add the callback in adapter
(2)adapter,RecyclerViewAdapter.java:
public class RecyclerViewAdapter extends RecyclerView.Adapter<RecyclerViewAdapter.ViewHolder> {    private Context context;    private List<CityInfoBean> mDataset;    public RecyclerViewAdapter(Context context, List<CityInfoBean> myDataset) {        this.context = context;        mDataset = myDataset;    }    // Create new views (invoked by the layout manager)    @Override    public ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {        View v = LayoutInflater.from(parent.getContext()).inflate(R.layout.recycler_list_item, parent, false);        // set the view's size, margins, paddings and layout parameters        final ViewHolder vh = new ViewHolder(v);        v.setOnClickListener(new View.OnClickListener() {            @Override            public void onClick(View v) {                int position = vh.getPosition();                Toast.makeText(v.getContext(), "Item click. Position:" +                        position, Toast.LENGTH_SHORT).show();            }        });        v.setOnLongClickListener(new View.OnLongClickListener() {            @Override            public boolean onLongClick(View v) {                int position = vh.getPosition();//                Toast.makeText(v.getContext(), "Item long click. Position:" +//                        position, Toast.LENGTH_SHORT).show();                showDialog(position);                return true;            }        });        return vh;    }    // Replace the contents of a view (invoked by the layout manager)    @Override    public void onBindViewHolder(ViewHolder holder, int position) {        holder.cityNameTV.setText(mDataset.get(position).getCityName());        holder.phoneTV.setText(mDataset.get(position).getCityPhone());        holder.addrTV.setText(mDataset.get(position).getLocation());    }    @Override    public int getItemCount() {        return mDataset.size();    }    private void showDialog(final int position) {        AlertDialog.Builder builder = new AlertDialog.Builder(context);        builder.setTitle("Choose operation");        String[] dialogItems = new String[]{                context.getString(R.string.delete_one_item),                context.getString(R.string.add_one_item),                context.getString(R.string.move_one_item),                context.getString(R.string.change_one_item),                context.getString(R.string.add_many_items),        };        builder.setItems(dialogItems, new DialogInterface.OnClickListener() {            @Override            public void onClick(DialogInterface dialog, int which) {                switch (which) {                    case 0:                        //delete this item                        mDataset.remove(position);                        notifyItemRemoved(position);                        break;                    case 1:                        //add one item                        mDataset.add(position, new CityInfoBean("New City", "010", "Asia"));                        notifyItemInserted(position);                        break;                    case 2:                        //TODO remember to change the data set...                        //move one item to another position                        notifyItemMoved(position, position + 2);                        //May cause IndexOutOfBoundsException. This is just a demo!                        break;                    case 3:                        //change one item                        mDataset.get(position).setCityName("City name changed");                        notifyItemChanged(position);                        break;                    case 4:                        //add many items                        List<CityInfoBean> insertList = new ArrayList<CityInfoBean>();                        insertList.add(new CityInfoBean("New City 01", "010", "Asia"));                        insertList.add(new CityInfoBean("New City 02", "020", "America"));                        mDataset.addAll(position, insertList);                        notifyItemRangeInserted(position, insertList.size());                        break;                    default:                        break;                }            }        });        builder.create().show();    }    public static class ViewHolder extends RecyclerView.ViewHolder {        public TextView cityNameTV, phoneTV, addrTV;        public ViewHolder(View v) {            super(v);            cityNameTV = (TextView) v.findViewById(R.id.city_name);            phoneTV = (TextView) v.findViewById(R.id.city_phone);            addrTV = (TextView) v.findViewById(R.id.city_addr);        }    }}
(3)主页面布局文件:

recycler_layout.xml:

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:orientation="vertical"    android:layout_width="match_parent"    android:layout_height="match_parent">    <android.support.v7.widget.RecyclerView        android:id="@+id/my_recycler_view"        android:scrollbars="vertical"        android:layout_width="match_parent"        android:layout_height="match_parent" /></LinearLayout>

二、使用CardView

CardView是Google在support v7包中提供了另一个全新组件,可以很方便的实现“卡片式布局”(具有投影/圆角 的立体效果)。CardView继承自FrameLayout,因此如果内部需要互不重叠的放置多个组件时,可能需要再嵌套一个LinearLayout或RelativeLayout等。

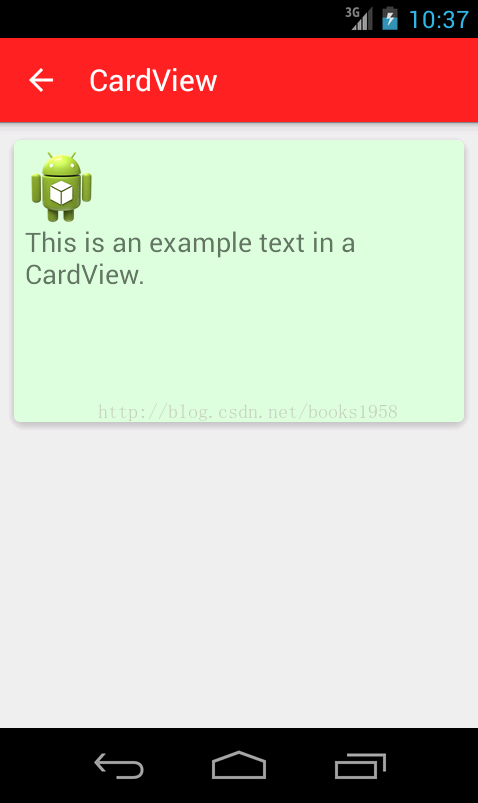

效果图:


布局文件:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="match_parent"    android:layout_height="wrap_content"    xmlns:card_view="http://schemas.android.com/apk/res-auto">    <android.support.v7.widget.CardView        android:id="@+id/card_view"        android:layout_gravity="center"        android:layout_width="match_parent"        android:layout_height="200dp"        android:layout_margin="6dp"        card_view:cardCornerRadius="4dp"        card_view:cardBackgroundColor="@color/card_bg"        card_view:cardElevation="4dp">        <LinearLayout            android:layout_width="match_parent"            android:layout_height="match_parent"            android:layout_margin="6dp"            android:orientation="vertical">            <ImageView                android:layout_width="wrap_content"                android:layout_height="wrap_content"                android:contentDescription="@null"                android:src="@drawable/ic_launcher" />            <TextView                android:id="@+id/info_text"                android:layout_width="match_parent"                android:layout_height="match_parent"                android:textSize="18sp"                android:text="@string/example_text" />        </LinearLayout>    </android.support.v7.widget.CardView></LinearLayout>
属性解释:

cardCornerRadius:圆角大小;

cardElevation:投影的深度;

cardBackgroundColor:卡片的背景色。

============================================================

源码下载(免积分哦):http://download.csdn.net/detail/books1958/8269227
