概述：

本实训项目是本科教学中，Android课程实训的项目，旨在训练Android App访问服务器，获取服务器数据，解析，并呈现的流程。主要包含的功能有：

1、用户注册

2、登录

3、查看文档

4、下载电子书

5、阅读电子书

6、用户管理

设计说明：

该实训项目需要开发Android客户端和服务器端应用。

服务器端采用Struts2，直接使用JDBC访问MySQL数据库。

客户端使用xutils框架，访问action，获取JSON字符串。

开发环境：

服务器端采用MyEclipse，版本可以采用9、10等等，数据库使用MySQL

Android端采用adt-bundle Eclipse 4.2

数据库设计：

SET FOREIGN_KEY_CHECKS=0;-- ------------------------------ Table structure for `tb_accountinfo`-- ----------------------------DROP TABLE IF EXISTS `tb_accountinfo`;CREATE TABLE `tb_accountinfo` (  `id` int(11) NOT NULL AUTO_INCREMENT,  `loginName` varchar(20) NOT NULL,  `loginPwd` varchar(100) NOT NULL,  `level` int(11) NOT NULL,  `lastLoginDate` timestamp NULL DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP,  `lastLoginIP` varchar(20) DEFAULT NULL,  `score` int(11) NOT NULL,  PRIMARY KEY (`id`)) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8;-- ------------------------------ Records of tb_accountinfo-- ----------------------------INSERT INTO `tb_accountinfo` VALUES ('1', 'admin', 'admin', '1', '2015-06-25 10:13:18', '127.0.0.1', '100');INSERT INTO `tb_accountinfo` VALUES ('2', 'aaa', '123', '0', '2015-07-06 15:39:03', '10.2.212.18', '0');INSERT INTO `tb_accountinfo` VALUES ('3', 'abc', '111', '0', '2015-07-06 15:39:39', '10.2.212.18', '0');INSERT INTO `tb_accountinfo` VALUES ('4', '', '', '0', '2015-07-06 15:42:38', '10.2.212.18', '0');INSERT INTO `tb_accountinfo` VALUES ('5', 'bbb', '123', '0', '2015-07-06 15:49:52', '10.2.212.18', '0');-- ------------------------------ Table structure for `tb_ebookcomment`-- ----------------------------DROP TABLE IF EXISTS `tb_ebookcomment`;CREATE TABLE `tb_ebookcomment` (  `id` int(11) NOT NULL AUTO_INCREMENT,  `comment` varchar(200) NOT NULL,  `ebookId` int(11) NOT NULL,  `accountId` int(11) NOT NULL,  `createDate` timestamp NULL DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP,  PRIMARY KEY (`id`),  KEY `accountId` (`accountId`),  KEY `tb_ebookcomment_ibfk_1` (`ebookId`),  CONSTRAINT `tb_ebookcomment_ibfk_1` FOREIGN KEY (`ebookId`) REFERENCES `tb_ebookinfo` (`id`) ON DELETE NO ACTION,  CONSTRAINT `tb_ebookcomment_ibfk_2` FOREIGN KEY (`accountId`) REFERENCES `tb_accountinfo` (`id`) ON DELETE NO ACTION) ENGINE=InnoDB AUTO_INCREMENT=27 DEFAULT CHARSET=utf8;-- ------------------------------ Records of tb_ebookcomment-- ----------------------------INSERT INTO `tb_ebookcomment` VALUES ('1', 'verygood', '1', '1', '2015-07-01 16:41:14');INSERT INTO `tb_ebookcomment` VALUES ('2', 'dfdjsfsdlfjslfsd', '1', '1', '2015-07-01 16:41:43');INSERT INTO `tb_ebookcomment` VALUES ('5', 'test', '3', '1', '2015-07-01 16:42:05');INSERT INTO `tb_ebookcomment` VALUES ('13', 'test', '4', '1', '2015-07-01 16:46:26');INSERT INTO `tb_ebookcomment` VALUES ('14', 'test', '4', '1', '2015-07-01 16:46:46');INSERT INTO `tb_ebookcomment` VALUES ('15', 'test', '5', '1', '2015-07-09 10:20:37');INSERT INTO `tb_ebookcomment` VALUES ('16', 'test', '4', '1', '2015-07-01 16:46:46');INSERT INTO `tb_ebookcomment` VALUES ('17', 'test', '4', '1', '2015-07-01 16:46:46');INSERT INTO `tb_ebookcomment` VALUES ('18', 'test', '7', '1', '2015-07-09 10:20:44');INSERT INTO `tb_ebookcomment` VALUES ('19', 'test', '4', '1', '2015-07-01 16:46:47');INSERT INTO `tb_ebookcomment` VALUES ('20', 'test', '4', '1', '2015-07-01 16:46:47');INSERT INTO `tb_ebookcomment` VALUES ('21', 'googodoodogogoododgodo', '1', '1', '2015-07-10 15:46:50');INSERT INTO `tb_ebookcomment` VALUES ('22', 'okkkk', '1', '1', '2015-07-10 15:47:19');INSERT INTO `tb_ebookcomment` VALUES ('23', 'new log', '2', '1', '2015-07-10 15:48:23');INSERT INTO `tb_ebookcomment` VALUES ('24', 'viery goood  hehe', '2', '1', '2015-07-10 15:48:45');INSERT INTO `tb_ebookcomment` VALUES ('25', 'oooppp', '1', '1', '2015-07-10 16:09:27');INSERT INTO `tb_ebookcomment` VALUES ('26', 'teswts log', '3', '1', '2015-07-10 16:10:12');-- ------------------------------ Table structure for `tb_ebookinfo`-- ----------------------------DROP TABLE IF EXISTS `tb_ebookinfo`;CREATE TABLE `tb_ebookinfo` (  `id` int(11) NOT NULL AUTO_INCREMENT,  `bookName` varchar(50) NOT NULL,  `bookType` int(11) NOT NULL,  `bookScore` int(11) NOT NULL,  `author` varchar(20) DEFAULT NULL,  `bookDes` varchar(200) DEFAULT NULL,  `bookPath` varchar(200) NOT NULL,  `bookFacePath` varchar(200) DEFAULT NULL,  `uploadDate` date DEFAULT NULL,  `isTop` tinyint(4) DEFAULT NULL,  PRIMARY KEY (`id`),  KEY `bookType` (`bookType`),  CONSTRAINT `tb_ebookinfo_ibfk_1` FOREIGN KEY (`bookType`) REFERENCES `tb_ebooktype` (`id`) ON DELETE NO ACTION) ENGINE=InnoDB AUTO_INCREMENT=10 DEFAULT CHARSET=utf8;-- ------------------------------ Records of tb_ebookinfo-- ----------------------------INSERT INTO `tb_ebookinfo` VALUES ('1', '巴顿将军', '7', '5', '佚名', '巴顿将军戎马一生，二战中最为强悍的指挥官……', '/books/01.txt', '/faces/01.jpg', '2015-06-25', '1');INSERT INTO `tb_ebookinfo` VALUES ('2', '三国演义', '2', '4', '罗贯中', '混乱的三国……', '/books/01.txt', '/faces/02.jpg', '2015-06-25', '1');INSERT INTO `tb_ebookinfo` VALUES ('3', '那时汉朝', '2', '0', '佚名', '穿越汉朝的简明史……', '/books/02.txt', '/faces/02.jpg', '2015-06-25', '1');INSERT INTO `tb_ebookinfo` VALUES ('4', '逃离地球', '3', '0', '佚名', '第三次世界大战后，地球核污染严重……', '/books/01.txt', '/faces/02.jpg', '2015-06-25', '1');INSERT INTO `tb_ebookinfo` VALUES ('5', '狮子王记', '4', '0', '小马哥', '狮子王登记日，时逢魔王转生……', '/books/01.txt', '/faces/02.jpg', '2015-06-25', '1');INSERT INTO `tb_ebookinfo` VALUES ('6', '家', '5', '0', '巴金', '巴金最具代表性著作之一……', '/books/01.txt', '/faces/02.jpg', '2015-06-25', '1');INSERT INTO `tb_ebookinfo` VALUES ('7', '泰戈尔诗集', '6', '0', '佚名', '世界诗歌中的一颗明珠……', '/books/01.txt', '/faces/02.jpg', '2015-06-25', '1');INSERT INTO `tb_ebookinfo` VALUES ('8', '冷兵器时代', '1', '0', '佚名', '在长达2000年的冷兵器战争史中……', '/books/01.txt', '/faces/03.jpg', '2015-06-25', '1');INSERT INTO `tb_ebookinfo` VALUES ('9', '乔布斯传记', '7', '0', '佚名', '缔造苹果伟业，不世出之奇人……', '/books/01.txt', '/faces/04.jpg', '2015-06-25', '1');-- ------------------------------ Table structure for `tb_ebooktype`-- ----------------------------DROP TABLE IF EXISTS `tb_ebooktype`;CREATE TABLE `tb_ebooktype` (  `id` int(11) NOT NULL AUTO_INCREMENT,  `typeName` varchar(20) NOT NULL,  PRIMARY KEY (`id`)) ENGINE=InnoDB AUTO_INCREMENT=8 DEFAULT CHARSET=utf8;-- ------------------------------ Records of tb_ebooktype-- ----------------------------INSERT INTO `tb_ebooktype` VALUES ('1', '军事');INSERT INTO `tb_ebooktype` VALUES ('2', '历史');INSERT INTO `tb_ebooktype` VALUES ('3', '科幻');INSERT INTO `tb_ebooktype` VALUES ('4', '魔幻');INSERT INTO `tb_ebooktype` VALUES ('5', '文学');INSERT INTO `tb_ebooktype` VALUES ('6', '诗歌');INSERT INTO `tb_ebooktype` VALUES ('7', '人物传记');-- ------------------------------ Table structure for `tb_userinfo`-- ----------------------------DROP TABLE IF EXISTS `tb_userinfo`;CREATE TABLE `tb_userinfo` (  `id` int(11) NOT NULL AUTO_INCREMENT,  `userName` varchar(20) NOT NULL,  `userPhone` varchar(11) NOT NULL,  `userMail` varchar(30) DEFAULT NULL,  `userSex` char(2) DEFAULT NULL,  `userAddress` varchar(200) DEFAULT NULL,  `userMajor` varchar(20) DEFAULT NULL,  `accountId` int(11) NOT NULL,  PRIMARY KEY (`id`),  KEY `accountId` (`accountId`),  CONSTRAINT `tb_userinfo_ibfk_1` FOREIGN KEY (`accountId`) REFERENCES `tb_accountinfo` (`id`) ON DELETE NO ACTION) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8;-- ------------------------------ Records of tb_userinfo-- ----------------------------INSERT INTO `tb_userinfo` VALUES ('1', '曹操', '13900001234', '[email protected]', '男', '天津市西青区大学城', '学生', '1');INSERT INTO `tb_userinfo` VALUES ('3', '刘备', '13800001234', null, '男', '北京', null, '1');

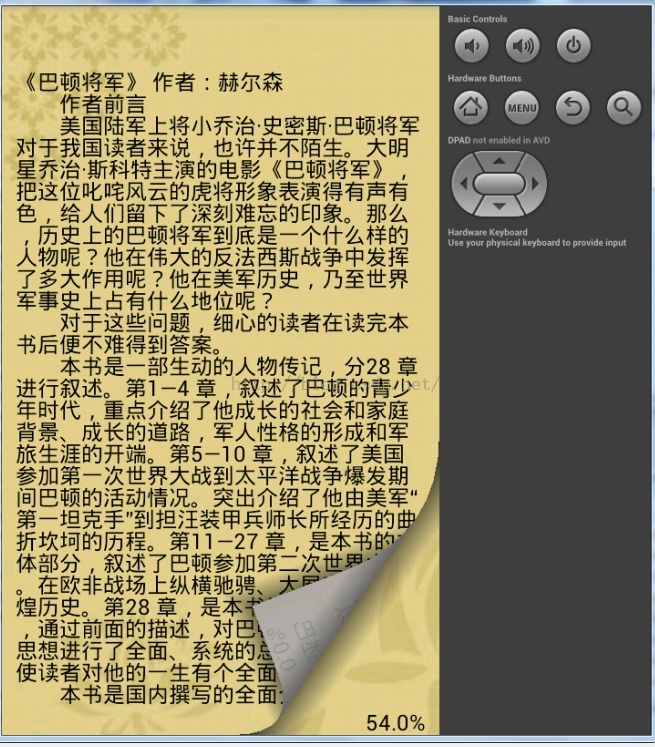

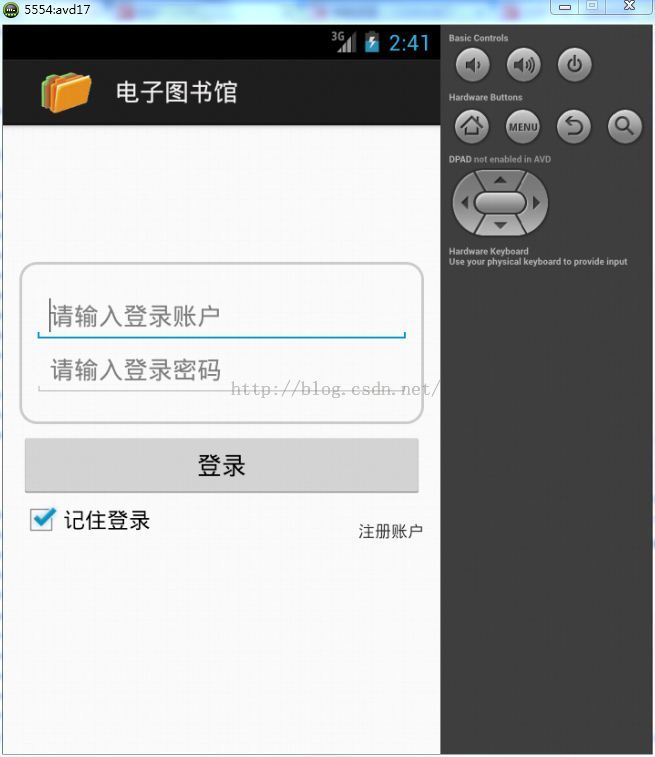

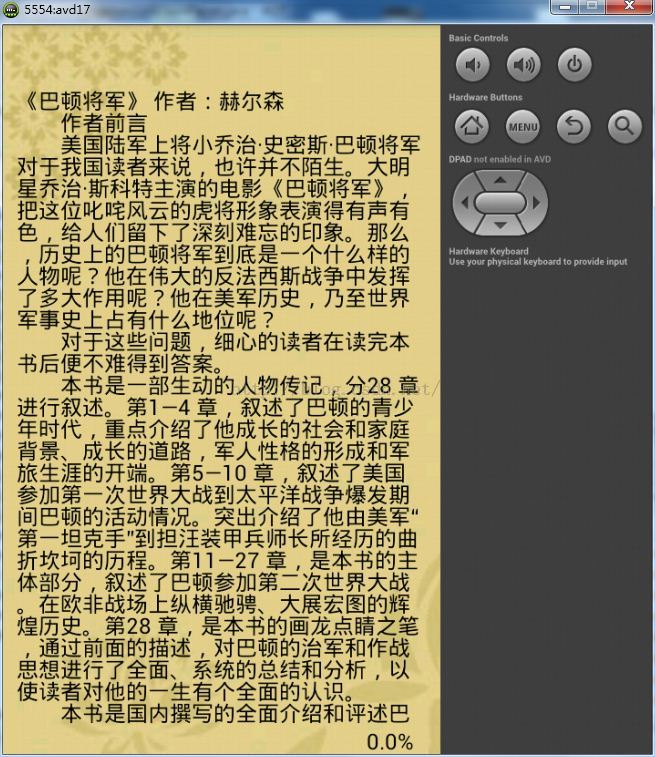

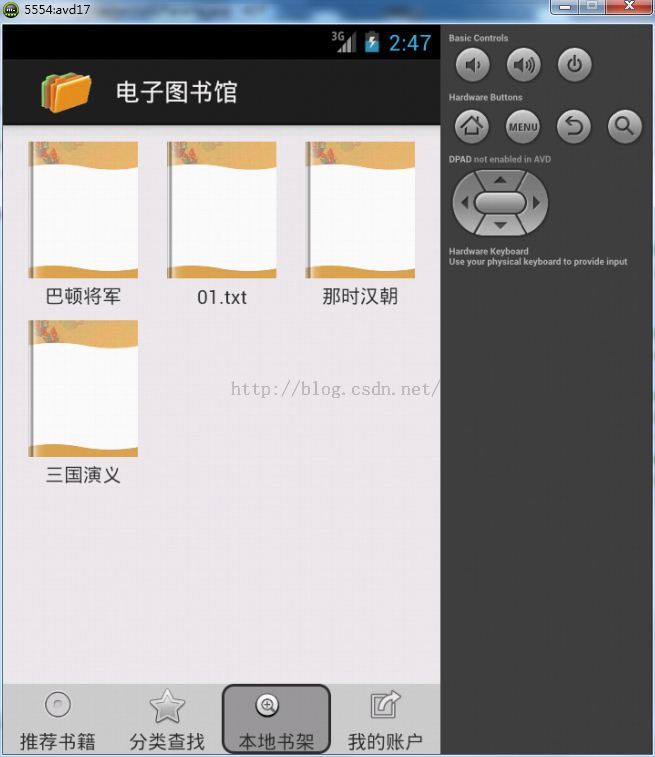

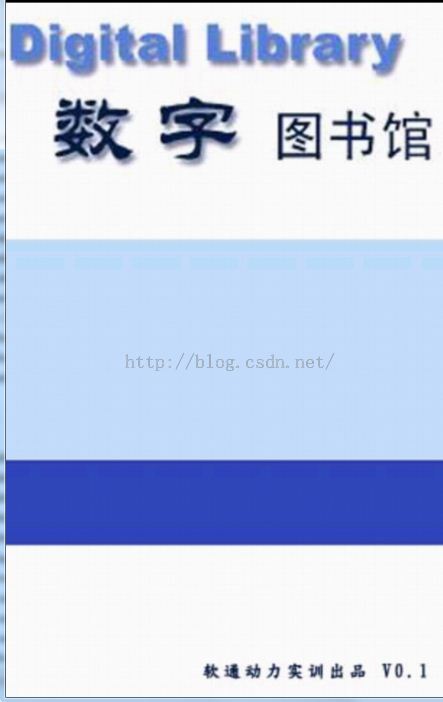

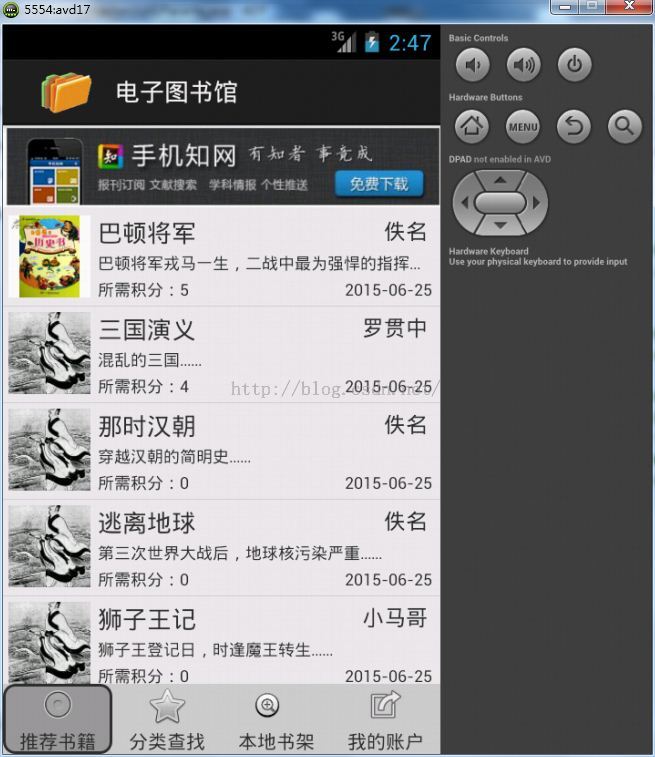

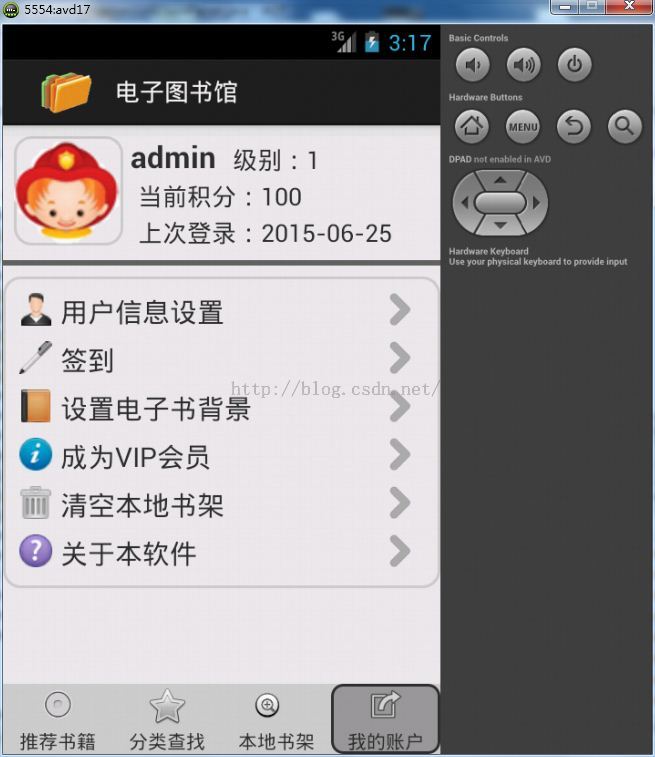

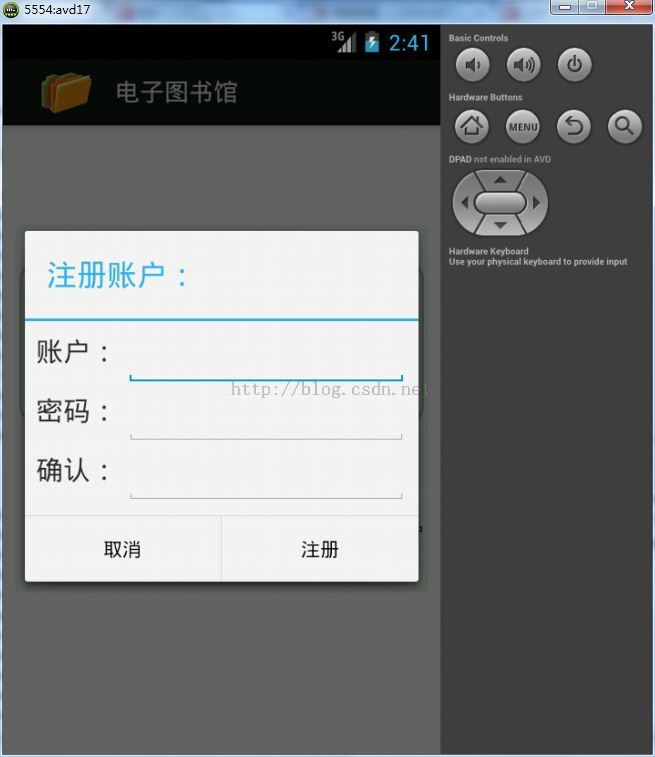

最终效果：
