Android——APK 在32bit/64bit平台 动态库问题

目前64bit android系统也慢慢的多了,看到也有apk声称支持64bit system,然后就往里面打包搞了个arm64-v8a 目录,放了个64bit的so,但是apk代码里面却不按规范去load so ,导致一系列 file not found 异常~

撰写不易,转载需注明出处:http://blog.csdn.net/jscese/article/details/47101815本文来自 【jscese】的博客!

apk lib目录:

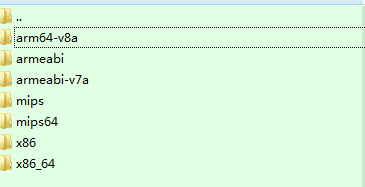

先看下apk中的lib打包的目录:
lib
依次代表不同类型的cpu

PMS安装路径:

pms install 流程比较繁杂,只关注so相关的scanPackageDirtyLI函数中:

private PackageParser.Package scanPackageDirtyLI(PackageParser.Package pkg, int parseFlags,            int scanFlags, long currentTime, UserHandle user) throws PackageManagerException {            ...             //invoke installer to do the actual installation  //作为外部apk 创建data目录相关项             //\frameworks\native\cmds\installd\commands.c  install()中创建                int ret = **createDataDirsLI**(pkgName, pkg.applicationInfo.uid,                                           pkg.applicationInfo.seinfo);            ...    if (isSystemApp(pkg) && !isUpdatedSystemApp(pkg)) {        ...           setBundledAppAbisAndRoots(pkg, pkgSetting);            ...           setNativeLibraryPaths(pkg);      }    else    {    setNativeLibraryPaths(pkg);    ...        if (isAsec) {                        copyRet = NativeLibraryHelper.findSupportedAbi(handle, abiList);                    } else {                        copyRet = NativeLibraryHelper.copyNativeBinariesForSupportedAbi(handle,                                nativeLibraryRoot, abiList, useIsaSpecificSubdirs);                    }    setNativeLibraryPaths(pkg);      if (DEBUG_INSTALL) Slog.i(TAG, "Linking native library dir for " + path);            final int[] userIds = sUserManager.getUserIds();            synchronized (mInstallLock) {                // Create a native library symlink only if we have native libraries                // and if the native libraries are 32 bit libraries. We do not provide                // this symlink for 64 bit libraries.                if (pkg.applicationInfo.primaryCpuAbi != null &&                        **!VMRuntime.is64BitAbi(pkg.applicationInfo.primaryCpuAbi)**) {                    final String nativeLibPath = pkg.applicationInfo.nativeLibraryDir;                    for (int userId : userIds) {if (mInstaller.linkNativeLibraryDirectory(pkg.packageName, nativeLibPath, userId) < 0)    {                            throw new PackageManagerException(INSTALL_FAILED_INTERNAL_ERROR,                                    "Failed linking native library dir (user=" + userId + ")");                        }                    }                }            }    }}

看下system app 的安装配置函数 setBundledAppAbisAndRoots

    /**     * Calculate the abis and roots for a bundled app. These can uniquely     * be determined from the contents of the system partition, i.e whether     * it contains 64 or 32 bit shared libraries etc. We do not validate any     * of this information, and instead assume that the system was built     * sensibly.     */    private void setBundledAppAbisAndRoots(PackageParser.Package pkg,                                           PackageSetting pkgSetting) {        final String apkName = deriveCodePathName(pkg.applicationInfo.getCodePath());        // If "/system/lib64/apkname" exists, assume that is the per-package        // native library directory to use; otherwise use "/system/lib/apkname".        final String apkRoot = calculateBundledApkRoot(pkg.applicationInfo.sourceDir);        setBundledAppAbi(pkg, apkRoot, apkName);        // pkgSetting might be null during rescan following uninstall of updates        // to a bundled app, so accommodate that possibility.  The settings in        // that case will be established later from the parsed package.        //        // If the settings aren't null, sync them up with what we've just derived.        // note that apkRoot isn't stored in the package settings.        if (pkgSetting != null) {            pkgSetting.primaryCpuAbiString = pkg.applicationInfo.primaryCpuAbi;            pkgSetting.secondaryCpuAbiString = pkg.applicationInfo.secondaryCpuAbi;        }    }

主要是在setBundledAppAbi中:

    /**     * Deduces the ABI of a bundled app and sets the relevant fields on the     * parsed pkg object.     *     * @param apkRoot the root of the installed apk, something like [email protected] /system} or [email protected] /oem}     *        under which system libraries are installed.     * @param apkName the name of the installed package.     */    private static void setBundledAppAbi(PackageParser.Package pkg, String apkRoot, String apkName) {        final File codeFile = new File(pkg.codePath);...        if (has64BitLibs && !has32BitLibs) {            // The package has 64 bit libs, but not 32 bit libs. Its primary            // ABI should be 64 bit. We can safely assume here that the bundled            // native libraries correspond to the most preferred ABI in the list.            pkg.applicationInfo.primaryCpuAbi = Build.SUPPORTED_64_BIT_ABIS[0];            pkg.applicationInfo.secondaryCpuAbi = null;        } else if (has32BitLibs && !has64BitLibs) {            // The package has 32 bit libs but not 64 bit libs. Its primary            // ABI should be 32 bit.            pkg.applicationInfo.primaryCpuAbi = Build.SUPPORTED_32_BIT_ABIS[0];            pkg.applicationInfo.secondaryCpuAbi = null;        } else if (has32BitLibs && has64BitLibs) {            // The application has both 64 and 32 bit bundled libraries. We check            // here that the app declares multiArch support, and warn if it doesn't.            //            // We will be lenient here and record both ABIs. The primary will be the            // ABI that's higher on the list, i.e, a device that's configured to prefer            // 64 bit apps will see a 64 bit primary ABI,            if ((pkg.applicationInfo.flags & ApplicationInfo.FLAG_MULTIARCH) == 0) {                Slog.e(TAG, "Package: " + pkg + " has multiple bundled libs, but is not multiarch.");            }            if (VMRuntime.is64BitInstructionSet(getPreferredInstructionSet())) {                pkg.applicationInfo.primaryCpuAbi = Build.SUPPORTED_64_BIT_ABIS[0];                pkg.applicationInfo.secondaryCpuAbi = Build.SUPPORTED_32_BIT_ABIS[0];            } else {                pkg.applicationInfo.primaryCpuAbi = Build.SUPPORTED_32_BIT_ABIS[0];                pkg.applicationInfo.secondaryCpuAbi = Build.SUPPORTED_64_BIT_ABIS[0];            }        } else {            pkg.applicationInfo.primaryCpuAbi = null;            pkg.applicationInfo.secondaryCpuAbi = null;        } }

根据file 查找 确定primaryCpuAbi secondaryCpuAbi 变量值,这个也就决定了 这个 apk 由64bit 还是32bit 的zygote去fork 还有nativelibrary 查找的path

其中nativelibrary的几个主要函数 setNativeLibraryPaths

/**     * Derive and set the location of native libraries for the given package,     * which varies depending on where and how the package was installed.     */    private void setNativeLibraryPaths(PackageParser.Package pkg) {        final ApplicationInfo info = pkg.applicationInfo;        final String codePath = pkg.codePath;        final File codeFile = new File(codePath);        final boolean bundledApp = isSystemApp(info) && !isUpdatedSystemApp(info);        final boolean asecApp = isForwardLocked(info) || isExternal(info);        info.nativeLibraryRootDir = null;        info.nativeLibraryRootRequiresIsa = false;        info.nativeLibraryDir = null;        info.secondaryNativeLibraryDir = null;        if (isApkFile(codeFile)) {            // Monolithic install            if (bundledApp) {                // If "/system/lib64/apkname" exists, assume that is the per-package                // native library directory to use; otherwise use "/system/lib/apkname".                final String apkRoot = calculateBundledApkRoot(info.sourceDir);                final boolean is64Bit = VMRuntime.is64BitInstructionSet(                        getPrimaryInstructionSet(info));                // This is a bundled system app so choose the path based on the ABI.                // if it's a 64 bit abi, use lib64 otherwise use lib32. Note that this                // is just the default path.                final String apkName = deriveCodePathName(codePath);                final String libDir = is64Bit ? LIB64_DIR_NAME : LIB_DIR_NAME;                info.nativeLibraryRootDir = Environment.buildPath(new File(apkRoot), libDir,                        apkName).getAbsolutePath();                if (info.secondaryCpuAbi != null) {                    final String secondaryLibDir = is64Bit ? LIB_DIR_NAME : LIB64_DIR_NAME;                    info.secondaryNativeLibraryDir = Environment.buildPath(new File(apkRoot),                            secondaryLibDir, apkName).getAbsolutePath();                }            } else if (asecApp) {                info.nativeLibraryRootDir = new File(codeFile.getParentFile(), LIB_DIR_NAME)                        .getAbsolutePath();            } else {                final String apkName = deriveCodePathName(codePath);                info.nativeLibraryRootDir = new File(mAppLib32InstallDir, apkName)                        .getAbsolutePath();            }            info.nativeLibraryRootRequiresIsa = false;            info.nativeLibraryDir = info.nativeLibraryRootDir;        } else {            // Cluster install            info.nativeLibraryRootDir = new File(codeFile, LIB_DIR_NAME).getAbsolutePath();            info.nativeLibraryRootRequiresIsa = true;            info.nativeLibraryDir = new File(info.nativeLibraryRootDir,                    getPrimaryInstructionSet(info)).getAbsolutePath();            if (info.secondaryCpuAbi != null) {                info.secondaryNativeLibraryDir = new File(info.nativeLibraryRootDir,                        VMRuntime.getInstructionSet(info.secondaryCpuAbi)).getAbsolutePath();            }        }    }

根据pkg application info 来确定nativelibrarydir 依赖info中的 info.primaryCpuAbi

    private static String getPrimaryInstructionSet(ApplicationInfo info) {        if (info.primaryCpuAbi == null) {            return getPreferredInstructionSet();        }        return VMRuntime.getInstructionSet(info.primaryCpuAbi);    }

非system apk 会调用 NativeLibraryHelperfindSupportedAbi 去解析 .apk 文件,根据系统suportabilist 去查找 lib目录下的打包子目录 找到匹配的abi

向文章开头的那个 lib目录 ,在64bit 机器上suportabilist为:

 public static final String[] SUPPORTED_ABIS = getStringList("ro.product.cpu.abilist", ",");
root@:/ # getprop ro.product.cpu.abilist                                 arm64-v8a,armeabi-v7a,armeabi

会匹配arm64-v8a 赋值给 info.primaryCpuAbi

copyNativeBinariesForSupportedAbi 会去copy 前面匹配的lib 目录到本地

最后设置NativeLibraryPaths ,
如果匹配的是64bit的,也就是arm64-v8a 那么就不为/data/data/../lib 建立软链接,这是与32bit 不同的地方


system.loadlibrary

作为动态库加载的标准接口,直接看实现:

    public static void loadLibrary(String libName) {        Runtime.getRuntime().loadLibrary(libName, VMStack.getCallingClassLoader());    }

到Runtime.java中:

/*     * Searches for and loads the given shared library using the given ClassLoader.     */    void loadLibrary(String libraryName, ClassLoader loader) {        if (loader != null) {            String filename = loader.findLibrary(libraryName);            if (filename == null) {                // It's not necessarily true that the ClassLoader used                // System.mapLibraryName, but the default setup does, and it's                // misleading to say we didn't find "libMyLibrary.so" when we                // actually searched for "liblibMyLibrary.so.so".                throw new UnsatisfiedLinkError(loader + " couldn't find \"" +                                               System.mapLibraryName(libraryName) + "\"");            }            String error = doLoad(filename, loader);            if (error != null) {                throw new UnsatisfiedLinkError(error);            }            return;        }        String filename = System.mapLibraryName(libraryName);        List<String> candidates = new ArrayList<String>();        String lastError = null;        for (String directory : mLibPaths) {            String candidate = directory + filename;            candidates.add(candidate);            if (IoUtils.canOpenReadOnly(candidate)) {                String error = doLoad(candidate, loader);                if (error == null) {                    return; // We successfully loaded the library. Job done.                }                lastError = error;            }        }        if (lastError != null) {            throw new UnsatisfiedLinkError(lastError);        }        throw new UnsatisfiedLinkError("Library " + libraryName + " not found; tried " + candidates);    }

这里的 ClassLoader loader 实际上会在 apk启动的时候 初始化好一些相关的 子类 父类 还有参数

大体记录一下 启动时 初始流程 :

ActivityThread.java   - handleBindApplication   final ContextImpl appContext = ContextImpl.createAppContext(this, data.info);  LoadedApk pi = getPackageInfo(instrApp, data.compatInfo,                    appContext.getClassLoader(), false, true, false);ContextImpl.java  -getClassLoader()LoadedApk.java    -getClassLoader()     :  mLibDir = aInfo.nativeLibraryDir;mClassLoader = ApplicationLoaders.getDefault().getClassLoader(zip, lib,                        mBaseClassLoader);ApplicationLoaders.java    -getClassLoader(...) PathClassLoader pathClassloader = new PathClassLoader(zip, libPath, parent);   //这里的libPath 就是上面传下来的aInfo.nativeLibraryDirpublic class PathClassLoader extends BaseDexClassLoaderpublic class BaseDexClassLoader extends ClassLoader

loader.findLibrary(libraryName);

    /**     * Finds the named native code library on any of the library     * directories pointed at by this instance. This will find the     * one in the earliest listed directory, ignoring any that are not     * readable regular files.     *     * @return the complete path to the library or [email protected] null} if no     * library was found     */    public String findLibrary(String libraryName) {        String fileName = System.mapLibraryName(libraryName);        for (File directory : nativeLibraryDirectories) {            String path = new File(directory, fileName).getPath();            if (IoUtils.canOpenReadOnly(path)) {                return path;            }        }        return null;    }

这里的nativeLibraryDirectories 即为前面一系列 构造时 设置了值 其中就有 aInfo.nativeLibraryDir

后面的逻辑就不去叙述了, 根据名字在这个目录下去找 ,然后调用到本地JNI 最终调用 dlopen 加载打开so,必须是相同位数, 而这个关乎当前进程是属于64bit 还是 32bit,这个会在zygote fork时区分, 同样也是由PMS解析时得到的 info.primaryCpuAbi

AMS 请求zygote fork app process选择

只关心 相关代码 startProcessLocked函数:

    private final void startProcessLocked(ProcessRecord app, String hostingType,            String hostingNameStr, String abiOverride, String entryPoint, String[] entryPointArgs) {... String requiredAbi = (abiOverride != null) ? abiOverride : app.info.primaryCpuAbi;            if (requiredAbi == null) {                requiredAbi = Build.SUPPORTED_ABIS[0];            }            String instructionSet = null;            if (app.info.primaryCpuAbi != null) {                instructionSet = VMRuntime.getInstructionSet(app.info.primaryCpuAbi);            }            app.gids = gids;            app.requiredAbi = requiredAbi;            app.instructionSet = instructionSet;            // Start the process.  It will either succeed and return a result containing            // the PID of the new process, or else throw a RuntimeException.            boolean isActivityProcess = (entryPoint == null);            if (entryPoint == null) entryPoint = "android.app.ActivityThread";            checkTime(startTime, "startProcess: asking zygote to start proc");            Process.ProcessStartResult startResult = Process.start(entryPoint,                    app.processName, uid, uid, gids, debugFlags, mountExternal,                    app.info.targetSdkVersion, app.info.seinfo, requiredAbi, instructionSet,                    app.info.dataDir, entryPointArgs);            checkTime(startTime, "startProcess: returned from zygote!");...}

Process中真正的socket 请求实现:

return zygoteSendArgsAndGetResult(openZygoteSocketIfNeeded(abi), argsForZygote);

openZygoteSocketIfNeeded 会根据传下来的abi 去选择 通信的socket

而在64bit 机器上,启动时会 启动 两个 zygote service ,用于接收 64 32 的apk 请求:

service zygote /system/bin/app_process64 -Xzygote /system/bin --zygote --start-system-server --socket-name=zygote    class main    socket zygote stream 660 root system    onrestart write /sys/android_power/request_state wake    onrestart write /sys/power/state on    onrestart restart media    onrestart restart netdservice zygote_secondary /system/bin/app_process32 -Xzygote /system/bin --zygote --socket-name=zygote_secondary    class main    socket zygote_secondary stream 660 root system    onrestart restart zygote

可以看到两个 zygote 进程,基本一致 ,区别在于 64bit 32bit ,注册socket不同
关于这两个 zygote 进程启动时的socket 注册 就不多说了

暂时先记录这么多吧~
