Android实战简易课程-第三十四枪（基于ViewPager和FragmentPagerAdapter实现滑动通用Tab）

上一段时间写过一篇文章《基于ViewPager实现微信页面切换效果》
里面实现了类似微信Tab的页面，但是这种实现方法有个问题，就是以后所有的代码逻辑都必须在MainActivity中实现，这样就造成MainActivity文件非常臃肿，不利于代码管理。
下面我们基于ViewPager和FragmentPagerAdapter实现滑动通用Tab。
布局文件基本和上篇文章一致。
1.top.xml:

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="match_parent"    android:layout_height="45dp"    android:background="#ffffff"    android:gravity="center"    android:orientation="vertical" >    <TextView        android:layout_width="wrap_content"        android:layout_height="wrap_content"        android:layout_gravity="center"        android:text="寻 领"        android:textColor="#000000"        android:textSize="20sp"        android:textStyle="bold" /></LinearLayout>

2.bottom.xml:

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="match_parent"    android:layout_height="55dp"    android:background="#ffffff"    android:orientation="horizontal" >    <LinearLayout        android:id="@+id/id_tab_lost"        android:layout_width="0dp"        android:layout_height="fill_parent"        android:layout_weight="1"        android:gravity="center"        android:orientation="vertical" >        <ImageButton            android:id="@+id/id_tab_lost_img"            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:background="#00000000"            android:clickable="false"            android:src="@drawable/lost" />        <TextView            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:text="寻物"            android:textColor="#000000" />    </LinearLayout>    <LinearLayout        android:id="@+id/id_tab_found"        android:layout_width="0dp"        android:layout_height="fill_parent"        android:layout_weight="1"        android:gravity="center"        android:orientation="vertical" >        <ImageButton            android:id="@+id/id_tab_found_img"            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:background="#00000000"            android:clickable="false"            android:src="@drawable/found" />        <TextView            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:text="认领"            android:textColor="#000000" />    </LinearLayout>    <LinearLayout        android:id="@+id/id_tab_publish"        android:layout_width="0dp"        android:layout_height="fill_parent"        android:layout_weight="1"        android:gravity="center"        android:orientation="vertical" >        <ImageButton            android:id="@+id/id_tab_publish_img"            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:background="#00000000"            android:clickable="false"            android:src="@drawable/tab_address_normal" />        <TextView            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:text="发布"            android:textColor="#000000" />    </LinearLayout>    <LinearLayout        android:id="@+id/id_tab_settings"        android:layout_width="0dp"        android:layout_height="fill_parent"        android:layout_weight="1"        android:gravity="center"        android:orientation="vertical" >        <ImageButton            android:id="@+id/id_tab_settings_img"            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:background="#00000000"            android:clickable="false"            android:src="@drawable/tab_settings_normal" />        <TextView            android:layout_width="wrap_content"            android:layout_height="wrap_content"            android:text="设置"            android:textColor="#000000" />    </LinearLayout></LinearLayout>

3.main.xml:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:tools="http://schemas.android.com/tools"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:orientation="vertical" >    <include layout="@layout/top" />    <android.support.v4.view.ViewPager        android:id="@+id/id_viewpager"        android:layout_width="fill_parent"        android:layout_height="0dp"        android:layout_weight="1" >    </android.support.v4.view.ViewPager>    <include layout="@layout/bottom" /></LinearLayout>

4.tab01.xml:

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:orientation="vertical" >    <TextView        android:layout_width="fill_parent"        android:layout_height="fill_parent"        android:gravity="center"        android:text="This is Lost Tab"        android:textSize="30sp"        android:textStyle="bold" /></LinearLayout>

tab02.xml:

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:orientation="vertical" >    <TextView        android:layout_width="fill_parent"        android:layout_height="fill_parent"        android:gravity="center"        android:text="This is Found Tab"        android:textSize="30sp"        android:textStyle="bold" /></LinearLayout>

tab03.xml:

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:orientation="vertical" >    <TextView        android:layout_width="fill_parent"        android:layout_height="fill_parent"        android:gravity="center"        android:text="This is Publish Tab"        android:textSize="30sp"        android:textStyle="bold" /></LinearLayout>

tab04.xml:

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:orientation="vertical" >    <TextView        android:layout_width="fill_parent"        android:layout_height="fill_parent"        android:gravity="center"        android:text="This is Settings Tab"        android:textSize="30sp"        android:textStyle="bold" /></LinearLayout>

5.MainActivity.java:

package com.lostandfound.activity;import java.util.ArrayList;import java.util.List;import android.os.Bundle;import android.support.v4.app.Fragment;import android.support.v4.app.FragmentActivity;import android.support.v4.app.FragmentPagerAdapter;import android.support.v4.view.ViewPager;import android.support.v4.view.ViewPager.OnPageChangeListener;import android.view.View;import android.view.View.OnClickListener;import android.view.Window;import android.widget.ImageButton;import android.widget.LinearLayout;public class MainActivity extends FragmentActivity implements OnClickListener{    private ViewPager mViewPager;    private FragmentPagerAdapter mAdapter;    private List<Fragment> mFragments;    private LinearLayout mTabLost;    private LinearLayout mTabFound;    private LinearLayout mTabPublish;    private LinearLayout mTabSettings;    private ImageButton mImgLost;    private ImageButton mImgFound;    private ImageButton mImgPublish;    private ImageButton mImgSettings;    @Override    protected void onCreate(Bundle savedInstanceState)    {        super.onCreate(savedInstanceState);        requestWindowFeature(Window.FEATURE_NO_TITLE);        setContentView(R.layout.activity_main);        initView();        initEvent();        setSelect(1);    }    private void initEvent()    {        mTabLost.setOnClickListener(this);        mTabFound.setOnClickListener(this);        mTabPublish.setOnClickListener(this);        mTabSettings.setOnClickListener(this);    }    private void initView()    {        mViewPager = (ViewPager) findViewById(R.id.id_viewpager);        mTabLost = (LinearLayout) findViewById(R.id.id_tab_lost);        mTabFound = (LinearLayout) findViewById(R.id.id_tab_found);        mTabPublish = (LinearLayout) findViewById(R.id.id_tab_publish);        mTabSettings = (LinearLayout) findViewById(R.id.id_tab_settings);        mImgLost = (ImageButton) findViewById(R.id.id_tab_lost_img);        mImgFound = (ImageButton) findViewById(R.id.id_tab_found_img);        mImgPublish = (ImageButton) findViewById(R.id.id_tab_publish_img);        mImgSettings = (ImageButton) findViewById(R.id.id_tab_settings_img);        mFragments = new ArrayList<Fragment>();        Fragment mTab01 = new LostFragment();        Fragment mTab02 = new FoundFragment();        Fragment mTab03 = new PublishFragment();        Fragment mTab04 = new SettingFragment();        mFragments.add(mTab01);        mFragments.add(mTab02);        mFragments.add(mTab03);        mFragments.add(mTab04);        mAdapter = new FragmentPagerAdapter(getSupportFragmentManager())        {            @Override            public int getCount()            {                return mFragments.size();            }            @Override            public Fragment getItem(int arg0)            {                return mFragments.get(arg0);            }        };        mViewPager.setAdapter(mAdapter);        mViewPager.setOnPageChangeListener(new OnPageChangeListener()        {            @Override            public void onPageSelected(int arg0)            {                int currentItem = mViewPager.getCurrentItem();                setTab(currentItem);            }            @Override            public void onPageScrolled(int arg0, float arg1, int arg2)            {                // TODO Auto-generated method stub            }            @Override            public void onPageScrollStateChanged(int arg0)            {                // TODO Auto-generated method stub            }        });    }    @Override    public void onClick(View v)    {        switch (v.getId())        {        case R.id.id_tab_lost:            setSelect(0);            break;        case R.id.id_tab_found:            setSelect(1);            break;        case R.id.id_tab_publish:            setSelect(2);            break;        case R.id.id_tab_settings:            setSelect(3);            break;        default:            break;        }    }    private void setSelect(int i)    {        setTab(i);        mViewPager.setCurrentItem(i);    }    private void setTab(int i)    {        resetImgs();        // 设置图片为亮色        // 切换内容区域        switch (i)        {        case 0:            mImgLost.setImageResource(R.drawable.lost);            break;        case 1:            mImgFound.setImageResource(R.drawable.found);            break;        case 2:            mImgPublish.setImageResource(R.drawable.tab_address_pressed);            break;        case 3:            mImgSettings.setImageResource(R.drawable.tab_settings_pressed);            break;        }    }    /**     * 切换图片至暗色     */    private void resetImgs()    {        mImgLost.setImageResource(R.drawable.lost);        mImgFound.setImageResource(R.drawable.found);        mImgPublish.setImageResource(R.drawable.tab_address_normal);        mImgSettings.setImageResource(R.drawable.tab_settings_normal);    }}

6.四个Fragment
LostFragment.java:

package com.lostandfound.activity;import android.os.Bundle;import android.support.v4.app.Fragment;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;public class LostFragment extends Fragment{    @Override    public View onCreateView(LayoutInflater inflater, ViewGroup container,            Bundle savedInstanceState)    {        return inflater.inflate(R.layout.tab01, container, false);    }}

FoundFragment.java:

package com.lostandfound.activity;import android.os.Bundle;import android.support.v4.app.Fragment;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;public class FoundFragment extends Fragment{    @Override    public View onCreateView(LayoutInflater inflater, ViewGroup container,            Bundle savedInstanceState)    {        return inflater.inflate(R.layout.tab02, container, false);    }}

PublishFragment.java:

package com.lostandfound.activity;import android.os.Bundle;import android.support.v4.app.Fragment;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;public class PublishFragment extends Fragment{    @Override    public View onCreateView(LayoutInflater inflater, ViewGroup container,            Bundle savedInstanceState)    {        return inflater.inflate(R.layout.tab03, container, false);    }}

SettingFragment.java:

package com.lostandfound.activity;import android.os.Bundle;import android.support.v4.app.Fragment;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;public class SettingFragment extends Fragment{    @Override    public View onCreateView(LayoutInflater inflater, ViewGroup container,            Bundle savedInstanceState)    {        return inflater.inflate(R.layout.tab04, container, false);    }}

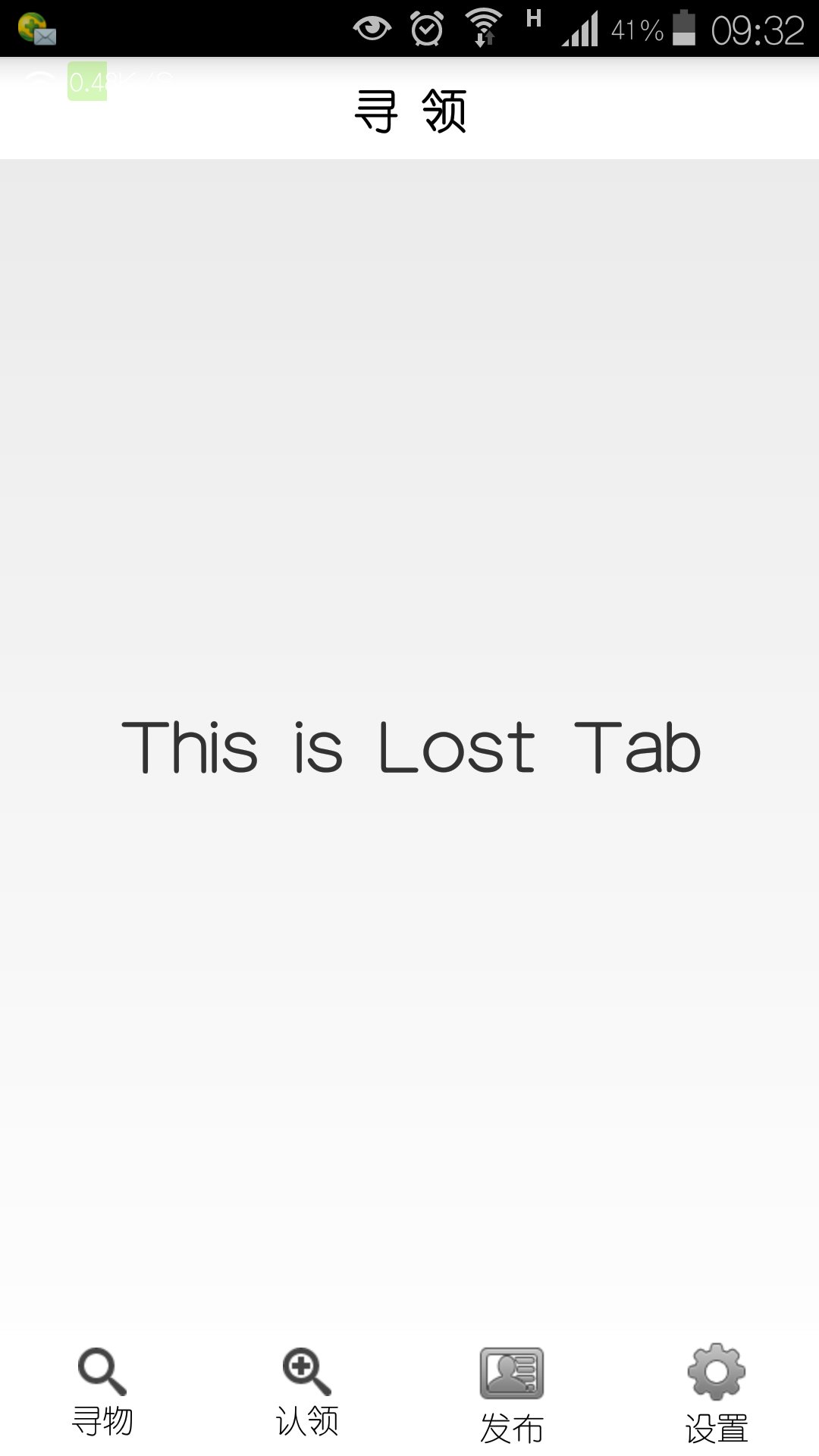

最后运行实例：

可以实现ViewPager似的滑动翻页，同时还可以分开编码。
