转载请注明出处：王亟亟的大牛之路
现在各种公司财务流程走到了手机端啊pad这一些产品上面，安卓画类似xls的库并不是太多（可能我见识少），看到一个Git上的库，觉得蛮好用的，尝试性的移植到了产品中去，写一下使用的心得
项目结构

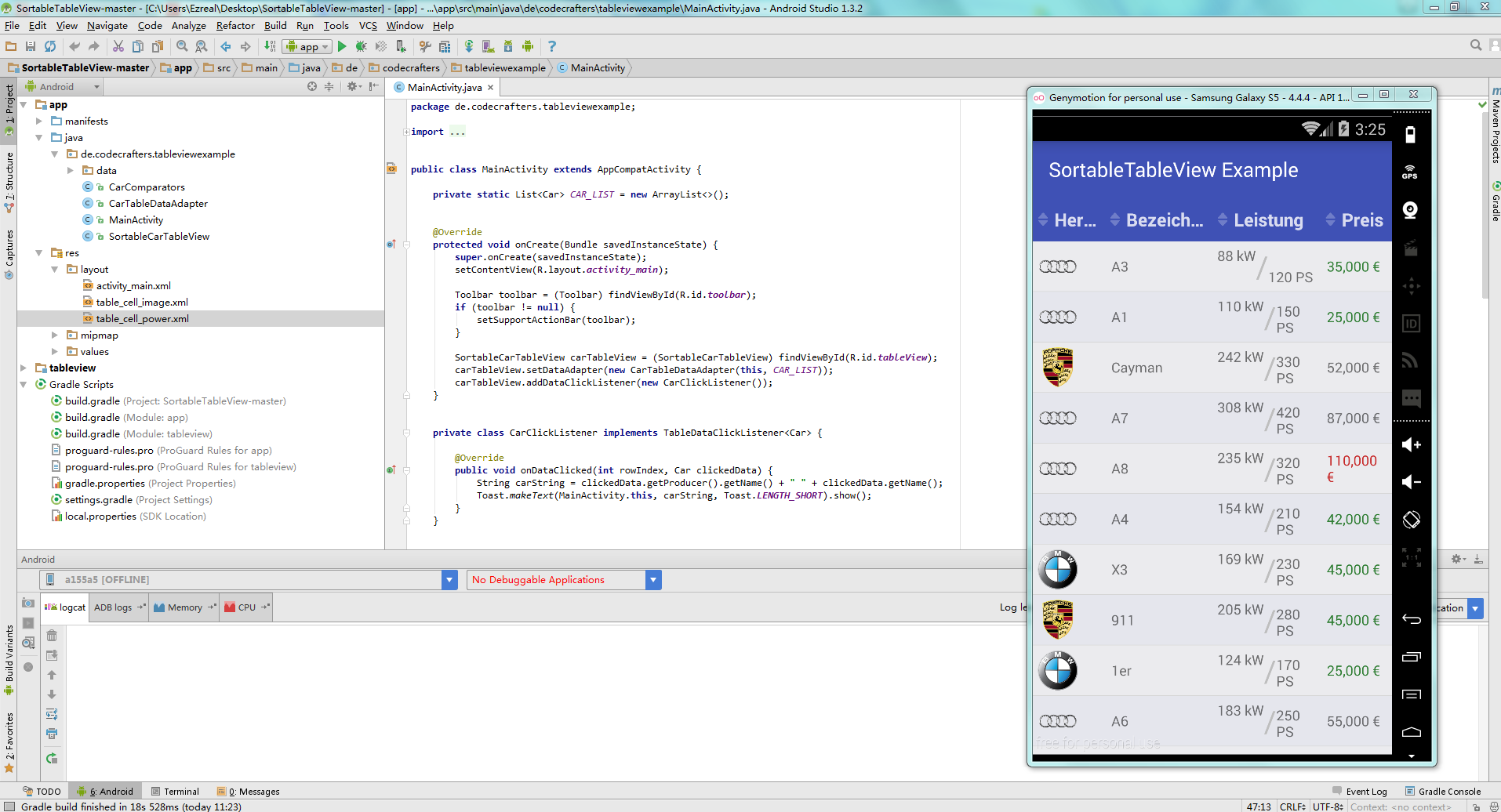

实现效果：
Gradle:
compile 'de.codecrafters.tableview:tableview:0.9.5'最低Minimum SDK-Version: 11 最新版本 0.9.5
如何使用这样的一个tableview?
<de.codecrafters.tableview.TableView xmlns:table="http://schemas.android.com/apk/res-auto" android:id="@+id/tableView" android:layout_width="match_parent" android:layout_height="match_parent" table:columnCount="4" />table:columnCount是你表单的列数，当然需要引入xmlns:table=”http://schemas.android.com/apk/res-auto”
还有其他一些属性，在attributes.xml文件里定义
<resources> <declare-styleable name="TableView"> <attr name="columnCount" format="integer"/> <attr name="headerElevation" format="integer"/> <attr name="headerColor" format="color"/> </declare-styleable></resources>我拿Demo包的代码来作为解释的例子
MainActivity
public class MainActivity extends AppCompatActivity { //放置数据的容器，每一个对象其实就是等于一行 private static List<Car> CAR_LIST = new ArrayList<>(); @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar); if (toolbar != null) { setSupportActionBar(toolbar); } //自定义View绑定Id SortableCarTableView carTableView = (SortableCarTableView) findViewById(R.id.tableView); //填充数据 carTableView.setDataAdapter(new CarTableDataAdapter(this, CAR_LIST)); //添加监听事件 carTableView.addDataClickListener(new CarClickListener()); } //表单内的点触时间，以行为单位 private class CarClickListener implements TableDataClickListener<Car> { @Override public void onDataClicked(int rowIndex, Car clickedData) { String carString = clickedData.getProducer().getName() + " " + clickedData.getName(); Toast.makeText(MainActivity.this, carString, Toast.LENGTH_SHORT).show(); } } //塞数据！！！ static { CarProducer audi = new CarProducer(R.mipmap.audi, "Audi"); Car audiA1 = new Car(audi, "A1", 150, 25000); Car audiA3 = new Car(audi, "A3", 120, 35000); Car audiA4 = new Car(audi, "A4", 210, 42000); Car audiA5 = new Car(audi, "S5", 333, 60000); Car audiA6 = new Car(audi, "A6", 250, 55000); Car audiA7 = new Car(audi, "A7", 420, 87000); Car audiA8 = new Car(audi, "A8", 320, 110000); CarProducer bmw = new CarProducer(R.mipmap.bmw, "BMW"); Car bmw1 = new Car(bmw, "1er", 170, 25000); Car bmw3 = new Car(bmw, "3er", 230, 42000); Car bmwX3 = new Car(bmw, "X3", 230, 45000); Car bmw4 = new Car(bmw, "4er", 250, 39000); Car bmwM4 = new Car(bmw, "M4", 350, 60000); Car bmw5 = new Car(bmw, "5er", 230, 46000); CarProducer porsche = new CarProducer(R.mipmap.porsche, "Porsche"); Car porsche911 = new Car(porsche, "911", 280, 45000); Car porscheCayman = new Car(porsche, "Cayman", 330, 52000); Car porscheCaymanGT4 = new Car(porsche, "Cayman GT4", 385, 86000); CAR_LIST.add(audiA3); CAR_LIST.add(audiA1); CAR_LIST.add(porscheCayman); CAR_LIST.add(audiA7); CAR_LIST.add(audiA8); CAR_LIST.add(audiA4); CAR_LIST.add(bmwX3); CAR_LIST.add(porsche911); CAR_LIST.add(bmw1); CAR_LIST.add(audiA6); CAR_LIST.add(audiA5); CAR_LIST.add(bmwM4); CAR_LIST.add(bmw5); CAR_LIST.add(porscheCaymanGT4); CAR_LIST.add(bmw3); CAR_LIST.add(bmw4); }}主activity布局
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" xmlns:custom="http://schemas.android.com/apk/res-auto" android:layout_width="match_parent" android:layout_height="match_parent" tools:context="de.codecrafters.tableviewexample.MainActivity"> <android.support.v7.widget.Toolbar android:id="@+id/toolbar" android:layout_width="match_parent" android:layout_height="wrap_content" android:background="@color/primary" custom:title="@string/title_activity_main" custom:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar" /> <de.codecrafters.tableviewexample.SortableCarTableView android:id="@+id/tableView" android:layout_width="match_parent" android:layout_height="match_parent" android:layout_below="@id/toolbar" custom:columnCount="4" custom:headerElevation="10" custom:headerColor="@color/primary" /></RelativeLayout>SortableCarTableView
public class SortableCarTableView extends SortableTableView<Car> { //构造函数 public SortableCarTableView(Context context) { this(context, null); } //构造函数 public SortableCarTableView(Context context, AttributeSet attributes) { this(context, attributes, 0); } //构造函数 public SortableCarTableView(Context context, AttributeSet attributes, int styleAttributes) { super(context, attributes, styleAttributes); //首行菜单初始化,public SimpleTableHeaderAdapter(Context context, String... headers) SimpleTableHeaderAdapter simpleTableHeaderAdapter = new SimpleTableHeaderAdapter(context, "Hersteller", "Bezeichung", "Leistung", "Preis"); //设置字体颜色 simpleTableHeaderAdapter.setTextColor(context.getResources().getColor(R.color.table_header_text)); setHeaderAdapter(simpleTableHeaderAdapter); //每一个item颜色差异化的操作 int rowColorEven = context.getResources().getColor(R.color.table_data_row_even); int rowColorOdd = context.getResources().getColor(R.color.table_data_row_odd); setDataRowColoriser(TableDataRowColorizers.alternatingRows(rowColorEven, rowColorOdd)); setHeaderSortStateViewProvider(SortStateViewProviders.brightArrows()); //每一列在菜单的权重 setColumnWeight(0, 2); setColumnWeight(1, 3); setColumnWeight(2, 3); setColumnWeight(3, 2); //每一列的点击业务逻辑 public void setColumnComparator(int columnIndex, Comparator<T> columnComparator) ，所以之后需要创建一个class来实现具体的业务逻辑 setColumnComparator(0, CarComparators.getCarProducerComparator()); setColumnComparator(1, CarComparators.getCarNameComparator()); setColumnComparator(2, CarComparators.getCarPowerComparator()); setColumnComparator(3, CarComparators.getCarPriceComparator()); }}适配器CarTableDataAdapter
public class CarTableDataAdapter extends TableDataAdapter<Car> { //字体大小 private static final int TEXT_SIZE = 14; //格式刷 private static final NumberFormat PRICE_FORMATTER = NumberFormat.getNumberInstance(); public CarTableDataAdapter(Context context, List<Car> data) { super(context, data); } @Override public View getCellView(int rowIndex, int columnIndex, ViewGroup parentView) { //获取每一行的对象 Car car = getRowData(rowIndex); View renderedView = null; //获取列的具体位置,参考XLS,CSV的理解，每一行的样式都可以不同，都可以自定义 switch (columnIndex) { case 0: renderedView = renderProducerLogo(car, parentView); break; case 1: renderedView = renderCatName(car); break; case 2: renderedView = renderPower(car, parentView); break; case 3: renderedView = renderPrice(car); break; } return renderedView; } private View renderPrice(Car car) { String priceString = PRICE_FORMATTER.format(car.getPrice()) + " ?"; TextView textView = new TextView(getContext()); textView.setText(priceString); textView.setPadding(20, 10, 20, 10); textView.setTextSize(TEXT_SIZE); if (car.getPrice() < 50000) { textView.setTextColor(0xFF2E7D32); } else if (car.getPrice() > 100000) { textView.setTextColor(0xFFC62828); } return textView; } private View renderPower(Car car, ViewGroup parentView) { View view = getLayoutInflater().inflate(R.layout.table_cell_power, parentView, false); TextView kwView = (TextView) view.findViewById(R.id.kw_view); TextView psView = (TextView) view.findViewById(R.id.ps_view); kwView.setText(car.getKw() + " kW"); psView.setText(car.getPs() + " PS"); return view; } private View renderCatName(Car car) { return renderString(car.getName()); } private View renderProducerLogo(Car car, ViewGroup parentView) { View view = getLayoutInflater().inflate(R.layout.table_cell_image, parentView, false); ImageView imageView = (ImageView) view.findViewById(R.id.imageView); imageView.setImageResource(car.getProducer().getLogo()); return view; } private View renderString(String value) { TextView textView = new TextView(getContext()); textView.setText(value); textView.setPadding(20, 10, 20, 10); textView.setTextSize(TEXT_SIZE); return textView; }}排序用CarComparators
每一列可实现的业务逻辑在此编写，但是你也可以不变写这部分，根据你的具体业务需要
public class CarComparators { public static Comparator<Car> getCarProducerComparator() { return new CarProducerComparator(); } public static Comparator<Car> getCarPowerComparator() { return new CarPowerComparator(); } public static Comparator<Car> getCarNameComparator() { return new CarNameComparator(); } public static Comparator<Car> getCarPriceComparator() { return new CarPriceComparator(); } private static class CarProducerComparator implements Comparator<Car> { @Override public int compare(Car car1, Car car2) { return car1.getProducer().getName().compareTo(car2.getProducer().getName()); } } private static class CarPowerComparator implements Comparator<Car> { @Override public int compare(Car car1, Car car2) { return car1.getPs() - car2.getPs(); } } private static class CarNameComparator implements Comparator<Car> { @Override public int compare(Car car1, Car car2) { return car1.getName().compareTo(car2.getName()); } } private static class CarPriceComparator implements Comparator<Car> { @Override public int compare(Car car1, Car car2) { if (car1.getPrice() < car2.getPrice()) return -1; if (car1.getPrice() > car2.getPrice()) return 1; return 0; } }}源码地址：http://yunpan.cn/cmZb5Z6UhR5KN 访问密码 ad37
