android 自定义Button,满足您对Button呈现样式的一系列要求

转载请注明出处：王亟亟的大牛之路

我们平时自定义的一些Button通常是改改颜色啊，文本啊，圆角啊之类的。如果要做到再高级点就需要用一个大布局还拼接了，如果一个页面有很多样式不同的这样的按钮，还真不怎么好操作。
今天给大家上一个FancyButton能很好的帮助我们简化这些操作

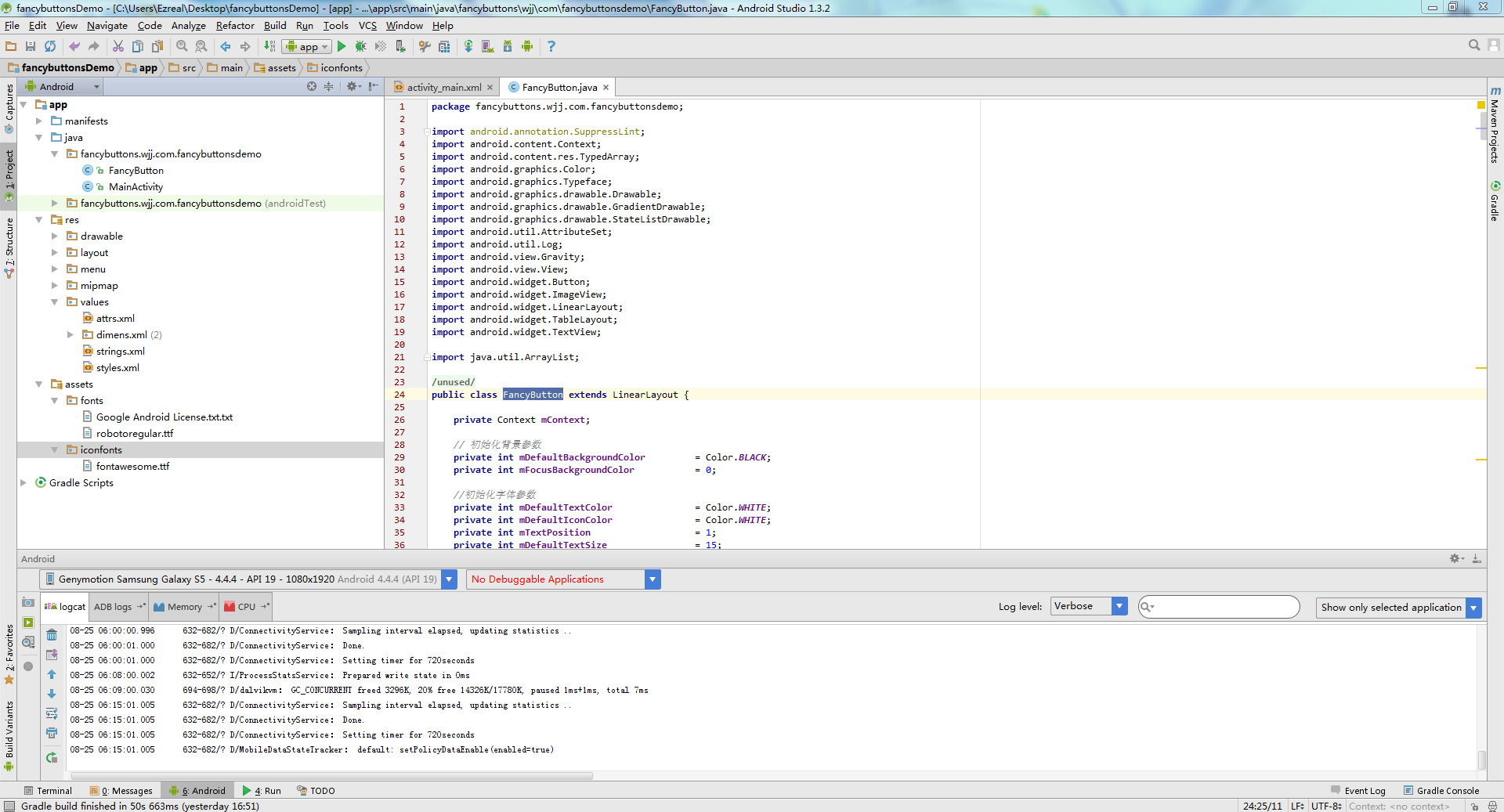

项目结构：

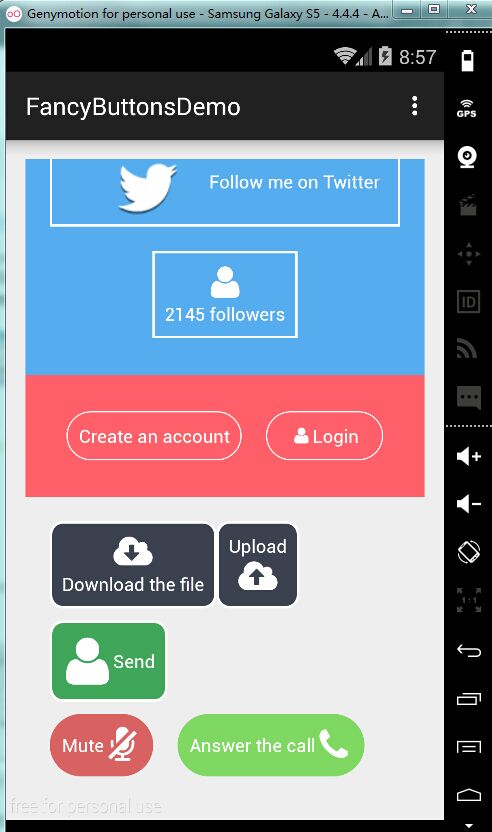

只有一个类外加一些assets包下的字体文件或资源文件的一些Icon就能呈现以下效果：

首先先介绍下FancyButton这个类的一些重要的方法和实现：

继承LinearLayout根据我们的实际场景需要再判断为水平还是垂直的LinearLayout

public class FancyButton extends LinearLayout

一系列的初始化操作和参数申明

 private Context mContext;    // 初始化背景参数    private int mDefaultBackgroundColor         = Color.BLACK;    private int mFocusBackgroundColor           = 0;    //初始化字体参数    private int mDefaultTextColor               = Color.WHITE;    private int mDefaultIconColor               = Color.WHITE;    private int mTextPosition                   = 1;    private int mDefaultTextSize                = 15;    private int mDefaultTextGravity             = 0x11; // Gravity.CENTER    private String mText                        = null;    // 初始化Icon参数    private Drawable mIconResource              = null;    private int  mFontIconSize                  = 15;    private String mFontIcon                    = null;    private int mIconPosition                   = 1;    private int mIconPaddingLeft                = 10;    private int mIconPaddingRight               = 10;    private int mIconPaddingTop                 = 0;    private int mIconPaddingBottom              = 0;    private int mBorderColor                    = Color.TRANSPARENT;    private int mBorderWidth                    = 0;    private int mRadius                         = 0;    private Typeface mTextTypeFace = null;    private Typeface mIconTypeFace = null;    /**     * 标识图标位置的标记     */    public static final int POSITION_LEFT       = 1;    public static final int POSITION_RIGHT      = 2;    public static final int POSITION_TOP        = 3;    public static final int POSITION_BOTTOM     = 4;    //默认字体    private String mDefaultIconFont = "fontawesome.ttf";    private String mDefaultTextFont = "robotoregular.ttf";    private ImageView mIconView;    private TextView mFontIconView;    private TextView mTextView;

构造函数

 /**     * 默认构造函数     * @param context : Context     */    public FancyButton(Context context){        super(context);        this.mContext   = context;        mTextTypeFace   = Typeface.createFromAsset(mContext.getAssets(), String.format("fonts/%s", mDefaultTextFont));        mIconTypeFace   = Typeface.createFromAsset(mContext.getAssets(), String.format("iconfonts/%s", mDefaultIconFont));        initializeFancyButton();    }    /**     * 默认构造函数调用布局     * @param context : Context     * @param attrs : Attributes Array     */    public FancyButton(Context context, AttributeSet attrs){        super(context,attrs);        this.mContext = context;        TypedArray attrsArray   = context.obtainStyledAttributes(attrs,R.styleable.FancyButtonsAttrs, 0, 0);        initAttributsArray(attrsArray);        attrsArray.recycle();        initializeFancyButton();    }

对一些控件所需的素材进行初始化操作

 /**     * 各种初始化     */    private void initializeFancyButton(){        initializeButtonContainer();        mTextView       = setupTextView();        mIconView       = setupIconView();        mFontIconView   = setupFontIconView();        int iconIndex,textIndex;        View view1,view2;        if(mIconView == null && mFontIconView == null && mTextView == null){            Button tempTextView = new Button(mContext);            tempTextView.setText("Fancy Button");            this.addView(tempTextView);        }else{            this.removeAllViews();            setupBackground();            ArrayList<View> views = new ArrayList<>();            if(mIconPosition == POSITION_LEFT || mIconPosition == POSITION_TOP){                if(mIconView != null){                    views.add(mIconView);                }                if(mFontIconView != null){                    views.add(mFontIconView);                }                if(mTextView != null){                    views.add(mTextView);                }            }else{                if(mTextView != null){                    views.add(mTextView);                }                if(mIconView != null){                    views.add(mIconView);                }                if(mFontIconView != null){                    views.add(mFontIconView);                }            }            for(View view : views){                this.addView(view);            }        }    }

 /**     * 设置文本视图     * @return : TextView     */    private TextView setupTextView(){        if (mText != null) {            TextView textView = new TextView(mContext);            textView.setText(mText);            textView.setGravity(mDefaultTextGravity);            textView.setTextColor(mDefaultTextColor);            textView.setTextSize(mDefaultTextSize);            textView.setLayoutParams(new TableLayout.LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.WRAP_CONTENT, 1f));            if (!isInEditMode() && mTextTypeFace!=null) {                textView.setTypeface(mTextTypeFace);            }            return textView;        }        return null;    }    /**     * 设置字体图标视图     * @return : TextView     */    private TextView setupFontIconView(){        if(mFontIcon!=null){            TextView fontIconView = new TextView(mContext);            fontIconView.setTextColor(mDefaultIconColor);            LayoutParams iconTextViewParams = new LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.WRAP_CONTENT,1f);            iconTextViewParams.rightMargin = mIconPaddingRight;            iconTextViewParams.leftMargin = mIconPaddingLeft;            iconTextViewParams.topMargin = mIconPaddingTop;            iconTextViewParams.bottomMargin = mIconPaddingBottom;            if(mTextView != null){                if(mIconPosition==POSITION_TOP || mIconPosition==POSITION_BOTTOM){                    iconTextViewParams.gravity = Gravity.CENTER;                    fontIconView.setGravity(Gravity.CENTER);                }                else{                    fontIconView.setGravity(Gravity.CENTER_VERTICAL);                    iconTextViewParams.gravity = Gravity.CENTER_VERTICAL;                }            }else{                iconTextViewParams.gravity = Gravity.CENTER;                fontIconView.setGravity(Gravity.CENTER_VERTICAL);            }            fontIconView.setLayoutParams(iconTextViewParams);            if(!isInEditMode()){                fontIconView.setTextSize(mFontIconSize);                fontIconView.setText(mFontIcon);                fontIconView.setTypeface(mIconTypeFace);            }else{                fontIconView.setText("O");            }            return fontIconView;        }        return null;    }    /**     * 文本图标资源视图     * @return : ImageView     */    private ImageView setupIconView(){        if (mIconResource != null){            ImageView iconView = new ImageView(mContext);            iconView.setImageDrawable(mIconResource);            iconView.setPadding(mIconPaddingLeft, mIconPaddingTop, mIconPaddingRight, mIconPaddingBottom);            LayoutParams iconViewParams = new LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT);            if(mTextView!=null){                if(mIconPosition==POSITION_TOP || mIconPosition==POSITION_BOTTOM)                    iconViewParams.gravity = Gravity.CENTER;                else                    iconViewParams.gravity = Gravity.START;                iconViewParams.rightMargin = 10;                iconViewParams.leftMargin = 10;            }else{                iconViewParams.gravity = Gravity.CENTER_VERTICAL;            }            iconView.setLayoutParams(iconViewParams);            return iconView;        }        return null;    }    /**     * 初始化属性数组     * @param attrsArray : Attributes array     */    private void initAttributsArray(TypedArray attrsArray){        mDefaultBackgroundColor         = attrsArray.getColor(R.styleable.FancyButtonsAttrs_defaultColor,mDefaultBackgroundColor);        mFocusBackgroundColor           = attrsArray.getColor(R.styleable.FancyButtonsAttrs_focusColor,mFocusBackgroundColor);        mDefaultTextColor               = attrsArray.getColor(R.styleable.FancyButtonsAttrs_textColor,mDefaultTextColor);        // if default color is set then the icon's color is the same (the default for icon's color)        mDefaultIconColor               = attrsArray.getColor(R.styleable.FancyButtonsAttrs_iconColor,mDefaultTextColor);        mDefaultTextSize                = (int) attrsArray.getDimension(R.styleable.FancyButtonsAttrs_textSize,mDefaultTextSize);        mDefaultTextGravity             = attrsArray.getInt(R.styleable.FancyButtonsAttrs_textGravity, mDefaultTextGravity);        mBorderColor                    = attrsArray.getColor(R.styleable.FancyButtonsAttrs_borderColor,mBorderColor);        mBorderWidth                    = (int) attrsArray.getDimension(R.styleable.FancyButtonsAttrs_borderWidth,mBorderWidth);        mRadius                         = (int)attrsArray.getDimension(R.styleable.FancyButtonsAttrs_radius,mRadius);        mFontIconSize                   = (int)attrsArray.getDimension(R.styleable.FancyButtonsAttrs_fontIconSize,mFontIconSize);        mIconPaddingLeft                = (int)attrsArray.getDimension(R.styleable.FancyButtonsAttrs_iconPaddingLeft,mIconPaddingLeft);        mIconPaddingRight               = (int)attrsArray.getDimension(R.styleable.FancyButtonsAttrs_iconPaddingRight,mIconPaddingRight);        mIconPaddingTop                 = (int)attrsArray.getDimension(R.styleable.FancyButtonsAttrs_iconPaddingTop,mIconPaddingTop);        mIconPaddingBottom              = (int)attrsArray.getDimension(R.styleable.FancyButtonsAttrs_iconPaddingBottom,mIconPaddingBottom);        String text                     = attrsArray.getString(R.styleable.FancyButtonsAttrs_text);        mIconPosition                   = attrsArray.getInt(R.styleable.FancyButtonsAttrs_iconPosition,mIconPosition);        String fontIcon                 = attrsArray.getString(R.styleable.FancyButtonsAttrs_fontIconResource);        String iconFontFamily           = attrsArray.getString(R.styleable.FancyButtonsAttrs_iconFont);        String textFontFamily           = attrsArray.getString(R.styleable.FancyButtonsAttrs_textFont);        Drawable icon = null;        try{            mIconResource               = attrsArray.getDrawable(R.styleable.FancyButtonsAttrs_iconResource);        }catch(Exception e){            mIconResource = null;        }        if(fontIcon!=null)            mFontIcon = fontIcon;        if(text!=null)            mText = text;        if(!isInEditMode()){            if(iconFontFamily!=null){                try{                    mIconTypeFace = Typeface.createFromAsset(mContext.getAssets(), String.format("iconfonts/%s", iconFontFamily));                }catch(Exception e){                    Log.e("Fancy", e.getMessage());                    mIconTypeFace= Typeface.createFromAsset(mContext.getAssets(), String.format("iconfonts/%s", mDefaultIconFont));                }            }else{                mIconTypeFace= Typeface.createFromAsset(mContext.getAssets(), String.format("iconfonts/%s", mDefaultIconFont));            }            if(textFontFamily!=null){                try{                    mTextTypeFace = Typeface.createFromAsset(mContext.getAssets(), String.format("fonts/%s", textFontFamily));                }                catch(Exception e){                    mTextTypeFace= Typeface.createFromAsset(mContext.getAssets(), String.format("fonts/%s", mDefaultTextFont));                }            }else{                mTextTypeFace= Typeface.createFromAsset(mContext.getAssets(), String.format("fonts/%s", mDefaultTextFont));            }        }    }    @SuppressLint("NewApi")    private void setupBackground(){        // 默认Drawable        GradientDrawable drawable = new GradientDrawable();        drawable.setCornerRadius(mRadius);        drawable.setColor(mDefaultBackgroundColor);        if (mBorderColor != 0) {            drawable.setStroke(mBorderWidth, mBorderColor);        }        // 焦点/按下 Drawable        GradientDrawable drawable2 = new GradientDrawable();        drawable2.setCornerRadius(mRadius);        drawable2.setColor(mFocusBackgroundColor);        if (mBorderColor != 0) {            drawable2.setStroke(mBorderWidth, mBorderColor);        }        StateListDrawable states = new StateListDrawable();        if(mFocusBackgroundColor!=0){            states.addState(new int[] { android.R.attr.state_pressed }, drawable2);            states.addState(new int[] { android.R.attr.state_focused }, drawable2);        }        states.addState(new int[] {}, drawable);        if(android.os.Build.VERSION.SDK_INT < android.os.Build.VERSION_CODES.JELLY_BEAN) {            this.setBackgroundDrawable(states);        } else {            this.setBackground(states);        }    }    /**     * 初始化按钮的容器     */    private void initializeButtonContainer(){        if(mIconPosition == POSITION_TOP || mIconPosition == POSITION_BOTTOM){            this.setOrientation(LinearLayout.VERTICAL);        }else{            this.setOrientation(LinearLayout.HORIZONTAL);        }        LayoutParams containerParams = new LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT);        this.setLayoutParams(containerParams);        this.setGravity(Gravity.CENTER_VERTICAL);        this.setClickable(true);        this.setFocusable(true);        if(mIconResource==null && mFontIcon==null && getPaddingLeft()==0 && getPaddingRight()==0 && getPaddingTop()==0 && getPaddingBottom()==0){            this.setPadding(20, 20, 20, 20);        }    }    /**     * 设置文字内容     * @param text : Text     */    public void setText(String text){        this.mText = text;        if(mTextView == null)            initializeFancyButton();        else            mTextView.setText(text);    }    /**     * 设置文字颜色     * @param color : Color     * use Color.parse('#code')     */    public void setTextColor(int color){        this.mDefaultTextColor = color;        if(mTextView == null)            initializeFancyButton();        else            mTextView.setTextColor(color);    }    /**     * 设置图标的颜色独立于文本颜色     * @param color : Color     */    public void setIconColor(int color){        if(mFontIconView != null) {            mFontIconView.setTextColor(color);        }    }    /**     * 设置背景颜色     * @param color : use Color.parse('#code')     */    public void setBackgroundColor(int color){        this.mDefaultBackgroundColor = color;        if(mIconView != null || mFontIconView != null || mTextView != null){            this.setupBackground();        }    }    /**     * 设置焦点时按钮的颜色     * @param color : use Color.parse('#code')     */    public void setFocusBackgroundColor(int color){        this.mFocusBackgroundColor = color;        if(mIconView != null || mFontIconView != null || mTextView != null)            this.setupBackground();    }    /**     * 设置文字的大小     * @param textSize : Text Size     */    public void setTextSize(int textSize){        this.mDefaultTextSize = textSize;        if(mTextView != null)            mTextView.setTextSize(textSize);    }    /**     * 设置文本重力位置     * @param gravity : Text Gravity     */    public void setTextGravity(int gravity) {        this.mDefaultTextGravity = gravity;        if (mTextView != null) {            mTextView.setGravity(gravity);        }    }    /**     * 设置间距     * @param paddingLeft : Padding Left     * @param paddingTop : Padding Top     * @param paddingRight : Padding Right     * @param paddingBottom : Padding Bottom     */    public void setIconPadding(int paddingLeft, int paddingTop, int paddingRight, int paddingBottom){        this.mIconPaddingLeft = paddingLeft;        this.mIconPaddingTop = paddingTop;        this.mIconPaddingRight = paddingRight;        this.mIconPaddingBottom = paddingBottom;        if(mIconView != null){            mIconView.setPadding(this.mIconPaddingLeft, this.mIconPaddingTop, this.mIconPaddingRight, this.mIconPaddingBottom);        }        if(mFontIconView != null){            mFontIconView.setPadding(this.mIconPaddingLeft, this.mIconPaddingTop, this.mIconPaddingRight, this.mIconPaddingBottom);        }    }    /**     * 设置icon来自于资源文件     * @param drawable : Drawable resource     */    public void setIconResource(int drawable){        this.mIconResource = mContext.getResources().getDrawable(drawable);        if(mIconView == null || mFontIconView != null) {            mFontIconView= null;            initializeFancyButton();        }        else            mIconView.setImageDrawable(mIconResource);    }    /**     * 设置一种字符作为Icon图     * @param icon : Icon value eg : \uf082     */    public void setIconResource(String icon){        this.mFontIcon = icon;        if(mFontIconView == null) {            mIconView=null;            initializeFancyButton();        }        else            mFontIconView.setText(icon);    }    /**     * 设置Icon尺寸(仅限字符Icon)     * @param iconSize : Icon Size     */    public void setFontIconSize(int iconSize){        this.mFontIconSize = iconSize;        if(mFontIconView!=null)            mFontIconView.setTextSize(iconSize);    }    /**     * 设置图标位置     * 使用全局变量 (FancyButton.POSITION_LEFT, FancyButton.POSITION_RIGHT, FancyButton.POSITION_TOP, FancyButton.POSITION_BOTTOM)     * @param position : Position     */    public void setIconPosition(int position){        if(position>0 && position<5)            mIconPosition = position;        else            mIconPosition = POSITION_LEFT;        initializeFancyButton();    }    /**     * 设置按钮边框的颜色     * @param color : Color     * use Color.parse('#code')     */    public void setBorderColor(int color){        this.mBorderColor = color;        if(mIconView!=null || mFontIconView!=null || mTextView!=null){            this.setupBackground();        }    }    /**     * 设置按钮的宽度     * @param width : Width     */    public void setBorderWidth(int width){        this.mBorderWidth = width;        if(mIconView != null || mFontIconView != null || mTextView != null){            this.setupBackground();        }    }    /**     * 设置按钮的边框半径     * @param radius : Radius     */    public void setRadius(int radius){        this.mRadius = radius;        if(mIconView != null || mFontIconView != null || mTextView != null){            this.setupBackground();        }    }    /**     * 设置按钮文本的自定义字体     * @param fontName : Font Name     * Place your text fonts in assets/fonts/     */    public void setCustomTextFont(String fontName){        try{            mTextTypeFace = Typeface.createFromAsset(mContext.getAssets(), String.format("fonts/%s", fontName));        }catch(Exception e){            Log.e("FancyButtons", e.getMessage());            mTextTypeFace= Typeface.createFromAsset(mContext.getAssets(), String.format("fonts/%s", mDefaultTextFont));        }        if(mTextView==null)            initializeFancyButton();        else            mTextView.setTypeface(mTextTypeFace);    }    /**     * 设置按钮图标的自定义字体     * @param fontName : Font Name     * Place your icon fonts in assets/iconfonts/     */    public void setCustomIconFont(String fontName){        try{            mIconTypeFace = Typeface.createFromAsset(mContext.getAssets(), String.format("iconfonts/%s", fontName));        }catch(Exception e){            Log.e("FancyButtons", e.getMessage());            mIconTypeFace= Typeface.createFromAsset(mContext.getAssets(), String.format("iconfonts/%s", mDefaultIconFont));        }        if(mFontIconView == null)            initializeFancyButton();        else            mFontIconView.setTypeface(mIconTypeFace);    }}

布局文件

<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:tools="http://schemas.android.com/tools"    xmlns:fancy="http://schemas.android.com/apk/res-auto"    android:layout_width="match_parent"    android:layout_height="wrap_content" android:paddingLeft="@dimen/activity_horizontal_margin"    android:paddingRight="@dimen/activity_horizontal_margin"    android:paddingTop="@dimen/activity_vertical_margin"    android:paddingBottom="@dimen/activity_vertical_margin" tools:context=".MainActivity">    <LinearLayout        android:id="@+id/section1"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:orientation="vertical" >        <LinearLayout            android:id="@+id/section_facebook"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:background="#3b5998"            android:gravity="center_horizontal"            android:orientation="vertical"            android:padding="20dp" >            <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                android:id="@+id/btn_facebook_like"                android:layout_width="wrap_content"                android:layout_height="wrap_content"                android:layout_marginBottom="10dp"                android:padding="10dp"                fancy:borderColor="#FFFFFF"                fancy:borderWidth="1dp"                fancy:defaultColor="#3b5998"                fancy:focusColor="#5577bd"                fancy:fontIconResource="@string/icon_like"                fancy:fontIconSize="10sp"                fancy:iconPosition="right"                fancy:radius="30dp"                fancy:text="Like my facebook page"                fancy:textColor="#FFFFFF"/>            <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                android:id="@+id/btn_facebook_share"                android:layout_width="wrap_content"                android:layout_height="wrap_content"                android:layout_marginBottom="10dp"                android:padding="10dp"                fancy:borderColor="#FFFFFF"                fancy:borderWidth="1dp"                fancy:defaultColor="#3b5998"                fancy:focusColor="#5577bd"                fancy:fontIconResource="@string/icon_share"                fancy:fontIconSize="10sp"                fancy:iconPosition="right"                fancy:iconPaddingLeft="20dp"                fancy:iconPaddingRight= "0dp"                fancy:radius="30dp"                fancy:text="Share the link"                fancy:textColor="#FFFFFF"/>            <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                android:id="@+id/btn_facebook_follow"                android:layout_width="wrap_content"                android:layout_height="wrap_content"                android:layout_marginBottom="10dp"                android:padding="10dp"                fancy:borderColor="#FFFFFF"                fancy:borderWidth="1dp"                fancy:defaultColor="#3b5998"                fancy:focusColor="#5577bd"                fancy:fontIconResource="@string/icon_follow"                fancy:fontIconSize="10sp"                fancy:iconPosition="right"                fancy:radius="30dp"                fancy:text="Follow Mehdi Sakout"                fancy:textColor="#FFFFFF" />        </LinearLayout>        <LinearLayout            android:id="@+id/section_socialnetworks"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:background="#ffffff"            android:gravity="center_horizontal"            android:minHeight="200dp"            android:orientation="vertical"            android:padding="20dp" >            <LinearLayout                android:layout_width="match_parent"                android:layout_height="match_parent"                android:layout_marginBottom="15dp"                android:gravity="center" >                <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                    android:id="@+id/btn_android"                    android:layout_width="wrap_content"                    android:layout_height="wrap_content"                    android:layout_marginRight="10dp"                    android:padding="10dp"                    fancy:defaultColor="#55acee"                    fancy:focusColor="#313131"                    fancy:iconResource="@drawable/twitter"                    fancy:iconPaddingLeft="0dp"                    fancy:iconPaddingRight="0dp"                    fancy:radius="30dp"                    fancy:textColor="#FFFFFF" />                <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                    android:id="@+id/btn_dropbox"                    android:layout_width="wrap_content"                    android:layout_height="wrap_content"                    android:layout_marginRight="10dp"                    android:padding="10dp"                    fancy:defaultColor="#007ee5"                    fancy:iconPaddingLeft="0dp"                    fancy:iconPaddingRight="0dp"                    fancy:focusColor="#313131"                    fancy:iconResource="@drawable/dropbox"                    fancy:radius="30dp">                </fancybuttons.wjj.com.fancybuttonsdemo.FancyButton>            </LinearLayout>            <LinearLayout                android:id="@+id/sn_pos2"                android:layout_width="match_parent"                android:layout_height="match_parent"                android:layout_marginBottom="15dp"                android:gravity="center"                android:orientation="horizontal" >                <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                    android:id="@+id/btn_instagram"                    android:layout_width="wrap_content"                    android:layout_height="wrap_content"                    android:layout_marginRight="10dp"                    android:padding="10dp"                    fancy:defaultColor="#3f729b"                    fancy:iconPaddingLeft="0dp"                    fancy:iconPaddingRight="0dp"                    fancy:focusColor="#313131"                    fancy:iconResource="@drawable/instagram"                    fancy:radius="30dp">                </fancybuttons.wjj.com.fancybuttonsdemo.FancyButton>                <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                    android:id="@+id/btn_sound"                    android:layout_width="wrap_content"                    android:layout_height="wrap_content"                    android:layout_marginRight="10dp"                    android:padding="10dp"                    fancy:defaultColor="#ff8800"                    fancy:iconPaddingLeft="0dp"                    fancy:iconPaddingRight="0dp"                    fancy:focusColor="#313131"                    fancy:iconResource="@drawable/soundcloud"                    fancy:radius="30dp">                </fancybuttons.wjj.com.fancybuttonsdemo.FancyButton>            </LinearLayout>            <LinearLayout                android:id="@+id/LinearLayout1"                android:layout_width="match_parent"                android:layout_height="match_parent"                android:gravity="center"                android:orientation="horizontal" >                <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                    android:id="@+id/btn_gplus"                    android:layout_width="wrap_content"                    android:layout_height="wrap_content"                    android:layout_marginRight="10dp"                    android:padding="10dp"                    fancy:defaultColor="#dd4b39"                    fancy:iconPaddingLeft="0dp"                    fancy:iconPaddingRight="0dp"                    fancy:focusColor="#313131"                    fancy:iconResource="@drawable/gplus"                    fancy:radius="30dp">                </fancybuttons.wjj.com.fancybuttonsdemo.FancyButton>                <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                    android:id="@+id/btn_facebook"                    android:layout_width="wrap_content"                    android:layout_height="wrap_content"                    android:layout_marginRight="10dp"                    android:padding="10dp"                    fancy:defaultColor="#000000"                    fancy:iconPaddingLeft="0dp"                    fancy:iconPaddingRight="0dp"                    fancy:focusColor="#313131"                    fancy:iconResource="@drawable/github"                    fancy:radius="30dp" >                </fancybuttons.wjj.com.fancybuttonsdemo.FancyButton>            </LinearLayout>        </LinearLayout>        <LinearLayout            android:id="@+id/section_spotify"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:background="#222326"            android:gravity="center_horizontal"            android:orientation="vertical"            android:padding="20dp" >            <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                android:id="@+id/btn_spotify"                android:layout_width="wrap_content"                android:layout_height="wrap_content"                android:layout_marginBottom="10dp"                android:paddingBottom="10dp"                android:paddingLeft="20dp"                android:paddingRight="20dp"                android:paddingTop="10dp"                fancy:defaultColor="#7ab800"                fancy:focusColor="#9bd823"                fancy:fontIconResource="&#xf04b;"                fancy:iconPosition="left"                fancy:radius="30dp"                fancy:text="SHUFFLE PLAY"                fancy:textColor="#FFFFFF" />            <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                android:id="@+id/btn_spotify_pause"                android:layout_width="wrap_content"                android:layout_height="wrap_content"                android:layout_marginBottom="10dp"                android:paddingBottom="10dp"                android:paddingLeft="20dp"                android:paddingRight="20dp"                android:paddingTop="10dp"                fancy:defaultColor="#7ab800"                fancy:focusColor="#9bd823"                fancy:fontIconResource="&#xf04c;"                fancy:iconPosition="left"                fancy:radius="30dp"                fancy:text="PAUSE"                fancy:textColor="#FFFFFF" />            <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                android:id="@+id/btn_spotify_follow"                android:layout_width="wrap_content"                android:layout_height="wrap_content"                android:paddingBottom="10dp"                android:paddingLeft="20dp"                android:paddingRight="20dp"                android:paddingTop="10dp"                fancy:defaultColor="#222326"                fancy:focusColor="#424243"                fancy:radius="30dp"                fancy:text="FOLOW"                fancy:borderColor="#88898c"                fancy:borderWidth="1dp"                fancy:textColor="#dfe0d9" />        </LinearLayout>        <LinearLayout            android:id="@+id/section_twitter"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:background="#55acee"            android:gravity="center_horizontal"            android:orientation="vertical"            android:padding="20dp" >            <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                android:id="@+id/btn_twitter_follow"                android:layout_width="match_parent"                android:layout_height="wrap_content"                android:layout_marginBottom="20dp"                android:padding="5dp"                fancy:borderColor="#FFFFFF"                fancy:borderWidth="2dp"                fancy:defaultColor="#55acee"                fancy:focusColor="#8cc9f8"                fancy:iconPaddingLeft="40dp"                fancy:iconResource="@drawable/twitter"                fancy:text="Follow me on Twitter"                fancy:textColor="#FFFFFF"/>            <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                android:id="@+id/btn_twitter_followers"                android:layout_width="wrap_content"                android:layout_height="wrap_content"                android:layout_marginBottom="10dp"                android:padding="10dp"                fancy:borderColor="#FFFFFF"                fancy:borderWidth="2dp"                fancy:defaultColor="#55acee"                fancy:focusColor="#8cc9f8"                fancy:fontIconResource="@string/icon_user"                fancy:fontIconSize="10sp"                fancy:iconPosition="top"                fancy:text="2145 followers"                fancy:textColor="#FFFFFF"/>        </LinearLayout>        <LinearLayout            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:background="#ff5f69"            android:gravity="center"            android:paddingBottom="30dp"            android:paddingTop="30dp" >            <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                android:id="@+id/btn_create_account"                android:layout_width="wrap_content"                android:layout_height="wrap_content"                android:layout_marginRight="20dp"                android:padding="10dp"                fancy:borderColor="#FFFFFF"                fancy:borderWidth="1dp"                fancy:defaultColor="#ff5f69"                fancy:focusColor="#ff838b"                fancy:radius="30dp"                fancy:text="Create an account"                fancy:textColor="#FFFFFF" >            </fancybuttons.wjj.com.fancybuttonsdemo.FancyButton>            <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                android:id="@+id/btn_login"                android:layout_width="wrap_content"                android:layout_height="wrap_content"                android:paddingBottom="10dp"                android:paddingLeft="20dp"                android:paddingRight="20dp"                android:paddingTop="10dp"                fancy:borderColor="#FFFFFF"                fancy:borderWidth="1dp"                fancy:defaultColor="#ff5f69"                fancy:focusColor="#ff838b"                fancy:fontIconResource="@string/icon_user"                fancy:iconPosition="left"                fancy:radius="30dp"                fancy:text="Login"                fancy:textColor="#FFFFFF" />        </LinearLayout>        <LinearLayout            android:layout_width="match_parent"            android:padding="20dp"            android:layout_height="wrap_content"            android:orientation="vertical" >            <LinearLayout                android:layout_width="match_parent"                android:layout_height="wrap_content" >                <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                    android:id="@+id/btn_download"                    android:layout_width="wrap_content"                    android:layout_height="wrap_content"                    android:layout_marginBottom="10dp"                    android:padding="10dp"                    fancy:borderColor="#FFFFFF"                    fancy:borderWidth="2dp"                    fancy:defaultColor="#3b414f"                    fancy:focusColor="#8cc9f8"                    fancy:fontIconResource="@string/icon_download"                    fancy:fontIconSize="10sp"                    fancy:iconPosition="top"                    fancy:radius="10dp"                    fancy:text="Download the file"                    fancy:textColor="#FFFFFF">                </fancybuttons.wjj.com.fancybuttonsdemo.FancyButton>                <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                    android:id="@+id/btn_upload"                    android:layout_width="wrap_content"                    android:layout_height="wrap_content"                    android:layout_marginBottom="10dp"                    android:padding="10dp"                    fancy:borderColor="#FFFFFF"                    fancy:borderWidth="2dp"                    fancy:defaultColor="#3b414f"                    fancy:focusColor="#8cc9f8"                    fancy:fontIconResource="@string/icon_upload"                    fancy:fontIconSize="10sp"                    fancy:radius="10dp"                    fancy:iconPosition="bottom"                    fancy:text="Upload"                    fancy:textColor="#FFFFFF">                </fancybuttons.wjj.com.fancybuttonsdemo.FancyButton>            </LinearLayout>            <LinearLayout                android:layout_width="match_parent"                android:layout_height="wrap_content" >                <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                    android:id="@+id/btn_twitter"                    android:layout_width="wrap_content"                    android:layout_height="wrap_content"                    android:layout_marginBottom="10dp"                    android:padding="10dp"                    fancy:borderColor="#FFFFFF"                    fancy:borderWidth="2dp"                    fancy:defaultColor="#40a75a"                    fancy:focusColor="#8cc9f8"                    fancy:fontIconResource="@string/icon_user"                    fancy:fontIconSize="15sp"                    fancy:iconPosition="left"                    fancy:text="Send"                    fancy:radius="10dp"                    fancy:textColor="#FFFFFF">                </fancybuttons.wjj.com.fancybuttonsdemo.FancyButton>            </LinearLayout>            <LinearLayout                android:layout_width="match_parent"                android:layout_height="wrap_content" >                <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                    android:id="@+id/btn_decline"                    android:layout_width="wrap_content"                    android:layout_height="wrap_content"                    android:layout_marginRight="20dp"                    android:padding="10dp"                    fancy:borderColor="#FFFFFF"                    fancy:borderWidth="0dp"                    fancy:defaultColor="#d86262"                    fancy:focusColor="#2e5071"                    fancy:fontIconResource="@string/icon_mute"                    fancy:fontIconSize="10dp"                    fancy:iconPosition="right"                    fancy:radius="30dp"                    fancy:text="Mute"                    fancy:textColor="#ffffff" />                <fancybuttons.wjj.com.fancybuttonsdemo.FancyButton                    android:id="@+id/btn_answer"                    android:layout_width="wrap_content"                    android:layout_height="wrap_content"                    android:layout_marginRight="20dp"                    android:gravity="right"                    android:padding="10dp"                    fancy:defaultColor="#7ed862"                    fancy:focusColor="#2e5071"                    fancy:fontIconResource="@string/icon_answer"                    fancy:fontIconSize="10dp"                    fancy:iconPosition="right"                    fancy:radius="30dp"                    fancy:text="Answer the call"                    fancy:textColor="#ffffff" />            </LinearLayout>        </LinearLayout>    </LinearLayout></ScrollView>

MainActivity补贴了，什么代码都没写，自动生成的一个Activity.

所有的一系列你所需的一些格式要求都可以在XML文件内预设，如果需要用代码编写就只需要调用上面的一些列Set方法就可以了。
源码地址：http://yunpan.cn/cmy8gXMhNr8Zj 访问密码 a74d
