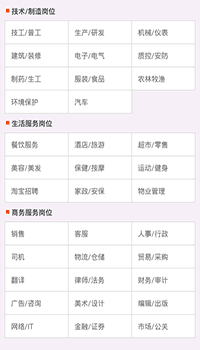

《Android奇效》完全高仿58同城 点击展开的表格效果

完全高仿58同城 点击展开的表格效果 使用tablelayout

来实现,每一个tablelayou里面还添加一个GridView，并且很好的处理
Viewpager和gridview的滑动冲突事件。

?

?

特效源码下载地址http://www.itlanbao.com/code/20150904/10000/100503.html

?

?

package com.haibuzou.myapplication;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.support.v4.view.ViewPager;
import android.support.v4.view.ViewPager.OnPageChangeListener;
import android.util.TypedValue;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.animation.Animation;
import android.view.animation.Transformation;
import android.widget.GridView;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.RelativeLayout;
import android.widget.TableLayout;

import com.haibuzou.myapplication.adapter.ExpandGridAdapter;
import com.haibuzou.myapplication.adapter.MyViewPagerAdapter;
import com.haibuzou.myapplication.entity.BaseData;
import com.haibuzou.myapplication.entity.ZhaoPin;
import com.haibuzou.myapplication.view.CurrenPositionView;
import com.haibuzou.myapplication.view.MyTextView;

import java.util.ArrayList;
import java.util.List;

public class MainActivity extends Activity implements ExpandGridAdapter.OnClick {

??? //招聘数据
??? private List<ZhaoPin> data = null;
??? private LinearLayout currenPositionLinear = null;
??? private Integer duration = 200;
??? private RelativeLayout rel;
??? private String itemId = null;
??? //记录点击位置
??? private String clickPosition = "";
??? private MyTextView clicktxt;
??? //下拉的 圆点显示layout
??? private LinearLayout circlelayout;
??? private int lastlocation = -1;
??? private ExpandGridAdapter.OnClick listener;
??? //每行显示条目个数
??? private final int NUM_LINE = 3;

??? @Override
??? protected void onCreate(Bundle savedInstanceState) {
??????? super.onCreate(savedInstanceState);
??????? setContentView(R.layout.activity_main);
??????? initData();
??????? initView();
??? }

??? private void initView() {
??????? currenPositionLinear = (LinearLayout) findViewById(R.id.zp_curr_potion_linear);
??????? for (int num = 0; num < data.size(); num++) {
??????????? ZhaoPin zhaoPin = data.get(num);
??????????? CurrenPositionView currenPositionView = new CurrenPositionView(this);
??????????? currenPositionView.setData(zhaoPin);
??????????? currenPositionView.setViewId(num);
??????????? currenPositionView.init();
??????????? if (num > 0) {
??????????????? LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(LinearLayout.LayoutParams.WRAP_CONTENT, LinearLayout.LayoutParams.WRAP_CONTENT);
??????????????? params.topMargin = (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, 10, getResources().getDisplayMetrics());
??????????????? if (num == data.size() - 1) {
??????????????????? params.bottomMargin = (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, 50, getResources().getDisplayMetrics());
??????????????? }
??????????????? currenPositionLinear.addView(currenPositionView, params);
??????????? } else {
??????????????? currenPositionLinear.addView(currenPositionView);
??????????? }

??????? }
??? }

??? private void initData() {
??????? if (listener == null) {
??????????? listener = this;
??????? }
??????? if (data == null) {
??????????? data = Utils.getJobType(this);
??????? }
??? }

??? public class OnItemClick implements OnClickListener, OnPageChangeListener {
??????? private int position;
??????? private int tag;
??????? private MyTextView view;
??????? private TableLayout tableLayout;
??????? private ZhaoPin zhaoPin;

??????? public OnItemClick(ZhaoPin zhaoPin, int position, int tag, TableLayout table, MyTextView view) {
??????????? this.position = position;
??????????? this.tag = tag;
??????????? this.view = view;
??????????? this.tableLayout = table;
??????????? this.zhaoPin = zhaoPin;
??????? }

??????? @Override
??????? public void onPageScrollStateChanged(int arg0) {

??????? }

??????? @Override
??????? public void onPageScrolled(int arg0, float arg1, int arg2) {
??????????? if (lastlocation != arg0 && lastlocation != -1) {
??????????????? ImageView mimage = (ImageView) circlelayout
??????????????????????? .findViewWithTag(lastlocation + 1 + 10);
??????????????? if (mimage != null) {
??????????????????? mimage.setImageResource(R.mipmap.black_circle);
??????????????? }
??????????? }

??????????? ImageView image = (ImageView) circlelayout
??????????????????? .findViewWithTag(arg0 + 1 + 10);
??????????? if (image != null) {
??????????????? image.setImageResource(R.mipmap.orange_circle);
??????????? }

??????????? lastlocation = arg0;
??????? }

??????? @Override
??????? public void onPageSelected(int arg0) {

??????? }

??????? private void init(View v, int location) {
??????????? List<BaseData> list = new ArrayList<>();
??????????? ViewPager pager = (ViewPager) v.findViewById(R.id.expand_item);
??????????? // 底部的圆点初始化
??????????? circlelayout = (LinearLayout) v.findViewById(R.id.circle_layout);
??????????? circlelayout.removeAllViews();
??????????? int radio = (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, 5, getResources().getDisplayMetrics());
??????????? // 初始化一个params 用于圆点大小设置
??????????? LinearLayout.LayoutParams circleparams = new LinearLayout.LayoutParams(radio, radio);
??????????? circleparams.setMargins(0, 0, 10, 0);
??????????? List<View> views = new ArrayList<>();
??????????? // 下拉表格的行数
??????????? int row = zhaoPin.getJobtype().get(location).getJobtype().size() / NUM_LINE;
??????????? if (row > 4) {
??????????????? row = 4;
??????????? } else if (row < 4) {
??????????????? if (zhaoPin.getJobtype().get(location).getJobtype().size() % NUM_LINE != 0) {
??????????????????? row += 1;
??????????????? }
??????????? }
??????????? // 计算生成 view的数量
??????????? int i = zhaoPin.getJobtype().get(location).getJobtype().size() / 12;
??????????? int len = zhaoPin.getJobtype().get(location).getJobtype().size() % 12;
??????????? if (len > 0) {
??????????????? i += 1;
??????????? }
??????????? // View的 初始化
??????????? for (int n = 1; n <= i; n++) {
??????????????? View view = LayoutInflater.from(MainActivity.this).inflate(R.layout.viewpager, null);
??????????????? GridView grid = (GridView) view.findViewById(R.id.expand_grid);
??????????????? // 计算每个 gridview 存放多少数据
??????????????? if (i == 0) {
??????????????????? list = zhaoPin.getJobtype().get(location).getJobtype();
??????????????? } else if (n < i) {
??????????????????? // 每一个 表只有3列 最多 4行 每个表最多12个
??????????????????? list = zhaoPin.getJobtype().get(location).getJobtype().subList((n - 1) * 12, n * 12);
??????????????? } else {
??????????????????? int size = zhaoPin.getJobtype().get(location).getJobtype().size();
??????????????????? list = zhaoPin.getJobtype().get(location).getJobtype().subList((n - 1) * 12, size);
??????????????? }
??????????????? ExpandGridAdapter ea = new ExpandGridAdapter(MainActivity.this, list, R.layout.expand_grid_item);
??????????????? ea.setOnClick(listener);
??????????????? grid.setAdapter(ea);
??????????????? views.add(grid);
??????????????? if (i > 1) {
??????????????????? circlelayout.setVisibility(View.VISIBLE);
??????????????????? // viewpager 底部的 点标识
??????????????????? ImageView image = new ImageView(MainActivity.this);
??????????????????? image.setTag(n + 10);
??????????????????? image.setImageResource(R.mipmap.black_circle);
??????????????????? circlelayout.addView(image, circleparams);
??????????????? } else {
??????????????????? circlelayout.setVisibility(View.GONE);
??????????????? }
??????????? }
??????????? MyViewPagerAdapter mpa = new MyViewPagerAdapter(views);
??????????? // 宽度每一个格高度 42dp 转成px
??????????? int height = (int) (MainActivity.this.getResources().getDisplayMetrics().density * 42 + 0.5f);
??????????? RelativeLayout.LayoutParams params = new RelativeLayout.LayoutParams(RelativeLayout.LayoutParams.MATCH_PARENT, row * height);
??????????? pager.setLayoutParams(params);
??????????? pager.setAdapter(mpa);
??????????? pager.setOnPageChangeListener(this);
??????? }

??????? // 收缩动画
??????? private void collapse(final View v) {
??????????? final int initialHeight = v.getMeasuredHeight();
??????????? Animation animation = new Animation() {
??????????????? @Override
??????????????? protected void applyTransformation(float interpolatedTime,
?????????????????????????????????????????????????? Transformation t) {
??????????????????? // interpolatedTime 0-1 进行变化 为1的时候表示动画已经完成
??????????????????? if (interpolatedTime == 1) {
??????????????????????? v.setVisibility(View.GONE);
??????????????????? } else {
??????????????????????? // 同样的原理 让控件的高度不断变化
??????????????????????? v.getLayoutParams().height = initialHeight
??????????????????????????????? - (int) (initialHeight * interpolatedTime);
??????????????????????? v.requestLayout();
??????????????????? }
??????????????? }

??????????????? @Override
??????????????? public boolean willChangeBounds() {
??????????????????? return true;
??????????????? }
??????????? };

??????????? animation.setDuration(duration);
??????????? v.startAnimation(animation);
??????? }

??????? // 展开动画
??????? private void expand(final View v, int location) {
??????????? init(v, location);
??????????? v.measure(LinearLayout.LayoutParams.MATCH_PARENT, LinearLayout.LayoutParams.WRAP_CONTENT);
??????????? final int targetHeight = v.getMeasuredHeight();
??????????? // 最开始显示下拉控件的时候 将高度设为0 达到不显示的效果
??????????? v.getLayoutParams().height = 0;
??????????? v.setVisibility(View.VISIBLE);

??????????? Animation animation = new Animation() {
??????????????? @Override
??????????????? protected void applyTransformation(float interpolatedTime,
?????????????????????????????????????????????????? Transformation t) {
??????????????????? // 不断变化高度来显示控件
??????????????????? v.getLayoutParams().height = (interpolatedTime == 1) ? RelativeLayout.LayoutParams.WRAP_CONTENT
??????????????????????????? : (int) (targetHeight * interpolatedTime);
??????????????????? v.requestLayout();
??????????????? }

??????????????? @Override
??????????????? public boolean willChangeBounds() {
??????????????????? return true;
??????????????? }
??????????? };
??????????? animation.setDuration(duration);
??????????? v.startAnimation(animation);
??????? }

??????? @Override
??????? public void onClick(View v) {
??????????? String tempTag = (String) v.getTag();
??????????? if (rel == null) {
??????????????? rel = (RelativeLayout) tableLayout.findViewWithTag(tag);
??????????????? expand(rel, position);
??????????????? view.isDraw(true);
??????????? } else {
??????????????? if (rel.getVisibility() == View.VISIBLE) {
??????????????????? collapse(rel);
??????????????????? view.isDraw(false);
??????????????? } else {
??????????????????? if (tempTag.equals(clickPosition)) {
??????????????????????? expand(rel, position);
??????????????????? }
??????????????????? view.isDraw(true);
??????????????? }

??????????????? if (!tempTag.equals(clickPosition)) {
??????????????????? rel = (RelativeLayout) tableLayout.findViewWithTag(tag);
??????????????????? expand(rel, position);
??????????????????? // 上一次的箭头去除
??????????????????? clicktxt.isDraw(false);
??????????????????? view.isDraw(true);
??????????????? }
??????????? }
??????????? clickPosition = tempTag;
??????????? clicktxt = view;
??????? }
??? }

??? @Override
??? public void onClick(int dataId, String str) {
??????? Intent intent = new Intent();
??????? intent.putExtra("id", dataId);
??????? intent.putExtra("value", str);
??????? setResult(RESULT_OK, intent);
??????? finish();
??? }

}

完整特效源码下载地址http://www.itlanbao.com/code/20150904/10000/100503.html
