组件式开发,融入android
**
引言
**
在app中经常能看到底部弹出式菜单的应用,比如手机qq和微信中头像的选择。这一组件非常常用。所以,将这一组件进行封装后,就可以像使用android 原生view 一样方便地使用这一功能,极大地提高了程序的可扩展性和可维护性。

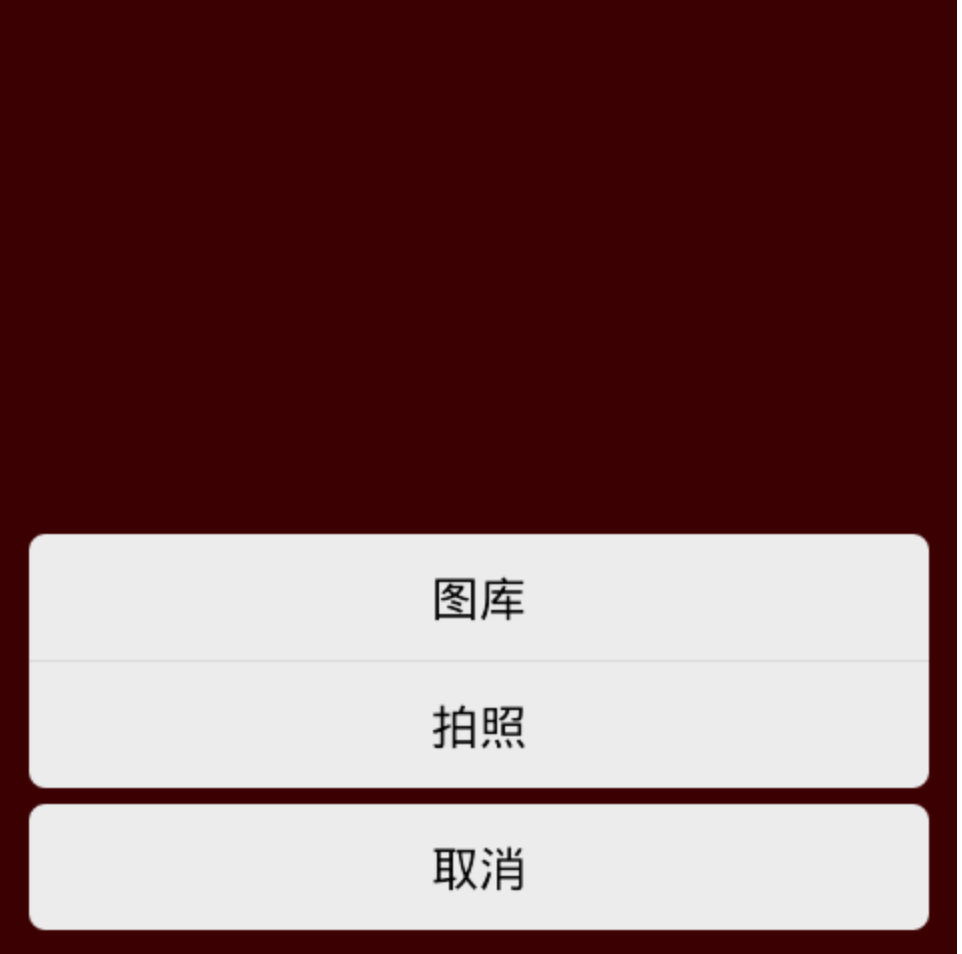

(一)效果实现
第一步,我们需要将底部弹出式菜单的效果实现出来。
在android中,菜单一般可以使用dialog和popupwindow两种方式实现。这里使用popupwindow来实现我们的效果。
popupwindow 实现弹出框代码:
View view = mInflater.inflate(R.layout.bottom_pop_window, null);mPopupWindow = new PopupWindow(view, ScreenUtil.getScreenWidth(mContext), LinearLayout.LayoutParams.WRAP_CONTENT); //监听PopupWindow的dismiss,当dismiss时屏幕恢复亮度 mPopupWindow.setOnDismissListener(new PopupWindow.OnDismissListener() { @Override public void onDismiss() { params.alpha = 1.0f; window.setAttributes(params); } }); mPopupWindow.setWidth(LayoutParams.MATCH_PARENT); mPopupWindow.setHeight(LayoutParams.WRAP_CONTENT); mPopupWindow.setBackgroundDrawable(new BitmapDrawable()); mPopupWindow.setTouchable(true); mPopupWindow.setFocusable(true); mPopupWindow.setOutsideTouchable(true); // 动画效果 从底部弹起 mPopupWindow.setAnimationStyle(R.style.popWindow_animation);
其中bottom_pop_window.xml 为自定义的布局。
bottom_pop_window.xml
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_alignParentBottom="true" android:orientation="vertical" android:padding="@dimen/mg_20"> <TextView android:id="@+id/tv_take_photo" android:layout_width="match_parent" android:layout_height="wrap_content" android:background="@color/white" android:gravity="center" android:padding="@dimen/mg_15" android:textColor="@color/black_65" android:textSize="@dimen/ts_2" /> <View style="@style/zg_single_line" /> <TextView android:id="@+id/tv_choose_photo" android:layout_width="match_parent" android:layout_height="wrap_content" android:background="@color/white" android:gravity="center" android:padding="@dimen/mg_15" android:textColor="@color/black_65" android:textSize="@dimen/ts_2" /> <TextView android:id="@+id/tv_cancel" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_marginTop="@dimen/mg_15" android:background="@color/white" android:gravity="center" android:padding="@dimen/mg_15" android:text="@string/ddc_dialog_cancel" android:textColor="@color/black_65" android:textSize="@dimen/ts_2" /></LinearLayout>
一般的底部菜单弹出时,屏幕会变暗,当菜单消失时,屏幕亮度恢复。dialog是自带这种效果,但是popupwindow 没有,所以我们需要自己来实现这种效果。具体实现步骤是:
- 获得windowManager对象:
WindowManager windowManager = context.getWindowManager();
2.获得Window对象和window的 LayoutParams对象: Window window = context.getWindow();
LayoutParams params =
context.getWindow().getAttributes();- 改变 params.alpha = 1.0f来调节屏幕亮度。
( 二 ) 封装组件
仅仅实现了效果是不够的,试想每次用到这个控件的时候,都需要写一大堆的代码,其中很多都是重复的,毫无必要。我们完全可以抽离出其中相同的部分代码,对这段代码进行封装,将不同部分的代码暴露出来,供外部自行定义。
**
分析
**
分析一下,每次使用这个组件的时候,不同的地方无非就是 按钮中的文字以及点击按钮后的相应事件。而相同的地方就是对话框的创建和消失的处理。所以,我们可以将不同的部分剥离出来,作为接口供外部自行回调。
**
封装ing
**
首先创建一个BottomPopView类,将popupwindow的创建和一系列初始化操作封装到内部进行,提供一些回调方法,供外部自定义按钮的文字和事件即可。
BottomPopView.class
public abstract class BottomPopView { private Context mContext; private View anchor; private LayoutInflater mInflater; private TextView mTvTop; private TextView mTvBottom; private TextView mTvCancel; private PopupWindow mPopupWindow; LayoutParams params; WindowManager windowManager; Window window; /** * @param context * @param anchor 依附在哪个View下面 */ public BottomPopView(Activity context, View anchor) { this.mContext = context; this.mInflater = LayoutInflater.from(context); this.anchor = anchor; windowManager = context.getWindowManager(); window = context.getWindow(); params = context.getWindow().getAttributes(); init(); } public void init() { View view = mInflater.inflate(R.layout.bottom_pop_window, null); params.dimAmount = 0.5f; window.addFlags(LayoutParams.FLAG_DIM_BEHIND); mTvBottom = (TextView) view.findViewById(R.id.tv_choose_photo); mTvTop = (TextView) view.findViewById(R.id.tv_take_photo); mTvCancel = (TextView) view.findViewById(R.id.tv_cancel); mTvTop.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View arg0) { // TODO Auto-generated method stub onTopButtonClick(); } }); mTvBottom.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View arg0) { // TODO Auto-generated method stub onBottomButtonClick(); } }); mTvCancel.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { dismiss(); } }); mPopupWindow = new PopupWindow(view, ScreenUtil.getScreenWidth(mContext), LinearLayout.LayoutParams.WRAP_CONTENT); //监听PopupWindow的dismiss,当dismiss时屏幕恢复亮度 mPopupWindow.setOnDismissListener(new PopupWindow.OnDismissListener() { @Override public void onDismiss() { params.alpha = 1.0f; window.setAttributes(params); } }); mPopupWindow.setWidth(LayoutParams.MATCH_PARENT); mPopupWindow.setHeight(LayoutParams.WRAP_CONTENT); mPopupWindow.setBackgroundDrawable(new BitmapDrawable()); mPopupWindow.setTouchable(true); mPopupWindow.setFocusable(true); mPopupWindow.setOutsideTouchable(true); // 动画效果 从底部弹起 mPopupWindow.setAnimationStyle(R.style.popWindow_animation); } /** * 显示底部对话框 */ public void show() { mPopupWindow.showAtLocation(anchor, Gravity.BOTTOM, 0, 0); params.alpha = 0.5f; window.setAttributes(params); } /** * 第一个按钮被点击的回调 */ public abstract void onTopButtonClick(); /** * 第二个按钮被点击的回调 */ public abstract void onBottomButtonClick(); public void setTopText(String text) { mTvTop.setText(text); } public void setBottomText(String text) { mTvBottom.setText(text); } public void dismiss(){ if(mPopupWindow!=null && mPopupWindow.isShowing()){ mPopupWindow.dismiss(); } }}
我们提供 setTopText和setBottomText方法来让外部设置按钮的文字;onTopButtonClick和onBottomButtonClick回调方法让外部实现按钮的点击事件。
像系统原生View一样使用
接下来,使用我们的BottomPopView相当简单,就如同使用系统的Dialog一样轻松。
//底部弹出的布局 照相和选择图片 bottomPopView = new BottomPopView(this, root) { @Override public void onTopButtonClick() { //拍照 takePhoto(); } @Override public void onBottomButtonClick() { //选择本地图片 choosePhoto(); } }; bottomPopView.setTopText("拍照"); bottomPopView.setBottomText("选择图片"); // 显示底部菜单 bottomPopView.show();
好了 ,以后再想要使用底部弹出菜单,只需要以上几行代码就可以轻松搞定了。
