Activity的启动流程分析

为了在手机画面上显示Activity的window,android内部会做一下内容:

  1) 创建一个Window在Window里构建View Hierachy。

  2) 与WindowManager建立联系。

  3) 为了与SystemServer通信,打开Binder设备。

  4) 把Window注册上去,确定View Hierachy大小,位置。

  5) 确定大小,位置后在Surface中开始Draw。

  6) 把Surface输出在LCD中。

  就这样我们就能从手机屏幕中看到了。



Activity的启动简单来说就两种:

  1. 点击应用程序图标启动Activity( luncher启动 )。
  2. 从一个Activity跳转到另一个Activity ( 也就是说从一个Activity中执行startActivity() )。



首先我们看一下Manifast.xml文件(为了体现两种启动方式而自定义的Manifast)

<?xml version="1.0" encoding="utf-8"?>    <manifest xmlns:android="http://schemas.android.com/apk/res/android"        package="android.com.activitytest"        android:versionCode="1"        android:versionName="1.0">        <application android:icon="@drawable/icon" android:label="@string/app_name">

    <!-- MainActivity是点击应用程序图标来启动Activity-->    <activity android:name=".MainActivity" android:label="@string/app_name"> <intent-filter> <action android:name="android.intent.action.MAIN" /> <category android:name="android.intent.category.LAUNCHER" /> </intent-filter> </activity>     <!-- SubActivity是MainActivity调用startActivity函数来启动Activity-->
<activity android:name=".SubActivity" android:label="@string/sub_activity"> </activity>
</application> </manifest>



1. MainActivity的启动

首先我们先分析MainActivity的启动

分析之前我们先看一下Manifast中的 <category android:name="android.intent.category.LAUNCHER" /> ,表示要用LAUNCHER启动。

  • Launcher:Launcher本身也是一个应用程序,其它的应用程序安装后,就会Launcher的界面上出现一个相应的应用程序图标。

当我们点击相应的应用程序图标时,Launcher就会启动对应的应用程。



下面是Launcher的源代码

public final class Launcher extends Activity          implements View.OnClickListener, OnLongClickListener, LauncherModel.Callbacks, AllAppsView.Watcher {        ......        /**     * Launches the intent referred by the clicked shortcut.     *     * @param v The view representing the clicked shortcut.     */      public void onClick(View v) {          Object tag = v.getTag();          if (tag instanceof ShortcutInfo) {              // Open shortcut              final Intent intent = ((ShortcutInfo) tag).intent;              int[] pos = new int[2];              v.getLocationOnScreen(pos);              intent.setSourceBounds(new Rect(pos[0], pos[1],                  pos[0] + v.getWidth(), pos[1] + v.getHeight()));              startActivitySafely(intent, tag);          } else if (tag instanceof FolderInfo) {              ......          } else if (v == mHandleView) {              ......          }      }        void startActivitySafely(Intent intent, Object tag) {          intent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);          try {              startActivity(intent);          } catch (ActivityNotFoundException e) {              ......          } catch (SecurityException e) {              ......          }      }        ......    }

从代码中可知,当我们点击某个应用程序图标时会触发Launcher的public void onClick(View v)点击事件。
然后调用ShortcutInfo中的startActivitySafely(intent, tag);- > startActivity(intent);。

  • Intent.FLAG_ACTIVITY_NEW_TASK:表示要在一个新的Task中启动这个Activity。

startActivity函数是启动的Activity的startActivity函数。



frameworks/base/core/java/android/app/Activity.java

public class Activity extends ContextThemeWrapper          implements LayoutInflater.Factory,          Window.Callback, KeyEvent.Callback,          OnCreateContextMenuListener, ComponentCallbacks {        ......        @Override      public void startActivity(Intent intent) {          startActivityForResult(intent, -1);      }        ......    }

还会调用startActivityForResult来进一步处理,第二个参数传入-1表示不需要这个Actvity结束后的返回结果。

public class Activity extends ContextThemeWrapper          implements LayoutInflater.Factory,          Window.Callback, KeyEvent.Callback,          OnCreateContextMenuListener, ComponentCallbacks {        ......        public void startActivityForResult(Intent intent, int requestCode) {          if (mParent == null) {              Instrumentation.ActivityResult ar =                  mInstrumentation.execStartActivity(                  this, mMainThread.getApplicationThread(), mToken, this,                  intent, requestCode);              ......          } else {              ......          }          ......    }

frameworks/base/core/java/android/app/Instrumentation.java

public class Instrumentation {        ......        public ActivityResult execStartActivity(      Context who, IBinder contextThread, IBinder token, Activity target,      Intent intent, int requestCode) {          IApplicationThread whoThread = (IApplicationThread) contextThread;          if (mActivityMonitors != null) {              ......          }          try {              int result = ActivityManagerNative.getDefault()                  .startActivity(whoThread, intent,                  intent.resolveTypeIfNeeded(who.getContentResolver()),                  null, 0, token, target != null ? target.mEmbeddedID : null,                  requestCode, false, false);              ......          } catch (RemoteException e) {          }          return null;      }        ......    }

重要角色出来了ActivityManagerNative.getDefault()返回ActivityManagerService。
ActivityManagerService是在另外一个进程中所以需要调用它的代理服务。即ActivityManagerProxy。

frameworks/base/core/java/android/app/ActivityManagerNative.java(内部类)

class ActivityManagerProxy implements IActivityManager  {        ......        public int startActivity(IApplicationThread caller, Intent intent,              String resolvedType, Uri[] grantedUriPermissions, int grantedMode,              IBinder resultTo, String resultWho,              int requestCode, boolean onlyIfNeeded,              boolean debug) throws RemoteException {          Parcel data = Parcel.obtain();          Parcel reply = Parcel.obtain();          data.writeInterfaceToken(IActivityManager.descriptor);          data.writeStrongBinder(caller != null ? caller.asBinder() : null);          intent.writeToParcel(data, 0);          data.writeString(resolvedType);          data.writeTypedArray(grantedUriPermissions, 0);          data.writeInt(grantedMode);          data.writeStrongBinder(resultTo);          data.writeString(resultWho);          data.writeInt(requestCode);          data.writeInt(onlyIfNeeded ? 1 : 0);          data.writeInt(debug ? 1 : 0);          mRemote.transact(START_ACTIVITY_TRANSACTION, data, reply, 0);          reply.readException();          int result = reply.readInt();          reply.recycle();          data.recycle();          return result;      }        ......    }

最终还会调用ActivityManagerService(frameworks/base/services/java/com/android/server/am/ActivityManagerService.java)的startActivity函数

而在此函数中没有其他动作,仅仅做了一个转发,调用了ActivityStack.startActivityMayWait函数

frameworks/base/services/java/com/android/server/am/ActivityStack.java

public class ActivityStack {        ......        final int startActivityMayWait(IApplicationThread caller,              Intent intent, String resolvedType, Uri[] grantedUriPermissions,              int grantedMode, IBinder resultTo,              String resultWho, int requestCode, boolean onlyIfNeeded,              boolean debug, WaitResult outResult, Configuration config) {            ......            boolean componentSpecified = intent.getComponent() != null;

intent = new Intent(intent); // 解析AndroidManifest.xml,得知activity的报名及activity的类名。
ActivityInfo aInfo; try { ResolveInfo rInfo = AppGlobals.getPackageManager().resolveIntent( intent, resolvedType, PackageManager.MATCH_DEFAULT_ONLY | ActivityManagerService.STOCK_PM_FLAGS); aInfo = rInfo != null ? rInfo.activityInfo : null; } catch (RemoteException e) { ...... } if (aInfo != null) { // 指定具体的组件类,通知应用启动对应的组件。
intent.setComponent(new ComponentName( aInfo.applicationInfo.packageName, aInfo.name)); ...... } synchronized (mService) { int callingPid; int callingUid; if (caller == null) { ...... } else { callingPid = callingUid = -1; } mConfigWillChange = config != null && mService.mConfiguration.diff(config) != 0; ...... if (mMainStack && aInfo != null && (aInfo.applicationInfo.flags&ApplicationInfo.FLAG_CANT_SAVE_STATE) != 0) { ...... } int res = startActivityLocked(caller, intent, resolvedType, grantedUriPermissions, grantedMode, aInfo, resultTo, resultWho, requestCode, callingPid, callingUid, onlyIfNeeded, componentSpecified); if (mConfigWillChange && mMainStack) { ...... } ...... if (outResult != null) { ...... } return res; } } ...... }

最后调用startActivityLocked
frameworks/base/services/java/com/android/server/am/ActivityStack.java

public class ActivityStack {        ......        final int startActivityLocked(IApplicationThread caller,              Intent intent, String resolvedType,              Uri[] grantedUriPermissions,              int grantedMode, ActivityInfo aInfo, IBinder resultTo,                  String resultWho, int requestCode,              int callingPid, int callingUid, boolean onlyIfNeeded,              boolean componentSpecified) {              int err = START_SUCCESS;            ProcessRecord callerApp = null;          if (caller != null) {              callerApp = mService.getRecordForAppLocked(caller);              if (callerApp != null) {                  callingPid = callerApp.pid;                  callingUid = callerApp.info.uid;              } else {                  ......              }          }            ......            ActivityRecord sourceRecord = null;          ActivityRecord resultRecord = null;          if (resultTo != null) {              int index = indexOfTokenLocked(resultTo);                            ......                                if (index >= 0) {                  sourceRecord = (ActivityRecord)mHistory.get(index);                  if (requestCode >= 0 && !sourceRecord.finishing) {                      ......                  }              }          }            int launchFlags = intent.getFlags();            if ((launchFlags&Intent.FLAG_ACTIVITY_FORWARD_RESULT) != 0              && sourceRecord != null) {              ......          }            ......            ActivityRecord r = new ActivityRecord(mService, this, callerApp, callingUid,              intent, resolvedType, aInfo, mService.mConfiguration,              resultRecord, resultWho, requestCode, componentSpecified);            ......            return startActivityUncheckedLocked(r, sourceRecord,              grantedUriPermissions, grantedMode, onlyIfNeeded, true);      }          ......    }

从caller(ApplicationThread)中获取进程(launcher进程)信息保存在ProcessRecord callerApp=mService.getRecordForAppLocked(caller);

创建即将要启动的Activity的相关信息ActivityRecord r = new ActivityRecord函数。

而在startActivityUncheckedLocked函数中把Task保存在r.task域中,同时,添加到mService中去,这里的mService就是ActivityManagerService了。调用startActivityLocked(r, newTask, doResume)



frameworks/base/services/java/com/android/server/am/ActivityStack.java

public class ActivityStack {        ......        private final void startActivityLocked(ActivityRecord r, boolean newTask,              boolean doResume) {          final int NH = mHistory.size();            int addPos = -1;            if (!newTask) {              ......          }            // Place a new activity at top of stack, so it is next to interact          // with the user.          if (addPos < 0) {              addPos = NH;          }            // If we are not placing the new activity frontmost, we do not want          // to deliver the onUserLeaving callback to the actual frontmost          // activity          if (addPos < NH) {              ......          }            // Slot the activity into the history stack and proceed          mHistory.add(addPos, r);          r.inHistory = true;          r.frontOfTask = newTask;          r.task.numActivities++;

     //NH表示当前系统中历史任务的个数
if (NH > 0) { // We want to show the starting preview window if we are // switching to a new task, or the next activity's process is // not currently running. ...... } else { // If this is the first activity, don't do any fancy animations, // because there is nothing for it to animate on top of. ...... } ...... if (doResume) { resumeTopActivityLocked(null); } } ...... }

resumeTopActivityLocked(null);  函数获得堆栈顶端的Activity,即MainActivity。

MainActivity创建了ActivityRecord后,它的app域一直保持为null。有了这些信息后,上面这段代码就容易理解了,它最终调用startSpecificActivityLocked进行下一步操作。

rameworks/base/services/java/com/android/server/am/ActivityStack.java

public class ActivityStack {    ......    private final void startSpecificActivityLocked(ActivityRecord r,            boolean andResume, boolean checkConfig) {        // 由于是第一次启动应用程序的Activity,所以下面语句
ProcessRecord app = mService.getProcessRecordLocked(r.processName, r.info.applicationInfo.uid); ...... if (app != null && app.thread != null) { try { realStartActivityLocked(r, app, andResume, checkConfig); return; } catch (RemoteException e) { ...... } } mService.startProcessLocked(r.processName, r.info.applicationInfo, true, 0, "activity", r.intent.getComponent(), false); } ......}

mService.getProcessRecordLocked此函数是在AMS中,路径如下

frameworks/base/services/java/com/android/server/am/ActivityManagerService.java

在此函数中创建一个ProcessRecord,调用startProcessLocked。

frameworks/base/services/java/com/android/server/am/ActivityManagerService.java

startProcessLocked函数中:

 int pid = Process.start("android.app.ActivityThread",                  mSimpleProcessManagement ? app.processName : null, uid, uid,                  gids, debugFlags, null);

在这我们可以看到他会启动一个Process,而这个Process由Zygote创建的。在前几节中我们讲过有关Zygote,在那里我们提过Zygote的客户端也可以是AMS。从这里我们可以看出这一点。

接下来通过ActivityThread会调用Activity的onCread()。



2. SubActivity的启动

  其实利用MainActivity中的组件(如:button.onclick)去startActivity是与Launcher中启动时一样的,从上面分析的内容中可以看出Luancher最终也会调用startActivity。

  仅仅是调用subActivity时不会建立一个Process,仅仅利用当场线程去创建而已。然后退回到Main函数时时从ActivityStack中Pause的Activity重新显现出来。

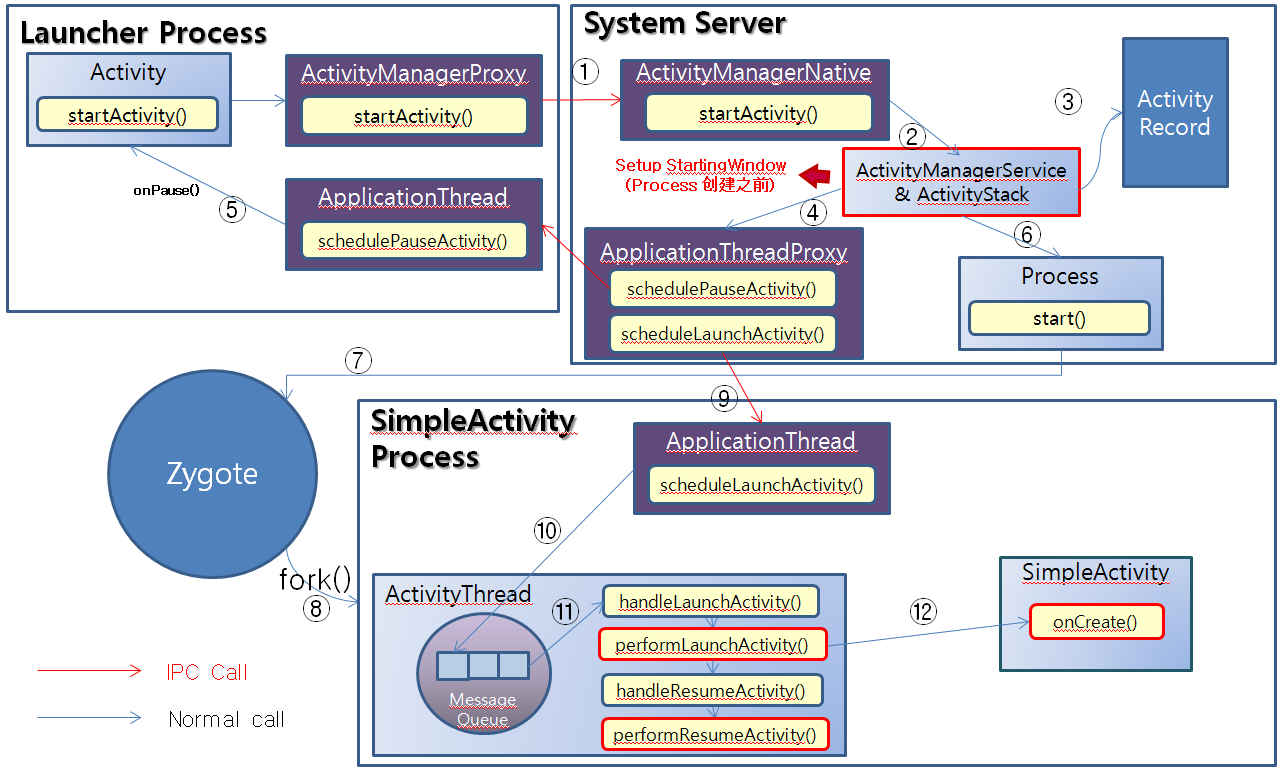

可以参考下面的图:
