重写MPAndroidChart展示标记

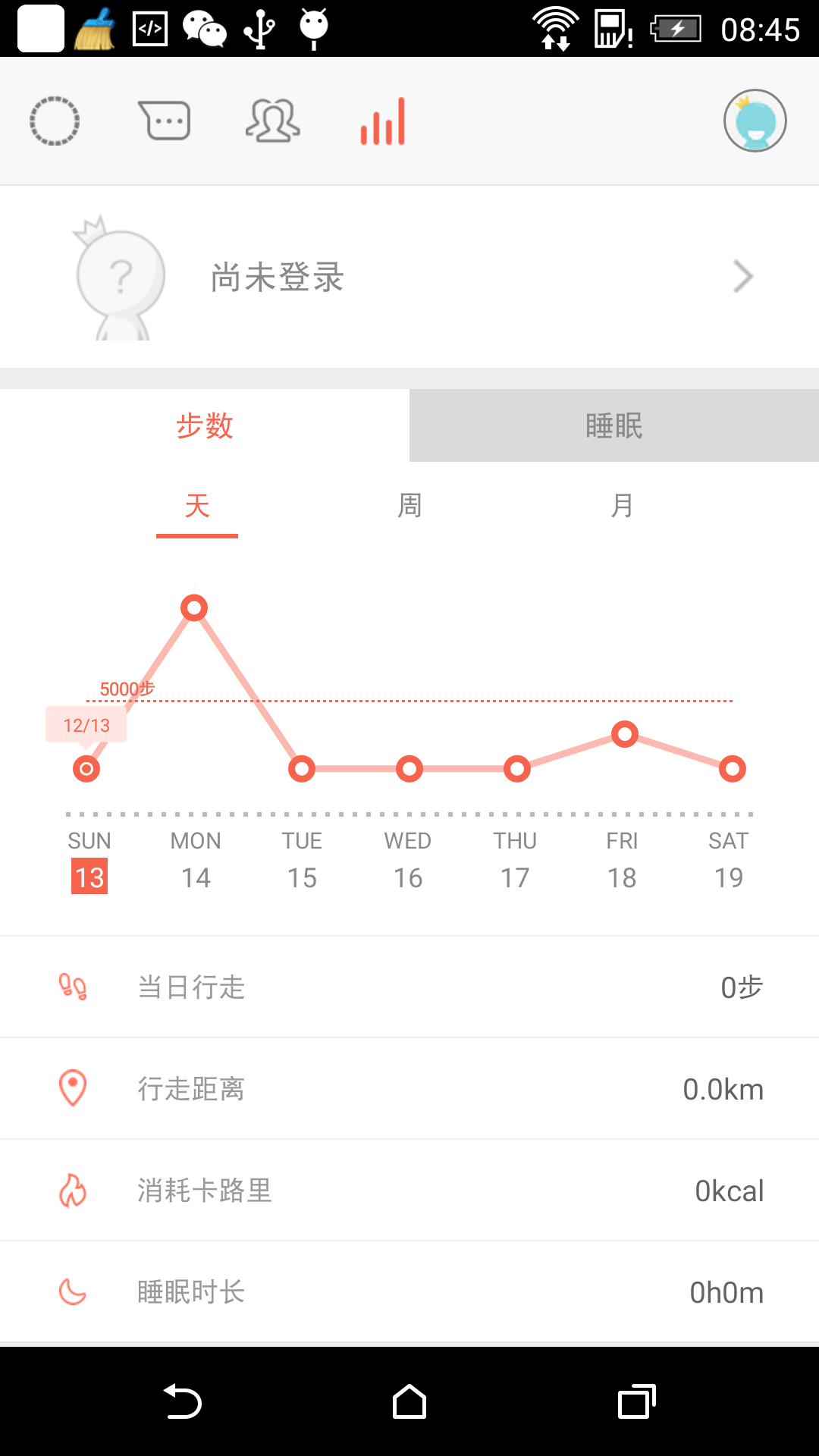

MPAndroidChart是实现图表功能的优秀控件, 可以完成大多数绘制需求. 对于修改第三方库而言, 优秀的架构是继承开发, 而不是把源码拆分出去. MP在显示标记控件(MarkView)时, 会有异常, 导致标志在图表边缘显示不全, 则需要重写控件解决问题.

继承LineChart, 提取高亮位置坐标getHighLightPos, 重绘标记drawMarkers.

/** * 数据中心的图表折线图, 继承MPChart的折线图 * <p> * Created by wangchenlong on 15/10/13. */public class CYDataLineChart extends LineChart {    @SuppressWarnings("unused")    private static final String TAG = "DEBUG-WCL: " + CYDataLineChart.class.getSimpleName();    // 默认构造器    public CYDataLineChart(Context context) {        super(context);    }    public CYDataLineChart(Context context, AttributeSet attrs) {        super(context, attrs);    }    public CYDataLineChart(Context context, AttributeSet attrs, int defStyle) {        super(context, attrs, defStyle);    }    // 获取高亮点坐标    public float[] getHighLightPos(Entry e, Highlight highlight) {        return getMarkerPosition(e, highlight);    }    // 重写这个方法, 修复Bug    @Override    protected void drawMarkers(Canvas canvas) {        // if there is no marker view or drawing marker is disabled        if (mMarkerView == null || !mDrawMarkerViews || !valuesToHighlight())            return;        Rect newRect = canvas.getClipBounds();        newRect.inset(-80, 0);  //make the rect larger        canvas.clipRect(newRect, Region.Op.REPLACE);        //noinspection ForLoopReplaceableByForEach        for (int i = 0; i < mIndicesToHighlight.length; i++) {            Highlight highlight = mIndicesToHighlight[i];            int xIndex = highlight.getXIndex();            if (xIndex <= mDeltaX && xIndex <= mDeltaX * mAnimator.getPhaseX()) {                Entry e = mData.getEntryForHighlight(mIndicesToHighlight[i]);                // make sure entry not null                if (e == null || e.getXIndex() != mIndicesToHighlight[i].getXIndex())                    continue;                float[] pos = getMarkerPosition(e, highlight);                // Marker偏移                float tmpY = pos[1] - 8 * AppUtils.getPerDp();                Paint paint = new Paint();                paint.setStyle(Paint.Style.FILL);                paint.setAntiAlias(true);                paint.setStrokeWidth(5);                // noinspection deprecation                paint.setColor(getResources().getColor(R.color.chart_circle));                canvas.drawCircle(pos[0], pos[1], 2 * AppUtils.getPerDp(), paint);                // check bounds                if (!mViewPortHandler.isInBounds(pos[0], tmpY))                    continue;                mMarkerView.refreshContent(e, highlight);                mMarkerView.measure(MeasureSpec.makeMeasureSpec(0, MeasureSpec.UNSPECIFIED),                        MeasureSpec.makeMeasureSpec(0, MeasureSpec.UNSPECIFIED));                mMarkerView.layout(0, 0, mMarkerView.getMeasuredWidth(),                        mMarkerView.getMeasuredHeight());                if (tmpY - mMarkerView.getHeight() <= 0) {                    float y = mMarkerView.getHeight() - tmpY;                    mMarkerView.draw(canvas, pos[0], tmpY + y);                } else {                    mMarkerView.draw(canvas, pos[0], tmpY);                }            }        }    }}

getMarkerPosition是LineChart类中的protected方法, 继承类, 使用public方法导出.
float tmpY = pos[1] - 8 * AppUtils.getPerDp();, 重新计算Y坐标, 偏离原始画布.

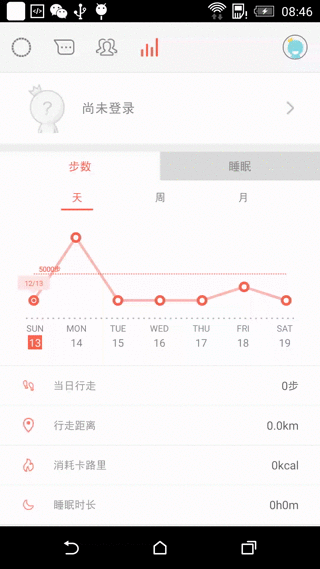

但是这样做有一个问题, 在移动MarkView时, 父控件会有残留. 如何解决呢? 办法就是在移动时, 重绘父控件的canvas, 使用invalidate()函数.

        // 设置图表点击事件, 监听高亮位置        mLcChart.setOnChartValueSelectedListener(new OnChartValueSelectedListener() {            @Override            public void onValueSelected(Entry e, int dataSetIndex, Highlight h) {                int index = e.getXIndex();                Log.e(TAG, "index = " + index);                setChartIndex(index);                mCallback.setCurIndex(index);                mIndex = index;                float[] pos = mLcChart.getHighLightPos(e, h);                Log.e(TAG, "x: " + pos[0] + ", y: " + pos[1]);                mLlContainer.invalidate(); // 重绘父控件, 避免残留            }            @Override            public void onNothingSelected() {                // 再次点击时调用这个, 要不非高亮                mLcChart.highlightValue(mIndex, 0);            }        });

    // 外部设置图表高亮    private void setChartHighlight(int index) {        if (mLcChart.getData() == null) return;        mMarkerView.setDateText(mMarkers.get(index));        mLcChart.highlightValue(index, 0);        mLlContainer.invalidate(); // 重绘父控件, 避免残留    }

在图表控件中, 内部外部都会触发高亮位置.
