SD卡不能准确存储HIVE注册表

热度:92   发布时间:2016-04-28 12:25:56.0
SD卡不能正确存储HIVE注册表
本帖最后由 langdao04 于 2013-03-27 14:27:39 编辑
Eboot和Nk都是从SD卡上面启动的,现在我要把原来RAM注册表改成HIVE注册表,但是现在的结果是注册表存储在根目录下面的一个文件夹内,没有存储在SD卡上面。我修改的内容如下:

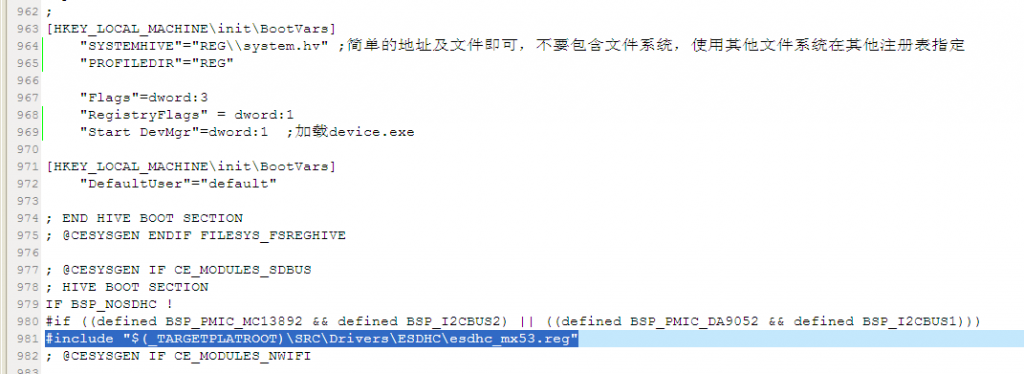

platform.reg注册表修改:

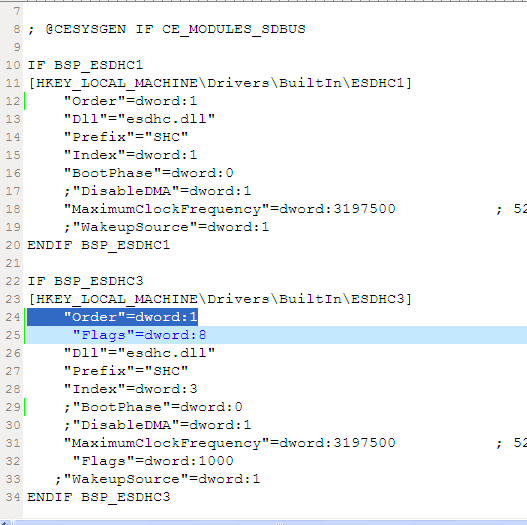

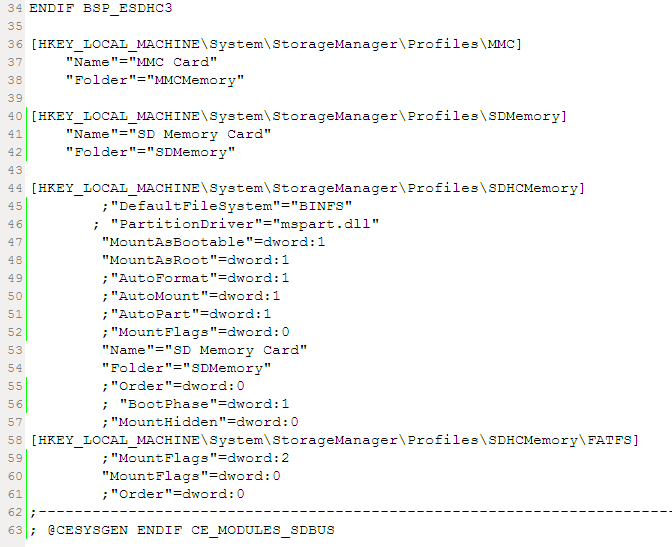

SD卡驱动修改(对SD卡做分区时就是在这里面):


如果"Order"=dword:1或者0的时候,SD卡在根目录下就没有了,改为原来的21,SD卡可以找到

搞了很长时间了,没头绪了现在,请帮忙指导一下,谢谢~
我的环境是wince7+imx53
存储 HIVE注册表 SD卡

------解决方案--------------------
我的注册表如下:
; HIVE BOOT SECTION

[HKEY_LOCAL_MACHINE\Drivers\Resources\IRQ]
"Identifier"=dword:1
"Minimum"=dword:1
"Space"=dword:20
"Ranges"="1-0x20"

[HKEY_LOCAL_MACHINE\Drivers\Resources\IO]
"Identifier"=dword:2
"Minimum"=dword:0
"Space"=dword:10000
"Ranges"="0-0xFFFF"
;----ADD BY ZMF ----
IF IMGHIVEREG
[HKEY_LOCAL_MACHINE\Init\BootVars]
"SYSTEMHIVE"="//Registry//system.hv"
"PROFILEDIR"="//Registry"
"Start DevMgr"=dword:1
"RegistryFlags"=dword:1
"DefaultUser"="User"
"Flags"=dword:3
ENDIF IMGHIVEREG

; END HIVE BOOT SECTION

[HKEY_LOCAL_MACHINE\System\StorageManager\AutoLoad\SDBOOT]
"DriverPath"="Drivers\\BlockDevice\\SDBOOT"
"LoadFlags"=dword:1
"BootPhase"=dword:0
"MountFlags"=dword:11
IF IMGHIVEREG
"MountAsBootable"=dword:1
ENDIF IMGHIVEREG

[HKEY_LOCAL_MACHINE\Drivers\BlockDevice\SDBOOT]
"Prefix"="DSK"
"Dll"="BIBDrv.dll"
"Order"=dword:0
"Ioctl"=dword:4
"Profile"="SDBOOT"
"FriendlyName"="Samsung Flash Driver"
"MountFlags"=dword:11
"BootPhase"=dword:0
IF IMGHIVEREG
"Flags"=dword:1000
ENDIF IMGHIVEREG

[HKEY_LOCAL_MACHINE\Drivers\BuiltIn\HSMMC]
    "Prefix"="DSK"
    "Dll"="HSMMC.dll"
    "Order"=dword:1
    "Profile"="HSMMC"
    "IClass"="{A4E7EDDA-E575-4252-9D6B-4195D48BB865}"
IF IMGHIVEREG
   "Flags"=dword:1000
ENDIF IMGHIVEREG

[HKEY_LOCAL_MACHINE\System\StorageManager\Profiles\HSMMC]
    "DefaultFileSystem"="FATFS"
    "PartitionDriver"="mspart.dll"
    "Name"="SDMMC"
    "Folder"="SDMMCDisk"
    "AutoMount"=dword:1
    "AutoPart"=dword:1
    "AutoFormat"=dword:1

[HKEY_LOCAL_MACHINE\System\StorageManager\Profiles\HSMMC\FATFS]
    "FormatExfat"=dword:1
    "Flags"=dword:14                ; deprecated in CE6.0 (0x4 : FATFS_DISABLE_AUTOSCAN, 0x10 : FATFS_ENABLE_BACKUP_FAT)
    "CheckForFormat"=dword:1
    "EnableWriteBack"=dword:1
    "MountAsRoot"=dword:1       ; for ROM-only file system
    "DisableAutoScan"=dword:1
IF IMGHIVEREG
    "MountAsBootable"=dword:1       ; for Hive-based registry
ENDIF IMGHIVEREG
