Spring SpringMvc + MyBatis 调整

一、使用的jar包就不详细讲解了，下载了Mybatis 和 Spring 的jar包基本上都添加上去了、

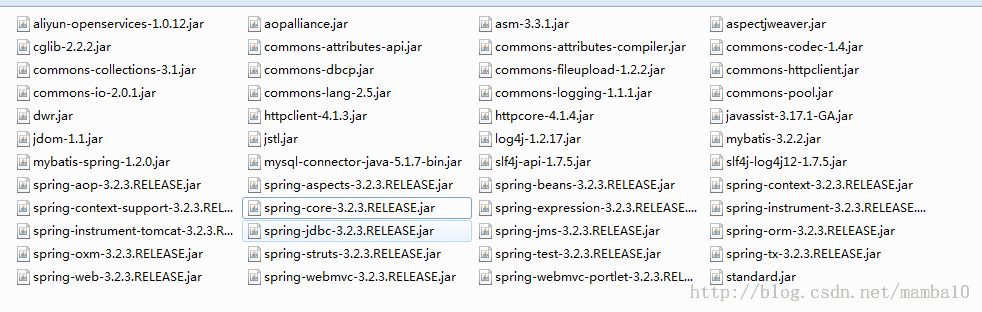

一图概括：（这是我使用的ar包，有些不是Mybatis 和 Spring 的 ）

二、 web.xml配置文件

[html] view plaincopy



1. <?xml version="1.0" encoding="UTF-8"?>
2. <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
3.     xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
4.     xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
5.     id="WebApp_ID" version="2.5">
6.     <display-name>WeShare</display-name>
7.     <welcome-file-list>
8.         <welcome-file>/jumper.html</welcome-file>
9.     </welcome-file-list>
10.     <!-- 加载spring容器配置 -->
11.     <listener>
12.         <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
13.     </listener>
14.     <!-- 设置Spring容器加载配置文件路径 (主要配置都在这里面) -->
15.     <context-param>
16.         <param-name>contextConfigLocation</param-name>
17.         <param-value>/WEB-INF/applicationContext.xml
18.   </param-value>
19.     </context-param>
20.
21.     <!-- 配置Spring核心控制器 -->
22.     <servlet>
23.         <servlet-name>web</servlet-name>
24.         <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
25.         <!-- 不指定 <init-param> 会自动找web.xml相同路径下 web-servlet.xml文件 -->
26.         <!--
27.         <init-param>
28.             <param-name>contextConfigLocation</param-name>
29.             <param-value>/WEB-INF/dispatcher.xml</param-value>
30.         </init-param>
31.             -->
32.         <load-on-startup>1</load-on-startup>
33.     </servlet>
34.     <servlet-mapping>
35.         <servlet-name>web</servlet-name>
36.         <url-pattern>*.do</url-pattern>
37.     </servlet-mapping>
38.     <servlet-mapping>
39.         <servlet-name>web</servlet-name>
40.         <url-pattern>*.action</url-pattern>
41.     </servlet-mapping>
42.
43.
44.     <!-- 解决工程编码过滤器 -->
45.     <filter>
46.         <filter-name>characterEncodingFilter</filter-name>
47.         <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
48.         <init-param>
49.             <param-name>encoding</param-name>
50.             <param-value>UTF-8</param-value>
51.         </init-param>
52.     </filter>
53.     <filter-mapping>
54.         <filter-name>characterEncodingFilter</filter-name>
55.         <url-pattern>/*</url-pattern>
56.     </filter-mapping>
57.
58.   <!-- dwr 添加配置  -->
59.   <servlet>
60.         <servlet-name>dwr-invoker</servlet-name>
61.         <servlet-class>org.directwebremoting.servlet.DwrServlet</servlet-class>
62.         <init-param>
63.             <description></description>
64.             <param-name>debug</param-name>
65.             <param-value>false</param-value>
66.         </init-param>
67.     </servlet>
68.   <servlet-mapping>
69.        <servlet-name>dwr-invoker</servlet-name>
70.        <url-pattern>/dwr/*</url-pattern>
71.     </servlet-mapping>
72.
73.
74.     <error-page>
75.         <exception-type>java.lang.Throwable</exception-type>
76.         <location>/common/jsp/error.jsp</location>
77.     </error-page>
78.     <error-page>
79.         <error-code>403</error-code>
80.         <location>/common/jsp/error403.jsp</location>
81.     </error-page>
82.     <error-page>
83.         <error-code>404</error-code>
84.         <location>/common/jsp/error404.jsp</location>
85.     </error-page>
86.
87. </web-app>

三、 <!-- 配置Spring核心控制器 -->
 <servlet>
  <servlet-name>web</servlet-name>
  <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
  <!-- 不指定 <init-param> 会自动找web.xml相同路径下 web-servlet.xml文件 -->
  <!--
  <init-param>
   <param-name>contextConfigLocation</param-name>
   <param-value>/WEB-INF/dispatcher.xml</param-value>
  </init-param>
   -->
  <load-on-startup>1</load-on-startup>
 </servlet>  这个我使用的是默认的 web-servlet.xml文件. 如下:

[html] view plaincopy



1. <?xml version="1.0" encoding="UTF-8"?>
2.
3. <beans xmlns="http://www.springframework.org/schema/beans"
4.        xmlns:tx="http://www.springframework.org/schema/tx"
5.        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
6.        xmlns:context="http://www.springframework.org/schema/context"
7.        xmlns:aop="http://www.springframework.org/schema/aop"
8.        xmlns:p="http://www.springframework.org/schema/p"
9.        xsi:schemaLocation="http://www.springframework.org/schema/beans
10.        http://www.springframework.org/schema/beans/spring-beans.xsd
11.        http://www.springframework.org/schema/tx
12.        http://www.springframework.org/schema/tx/spring-tx.xsd
13.        http://www.springframework.org/schema/context
14.        http://www.springframework.org/schema/context/spring-context.xsd
15.        http://www.springframework.org/schema/aop
16.        http://www.springframework.org/schema/aop/spring-aop.xsd">
17.
18.     <!-- 启动Spring MVC的注解功能，完成请求和注解POJO的映射 -->
19.     <bean class="org.springframework.web.servlet.mvc.annotation.AnnotationMethodHandlerAdapter"/>
20.
21.     <!-- 对模型视图名称的解析，即在模型视图名称添加前后缀 -->
22.     <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver" >
23.         <property name="prefix" value="/"></property>
24.         <property name="suffix" value=".jsp"></property>
25.     </bean>
26.
27.     <context:component-scan base-package="com.weshare.**.web"/>
28.      <!-- /hrtiaoxin/src/java/com/guohualife/   hr/pfc/   web/controller/HrDeptMarkController.java -->
29. </beans>

四: applicationContext.xml 文件:

[html] view plaincopy



1. <?xml version="1.0" encoding="UTF-8"?>
2. <beans xmlns="http://www.springframework.org/schema/beans"
3.     xmlns:tx="http://www.springframework.org/schema/tx"
4.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
5.     xmlns:context="http://www.springframework.org/schema/context"
6.     xmlns:aop="http://www.springframework.org/schema/aop"
7.     xmlns:p="http://www.springframework.org/schema/p"
8.     xsi:schemaLocation="http://www.springframework.org/schema/beans
9.        http://www.springframework.org/schema/beans/spring-beans.xsd
10.        http://www.springframework.org/schema/tx
11.        http://www.springframework.org/schema/tx/spring-tx.xsd
12.        http://www.springframework.org/schema/context
13.        http://www.springframework.org/schema/context/spring-context.xsd
14.        http://www.springframework.org/schema/aop
15.        http://www.springframework.org/schema/aop/spring-aop.xsd">
16.
17.
18. <!-- properties配置文件 -->
19.     <bean id="config"
20.         class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
21.         <!-- 是否忽略不可解析的 -->
22.         <property name="ignoreUnresolvablePlaceholders" value="true" />
23.         <!-- 多个locations， 单个location <value> -->
24.         <property name="locations">
25.             <list>
26.                 <value>/WEB-INF/config/config.properties</value>
27.                 <value>/WEB-INF/config/urlAddress.properties</value>
28.              <!--
29.                 <value>/WEB-INF/platform/config/config.properties</value>
30.                 <value>/WEB-INF/config/config.properties</value>
31.                 <value>/WEB-INF/hr/config/config.properties</value>
32.                  -->
33.             </list>
34.         </property>
35.     </bean>
36.
37.     <!-- 文件上传 -->
38.     <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver"   p:defaultEncoding="UTF-8" ></bean>
39.
40.     <!-- 加载 其他xml文件 -->
41.     <import resource="/config/aC-common.xml" />
42.     <import resource="/config/aC-interceptor.xml" />
43.     <import resource="/config/aC-properties.xml" />
44.     <import resource="/config/aC-quartz-config.xml" />
45.
46. </beans>

包含的其他4个xml文件：

4.1 ： aC-common.xml

[html] view plaincopy



1. <?xml version="1.0" encoding="UTF-8"?>
2. <beans xmlns="http://www.springframework.org/schema/beans"
3.     xmlns:tx="http://www.springframework.org/schema/tx"
4.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
5.     xmlns:context="http://www.springframework.org/schema/context"
6.     xmlns:aop="http://www.springframework.org/schema/aop"
7.     xmlns:p="http://www.springframework.org/schema/p"
8.     xsi:schemaLocation="http://www.springframework.org/schema/beans
9.        http://www.springframework.org/schema/beans/spring-beans.xsd
10.        http://www.springframework.org/schema/tx
11.        http://www.springframework.org/schema/tx/spring-tx.xsd
12.        http://www.springframework.org/schema/context
13.        http://www.springframework.org/schema/context/spring-context.xsd
14.        http://www.springframework.org/schema/aop
15.        http://www.springframework.org/schema/aop/spring-aop.xsd">
16.
17.     <context:component-scan base-package="com.weshare.*.api.dao"></context:component-scan>
18.     <context:component-scan base-package="com.weshare.*.api.service"></context:component-scan>
19.     <context:component-scan base-package="com.weshare.common.utils"></context:component-scan>
20.
21.
22.     <bean id="weshareDataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
23.         <property name="driverClassName" value="${common.db.driver}" />
24.         <property name="url" value="${common.db.url}" />
25.         <property name="username" value="${common.db.username}" />
26.         <property name="password" value="${common.db.password}" />
27.         <!-- 最大连接数据库连接数 -->
28.         <property name="maxActive" value="500" />
29.         <!-- 最大等待连接中的数量   0标识没有限制 -->
30.         <property name="maxIdle" value="10" />
31.         <!-- 最大等待毫秒数  超时报错 -->
32.         <property name="maxWait" value="500" />
33.         <property name="defaultAutoCommit" value="true" />
34.         <!-- 是否自我中断 -->
35.         <property name="removeAbandoned" value="true" />
36.         <property name="removeAbandonedTimeout" value="60" />
37.     </bean>
38.
39.     <bean id="weshareSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean" >
40.         <property name="dataSource">
41.             <ref bean="weshareDataSource" />
42.         </property>
43.         <!-- MyBatis 的 XML 配置文件路径 -->
44.         <property name="configLocation" value="/WEB-INF/config/mybatisSqlMapConfig.xml" />
45.         <!-- 扫描自动生成的xml文件 --><!-- Mybatis XML映射文件 -->
46.
47.         <property name="mapperLocations"  >
48.             <list><!-- Mybatis XML映射文件 -->
49.                 <value>classpath*:com/weshare/common/generated/xml/*.xml</value>
50.                 <!-- 扫描自己写的xml文件-->
51.                 <value>classpath*:com/weshare/*/api/xml/*.xml</value>
52.             </list>
53.         </property>
54.
55.     </bean>
56.
57.     <bean id="weshareSqlSessionTemplate" class="org.mybatis.spring.SqlSessionTemplate">
58.         <constructor-arg index="0" ref="weshareSessionFactory"></constructor-arg>
59.     </bean>
60.
61.     <!-- 注册单个  mybatisGenerator  自动生成的 接口文件-->
62.     <!--
63.     <bean id="TestMapper" class="org.mybatis.spring.mapper.MapperFactoryBean">
64.         <property name="mapperInterface" value="com.weshare.common.generated.dao.TestMapper" />
65.         <property name="sqlSessionTemplate" ref="weshareSqlSessionTemplate" ></property>
66.     </bean>
67.      -->
68.      <!-- 扫描mybatisGenerator 自动生成的  所有接口-->
69.     <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer" >
70.         <property name="basePackage" value="com.weshare.common.generated.dao" ></property>
71.     </bean>
72.
73.
74.
75.     <!-- 数据库事务策略-->
76.     <bean id="weshareTransactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
77.         <property name="dataSource">
78.             <ref bean="weshareDataSource" />
79.         </property>
80.     </bean>
81.
82.     <tx:advice id="weshareTxAdvice" transaction-manager="weshareTransactionManager">
83.         <tx:attributes>
84.         <!--
85.             <tx:method name="save*" propagation="REQUIRED" />
86.             <tx:method name="ins*" propagation="REQUIRED" />
87.             <tx:method name="del*" propagation="REQUIRED" />
88.             <tx:method name="update*" propagation="REQUIRED" />
89.             <tx:method name="find*" read-only="true" />
90.             <tx:method name="get*" read-only="true" />
91.             <tx:method name="select*" read-only="true" />
92.              -->
93.             <tx:method name="*" propagation="REQUIRED" />
94.         </tx:attributes>
95.     </tx:advice>
96.
97.     <aop:config proxy-target-class="true">
98.         <aop:advisor pointcut="execution( * com.weshare.*.api.service.*.*(..))" advice-ref="weshareTxAdvice" />
99.
100.     </aop:config>
101.
102.
103. </beans>

4.2 aC-interceptor.xml

这里拦截器只是拦截到controller ， 具体拦截到action'，后面会有写到， 这里的配置只是参考。

[html] view plaincopy



1. <?xml version="1.0" encoding="UTF-8"?>
2. <beans xmlns="http://www.springframework.org/schema/beans"
3.     xmlns:tx="http://www.springframework.org/schema/tx" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
4.     xmlns:context="http://www.springframework.org/schema/context"
5.     xmlns:aop="http://www.springframework.org/schema/aop" xmlns:p="http://www.springframework.org/schema/p"
6.     xmlns:mvc="http://www.springframework.org/schema/mvc"
7.     xsi:schemaLocation="http://www.springframework.org/schema/beans
8.        http://www.springframework.org/schema/beans/spring-beans.xsd
9.        http://www.springframework.org/schema/tx
10.        http://www.springframework.org/schema/tx/spring-tx.xsd
11.        http://www.springframework.org/schema/context
12.        http://www.springframework.org/schema/context/spring-context.xsd
13.        http://www.springframework.org/schema/aop
14.        http://www.springframework.org/schema/aop/spring-aop.xsd
15.        http://www.springframework.org/schema/mvc
16.        http://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd">
17.
18.
19.
20.
21.  <mvc:interceptors>
22.         <mvc:interceptor>
23.             <!--设置拦截的路径  mvc:mapping指定到哪个action ,  用mappingURL匹配方法-->
24.             <mvc:mapping path="/dynamic/dynamic.do" />
25.             <bean class="com.weshare.common.web.LoginInterceptorController">
26.                 <property name="mappingURL" value="^.*checklogin$" />
27.             </bean>
28.         </mvc:interceptor>
29.     </mvc:interceptors>
30.
31.
32.
33.
34.
35. </beans>
36.

4.3 aC-properties.xml

这个xml作用是在启动项目的时候给org.springframework.beans.factory.config.PropertiesFactoryBean  赋值，这样在代码中可以使用下面方法获得这些值

[java] view plaincopy



1. @Resource
2.     private Properties imageUrlProperties;

[java] view plaincopy



1. imageUrlProperties.getProperty("dynamicUrl")

[html] view plaincopy



1. <?xml version="1.0" encoding="UTF-8"?>
2. <beans xmlns="http://www.springframework.org/schema/beans"
3.     xmlns:tx="http://www.springframework.org/schema/tx" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
4.     xmlns:context="http://www.springframework.org/schema/context"
5.     xmlns:aop="http://www.springframework.org/schema/aop" xmlns:p="http://www.springframework.org/schema/p"
6.     xsi:schemaLocation="http://www.springframework.org/schema/beans
7.        http://www.springframework.org/schema/beans/spring-beans.xsd
8.        http://www.springframework.org/schema/tx
9.        http://www.springframework.org/schema/tx/spring-tx.xsd
10.        http://www.springframework.org/schema/context
11.        http://www.springframework.org/schema/context/spring-context.xsd
12.        http://www.springframework.org/schema/aop
13.        http://www.springframework.org/schema/aop/spring-aop.xsd">
14.
15.
16.     <!-- platform properties -->
17.     <bean id="imageUrlProperties"
18.         class="org.springframework.beans.factory.config.PropertiesFactoryBean">
19.         <property name="singleton" value="true" />
20.         <property name="properties">
21.             <props>
22.                 <prop key="aliyuming">${aliyuming}</prop>
23.                 <prop key="ACCESS_ID">${ACCESS_ID}</prop>
24.                 <prop key="ACCESS_KEY">${ACCESS_KEY}</prop>
25.                 <prop key="bucketDynamicAndHeadimages">${bucketDynamicAndHeadimages}</prop>
26.                 <prop key="faceurl.pre">${faceurl.pre}</prop>
27.                 <prop key="imagesUrl.pre">${imagesUrl.pre}</prop>
28.                 <prop key="dynamicUrl">${dynamicUrl}</prop>
29.                 <prop key="headUrl">${headUrl}</prop>
30.                 <prop key="edge.dynamic">${edge.dynamic}</prop>
31.                 <prop key="edge.small">${edge.small}</prop>
32.                 <prop key="edge.middle">${edge.middle}</prop>
33.                 <prop key="edge.big">${edge.big}</prop>
34.             </props>
35.         </property>
36.     </bean>
37.
38.
39. </beans>

4aC-quartz-cofig.xml， 这个是批处理定时任务的xml配置方法，  在这里我并没有使用， 我使用的总是注解的方式， 后面会讲到。

[html] view plaincopy



1. <?xml version="1.0" encoding="UTF-8"?>
2. <beans
3.     xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd http://www.springframework.org/schema/fex http://www.springframework.org/schema/fex/spring-fex-1.5.xsd http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task-3.0.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd"
4.     xmlns:p="http://www.springframework.org/schema/p" xmlns:context="http://www.springframework.org/schema/context"
5.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:task="http://www.springframework.org/schema/task"
6.     xmlns="http://www.springframework.org/schema/beans">
7.     <!-- 下面是使用注解配置的方法 -->
8.     <context:component-scan base-package="com.weshare.*.api.batch" />
9.     <task:executor pool-size="5" id="executor" />
10.     <task:scheduler pool-size="10" id="scheduler" />
11.     <task:annotation-driven scheduler="scheduler"    executor="executor" />
12.
13.
14.
15.
16.
17.     <!-- 下面是 使用xml配置的方法 -->
18.
19.     <!-- <bean id="personBatch" class="com.weshare.person.api.batch.PersonBatch"
20.         /> -->
21.
22.     <!-- 启动触发器的配置开始 -->
23.
24.     <!-- <bean name="startQuertz" lazy-init="false" autowire="no" class="org.springframework.scheduling.quartz.SchedulerFactoryBean">
25.         <property name="triggers"> <list> <ref bean="myJobTrigger" /> </list> </property>
26.         </bean> -->
27.
28.     <!-- 启动触发器的配置结束 -->
29.
30.     <!-- quartz-2.x的配置 -->
31.
32.     <!-- <bean id="myJobTrigger" class="org.springframework.scheduling.quartz.CronTriggerFactoryBean">
33.         <property name="jobDetail"> <ref bean="myJobDetail" /> </property> <property
34.         name="cronExpression"> <value>0/1 * * * * ?</value> </property> </bean> -->
35.
36.     <!-- 调度的配置结束 -->
37.
38.     <!-- job的配置开始 -->
39.
40.     <!-- <bean id="myJobDetail" class="org.springframework.scheduling.quartz.MethodInvokingJobDetailFactoryBean">
41.         <property name="targetObject"> <ref bean="personBatch" /> </property> <property
42.         name="targetMethod"> <value>testMethod</value> </property> </bean> -->
43.
44.     <!-- job的配置结束 -->
45. </beans>

五：注解方式

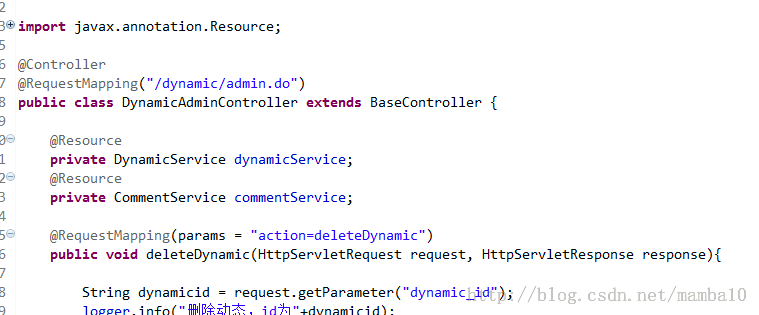

下面deleteDynamic方法的 调用地址为： localhost:8080/xx工程名/dynamic/admin.do?action=deleteDynamic

整理的有点乱，【源码地址获取】，希望可以帮助到大家

1楼zhenjava

springmvc比较流行，分享给大家学习
