附上源代码：https://github.com/caofangsheng93/CaoDanDeGit
这篇文章中，我会解释仓储模式在MVC程序中的使用。
首先，我们需要理解什么是仓储模式【repository Pattern】,来看看下面的图片

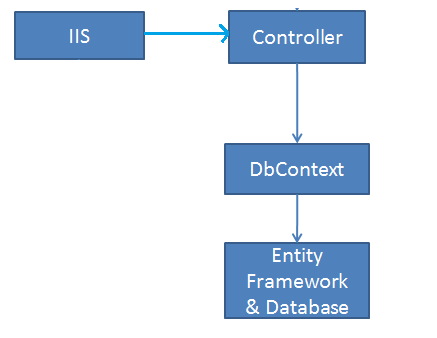

没有使用仓储模式的MVC应用程序：

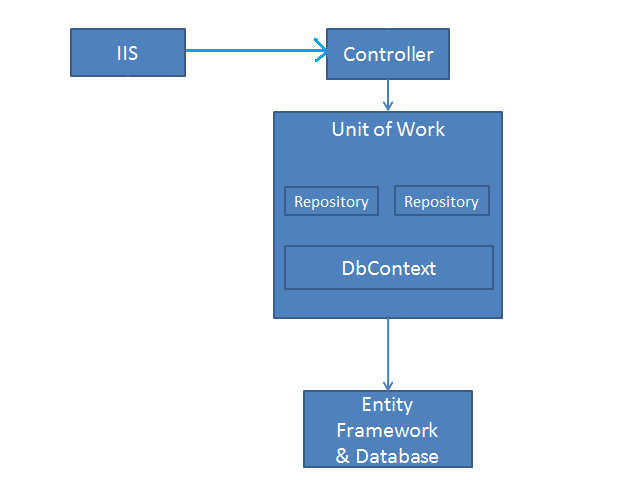

使用了仓储模式的MVC应用程序：
仓储模式，是一个抽象层，它将数据库的访问逻辑，映射到实体的访问逻辑。
下面，我们来看做一个应用程序，来体验一下仓储模式吧。
首先，打开VS2013，找到--“文件”--->>"新建"---->>"项目"

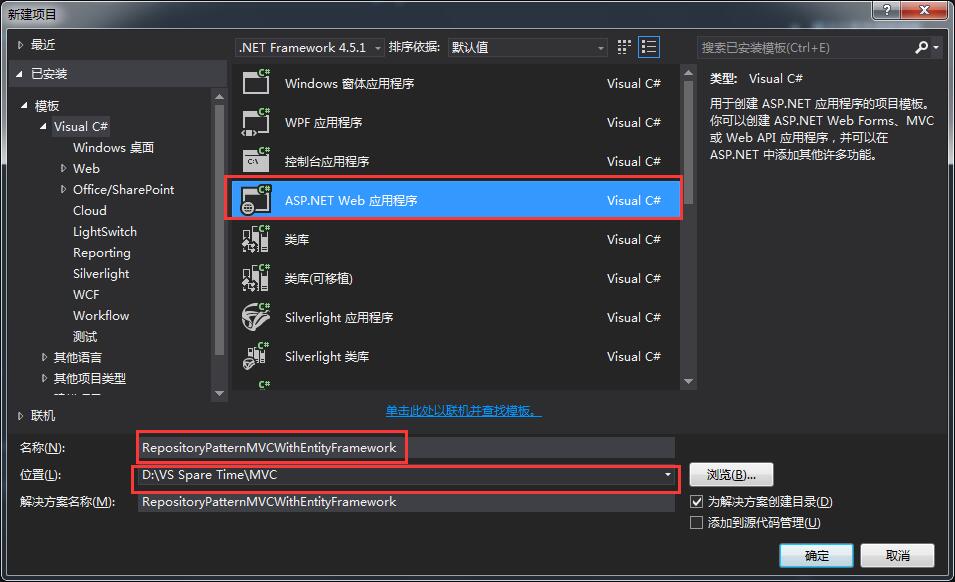

选择“ASp.NET Web 应用程序”，输入名称，选择项目存放的位置，点击”确定“按钮

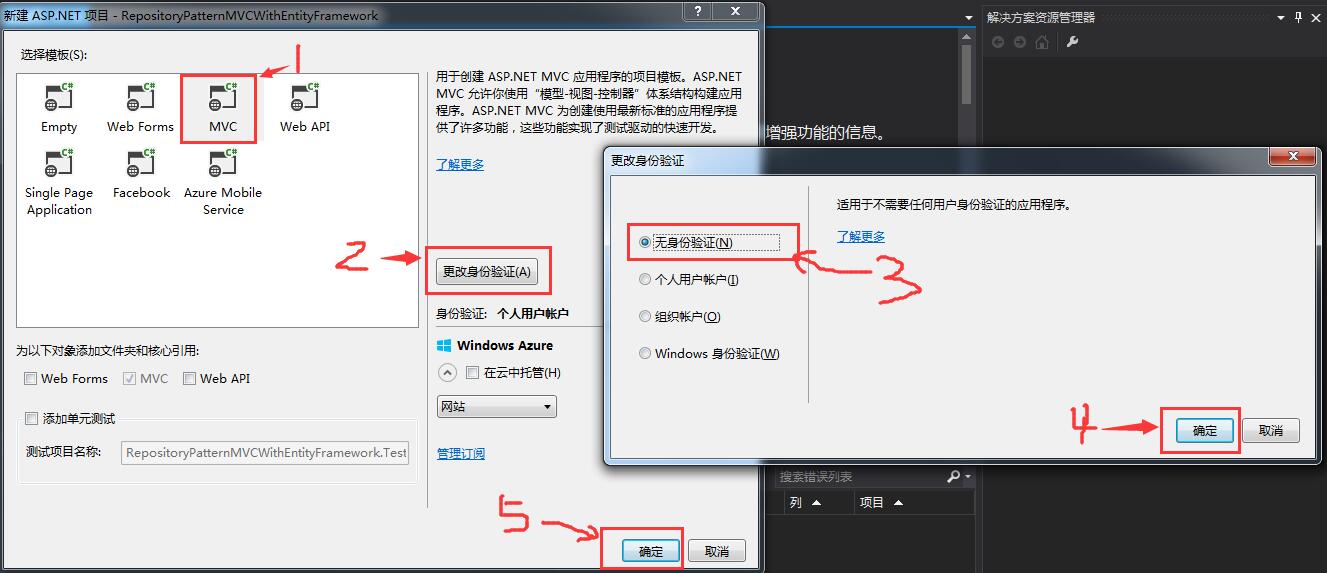

在弹出来的对话框中，选择“MVC”模板，然后点击“更改身份验证”，选择“无身份验证”，点击“确定”。

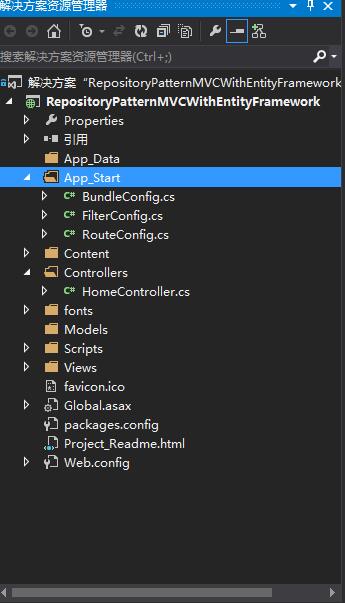

接下来就生成了项目模板：
好了，第一阶段的工作就完成了。新建一个MVC程序。
现在开始第二阶段的任务：
这篇文章中，我打算使用EF Model First来完成。

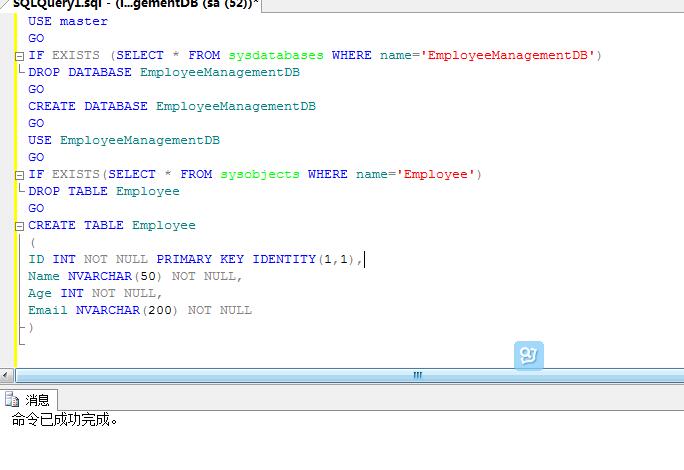

首先，我来新建一个数据库，还有数据表，打开SQL 2008
这样就创建好了数据库和数据表，
USE master GO IF EXISTS (SELECT * FROM sysdatabases WHERE name='EmployeeManagementDB')DROP DATABASE EmployeeManagementDBGO CREATE DATABASE EmployeeManagementDBGO USE EmployeeManagementDBGO IF EXISTS(SELECT * FROM sysobjects WHERE name='Employee')DROP TABLE EmployeeGO CREATE TABLE Employee(ID INT NOT NULL PRIMARY KEY IDENTITY(1,1),Name NVARCHAR(50) NOT NULL,Age INT NOT NULL,Email NVARCHAR(200) NOT NULL)

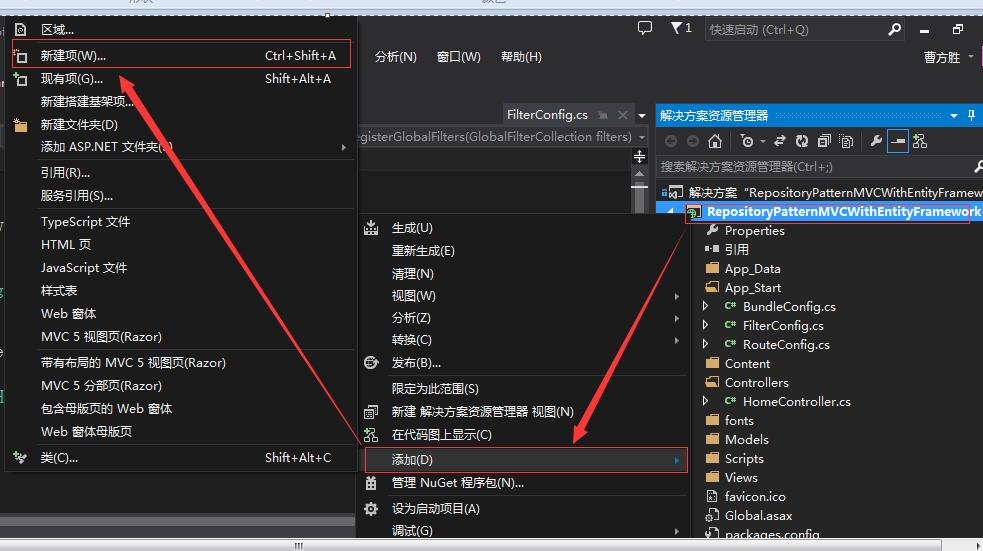

现在就开始下面的步骤吧，右键点击项目，选择添加-->新建项

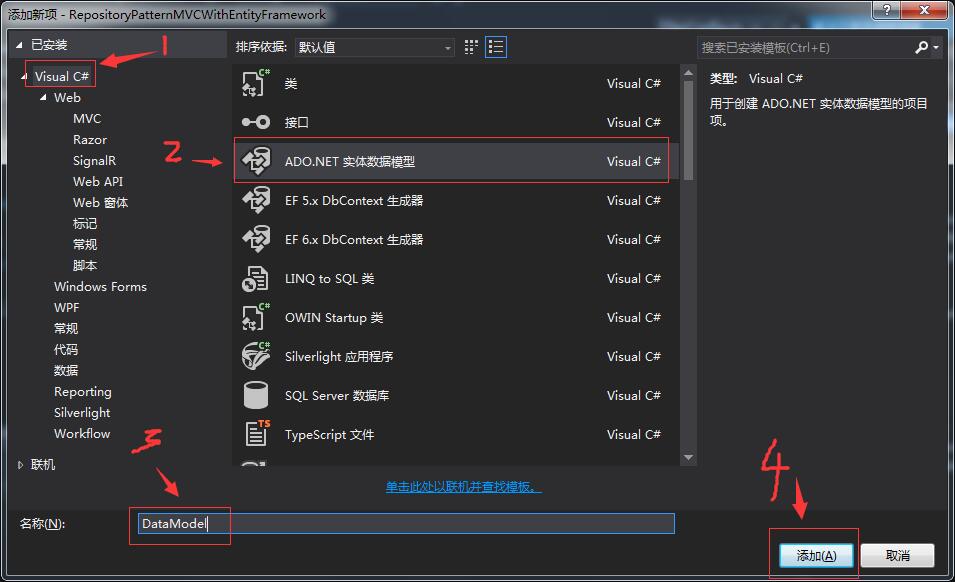

在演出来的对话框中，选择Visual C#-->ADO.NET实体数据模型-->输入名称--->添加
然后在弹出开的对话框中，选择第一个-->>>”来自数据库的EF设计器“,点击下一步：

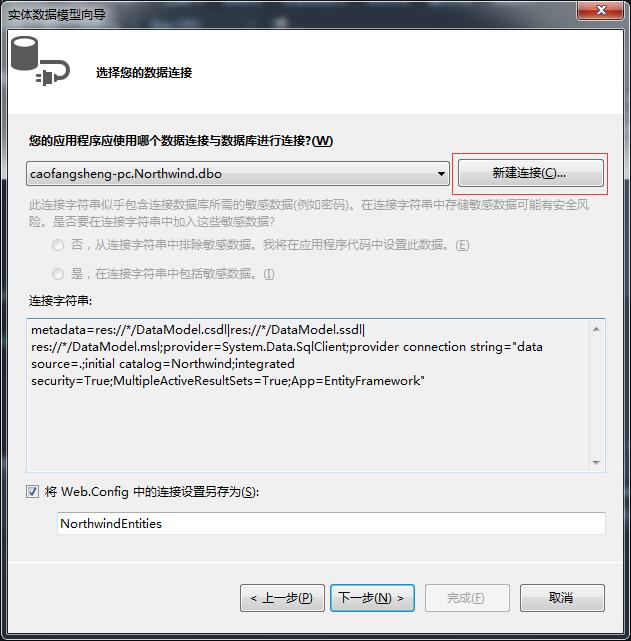

在弹出来的对话框中，选择--“新建连接”，然后点击下一步

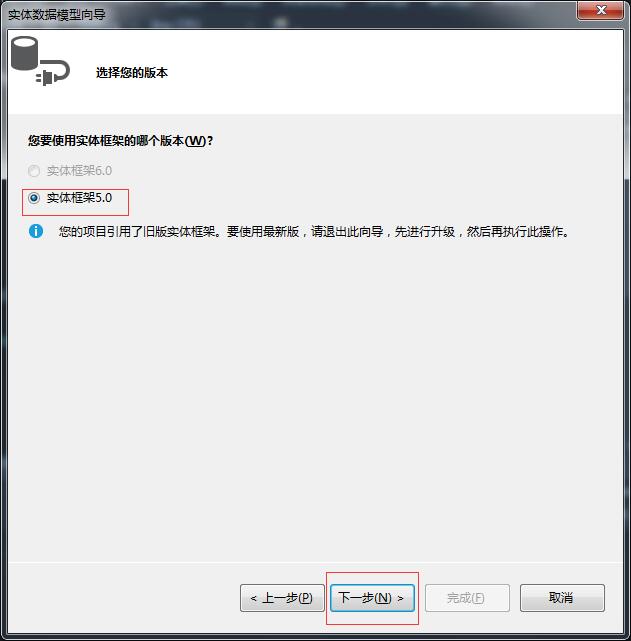

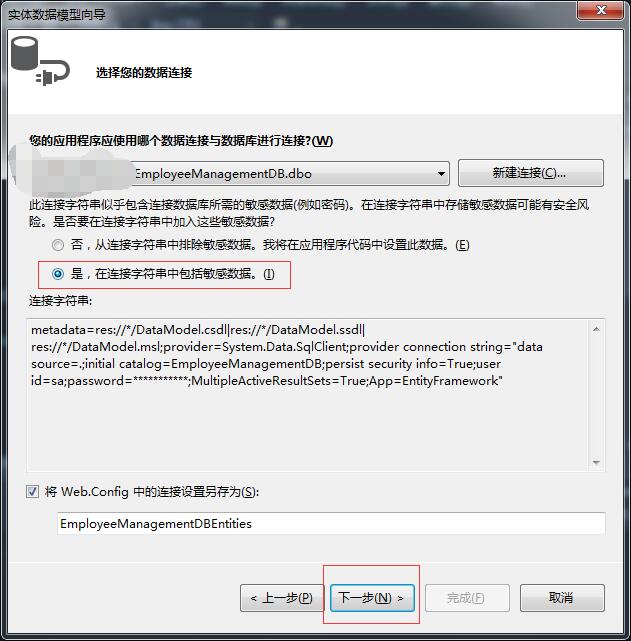

在出来的对画框中，输入信息，连接上我们刚才创建的数据库。测试通过之后，点击确定。

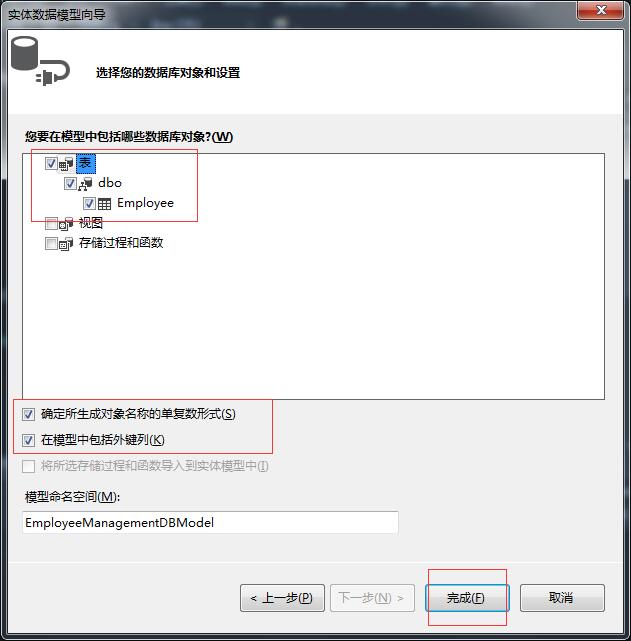

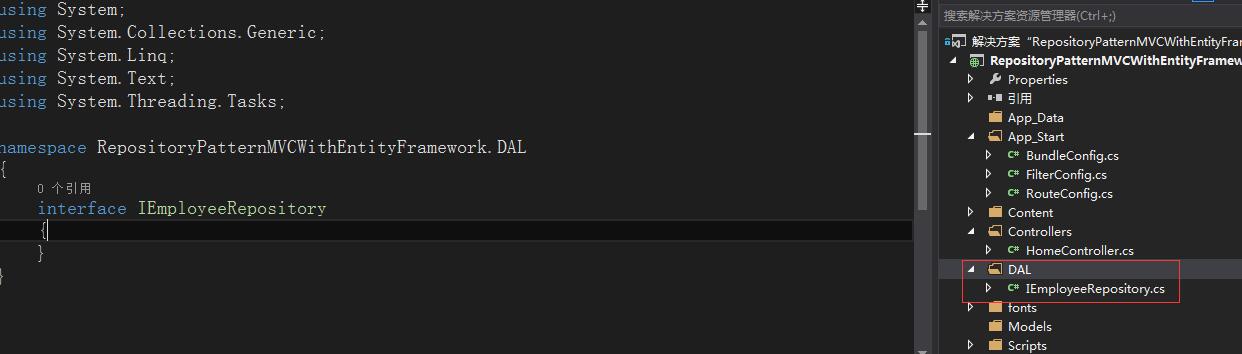

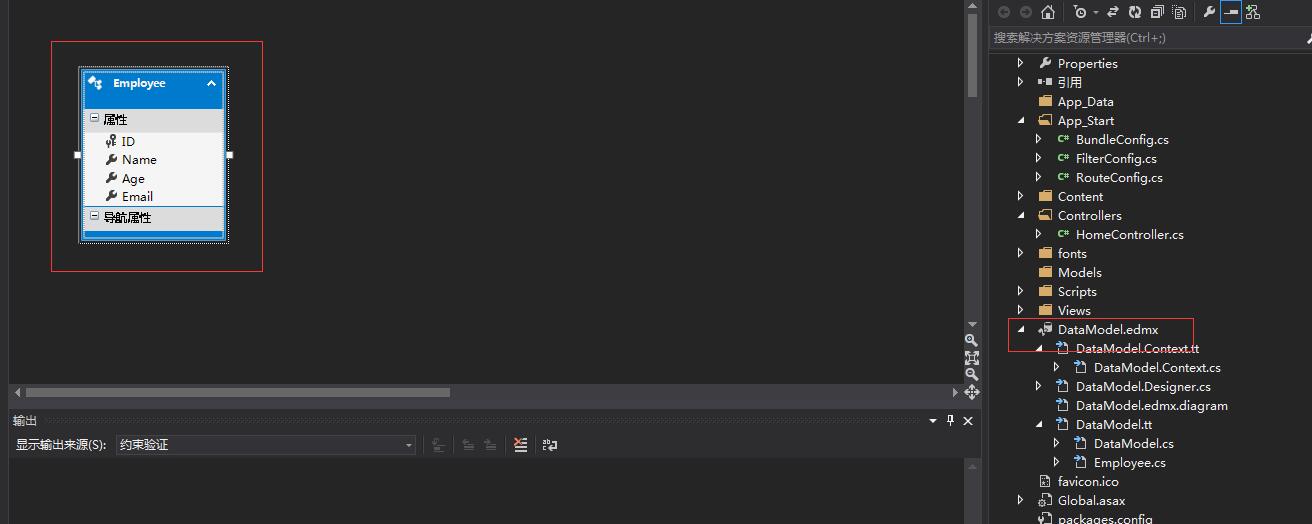

好了，截图截的差不多了，现在在我们项目中添加一个文件夹DAL，然后在往这个文件夹中，添加一个接口-->>>IEmployeeRepository.cs.
现在就是Coding了，接口中的代码是：
using System;using System.Collections.Generic;using System.Linq;using System.Text;using System.Threading.Tasks;namespace RepositoryPatternMVCWithEntityFramework.DAL{ interface IEmployeeRepository<T> where T:class { /// <summary> /// 获取所有的Employee /// </summary> /// <returns></returns> IEnumerable<T> GetAllEmployee(); /// <summary> /// 根据ID获取 /// </summary> /// <param name="id"></param> /// <returns></returns> T GetEmployeeById(object id); /// <summary> /// 增加 /// </summary> /// <param name="obj"></param> void InsertEmployee(T obj); /// <summary> /// 更新 /// </summary> /// <param name="obj"></param> void UpdateEmployee(T obj); /// <summary> /// 删除 /// </summary> /// <param name="id"></param> void DeleteEmployee(object id); /// <summary> /// 保存 /// </summary> void Save();
void Dispose(); }}
然后在DAL文件夹下，在添加一个类EmployeeRepository ，代码如下：
using System;using System.Collections.Generic;using System.Linq;using System.Web;namespace RepositoryPatternMVCWithEntityFramework.DAL{ public class EmployeeRepository:IEmployeeRepository<Employee>,IDisposable { private EmployeeManagementDBEntities context; public EmployeeRepository(EmployeeManagementDBEntities context) { this.context = context; } public IEnumerable<Employee> GetAllEmployee() { return context.Employees.ToList(); } public Employee GetEmployeeById(object id) { return context.Employees.Find(id); } public void InsertEmployee(Employee obj) { context.Employees.Add(obj); } public void UpdateEmployee(Employee obj) { context.Entry(obj).State = System.Data.EntityState.Modified; } public void DeleteEmployee(object id) { Employee em= context.Employees.Find(id); context.Employees.Remove(em); } public void Save() { context.SaveChanges(); } private bool disposed = false; protected virtual void Dispose(bool disposing) { if (!this.disposed) { if (disposing) { context.Dispose(); } } this.disposed = true; } public void Dispose() { Dispose(true); GC.SuppressFinalize(this); } }}

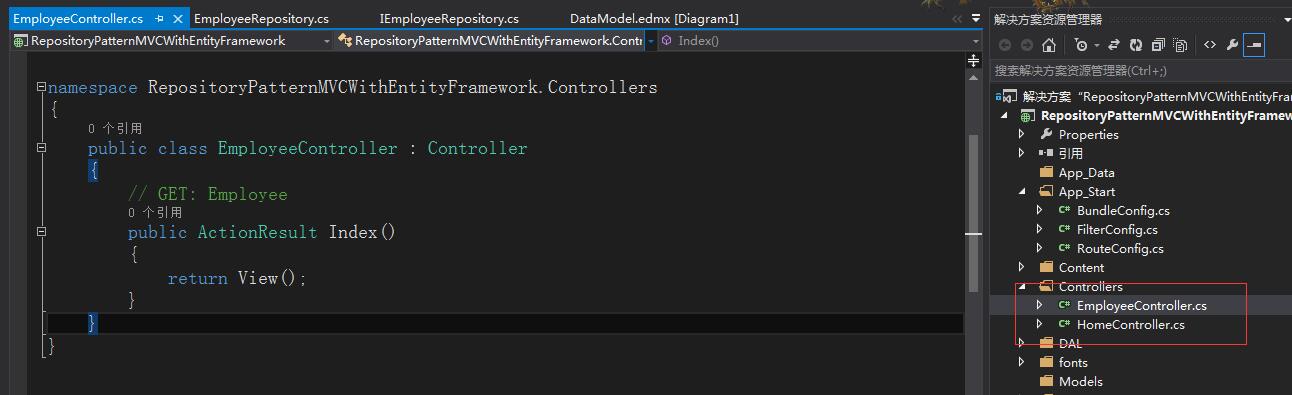

然后，在控制器文件夹下，添加一个控制器EmployController，空的。。

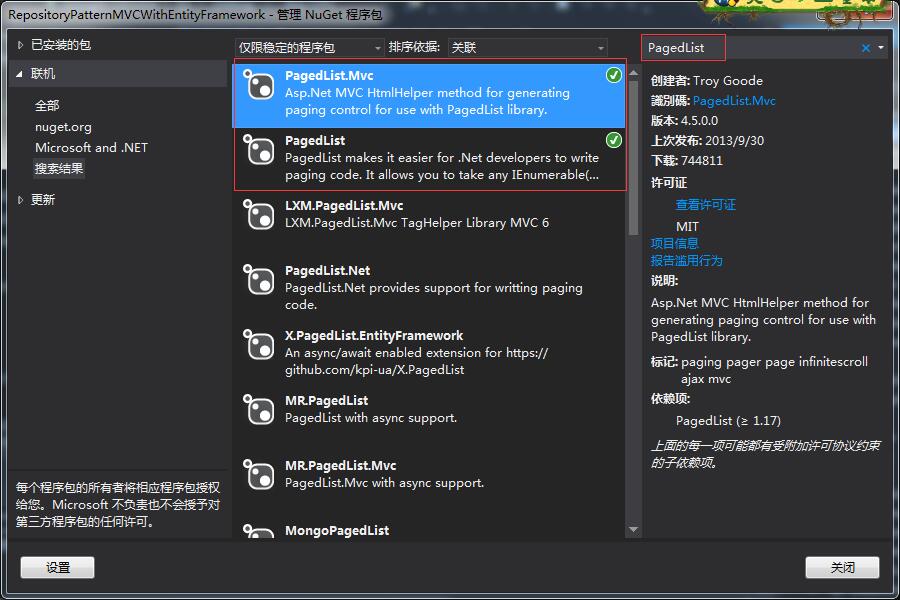

然后，先暂停一下，我这边打算使用分页，引用pageList.mvc
现在控制器的代码：
using RepositoryPatternMVCWithEntityFramework.DAL;using System;using System.Collections.Generic;using System.Linq;using System.Web;using System.Web.Mvc;//分页引用using PagedList;namespace RepositoryPatternMVCWithEntityFramework.Controllers{ public class EmployeeController : Controller { private IEmployeeRepository<Employee> employeeRepository; public EmployeeController() { this.employeeRepository = new EmployeeRepository(new EmployeeManagementDBEntities()); } // GET: Employee public ViewResult Index(string sortOrder, string currentFilter, string searchString, int? page) { ViewBag.CurrentSort = sortOrder; ViewBag.NameSortParm = String.IsNullOrEmpty(sortOrder) ? "ID" : ""; if (searchString != null) { page = 1; } else { searchString = currentFilter; } ViewBag.CurrentFilter = searchString; var employees = from s in employeeRepository.GetAllEmployee() select s; if (!String.IsNullOrEmpty(searchString)) { employees = employees.Where(s => s.Name.ToUpper().Contains(searchString.ToUpper()) || s.Name.ToUpper().Contains(searchString.ToUpper())); } switch (sortOrder) { case "ID": employees = employees.OrderByDescending(s => s.ID); break; case "Name": employees = employees.OrderBy(s => s.Name); break; case "Email": employees = employees.OrderBy(s => s.Email); break; case "Age": employees = employees.OrderBy(s => s.Age); break; default: employees = employees.OrderBy(s => s.ID); break; } int pageSize = 5; int pageNumber = (page ?? 1); return View(employees.ToPagedList(pageNumber, pageSize)); } // GET: /Employee/Details/5 public ViewResult Details(int id) { Employee emp = employeeRepository.GetEmployeeById(id); return View(emp); } // GET: /Employee/Create public ActionResult Create() { return View(); } // POST: /Employee/Create [HttpPost] [ValidateAntiForgeryToken] public ActionResult Create( [Bind(Include = "Name, Email")] Employee emp) { try { if (ModelState.IsValid) { employeeRepository.InsertEmployee(emp); employeeRepository.Save(); return RedirectToAction("Index"); } } catch (Exception ex) { ModelState.AddModelError(string.Empty, "Some Error Occured."); } return View(emp); } // GET: /Employee/Edit/5 public ActionResult Edit(int id) { Employee emp = employeeRepository.GetEmployeeById(id); return View(emp); } // POST: /Employee/Edit/5 [HttpPost] [ValidateAntiForgeryToken] public ActionResult Edit(Employee emp) { try { if (ModelState.IsValid) { employeeRepository.UpdateEmployee(emp); employeeRepository.Save(); return RedirectToAction("Index"); } } catch (Exception ex) { ModelState.AddModelError(string.Empty, "Some error Occured."); } return View(emp); } // GET: /employee/Delete/5 public ActionResult Delete(bool? saveChangesError = false, int id = 0) { if (saveChangesError.GetValueOrDefault()) { ViewBag.ErrorMessage = "Some Error Occured."; } Employee emp = employeeRepository.GetEmployeeById(id); return View(emp); } // POST: /Employee/Delete/5 [HttpPost] [ValidateAntiForgeryToken] public ActionResult Delete(int id) { try { Employee emp = employeeRepository.GetEmployeeById(id); employeeRepository.DeleteEmployee(id); employeeRepository.Save(); } catch (Exception ex) { return RedirectToAction("Delete", new { id = id, saveChangesError = true }); } return RedirectToAction("Index"); } protected override void Dispose(bool disposing) { employeeRepository.Dispose(); base.Dispose(disposing); } }}
Index视图：
@using PagedList.Mvc;@model PagedList.IPagedList<Employee> @*分页CSS*@<link href="~/Content/PagedList.css" rel="stylesheet" type="text/css" /> 备注一下，这个是添加pagedList分页之后，自动添加进来的。@{ ViewBag.Title = "Employee Management System";}<h2>Employee Management System</h2>@using (Html.BeginForm("Index", "Employee", FormMethod.Get)){ <p style="background-color:red; color:white; font-size:16pt; padding:10px;"> Search Employee By Name: @Html.TextBox("SearchString", ViewBag.CurrentFilter as string) <input type="submit" value="Search" /> @Html.ActionLink("Add New Employee", "Create") </p>}<table style="background-color:white;"> <tr> <th></th> <th style="width: 100px;"> @Html.ActionLink("Emp ID", "Index", new { sortOrder = ViewBag.NameSortParm, currentFilter = ViewBag.CurrentFilter }) </th> <th> @Html.ActionLink("Name", "Index", new { sortOrder = ViewBag.NameSortParm, currentFilter = ViewBag.CurrentFilter }) </th> <th> Email </th> <th> Age </th> <th style="width: 150px;"></th> </tr> @foreach (var item in Model) { <tr> <td></td> <td> @Html.DisplayFor(modelItem => item.ID) </td> <td style="width:130px;"> @Html.DisplayFor(modelItem => item.Name) </td> <td> @Html.DisplayFor(modelItem => item.Email) </td> <td style="width:140px;"> @Html.DisplayFor(modelItem => item.Age) </td> <td style="width:270px;"> @Html.ActionLink("Edit", "Edit", new { id = item.ID }) | @Html.ActionLink("Details", "Details", new { id = item.ID }) | @Html.ActionLink("Delete", "Delete", new { id = item.ID }) </td> </tr> }</table><br /><div style="background-color:orange; padding-left:15px; padding-top:10px;"> Showing Records @(Model.PageCount < Model.PageNumber ? 0 : Model.PageNumber) of @Model.PageCount //备注一下：这里的Pagecount ,PageNumber也都是///分页控件中的 @Html.PagedListPager(Model, page => Url.Action("Index", new { page, sortOrder = ViewBag.CurrentSort, currentFilter = ViewBag.CurrentFilter }))</div>
Create视图：
@model Employee<script src="~/Scripts/jquery-1.7.1.min.js"></script><script src="~/Scripts/jquery.validate.min.js"></script><script src="~/Scripts/jquery.validate.unobtrusive.min.js"></script>@using (Html.BeginForm()){ @Html.AntiForgeryToken() @Html.ValidationSummary(true) <fieldset> <legend>Employee</legend> <div class="editor-label"> @Html.LabelFor(model => model.Name) </div> <div class="editor-field"> @Html.EditorFor(model => model.Name) @Html.ValidationMessageFor(model => model.Name) </div> <div class="editor-label"> @Html.LabelFor(model => model.Email) </div> <div class="editor-field"> @Html.EditorFor(model => model.Email) @Html.ValidationMessageFor(model => model.Email) </div> <div class="editor-label"> @Html.LabelFor(model => model.Age) </div> <div class="editor-field"> @Html.EditorFor(model => model.Age) @Html.ValidationMessageFor(model => model.Age) </div> <p> <input type="submit" value="Create" /> </p> </fieldset>}<div> @Html.ActionLink("Back to List", "Index")</div>
Edit视图：
@model Employee<script src="~/Scripts/jquery-1.7.1.min.js"></script><script src="~/Scripts/jquery.validate.min.js"></script><script src="~/Scripts/jquery.validate.unobtrusive.min.js"></script><h2>Edit Employee information</h2>@using (Html.BeginForm()){ @Html.AntiForgeryToken() @Html.ValidationSummary(true) <table> <tr> <td>@Html.LabelFor(model => model.ID)</td> <td> @Html.EditorFor(model => model.ID, new { disabled = "disabled", @readonly = "readonly" }) @Html.ValidationMessageFor(model => model.ID) </td> </tr> <tr> <td> @Html.LabelFor(model => model.Name) </td> <td> @Html.EditorFor(model => model.Name) @Html.ValidationMessageFor(model => model.Name) </td></tr><tr> <td>@Html.LabelFor(model => model.Email)</td> <td> @Html.EditorFor(model => model.Email) @Html.ValidationMessageFor(model => model.Email) </td></tr><tr> <td>@Html.LabelFor(model => model.Age)</td> <td> @Html.EditorFor(model => model.Age) @Html.ValidationMessageFor(model => model.Age) </td></tr><tr style="background-color: orange; padding: 25px;"> <td></td> <td> <input type="submit" value="Save" /> @Html.ActionLink("Back to List", "Index") </td></tr></table>}
delete视图：
@model Employee<h3>Are you sure you want to delete this?</h3><table> <tr> <td>@Html.DisplayNameFor(model => model.ID)</td> <td>@Html.DisplayFor(model => model.ID)</td> </tr> <tr> <td>@Html.DisplayNameFor(model => model.Name)</td> <td>@Html.DisplayFor(model => model.Name)</td> </tr> <tr> <td>@Html.DisplayNameFor(model => model.Email)</td> <td>@Html.DisplayFor(model => model.Email)</td> </tr> <tr> <td>@Html.DisplayNameFor(model => model.Age)</td> <td>@Html.DisplayFor(model => model.Age)</td> </tr></table>@using (Html.BeginForm()){ @Html.AntiForgeryToken() <table> <tr style="background-color: orange; padding: 25px;"> <td></td> <td> <input type="submit" value="Delete" /> @Html.ActionLink("Back to List", "Index") </td> </tr> </table>}
Details视图：
@model Employee<h2>Employee Details</h2><table> <tr> <td>@Html.DisplayNameFor(model => model.ID)</td> <td>@Html.DisplayFor(model => model.ID)</td> </tr> <tr> <td>@Html.DisplayNameFor(model => model.Name)</td> <td>@Html.DisplayFor(model => model.Name)</td> </tr> <tr> <td>@Html.DisplayNameFor(model => model.Email)</td> <td>@Html.DisplayFor(model => model.Email)</td> </tr> <tr style="background-color: orange; padding: 25px;"> <td></td> <td> @Html.ActionLink("Edit", "Edit", new { id = Model.ID }) | @Html.ActionLink("Back to List", "Index") </td></tr></table>

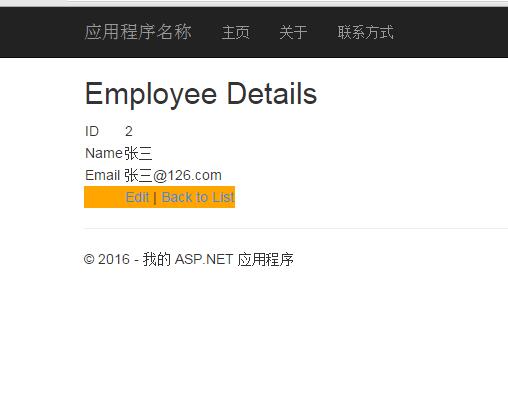

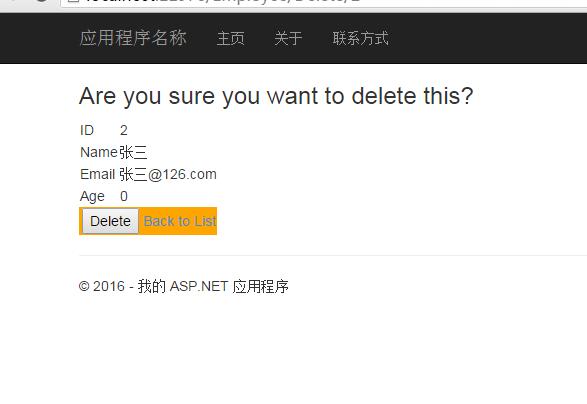

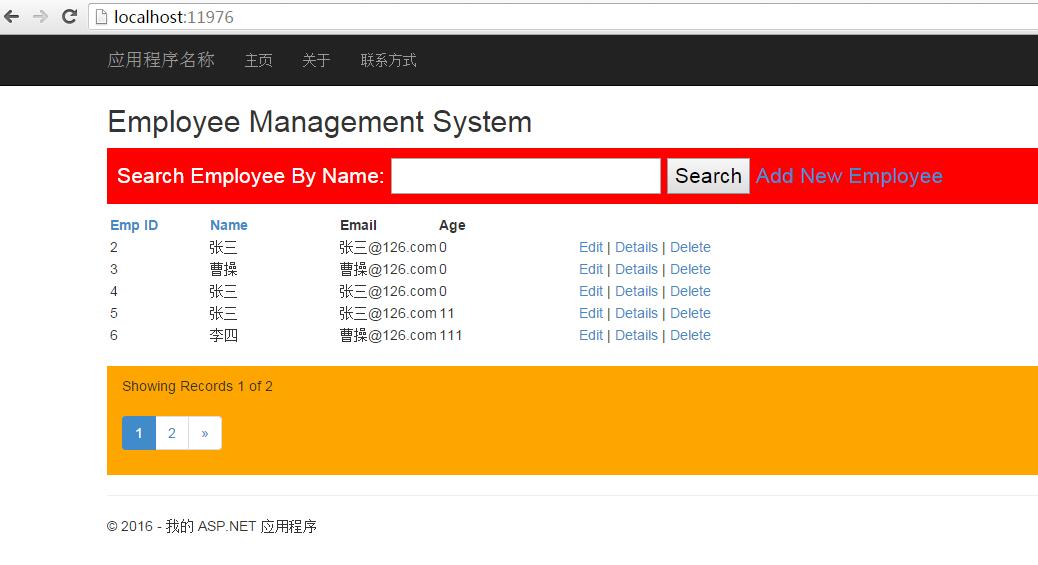

效果图：
