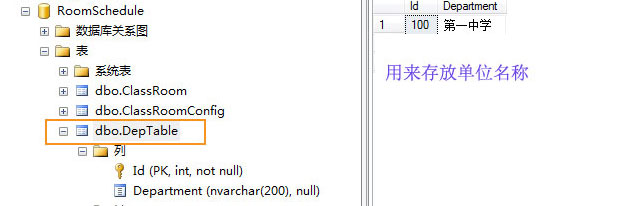

DepTable表 主要作用 存放单位名称
如图:
模板下载地址 CodeSmith版本为v6.5

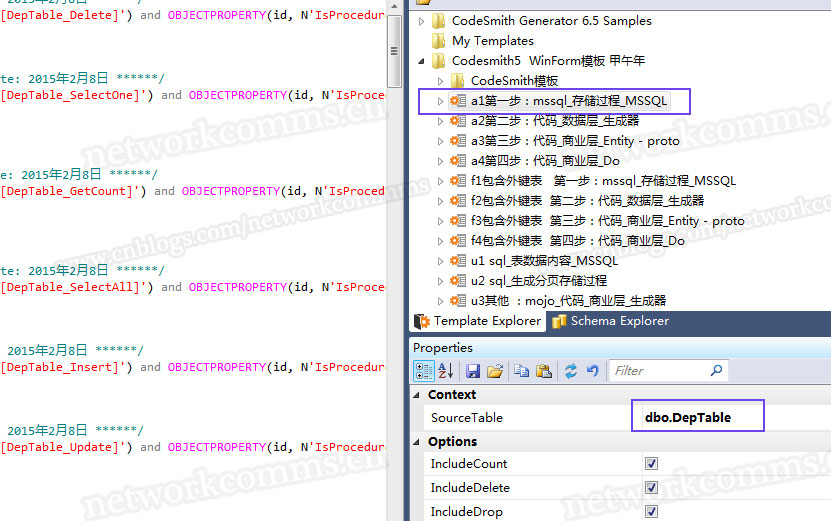

第一步:用CodeSmith模板生成DepTable表相关的存储过程
生成的存储过程如下:
/****** Object: Stored Procedure [dbo].DepTable_Delete Script Date: 2015年2月8日 ******/if exists (select * from [dbo].sysobjects where id = object_id(N'[dbo].[DepTable_Delete]') and OBJECTPROPERTY(id, N'IsProcedure') = 1)drop procedure [dbo].[DepTable_Delete]GO/****** Object: Stored Procedure [dbo].DepTable_SelectOne Script Date: 2015年2月8日 ******/if exists (select * from [dbo].sysobjects where id = object_id(N'[dbo].[DepTable_SelectOne]') and OBJECTPROPERTY(id, N'IsProcedure') = 1)drop procedure [dbo].[DepTable_SelectOne]GO /****** Object: Stored Procedure [dbo].DepTable_GetCount Script Date: 2015年2月8日 ******/if exists (select * from [dbo].sysobjects where id = object_id(N'[dbo].[DepTable_GetCount]') and OBJECTPROPERTY(id, N'IsProcedure') = 1)drop procedure [dbo].[DepTable_GetCount]GO /****** Object: Stored Procedure [dbo].DepTable_SelectAll Script Date: 2015年2月8日 ******/if exists (select * from [dbo].sysobjects where id = object_id(N'[dbo].[DepTable_SelectAll]') and OBJECTPROPERTY(id, N'IsProcedure') = 1)drop procedure [dbo].[DepTable_SelectAll]GO/****** Object: Stored Procedure [dbo].DepTable_Insert Script Date: 2015年2月8日 ******/if exists (select * from [dbo].sysobjects where id = object_id(N'[dbo].[DepTable_Insert]') and OBJECTPROPERTY(id, N'IsProcedure') = 1)drop procedure [dbo].[DepTable_Insert]GO/****** Object: Stored Procedure [dbo].DepTable_Update Script Date: 2015年2月8日 ******/if exists (select * from [dbo].sysobjects where id = object_id(N'[dbo].[DepTable_Update]') and OBJECTPROPERTY(id, N'IsProcedure') = 1)drop procedure [dbo].[DepTable_Update]GOSET ANSI_NULLS OFF GOSET QUOTED_IDENTIFIER ON GOCREATE PROCEDURE [dbo].DepTable_Delete/*Author: msdcCreated: 2015-2-8Last Modified: 2015-2-8*/@Id intASDELETE FROM [dbo].[DepTable]WHERE [Id] = @IdGOSET ANSI_NULLS OFF GOSET QUOTED_IDENTIFIER OFF GOSET ANSI_NULLS OFF GOSET QUOTED_IDENTIFIER ON GOCREATE PROCEDURE [dbo].DepTable_GetCount/*Author: msdcCreated: 2015-2-8Last Modified: 2015-2-8*/ASSELECT COUNT(*) FROM [dbo].[DepTable]GOSET ANSI_NULLS OFF GOSET QUOTED_IDENTIFIER OFF GO SET QUOTED_IDENTIFIER OFF GOSET ANSI_NULLS OFF GOCREATE PROCEDURE [dbo].DepTable_SelectOne/*Author: msdcCreated: 2015-2-8Last Modified: 2015-2-8*/@Id intASSELECT [Id], [Department] FROM [dbo].[DepTable] WHERE [Id] = @IdGOSET ANSI_NULLS OFF GOSET QUOTED_IDENTIFIER OFF GO SET ANSI_NULLS OFF GOSET QUOTED_IDENTIFIER ON GOCREATE PROCEDURE [dbo].DepTable_SelectAll/*Author: msdcCreated: 2015-2-8Last Modified: 2015-2-8*/ASSELECT [Id], [Department] FROM [dbo].[DepTable]GOSET ANSI_NULLS OFF GOSET QUOTED_IDENTIFIER OFF GOSET ANSI_NULLS OFF GOSET QUOTED_IDENTIFIER ON GOCREATE PROCEDURE [dbo].DepTable_Insert/*Author: msdcCreated: 2015-2-8Last Modified: 2015-2-8*/@Department nvarchar(200) ASINSERT INTO [dbo].[DepTable] ( [Department]) VALUES ( @Department )SELECT @@IDENTITY GOSET ANSI_NULLS OFF GOSET QUOTED_IDENTIFIER OFF GOSET ANSI_NULLS OFF GOSET QUOTED_IDENTIFIER ON GOCREATE PROCEDURE [dbo].DepTable_Update/*Author: msdcCreated: 2015-2-8Last Modified: 2015-2-8*/ @Id int, @Department nvarchar(200) ASUPDATE [dbo].[DepTable] SET [Department] = @Department WHERE [Id] = @IdGOSET ANSI_NULLS OFF GOSET QUOTED_IDENTIFIER OFF GO/****** Object: Stored Procedure [dbo].DepTable_SelectPage Script Date: 2015年2月8日 ******/if exists (select * from [dbo].sysobjects where id = object_id(N'[dbo].[DepTable_SelectPage]') and OBJECTPROPERTY(id, N'IsProcedure') = 1)drop procedure [dbo].[DepTable_SelectPage]GOCREATE PROCEDURE [dbo].DepTable_SelectPage-- Author: msdc-- Created: 2015-2-8-- Last Modified: 2015-2-8@PageNumber int,@PageSize intASDECLARE @PageLowerBound intDECLARE @PageUpperBound intSET @PageLowerBound = (@PageSize * @PageNumber) - @PageSizeSET @PageUpperBound = @PageLowerBound + @PageSize + 1/*Note: temp tables use the server default for collation not the database defaultso if adding character columns be sure and specify to use the database collation like thisto avoid collation errors:CREATE TABLE #PageIndexForUsers(IndexID int IDENTITY (1, 1) NOT NULL,UserName nvarchar(50) COLLATE DATABASE_DEFAULT,LoginName nvarchar(50) COLLATE DATABASE_DEFAULT) */CREATE TABLE #PageIndex ( IndexID int IDENTITY (1, 1) NOT NULL,Id Int)BEGININSERT INTO #PageIndex ( Id)SELECT [Id] FROM [dbo].[DepTable] -- WHERE-- ORDER BYENDSELECT t1.* FROM [dbo].[DepTable] t1JOIN #PageIndex t2ON t1.[Id] = t2.[Id] WHERE t2.IndexID > @PageLowerBound AND t2.IndexID < @PageUpperBound ORDER BY t2.IndexIDDROP TABLE #PageIndexGOSET ANSI_NULLS OFF GOSET QUOTED_IDENTIFIER OFF GO
DepTable_Insert 插入数据
DepTable_Update 更新数据
DepTable_SelectPage 获取分页数据
DepTable_SelectAll 获取所有数据
DepTable_SelectOne 获取某个数据
DepTable_GetCount 获取数量
DepTable_Delete 删除某个数据

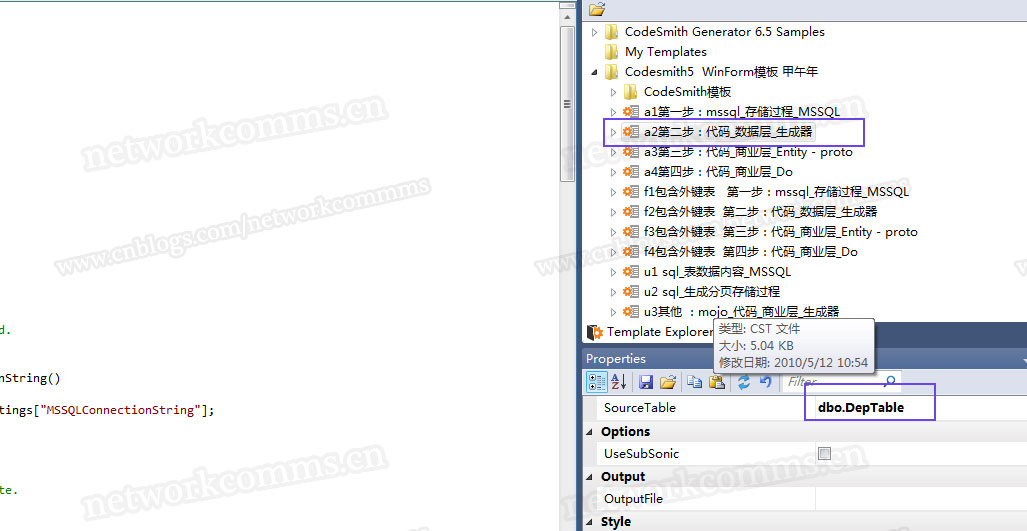

第二步:用codesmith模板生成数据层代码:
// Author: msdc// Created: 2015-2-8// Last Modified: 2015-2-8 using System;using System.IO;using System.Text;using System.Data;using System.Data.Common;using System.Data.SqlClient;using System.Configuration;using mojoPortal.Data; namespace mojoPortal.Data{ public static class DBDepTable { /// <summary> /// Gets the connection string for read. /// </summary> /// <returns></returns> private static string GetReadConnectionString() { return ConfigurationManager.AppSettings["MSSQLConnectionString"]; } /// <summary> /// Gets the connection string for write. /// </summary> /// <returns></returns> private static string GetWriteConnectionString() { if (ConfigurationManager.AppSettings["MSSQLWriteConnectionString"] != null) { return ConfigurationManager.AppSettings["MSSQLWriteConnectionString"]; } return ConfigurationManager.AppSettings["MSSQLConnectionString"]; } /// <summary> /// Inserts a row in the DepTable table. Returns new integer id. /// </summary> /// <param name="department"> department </param> /// <returns>int</returns> public static int Create( string department) { SqlParameterHelper sph = new SqlParameterHelper(GetWriteConnectionString(), "DepTable_Insert", 1); sph.DefineSqlParameter("@Department", SqlDbType.NVarChar, 200, ParameterDirection.Input, department); int newID = Convert.ToInt32(sph.ExecuteScalar()); return newID; } /// <summary> /// Updates a row in the DepTable table. Returns true if row updated. /// </summary> /// <param name="id"> id </param> /// <param name="department"> department </param> /// <returns>bool</returns> public static bool Update( int id, string department) { SqlParameterHelper sph = new SqlParameterHelper(GetWriteConnectionString(), "DepTable_Update", 2); sph.DefineSqlParameter("@Id", SqlDbType.Int, ParameterDirection.Input, id); sph.DefineSqlParameter("@Department", SqlDbType.NVarChar, 200, ParameterDirection.Input, department); int rowsAffected = sph.ExecuteNonQuery(); return (rowsAffected > 0); } /// <summary> /// Deletes a row from the DepTable table. Returns true if row deleted. /// </summary> /// <param name="id"> id </param> /// <returns>bool</returns> public static bool Delete( int id) { SqlParameterHelper sph = new SqlParameterHelper(GetWriteConnectionString(), "DepTable_Delete", 1); sph.DefineSqlParameter("@Id", SqlDbType.Int, ParameterDirection.Input, id); int rowsAffected = sph.ExecuteNonQuery(); return (rowsAffected > 0); } /// <summary> /// Gets an IDataReader with one row from the DepTable table. /// </summary> /// <param name="id"> id </param> public static IDataReader GetOne( int id) { SqlParameterHelper sph = new SqlParameterHelper(GetReadConnectionString(), "DepTable_SelectOne", 1); sph.DefineSqlParameter("@Id", SqlDbType.Int, ParameterDirection.Input, id); return sph.ExecuteReader(); } /// <summary> /// Gets a count of rows in the DepTable table. /// </summary> public static int GetCount() { return Convert.ToInt32(SqlHelper.ExecuteScalar( GetReadConnectionString(), CommandType.StoredProcedure, "DepTable_GetCount", null)); } /// <summary> /// Gets an IDataReader with all rows in the DepTable table. /// </summary> public static IDataReader GetAll() { return SqlHelper.ExecuteReader( GetReadConnectionString(), CommandType.StoredProcedure, "DepTable_SelectAll", null); } /// <summary> /// Gets a page of data from the DepTable table. /// </summary> /// <param name="pageNumber">The page number.</param> /// <param name="pageSize">Size of the page.</param> /// <param name="totalPages">total pages</param> public static IDataReader GetPage( int pageNumber, int pageSize, out int itemCount) { itemCount = GetCount(); SqlParameterHelper sph = new SqlParameterHelper(GetReadConnectionString(), "DepTable_SelectPage", 2); sph.DefineSqlParameter("@PageNumber", SqlDbType.Int, ParameterDirection.Input, pageNumber); sph.DefineSqlParameter("@PageSize", SqlDbType.Int, ParameterDirection.Input, pageSize); return sph.ExecuteReader(); } }}
主要方法如下:
GetPage 获取分页数据
GetAll 获取所有数据
GetCount 获取总数
GetOne 获取某个数据
Delete 删除
Update 更新

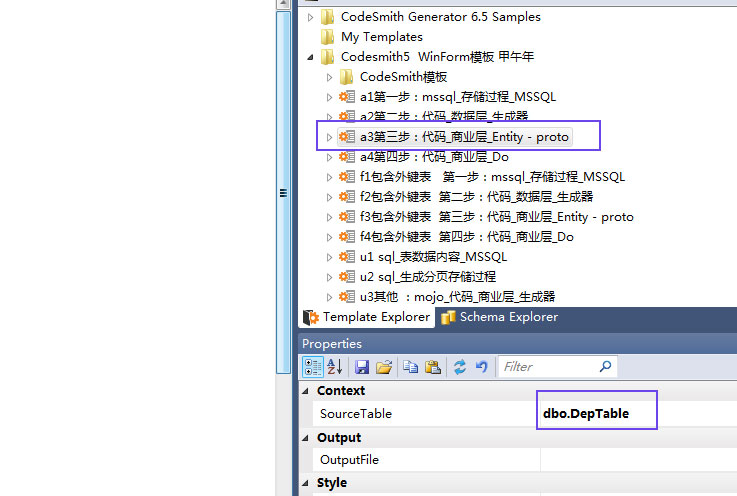

第三步:生成网络通讯程序中使用的实体类(使用protobuf.net进行序列化)
模板生成的实体类如下:
// Author: msdc// Created: 2015-2-8// Last Modified: 2015-2-8using System;using System.Collections;using System.Collections.Generic;using System.Data;using mojoportal.Data; namespace mojoportal.Business{ [ProtoContract] public class DepTable {#region Constructors public DepTable() {} #endregion#region Private Properties private int id = -1; private string department = string.Empty; #endregion#region Public Properties [ProtoMember(1)] public int Id { get { return id; } set { id = value; } } [ProtoMember(2)] public string Department { get { return department; } set { department = value; } }#endregion } }

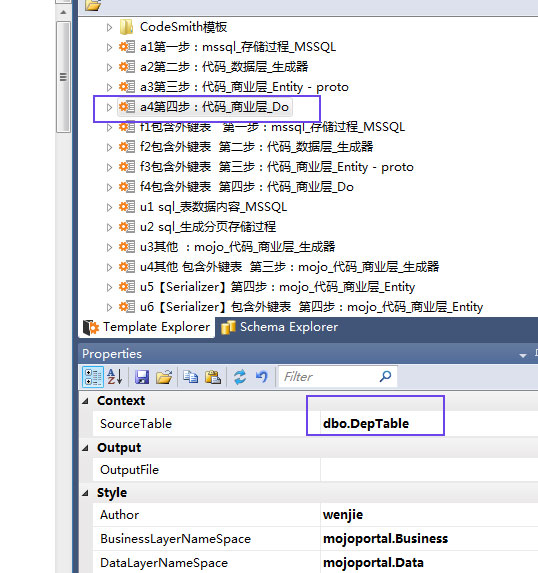

第四步:用模板生成操作类
生成的操作类代码如下:
// Author: msdc// Created: 2015-2-8// Last Modified: 2015-2-8using System;using System.Collections;using System.Collections.Generic;using System.Data;using mojoportal.Data; namespace mojoportal.Business{ public class DoDepTable { #region Private Methods /// <summary> /// Gets an instance of DepTable. /// </summary> /// <param name="id"> id </param> private static DepTable GetDepTable( int id) { using(IDataReader reader = DBDepTable.GetOne( id)) { return PopulateFromReader(reader); } } private static DepTable PopulateFromReader(IDataReader reader) { DepTable depTable = new DepTable(); if(reader.Read()) { depTable.Id = Convert.ToInt32(reader["Id"]); depTable.Department = reader["Department"].ToString(); } return depTable; } /// <summary> /// Persists a new instance of DepTable. Returns true on success. /// </summary> /// <returns></returns> private static bool Create(DepTable depTable) { int newID = 0; newID = DBDepTable.Create( depTable.Department); depTable.Id = newID; return (newID > 0); } /// <summary> /// Updates this instance of DepTable. Returns true on success. /// </summary> /// <returns>bool</returns> private static bool Update(DepTable depTable) { return DBDepTable.Update( depTable.Id, depTable.Department); } #endregion#region Public Methods /// <summary> /// Saves this instance of DepTable. Returns true on success. /// </summary> /// <returns>bool</returns> public static bool Save(DepTable depTable) { if( depTable.Id > 0) { return Update(depTable); } else { return Create(depTable); } } #endregion#region Static Methods /// <summary> /// Deletes an instance of DepTable. Returns true on success. /// </summary> /// <param name="id"> id </param> /// <returns>bool</returns> public static bool Delete( int id) { return DBDepTable.Delete( id); } /// <summary> /// Gets a count of DepTable. /// </summary> public static int GetCount() { return DBDepTable.GetCount(); } private static IList<DepTable> LoadListFromReader(IDataReader reader) { IList<DepTable> depTableList = new List<DepTable>(); try { while (reader.Read()) { DepTable depTable = new DepTable(); depTable.Id = Convert.ToInt32(reader["Id"]); depTable.Department = reader["Department"].ToString(); depTableList.Add(depTable); } } finally { reader.Close(); } return depTableList; } /// <summary> /// Gets an IList with all instances of DepTable. /// </summary> public static IList<DepTable> GetAll() { IDataReader reader = DBDepTable.GetAll(); return LoadListFromReader(reader); } /// <summary> /// Gets an IList with page of instances of DepTable. /// </summary> /// <param name="pageNumber">The page number.</param> /// <param name="pageSize">Size of the page.</param> /// <param name="totalPages">total pages</param> public static IList<DepTable> GetPage(int pageNumber, int pageSize, out int itemCount) { itemCount = 1; IDataReader reader = DBDepTable.GetPage(pageNumber, pageSize, out itemCount); return LoadListFromReader(reader); } #endregion } }
模板生成的是一个基本的操作,如果我们有另外的自定义的需求,那么需要逐层添加代码。
