1、BP 神经网络结构与原理

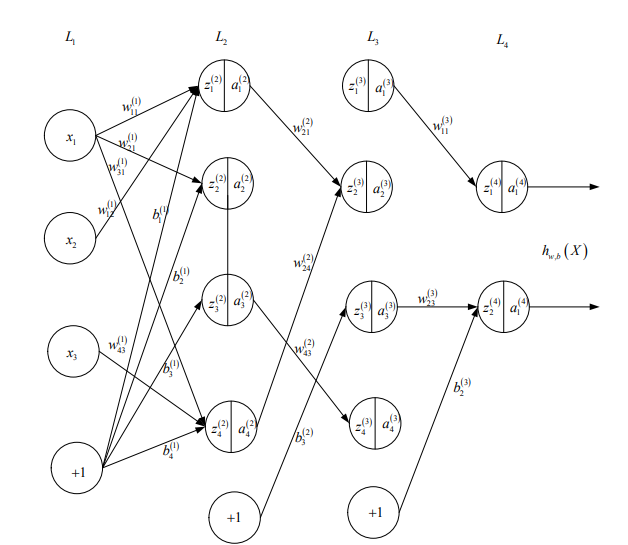

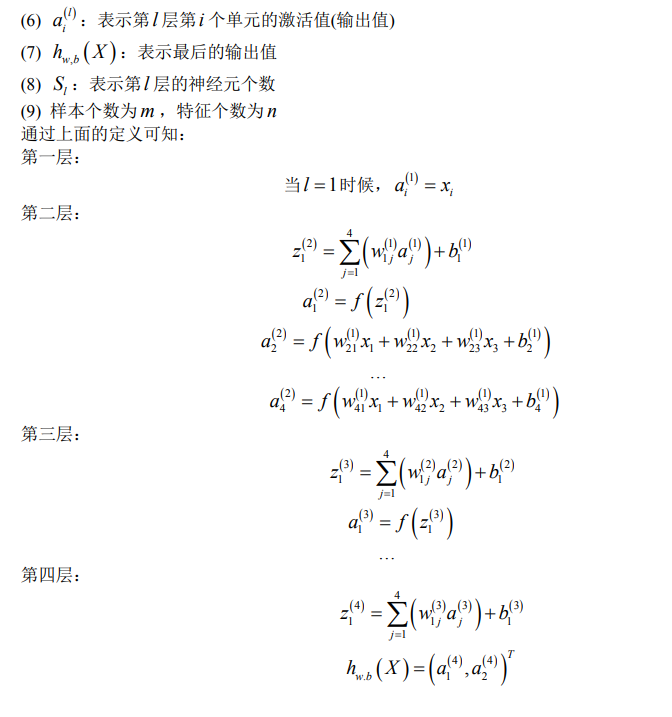

由于 BP 神经网络参数超级多，如果不先定义好变量，后面非常难理解，故针对上述图 形，定义如下：
(1)n1：表示网络层数，此处为 4
(2) Ll ：表示第l 层， L1 是输入层， l Ln 是输出层，其他为隐含层
(3) ?l? wij ：表示第l +1层第i 个单元与第l 层第 j 个单元的连接权重—必须要记住
(4) bi ：表示第l 层第i 个单元的偏置项(激活阈值)
(5) zi ：表示第l 层第i 个单元的权重累计

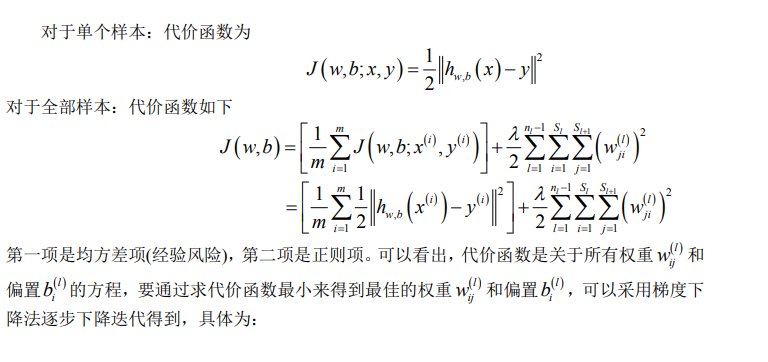

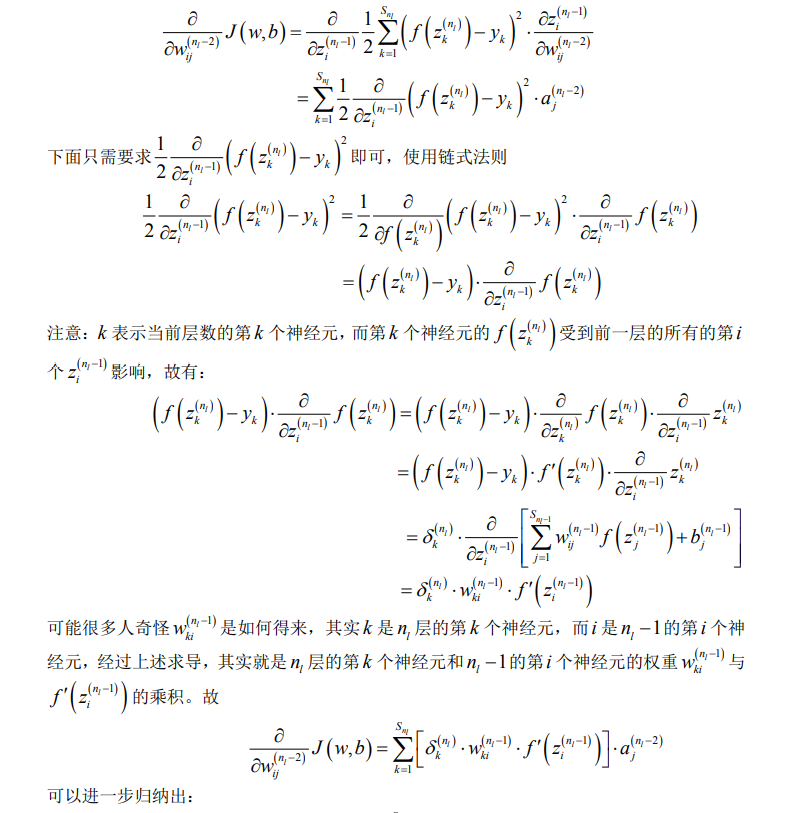

2.BP神经网络公司推导

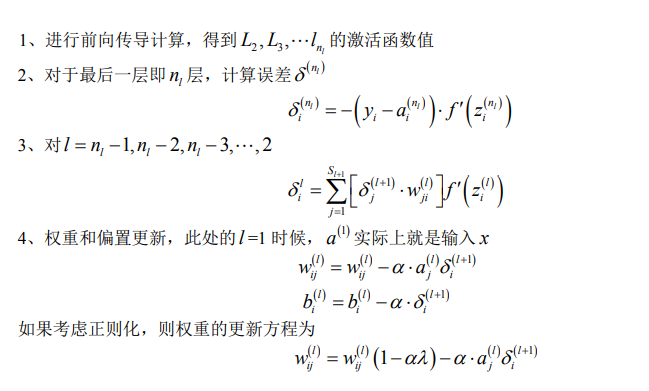

故 BP 神经网络的完整流程如下：
3、BP 神经网络的第一种实现
具体代码实现：
# -*- coding: utf-8 -*-"""Testing code for different neural network configurations.Adapted for Python 3.5.2Usage in shell:python3.5 test.pyNetwork (network.py and network2.py) parameters:2nd param is epochs count3rd param is batch size4th param is learning rate (eta)Author:Micha? Dobrzański, 2016dobrzanski.michal.daniel@gmail.com
"""# -----------------------------------------第一部分------------------------------------
# ----------------------------------一个基本的神经网络------------------------------------import mnist_loader
import networktraining_data, validation_data, test_data = mnist_loader.load_data_wrapper()
training_data = list(training_data)net = network.Network([784, 30, 10])
net.SGD(training_data, 30, 10, 3.0, test_data=test_data)# -----------------------------------------第二部分------------------------------------
# --------------------------------一个简单改进的神经网络------------------------------------
# - network2.py example: L2范数罚 交叉熵代价函数 早停止策略 初始化策略更改 代价函数监控import mnist_loader
import network2training_data, validation_data, test_data = mnist_loader.load_data_wrapper()
training_data = list(training_data)net = network2.Network([784, 30, 10], cost=network2.CrossEntropyCost)
# net.large_weight_initializer()
net.SGD(training_data, 30, 10, 0.1, lmbda=5.0, evaluation_data=validation_data,monitor_evaluation_accuracy=True)# -----------------------------------------第三部分------------------------------------
# chapter 3 - Overfitting example - too many epochs of learning applied on small (1k samples) amount od data.
# Overfitting is treating noise as a signal.
'''
net = network2.Network([784, 30, 10], cost=network2.CrossEntropyCost)
net.large_weight_initializer()
net.SGD(training_data[:1000], 400, 10, 0.5, evaluation_data=test_data,monitor_evaluation_accuracy=True,monitor_training_cost=True)
'''# chapter 3 - Regularization (weight decay) example 1 (only 1000 of training data and 30 hidden neurons)
'''
net = network2.Network([784, 30, 10], cost=network2.CrossEntropyCost)
net.large_weight_initializer()
net.SGD(training_data[:1000], 400, 10, 0.5,evaluation_data=test_data,lmbda = 0.1, # this is a regularization parametermonitor_evaluation_cost=True,monitor_evaluation_accuracy=True,monitor_training_cost=True,monitor_training_accuracy=True)
'''# chapter 3 - Early stopping implemented
'''
net = network2.Network([784, 30, 10], cost=network2.CrossEntropyCost)
net.SGD(training_data[:1000], 30, 10, 0.5,lmbda=5.0,evaluation_data=validation_data,monitor_evaluation_accuracy=True,monitor_training_cost=True,early_stopping_n=10)
'''# chapter 4 - The vanishing gradient problem - deep networks are hard to train with simple SGD algorithm
# this network learns much slower than a shallow one.
'''
net = network2.Network([784, 30, 30, 30, 30, 10], cost=network2.CrossEntropyCost)
net.SGD(training_data, 30, 10, 0.1,lmbda=5.0,evaluation_data=validation_data,monitor_evaluation_accuracy=True)
'''# -----------------------------------------第四部分-CNN------------------------------------# ----------------------
# Theano and CUDA
# ----------------------"""This deep network uses Theano with GPU acceleration support.I am using Ubuntu 16.04 with CUDA 7.5.Tutorial:http://deeplearning.net/software/theano/install_ubuntu.html#install-ubuntuThe following command will update only Theano:sudo pip install --upgrade --no-deps theanoThe following command will update Theano and Numpy/Scipy (warning bellow):sudo pip install --upgrade theano""""""Below, there is a testing function to check whether your computations have been made on CPU or GPU.If the result is 'Used the cpu' and you want to have it in gpu, do the following:1) install theano:sudo python3.5 -m pip install Theano2) download and install the latest cuda:https://developer.nvidia.com/cuda-downloadsI had some issues with that, so I followed this idea (better option is to download the 1,1GB package as .run file):http://askubuntu.com/questions/760242/how-can-i-force-16-04-to-add-a-repository-even-if-it-isnt-considered-secure-enoYou may also want to grab the proper NVidia driver, choose it form there:System Settings > Software & Updates > Additional Drivers.3) should work, run it with:THEANO_FLAGS=mode=FAST_RUN,device=gpu,floatX=float32 python3.5 test.pyhttp://deeplearning.net/software/theano/tutorial/using_gpu.html4) Optionally, you can add cuDNN support from:https://developer.nvidia.com/cudnn"""
# def testTheano():
# from theano import function, config, shared, sandbox
# import theano.tensor as T
# import numpy
# import time
# print("Testing Theano library...")
# vlen = 10 * 30 * 768 # 10 x #cores x # threads per core
# iters = 1000
#
# rng = numpy.random.RandomState(22)
# x = shared(numpy.asarray(rng.rand(vlen), config.floatX))
# f = function([], T.exp(x))
# print(f.maker.fgraph.toposort())
# t0 = time.time()
# for i in range(iters):
# r = f()
# t1 = time.time()
# print("Looping %d times took %f seconds" % (iters, t1 - t0))
# print("Result is %s" % (r,))
# if numpy.any([isinstance(x.op, T.Elemwise) for x in f.maker.fgraph.toposort()]):
# print('Used the cpu')
# else:
# print('Used the gpu')
# Perform check:
# testTheano()# ----------------------
# - network3.py example:
# import network3
# from network3 import Network, ConvPoolLayer, FullyConnectedLayer, SoftmaxLayer # softmax plus log-likelihood cost is more common in modern image classification networks.# read data:
# training_data, validation_data, test_data = network3.load_data_shared()
# # mini-batch size:
# mini_batch_size = 10# chapter 6 - shallow architecture using just a single hidden layer, containing 100 hidden neurons.
'''
net = Network([FullyConnectedLayer(n_in=784, n_out=100),SoftmaxLayer(n_in=100, n_out=10)], mini_batch_size)
net.SGD(training_data, 60, mini_batch_size, 0.1, validation_data, test_data)
'''# chapter 6 - 5x5 local receptive fields, 20 feature maps, max-pooling layer 2x2
'''
net = Network([ConvPoolLayer(image_shape=(mini_batch_size, 1, 28, 28),filter_shape=(20, 1, 5, 5),poolsize=(2, 2)),FullyConnectedLayer(n_in=20*12*12, n_out=100),SoftmaxLayer(n_in=100, n_out=10)], mini_batch_size)
net.SGD(training_data, 60, mini_batch_size, 0.1, validation_data, test_data)
'''# chapter 6 - inserting a second convolutional-pooling layer to the previous example => better accuracy
'''
net = Network([ConvPoolLayer(image_shape=(mini_batch_size, 1, 28, 28),filter_shape=(20, 1, 5, 5),poolsize=(2, 2)),ConvPoolLayer(image_shape=(mini_batch_size, 20, 12, 12),filter_shape=(40, 20, 5, 5),poolsize=(2, 2)),FullyConnectedLayer(n_in=40*4*4, n_out=100),SoftmaxLayer(n_in=100, n_out=10)], mini_batch_size)
net.SGD(training_data, 60, mini_batch_size, 0.1, validation_data, test_data)
'''# chapter 6 - rectified linear units and some l2 regularization (lmbda=0.1) => even better accuracy
# from network3 import ReLU
# net = Network([
# ConvPoolLayer(image_shape=(mini_batch_size, 1, 28, 28),
# filter_shape=(20, 1, 5, 5),
# poolsize=(2, 2),
# activation_fn=ReLU),
# ConvPoolLayer(image_shape=(mini_batch_size, 20, 12, 12),
# filter_shape=(40, 20, 5, 5),
# poolsize=(2, 2),
# activation_fn=ReLU),
# FullyConnectedLayer(n_in=40*4*4, n_out=100, activation_fn=ReLU),
# SoftmaxLayer(n_in=100, n_out=10)], mini_batch_size)
# net.SGD(training_data, 60, mini_batch_size, 0.03, validation_data, test_data, lmbda=0.1)
这是主代码下面是数据集之类的
链接：https://pan.baidu.com/s/11ySWBrYYeQXGUMaQA6ZtLg
提取码：9hf5
