1:geoserver 下载wps插件
将下载后的 geoserver-2.15.1-vectortiles-plugin.zip 解压到 GeoServer 2.15.1\webapps\geoserver\WEB-INF\lib 目录下。
2:编辑sld文件
<?xml version="1.0" encoding="ISO-8859-1"?><StyledLayerDescriptor version="1.0.0"xsi:schemaLocation="http://www.opengis.net/sld StyledLayerDescriptor.xsd"xmlns="http://www.opengis.net/sld"xmlns:ogc="http://www.opengis.net/ogc"xmlns:xlink="http://www.w3.org/1999/xlink"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"><NamedLayer><Name>Heatmap</Name><UserStyle><Title>Heatmap</Title><Abstract>A heatmap surface showing population density</Abstract><FeatureTypeStyle><Transformation><ogc:Function name="vec:Heatmap"><ogc:Function name="parameter"><ogc:Literal>data</ogc:Literal></ogc:Function><ogc:Function name="parameter"><ogc:Literal>weightAttr</ogc:Literal><ogc:Literal>AREA</ogc:Literal></ogc:Function><ogc:Function name="parameter"><ogc:Literal>radiusPixels</ogc:Literal><ogc:Function name="env"><ogc:Literal>radius</ogc:Literal><ogc:Literal>100</ogc:Literal></ogc:Function></ogc:Function><ogc:Function name="parameter"><ogc:Literal>pixelsPerCell</ogc:Literal><ogc:Literal>10</ogc:Literal></ogc:Function><ogc:Function name="parameter"><ogc:Literal>outputBBOX</ogc:Literal><ogc:Function name="env"><ogc:Literal>wms_bbox</ogc:Literal></ogc:Function></ogc:Function><ogc:Function name="parameter"><ogc:Literal>outputWidth</ogc:Literal><ogc:Function name="env"><ogc:Literal>wms_width</ogc:Literal></ogc:Function></ogc:Function><ogc:Function name="parameter"><ogc:Literal>outputHeight</ogc:Literal><ogc:Function name="env"><ogc:Literal>wms_height</ogc:Literal></ogc:Function></ogc:Function></ogc:Function></Transformation><Rule><RasterSymbolizer><!-- specify geometry attribute to pass validation --><Geometry><ogc:PropertyName>the_geom</ogc:PropertyName></Geometry><Opacity>0.6</Opacity><ColorMap type="ramp" ><ColorMapEntry color="#FFFFFF" quantity="0" label="nodata"opacity="0"/><ColorMapEntry color="#FFFFFF" quantity="0.02" label="nodata"opacity="0"/><ColorMapEntry color="#4444FF" quantity=".1" label="nodata"/><ColorMapEntry color="#FF0000" quantity=".5" label="values" /><ColorMapEntry color="#FFFF00" quantity="1.0" label="values" /></ColorMap></RasterSymbolizer></Rule></FeatureTypeStyle></UserStyle></NamedLayer></StyledLayerDescriptor>
weightAttr为权重字段,需将AREA修改为自己数据中对应的权重字段名称。
3:geoserver添加style

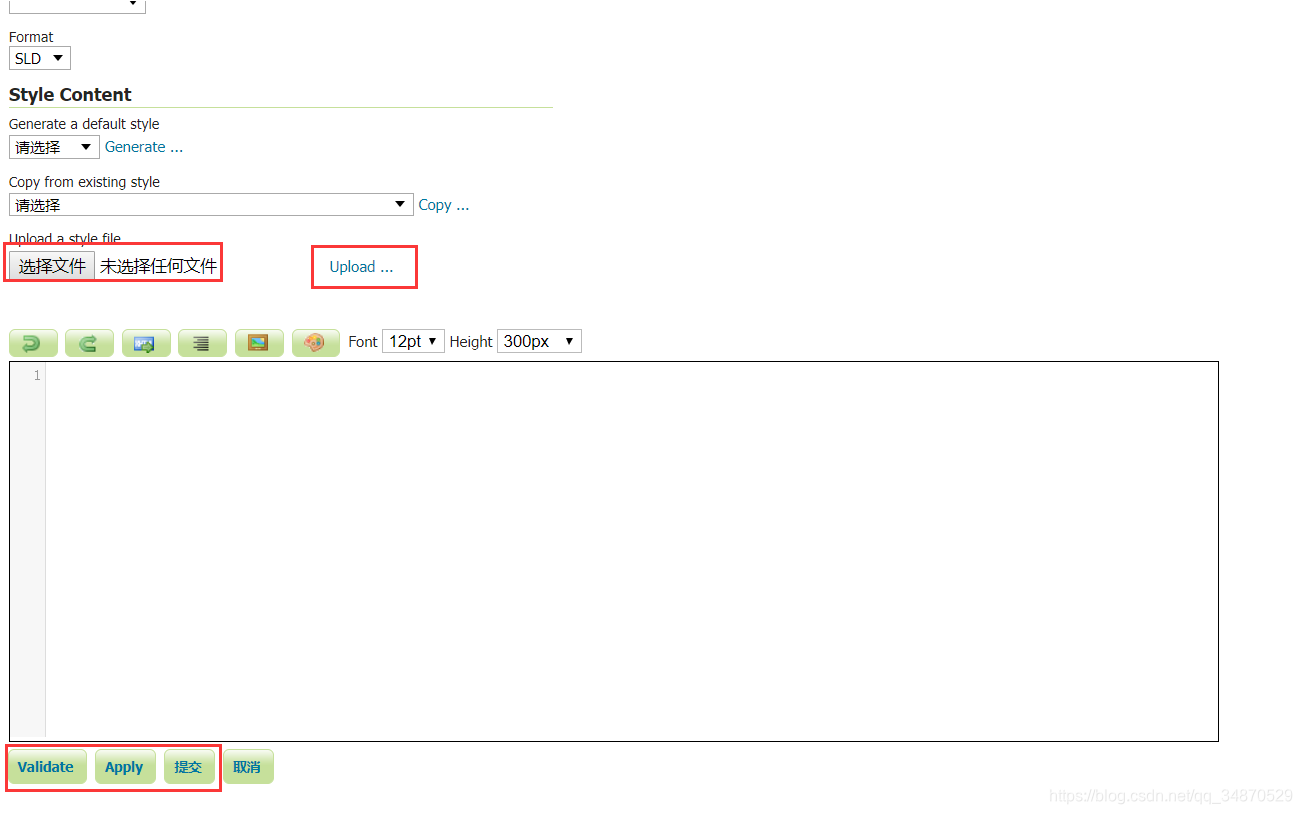

geoserver中点击 styles -> add a new style
点击选择文件选择刚才编辑的sld文件,点击Upload,然后点击Validate,若没有报错点击apply-提交则style添加成功。
4:geoserver发布热力图wms
数据:

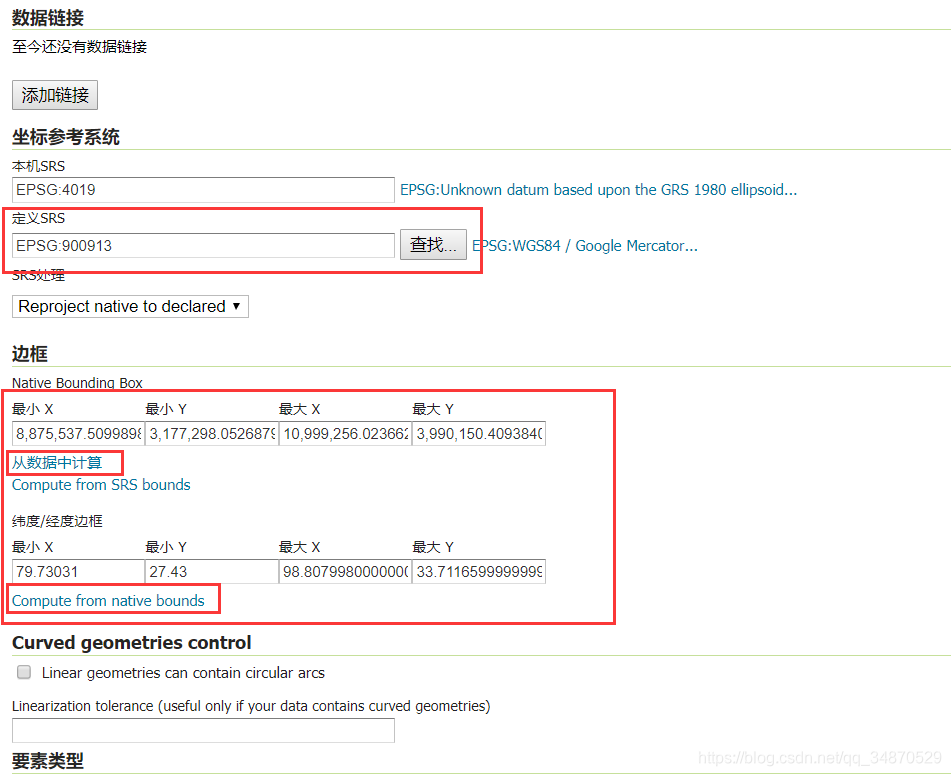

发布:

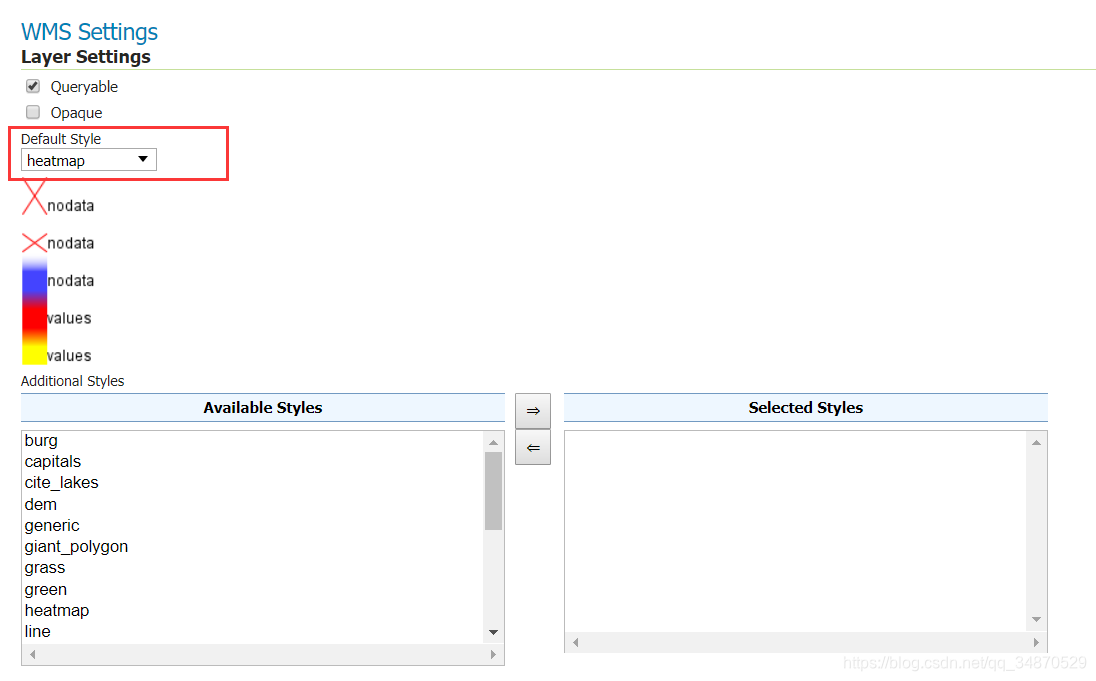

default style中选择前边添加的style,保存后图层发布完毕!

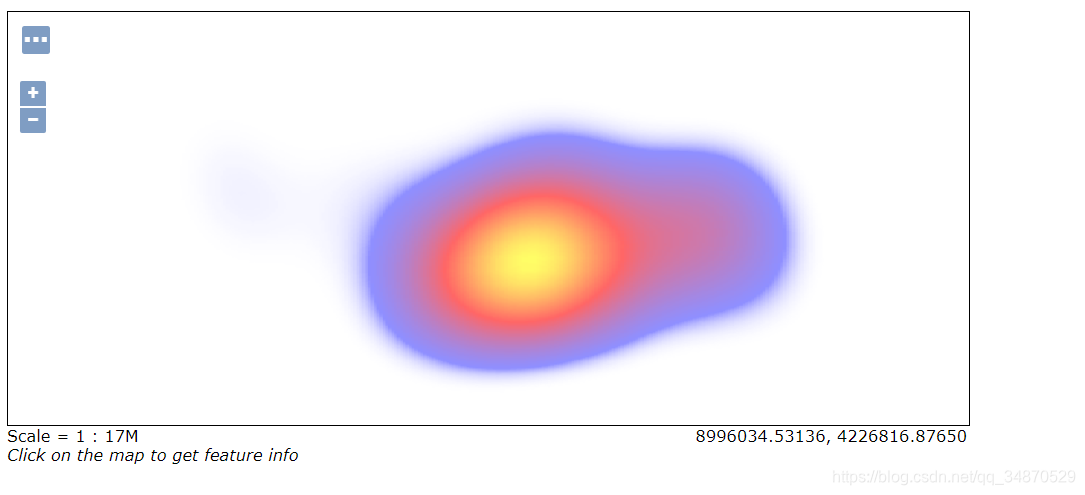

5:查看发布后的热力图
点击 layer Preview,选择刚才发布的图层

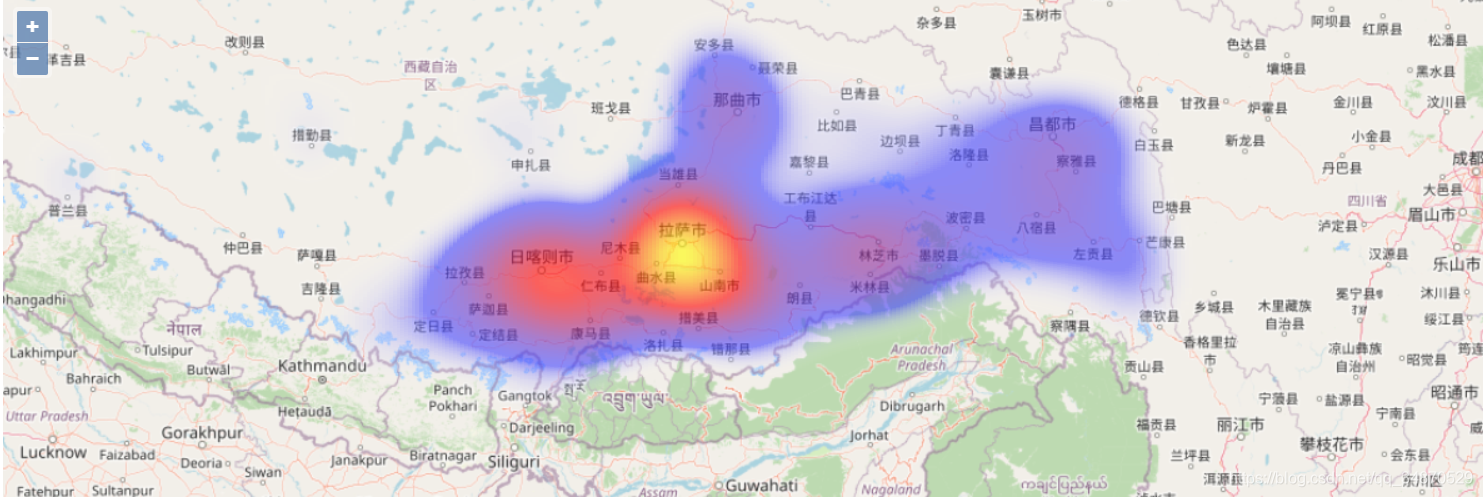

6:openlayers 添加上边发布的热力图
1: index.html
<!DOCTYPE html>
<html lang="en"><head><title>Image ArcGIS MapServer</title><!-- The line below is only needed for old environments like Internet Explorer and Android 4.x --><scriptsrc="https://cdn.polyfill.io/v2/polyfill.min.js?features=fetch,requestAnimationFrame,Element.prototype.classList,URL"></script><style>.map {width: 100%;height: 400px;}</style>
</head><body><div id="map" class="map"></div><script src="index.js"></script>
</body></html>
2: index.js
import 'ol/ol.css';
import Map from 'ol/Map';
import View from 'ol/View';
import ImageLayer from 'ol/layer/Image';
import TileLayer from 'ol/layer/Tile';
import ImageWMS from 'ol/source/ImageWMS';
import OSM from 'ol/source/OSM';var wmsSource = new ImageWMS({url: 'http://172.29.143.3:8080/geoserver/heatmap/wms',params: { 'LAYERS':'heatmap:HOSPITAL',},serverType: 'geoserver',crossOrigin: 'anonymous'
});var wmsLayer = new ImageLayer({source: wmsSource
});var view = new View({center: [0, 0],zoom: 1
});var map = new Map({layers: [new TileLayer({preload: 4,source: new OSM()})],target: 'map',view: view
});// 添加geoserver发布的热力图
map.addLayer(wmsLayer);
3: package.json
命令执行:
cnpm installnpm run dev
